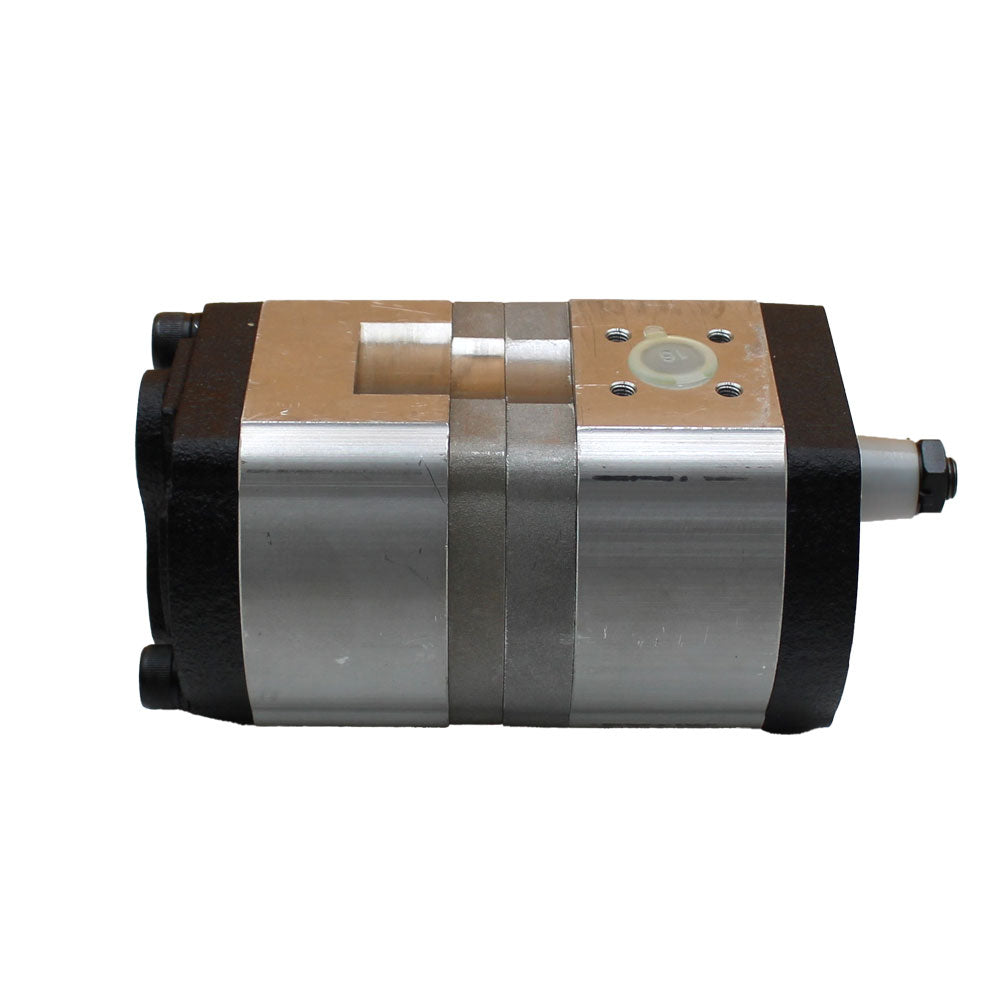

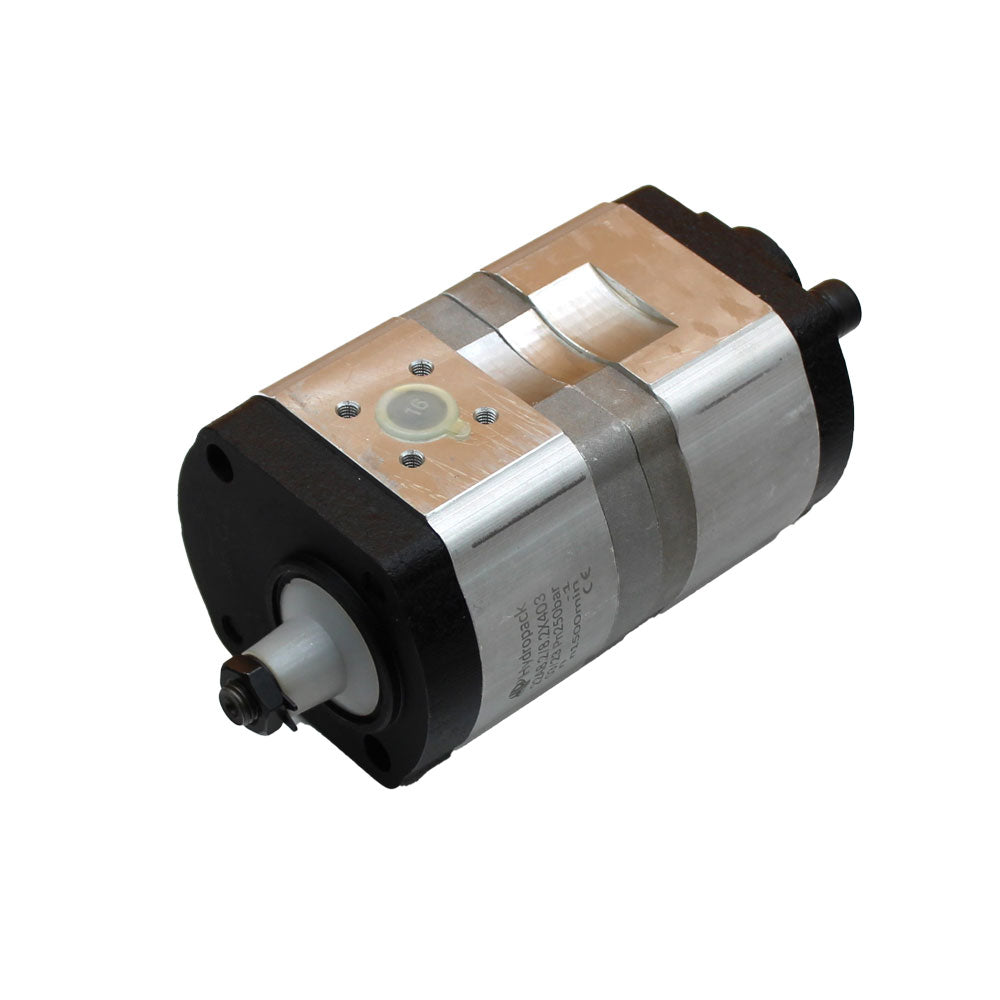

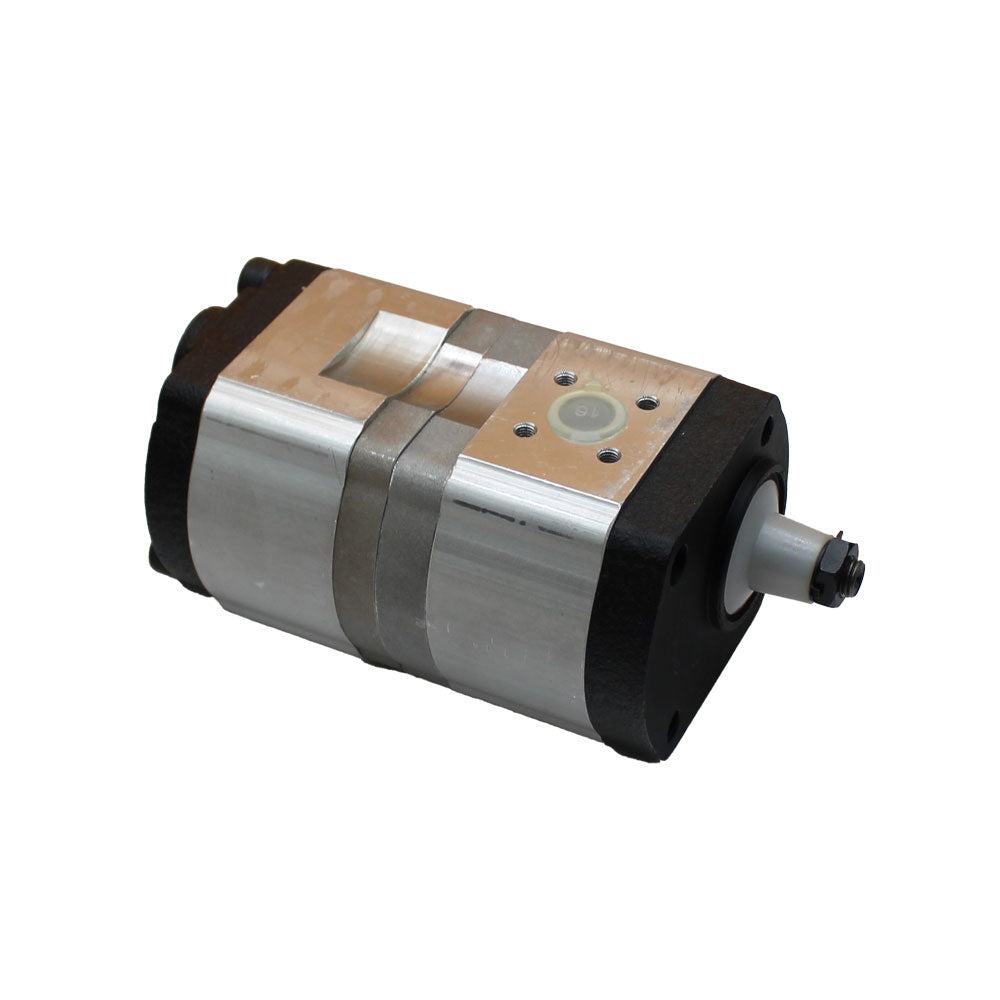

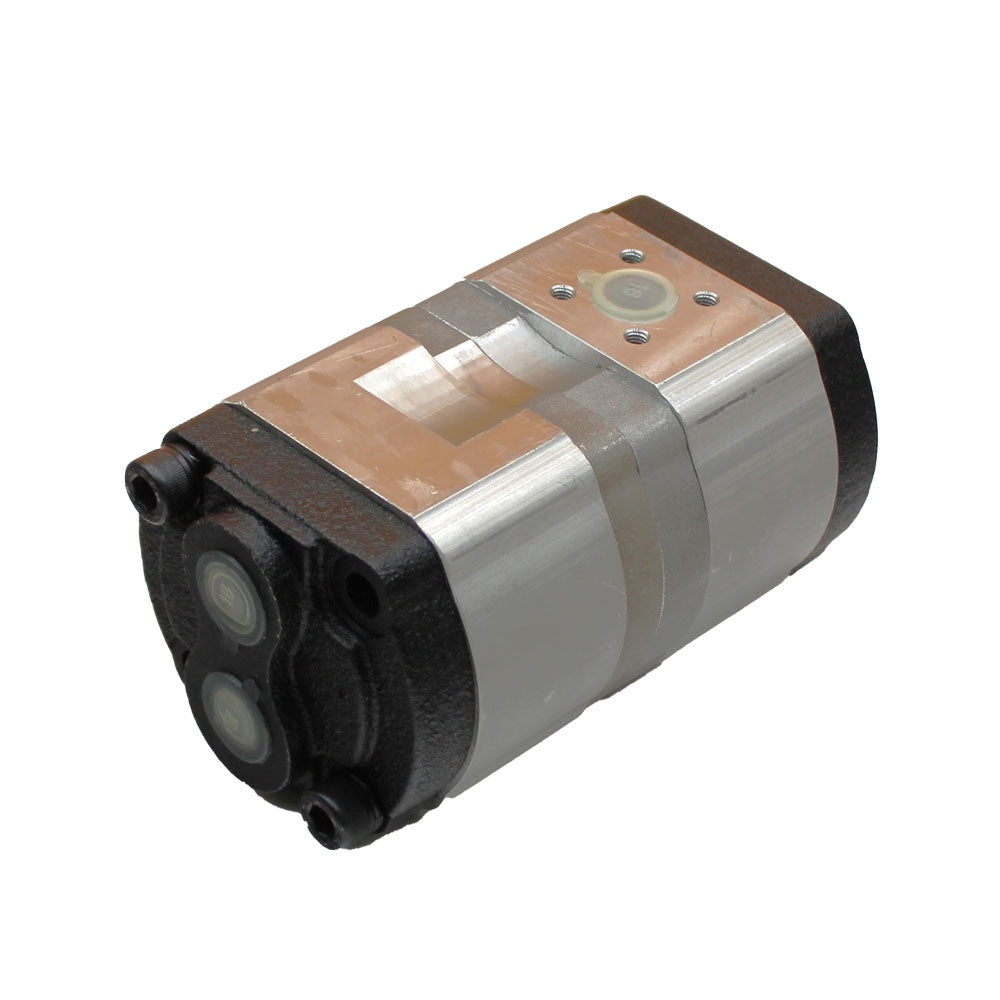

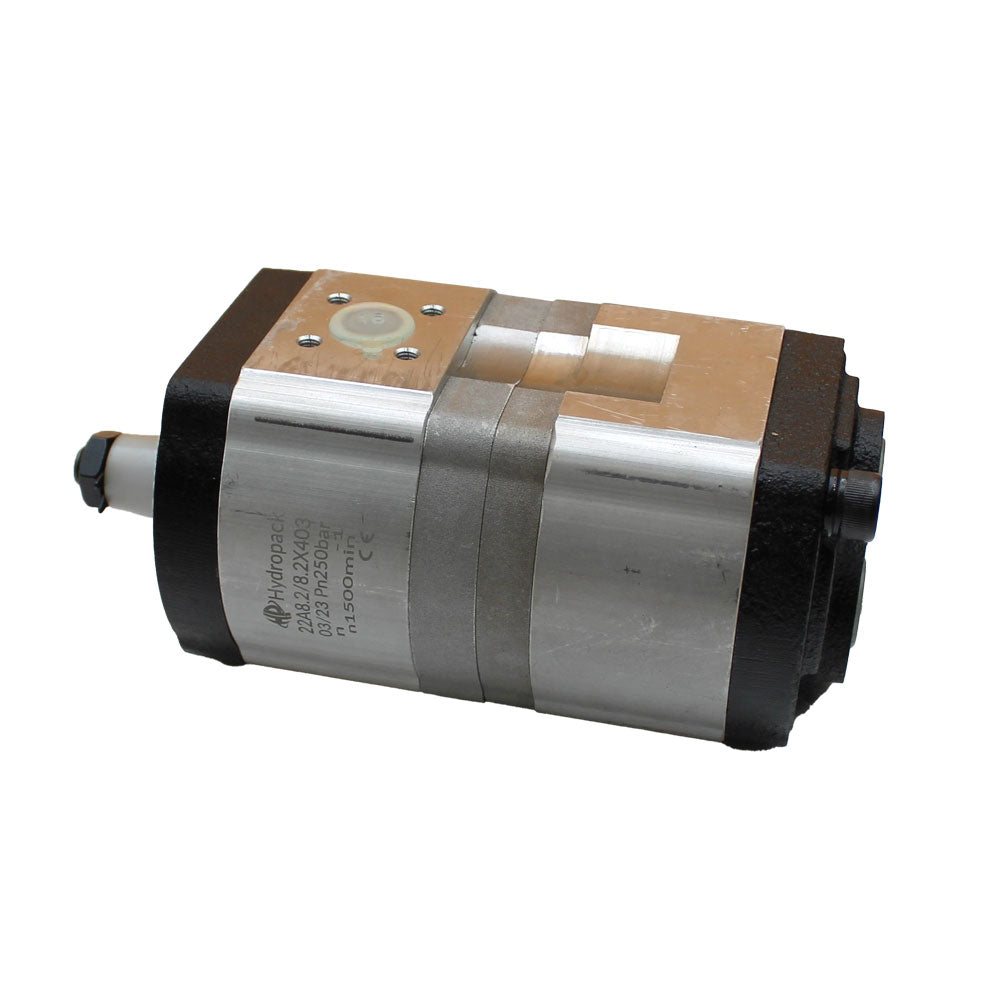

Hydraulic Pump Fits Case/International Harvester Replaces 1986964C1

Hydraulic Pump Fits Case/International Harvester Replaces 1986964C1

£304.00 GBP
£304.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Hydraulic Pump

Tech Info:
 -Front inlet hole fixing hole size: M6
 -Front inlet hole fixing hole spacing: 40mm
 -Front inlet hole size: 20mm
 -Front outlet hole fixing hole size: M6
 -Front outlet hole fixing hole spacing: 35mm
 -Front outlet hole size: 15mm
 -Inner max. GPM: 6.3
 -Inner max. LPM: 24
 -Length: 161.8mm
 -Maximum Pump Speed rpm: 3000
 -Outer max. GPM: 6.3
 -Outer max. LPM: 24
 -Pump rotation: Anti-Clockwise
 -Pump type: Tandem Pump
 -Rear Inlet Hole Size: M18 x 1.5mm
 -Rear Outlet Hole Size: M18 x 1.5mm
 -Side hole spacing: 60mm
 -Top hole spacing: 60mm

Made to Fits Case/International Harvester:
 Tractor Models: 433, 533, 633, 644, 733, 743, 744, 745, 745S, 833, 844, 844S
 Replaces Part Number(s): 1986964C1, 3147535R91, 3147535R92

Models This Part Fits:

533, 633, 743, 644, 733, 745, 745S, 833, 844S, 744, 844, 433

Additional Information:

Front inlet hole fixing hole size: M6 Front inlet hole fixing hole spacing: 40mm Front inlet hole size: 20mm Front outlet hole fixing hole size: M6 Front outlet hole fixing hole spacing: 35mm Front outlet hole size: 15mm Inner max. GPM: 6.3 Inner max. LPM: 24 Length: 161.8mm Maximum Pump Speed rpm: 3000 Outer max. GPM: 6.3 Outer max. LPM: 24 Pump rotation: Anti-Clockwise Pump type: Tandem Pump Rear Inlet Hole Size: M18 x 1.5mm Rear Outlet Hole Size: M18 x 1.5mm Side hole spacing: 60mm Top hole spacing: 60mm

Reference Numbers:

1986964C1, 3147535R91, 3147535R92

Product Category:

Agriculture
