1986068 198-6068 Seal Integral 1262704
1986068 198-6068 Seal Integral 1262704
Couldn't load pickup availability

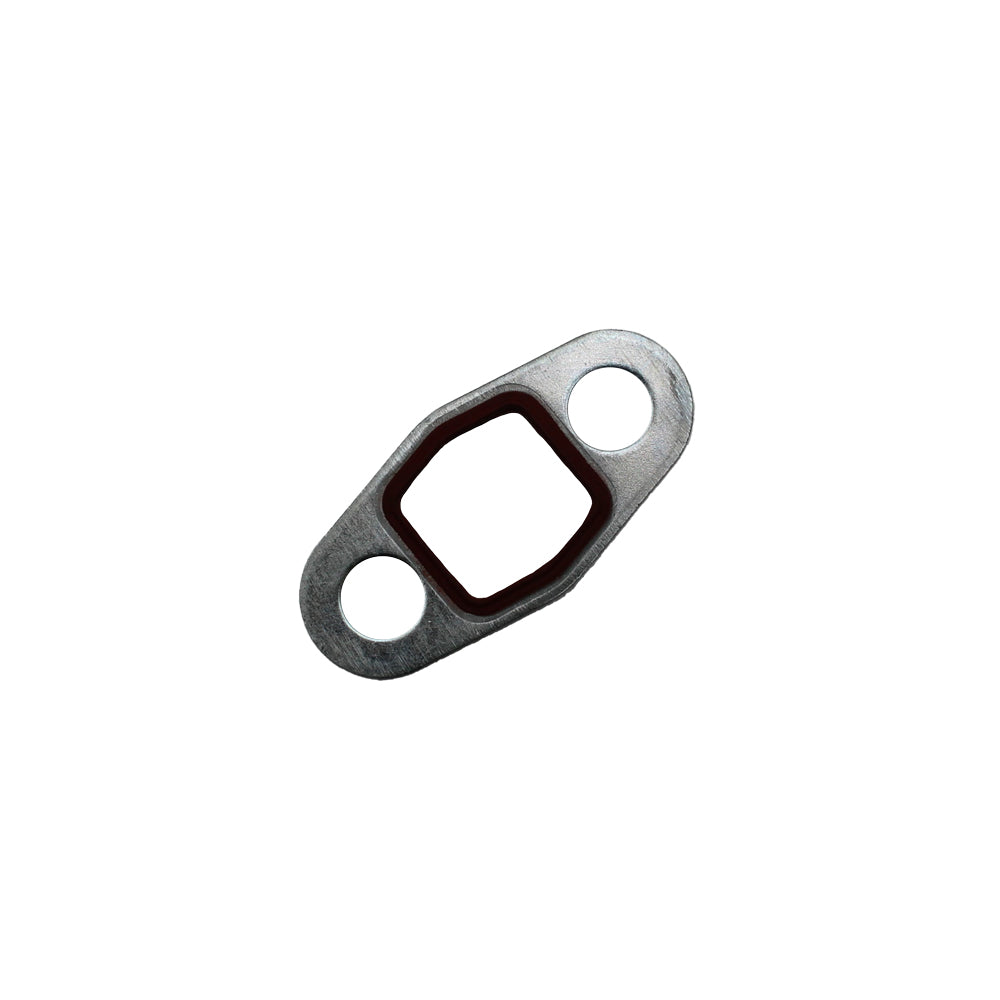

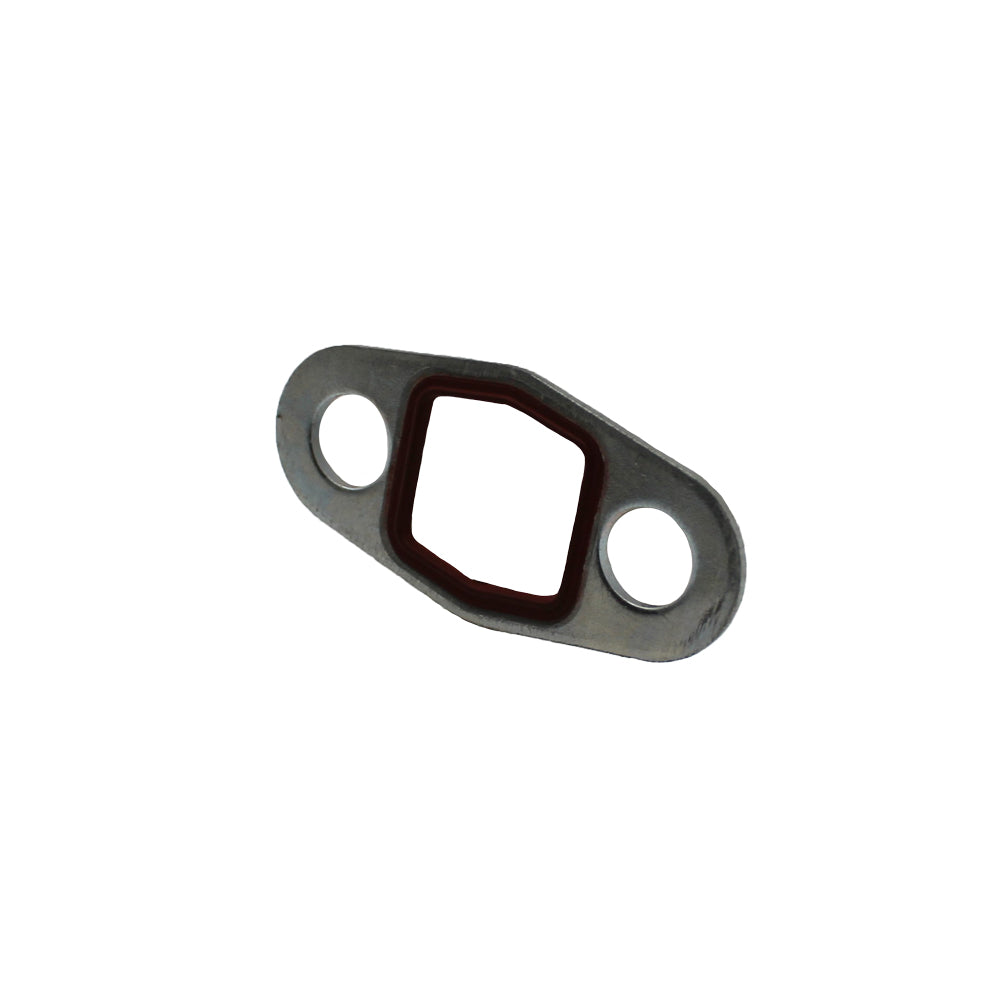

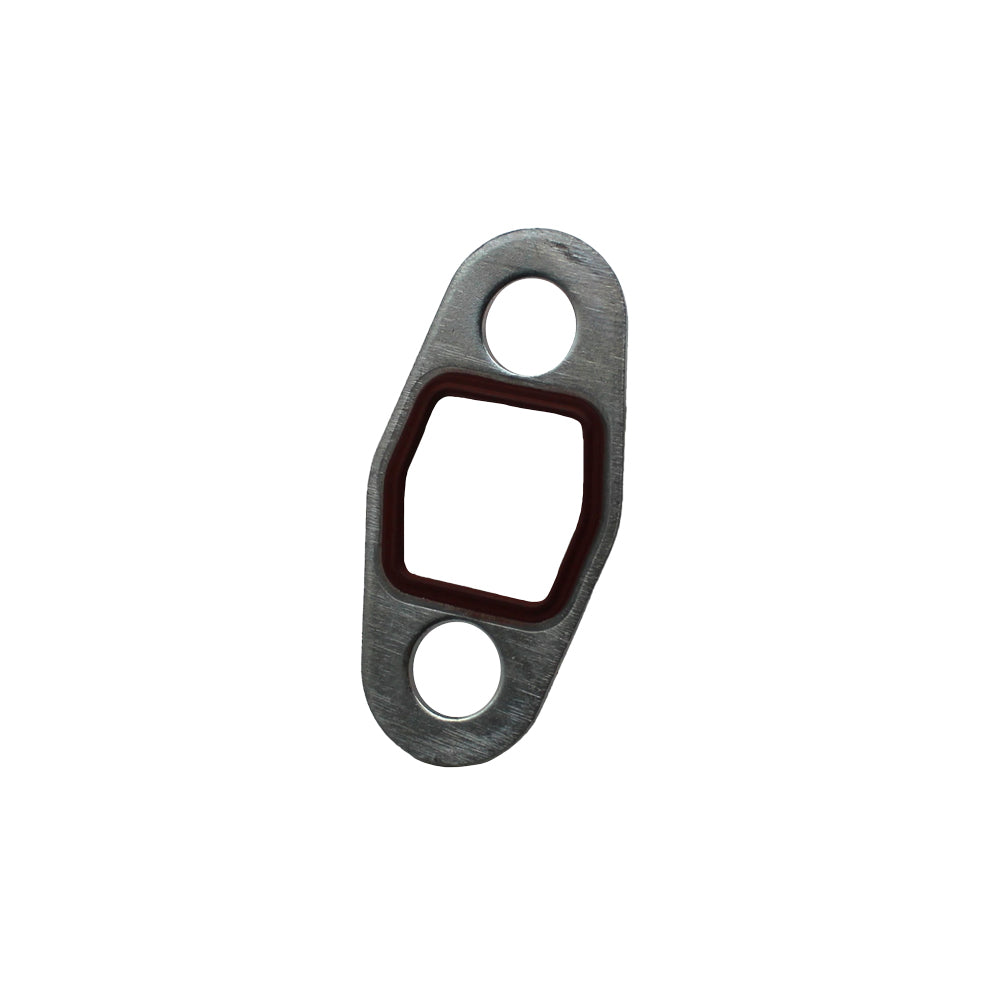

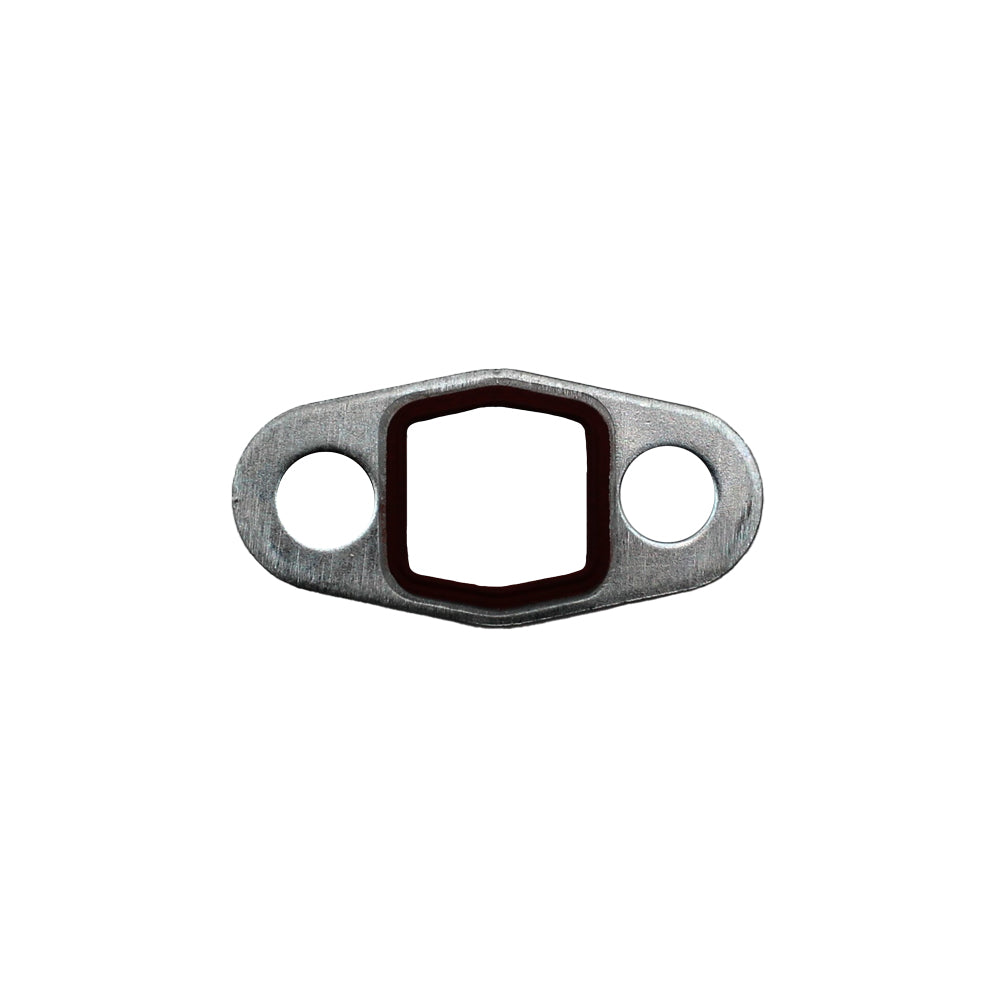

One New Aftermarket Replacement Integral Seal Fits Caterpillar (Fits CAT) Engines
This integral seal Fits Caterpillar (Fits CAT) diesel engines and is used in the turbocharger oil line circuit, sealing the 2-bolt flange connection to prevent oil leaks and maintain proper turbo lubrication pressure. Constructed of rubber and steel (FKM material), it delivers a precise, durable seal in high-temperature engine environments.
Specifications
- Material: Rubber and Steel (FKM)
- Shape: 2-Bolt Flange
- Length: 2.3 in (59 mm)
- Height: 0.04 in
- Width: 28 mm
- Temperature Range: -40 to 175 degrees C
Compatible Models
Fits Caterpillar Engines: 3406B, 3406C, 3406E, 3408, 3408B, 3408C, 3408E, 3412, 3412C, 3412D, 3412E, 3456, C-10, C-15, C-16, C-18, C15, C16
Fits Caterpillar Motor Graders: 140H, 143H, 14H, 160H, 163H
Fits Caterpillar Motor Scrapers / Earthmoving: 621F, 621G, 623G, 627G, 631E, 633E II, 637E, 651B, 657E, 24M
Fits Caterpillar Articulated Trucks: 735, 735B, 740, 740B
Fits Caterpillar Off-Highway Trucks: 769C
Replaces Part Number(s):
198-6068, 1986068, 126-2704, 1262704
Aftermarket Interchange Numbers
331213 (PAI), FP-1986068, FP1986068, M-1262704, M1262704
New aftermarket replacement part - not remanufactured, not used.
