46" Rebuild Kit for Ariens Spindle 21546238 Mulching Blade 21546611 Belt Pulley

46" Rebuild Kit for Ariens Spindle 21546238 Mulching Blade 21546611 Belt Pulley

£116.00 GBP
£116.00 GBP
Sale Sold out
Shipping calculated at checkout.
One Brand New Aftermarket Rebuild Kit for Ariens Mowers

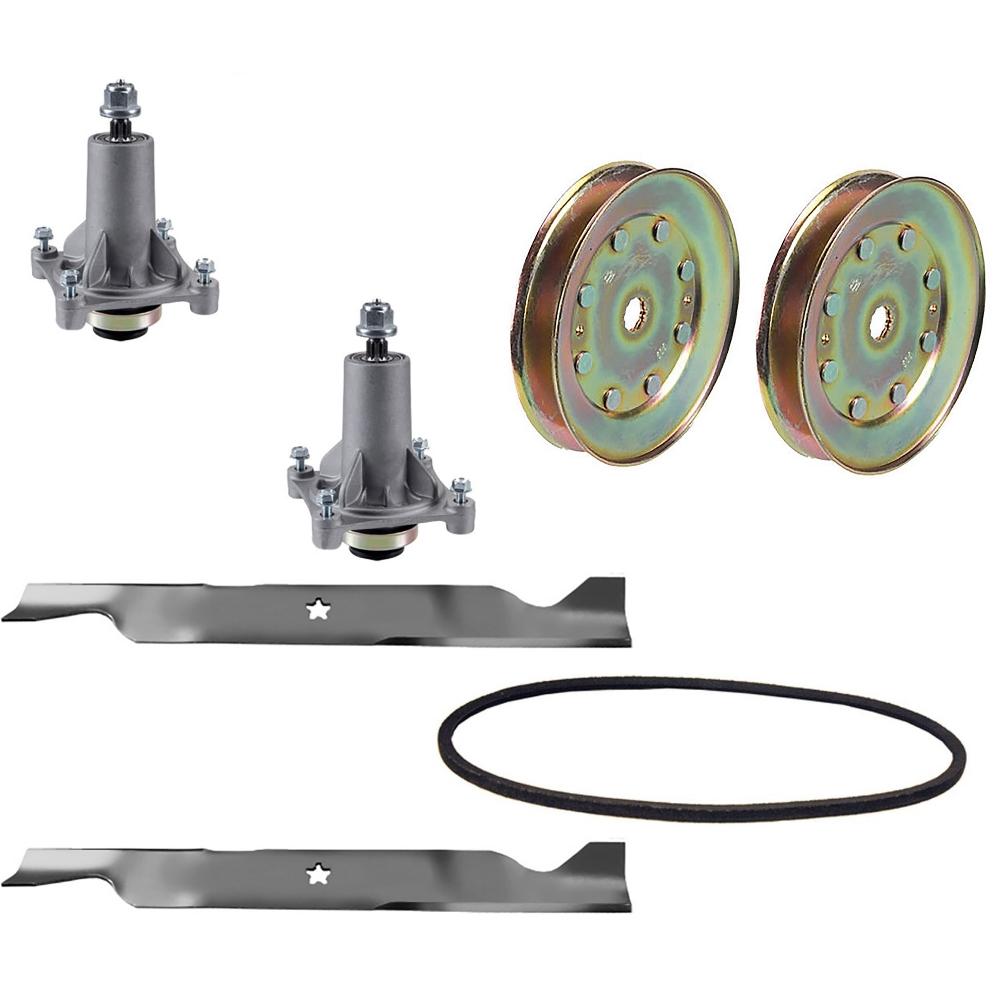

Kit Includes: (2) Spindles (2) Blades (2) Pulleys (1) Belt

Spindle Replaces Part Numbers:
Ariens: 21546238
AYP: 187292, 192870, 532192870
Dixon: 532187292, 532192870
Fits Husqvarna: 532187281, 532187292, 532192870, 539112057
McCulloch: 532 19 28-70
Fits Poulan: 532192870

Spindle Fits Models:
AYP 46", 48" and 54" decks

Spindle Specifications:
Height: 7-1/2"
5 Point Star Shaped Blade Mount

Blade Replaces Part Numbers:

Models This Part Fits:

LGT2654, YTH2454, GTH2654T

Additional Information:

(2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Replaces Part Numbers: 192870, 532187281, 532187292, 532192870, 539112057 (2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Numbers: 2246LS, 2346XLS, YTH2146XP (1) Belt 5/8" x 147.75" Wrapped Polyester Cord Replaces Part Number: 532 19 61-03, 587686701, 532196103, LAB40-0003, 5321961-03 (2) Drive Pullies Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 532153535,532173436,532177865

Reference Numbers:

192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 403107, 503405380, 532403107, 532405380, 594892801, 196103, 532196103, 587686701, 532129861, 532153535, 532173436, 539112171, 532 19 61-03, 587686701, 532196103, LAB40-0003, 5321961-03, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 403107, 405380, 40S380, 531309715, 532403107, 532405380, 594892801, 917532403107, 917532405380, 917777405380, 196103, 53219610, 532196103, 587686701, 129861, 153535, 173436, 177865, 532173436

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
View full details
