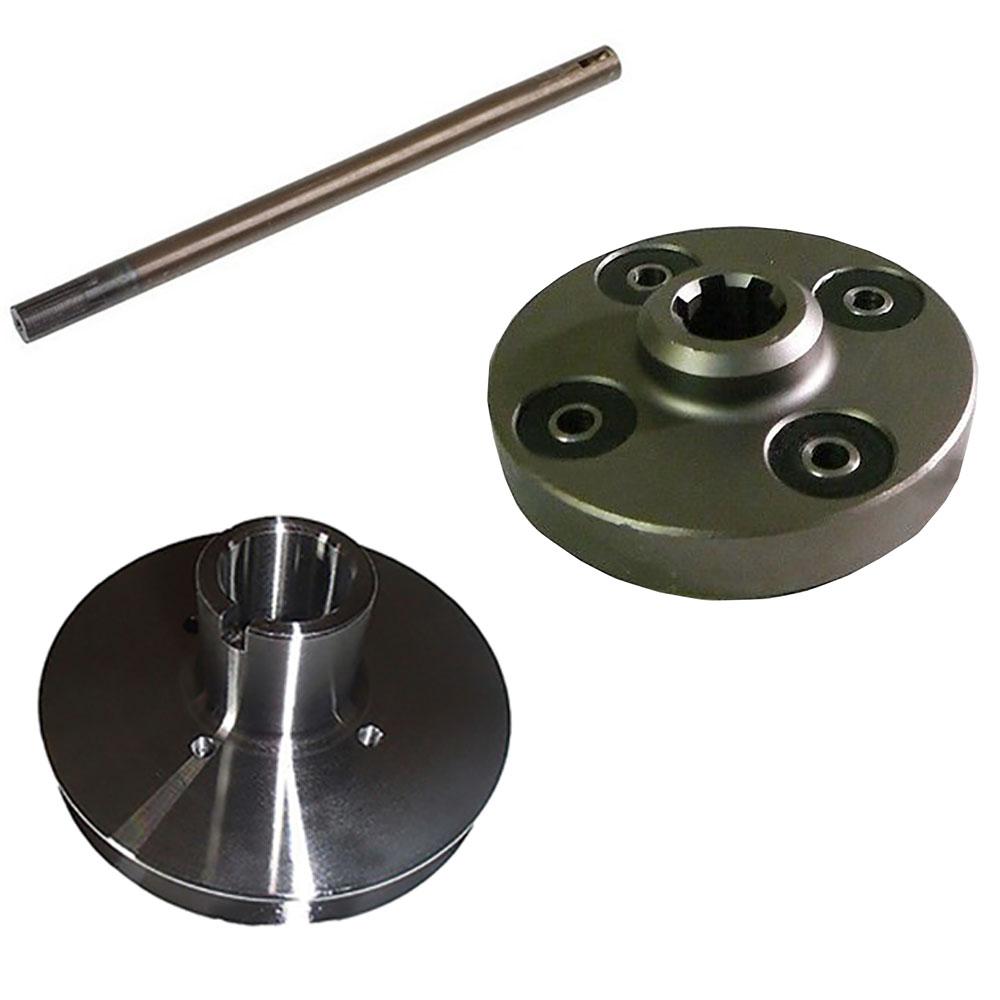

Hydraulic Drive Shaft and Pulleys Fits Ford/New Holland Replaces 192160

Hydraulic Drive Shaft and Pulleys Fits Ford/New Holland Replaces 192160

£112.00 GBP
£112.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Hydraulic Drive Shaft and Pulleys

Tech Info:

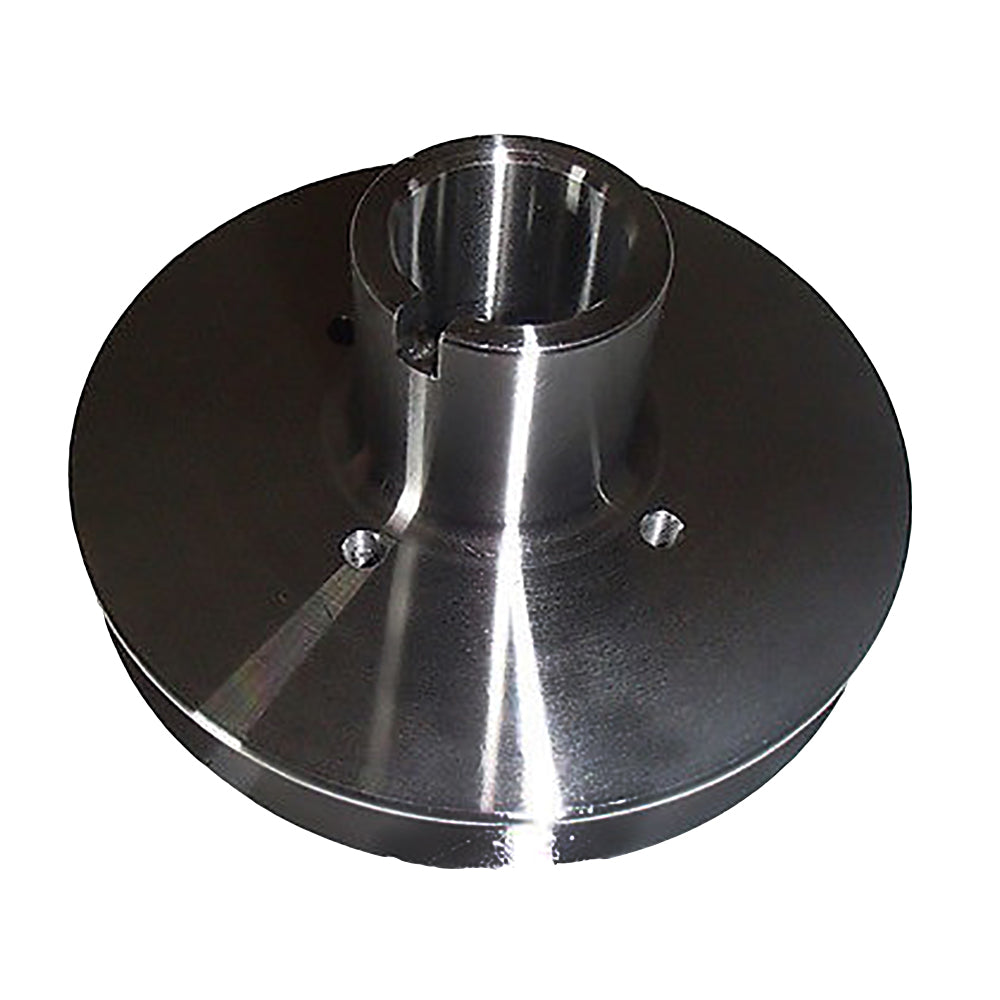

 -Hydraulic Pump Drive Pulley
 -Sheave has 7/16" front recess to accommodate hub. For Use With Loader Attachment.
 -5.000" Dia.
 -1.185" Dia. w/ Threaded Holes
 -Replaces: 192160
 -

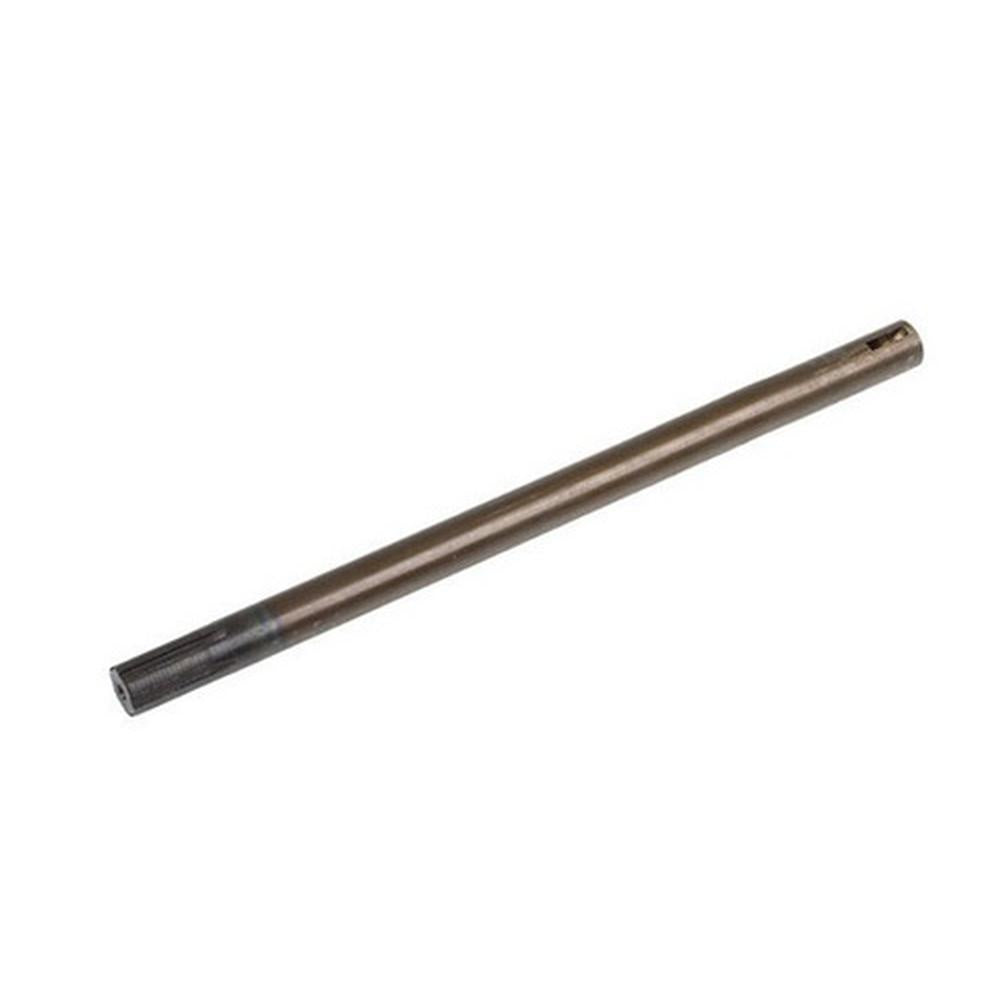

 -Hydraulic Pump Drive Shaft
 -13.06" Long
 -6 Spline
 -.750" Shaft
 -.187" Keyway
 -Replaces: 194354
 -

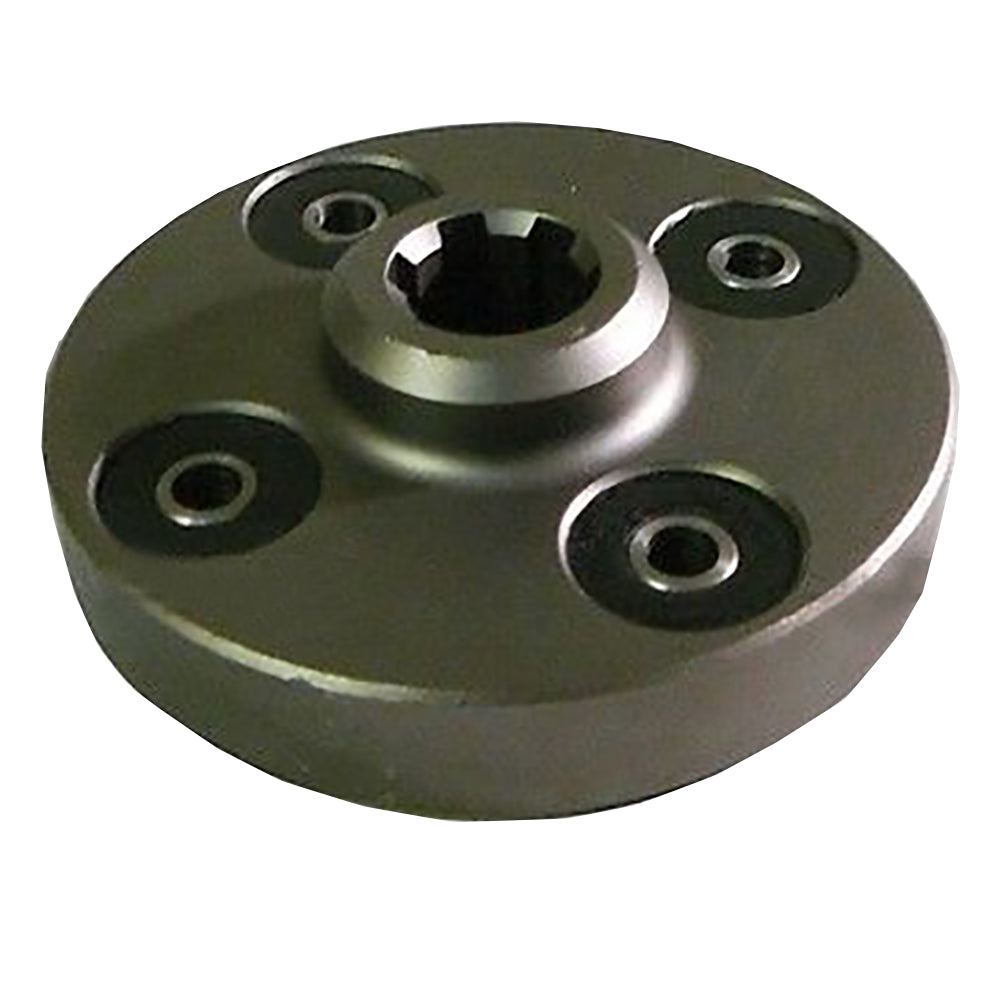

 -Hydraulic Pump Drive Hub Adapter
 -3-3/8" O.D.
 -2-3/8" center to center across bolt holes
 -1-5/8" center to center (1 hole to the next)
 -3/4" spline I.D.
 -6 splines
 -(4) 1/4" mounting holes
 -1.005" thick
 -Replaces: A722264, 192161

Made to Fits Ford/New Holland:
 Tractor Models: 2N, 8N, 9N
 Replaces Part Number(s): A722264, 192161, 192160, 194354

Models This Part Fits:

9N, 2N, 8N

Additional Information:

Hydraulic Pump Drive Pulley Sheave has 7/16" front recess to accommodate hub. For Use With Loader Attachment. 5.000" Dia. 1.185" Dia. w/ Threaded Holes Replaces: 192160 Hydraulic Pump Drive Shaft 13.06" Long 6 Spline .750" Shaft .187" Keyway Replaces: 194354 Hydraulic Pump Drive Hub Adapter 3-3/8" O.D. 2-3/8" center to center across bolt holes 1-5/8" center to center (1 hole to the next) 3/4" spline I.D. 6 splines (4) 1/4" mounting holes 1.005" thick Replaces: A722264, 192161

Reference Numbers:

A722264, 192161, 192160, 194354
