1911748 New Regulator fits Several Kohler models 1912106 1912208 1912227
1911748 New Regulator fits Several Kohler models 1912106 1912208 1912227
Couldn't load pickup availability

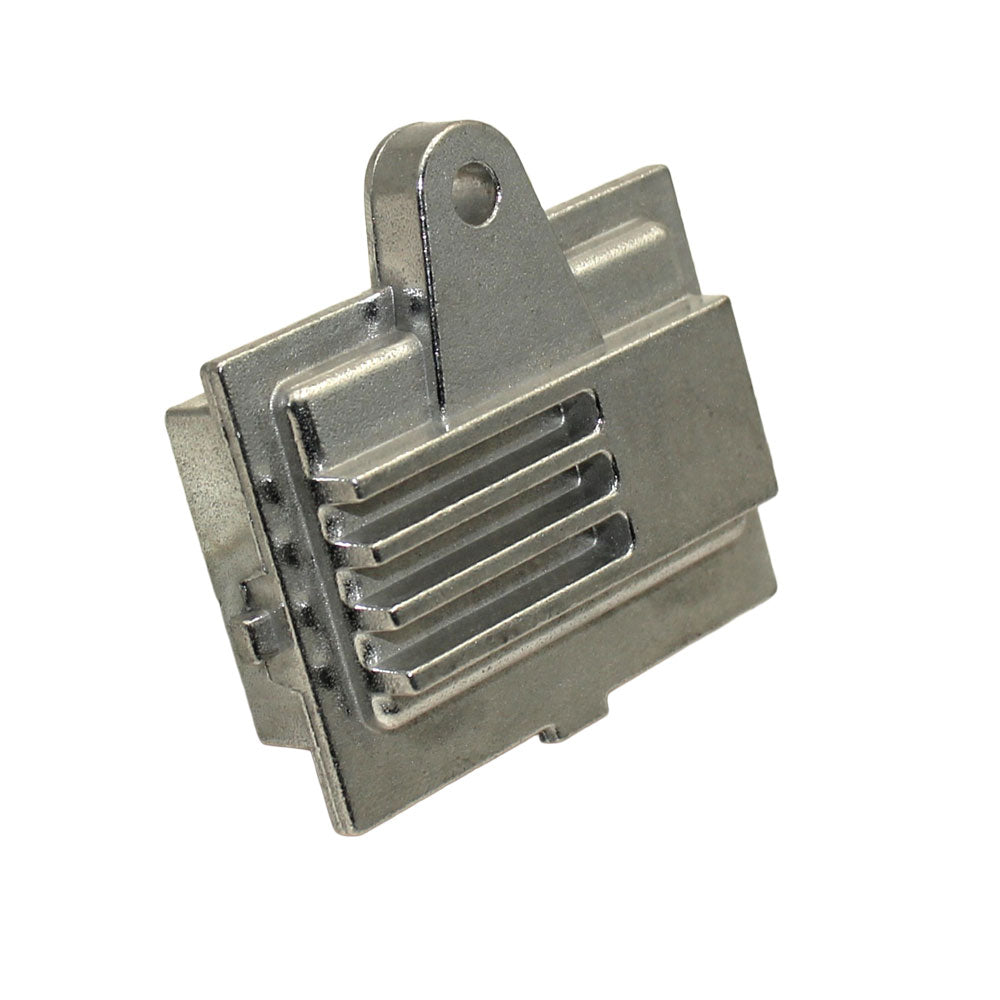

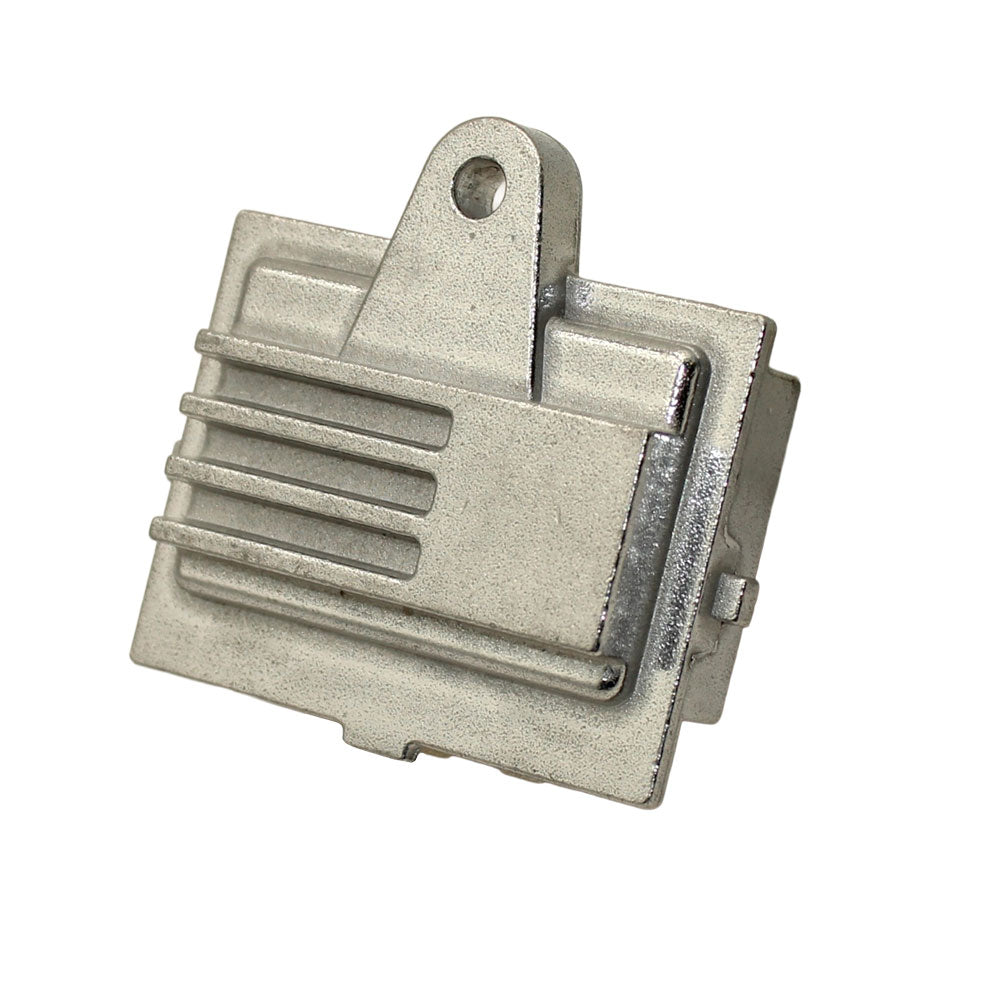

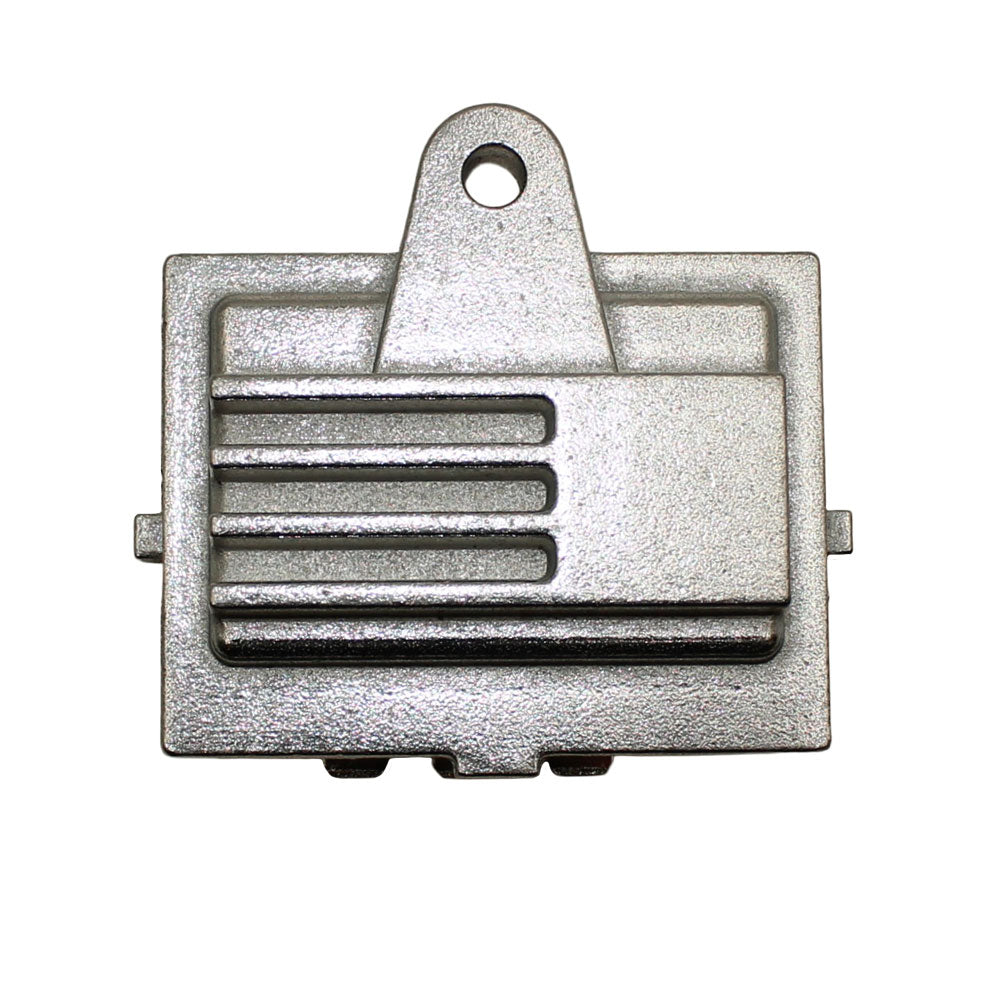

One New Aftermarket Replacement Voltage Regulator Rectifier for Kohler / Onan P-Series Engines
This 12-volt voltage regulator rectifier services the charging system on Kohler (Onan) P-Series twin-cylinder engines rated 16-20 HP with 20-amp alternators. The unit combines the regulator and rectifier functions in a single solid-state assembly with three male terminals (AC, B+, AC) and negative polarity. Fits John Deere lawn tractors equipped with Onan engines.
Specifications
- Voltage: 12V
- Amperage: 20 Amp

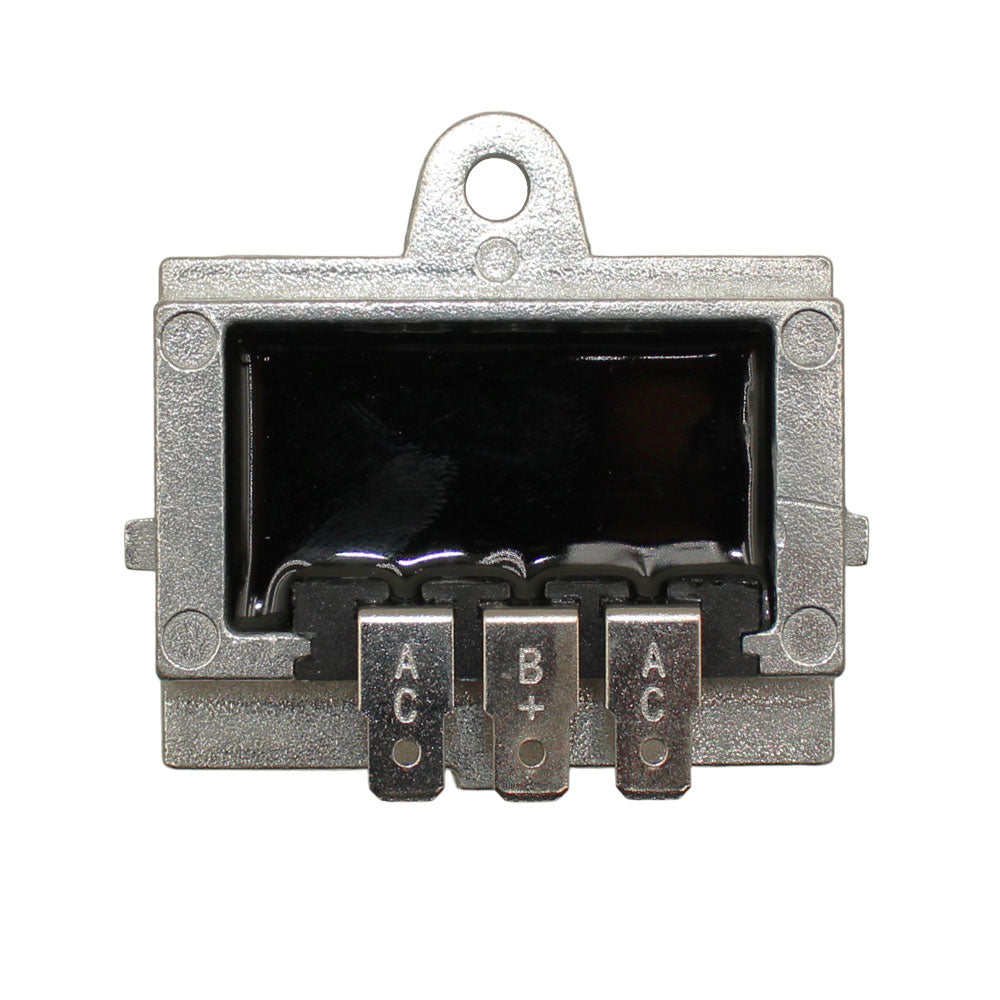

- Terminal ID: AC, B+, AC (3 male terminals)
- Polarity: Negative
- Includes Rectifier: Yes
- Adjustable: No
- Includes Brush Holder: No
- Includes Tolerance Ring: No
Compatible Models
Onan P-Series Engines (16-20 HP): P216, P216G, P218, P218G, P220, P220G
Fits John Deere Lawn Tractors (with Onan Engine): 318 (1983-1992), 320 (1992-1994), 322 (1988-1991), 325 (1995-2006), 332 (1986-1990), 335 (1998-2006), 345 (1994-2006), 415 (1995-1997), 420 (1983-1990)
Wheel Horse (with Onan Engine): P216G, P218G, P220G
Replaces Part Number(s):
191-1748, 1911748, 1911748-A, HE191-1748, HE1911748, 191-2106, 1912106, 191-2106-A, 1912106-A, 191-2108, 1912108, 191-2208, 1912208, 191-2208-A, 1912208-A, 191-2227, 1912227, 191-2227-A, 1912227-A, 191-2277, 1912277, 1912277-A
Aftermarket Interchange Numbers
AKH6003 (Arrowhead), TRR2277 (WAI/Rareelectrical), 230-22060 (J&N), ELP50-0148, 8099-1014
New aftermarket replacement part - not remanufactured, not used.
