187292 Deck Rebuild Kit Fits Craftsman 42" Fits Husqvarna LT1000 LT2000 130794

187292 Deck Rebuild Kit Fits Craftsman 42" Fits Husqvarna LT1000 LT2000 130794

£166.00 GBP
£166.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement 42" Deck Rebuild Kit

Fits Craftsman Mower Models: LT1000, LT2000, 130794

Replaces Part Number: 187292

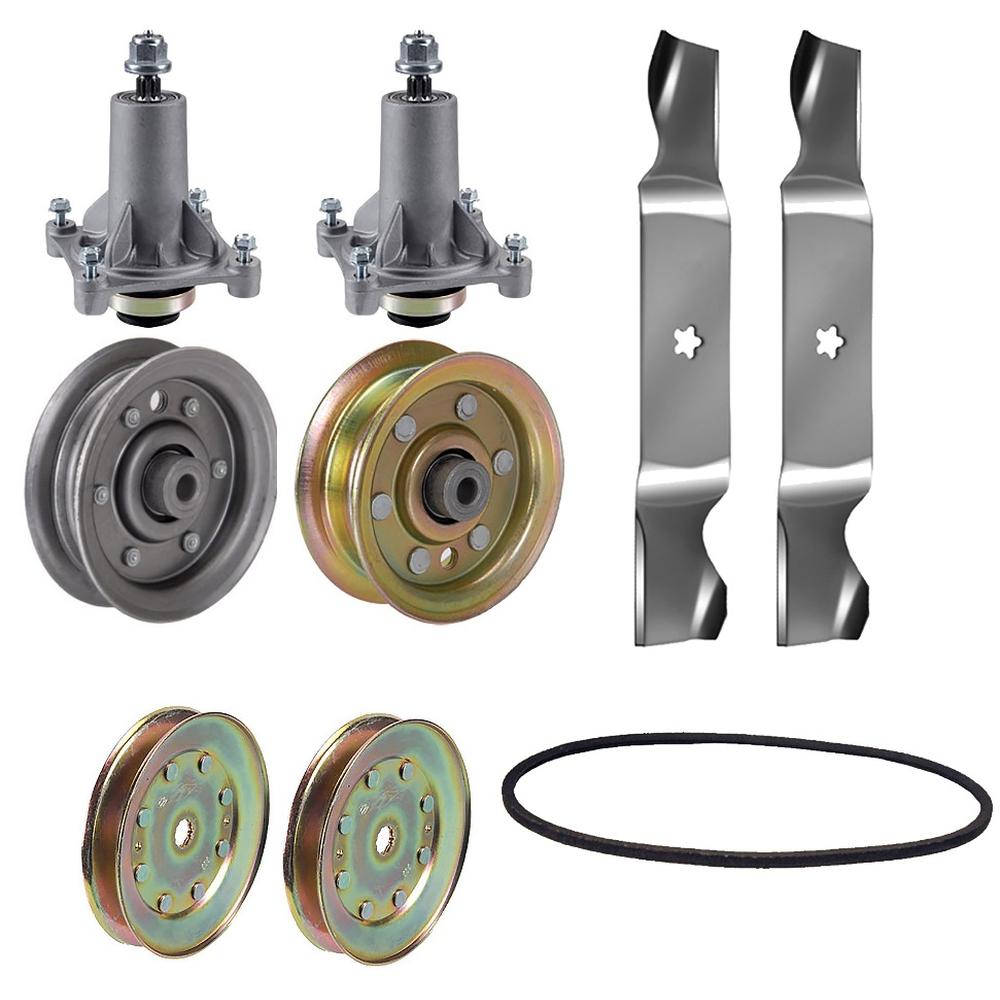

Kit Contains:
(2) Spindle Assemblies
(2) Drive Pulleys
(2) Blades
(1) Belt
(1) Flat Idler Pulley
(1) Flat Idler Pulley

Spindle Assembly -
4-Bolt Long Housing
5-Point Star Blade Mount
Threaded Mounting Holes for Easy Installation
Shaft is Splined for Spline-Type Pulleys
Includes Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts


Drive Pulley -
Outer Diameter: 5-1/6"
Inner Diameter: 9/16"
Fits 42" Deck models
Steel

Lawn Mower Blade -
Type: Notched Fits Hi-Lift Blade
Length: 21"
Center Hole: 5 Point Star

Models This Part Fits:

42" Mower Decks

Additional Information:

(2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Lock Nut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (2) Drive Pulleys Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Number(s): 532129861, 532153535, 532173436, 539112171 (2) Lawn Mower Blades Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Number(s): 532127843, 532138498, 532138971 (1) Belt Color Gray Length: 97.5" Material: Polyester Cord Thickness: 0.444" Type: Wrapped Width: 5/8" Replaces Part Number(s): 174883, 531300767, 532174883 (1) Flat Idler Pulley Flat Idler w/ Flanges Steel Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors. 3.875" (3 7/8'') Outer Diameter .375'' (3/8") Inner Diameter Replaces Part Number(s): 532131494, 532173438, 597025001 (1) Flat Idler Pulley Flat Idler w/ Flanges Steel 3.06" Outer Diameter not including flange 3-7/8" Outside diameter with flanges 3/8" Inner Diameter Replaces Part Number(s): 532 17 34-37, 532 17 34 37, 532173437

Reference Numbers:

532131494, 532173438, 597025001, 532 17 34-37, 532 17 34 37, 532173437, 174883, 531300767, 532174883, 532127843, 532138498, 532138971, 532129861, 532153535, 532173436, 539112171, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 104360X, 131494, 173438, 532173438, 173437, 532173437, 174883, 532174883, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 129861, 153535, 173436, 177865, 532173436, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
View full details
