Starter/Generator Repair Kit Fits Delco Replaces 1856494

Starter/Generator Repair Kit Fits Delco Replaces 1856494

£38.00 GBP
£38.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Starter/Generator Repair Kit

Tech Info:

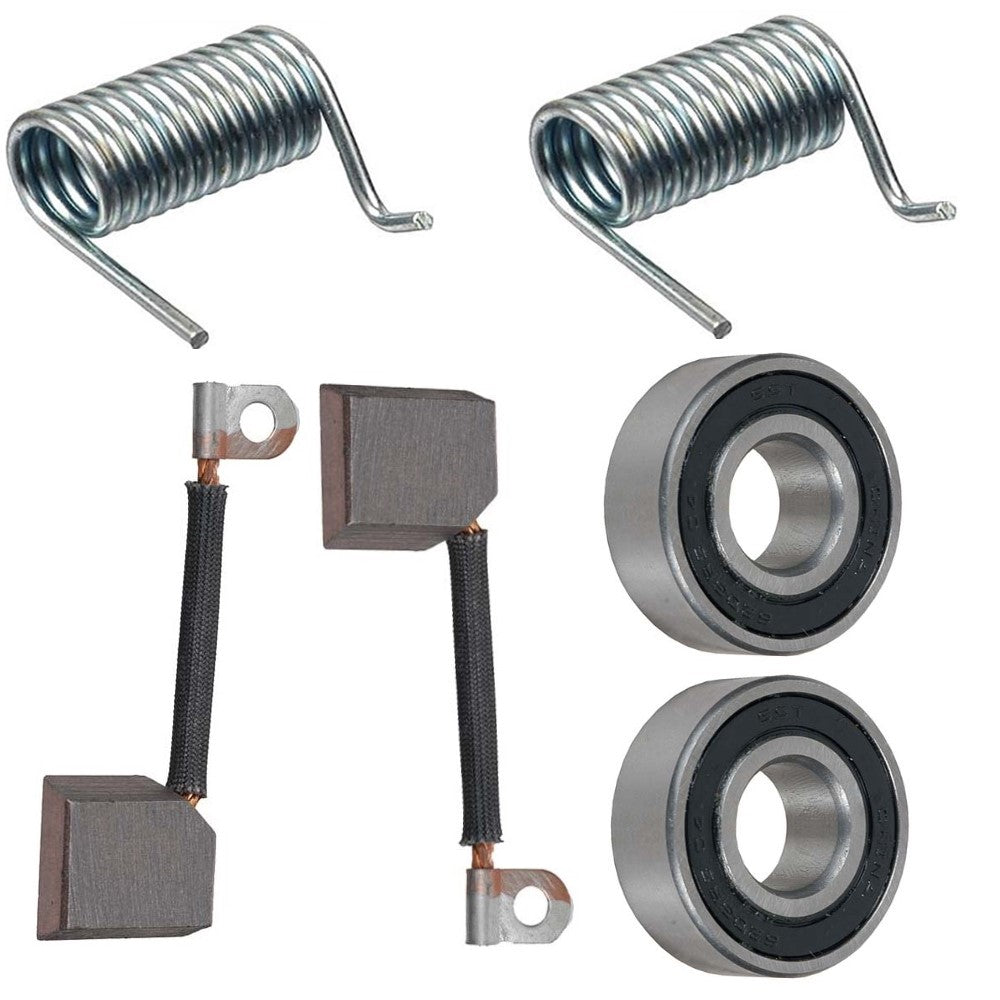

 -Kit Contains:
 -

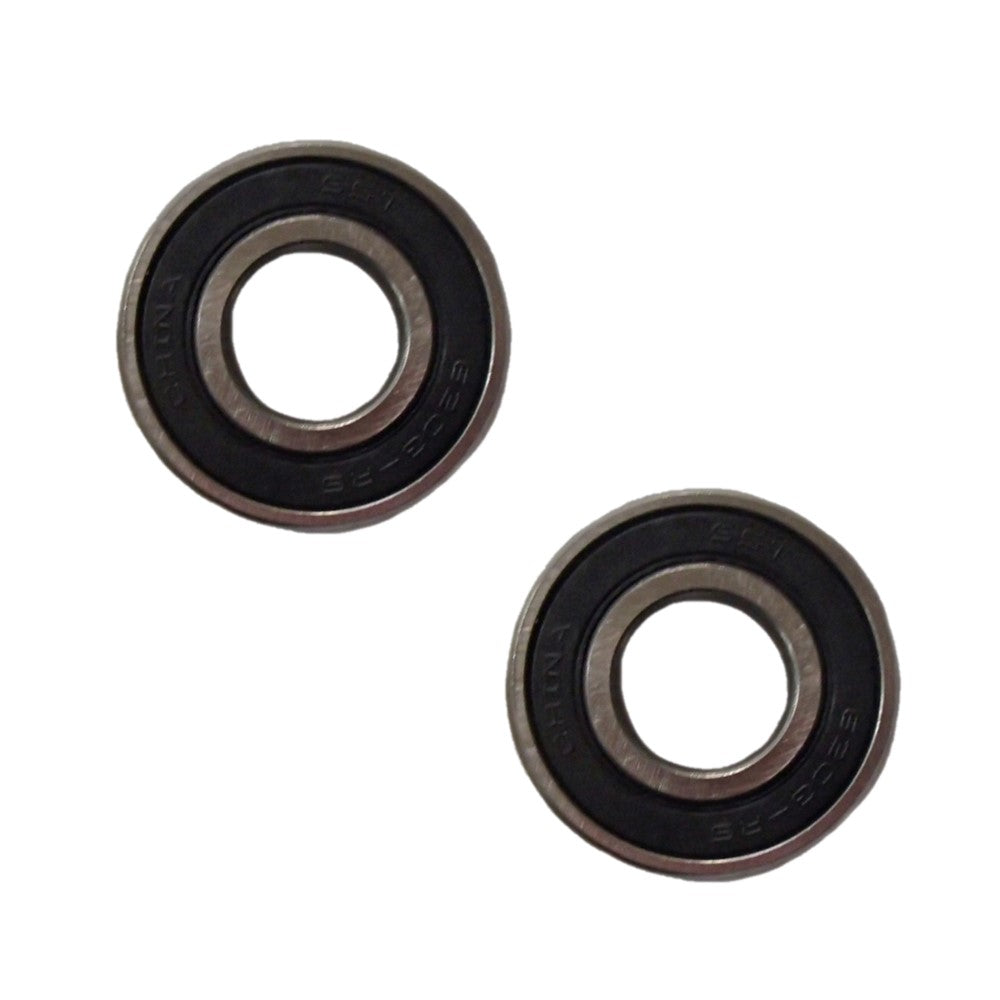

 -(2) Sealed Ball Bearing (Econ Version)
 -ID: 0.669" (17mm)
 -OD: 1.575" (40mm)
 -Width: 0.472" (12mm)
 -Bearing Type: Double Sealed
 -Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
 -

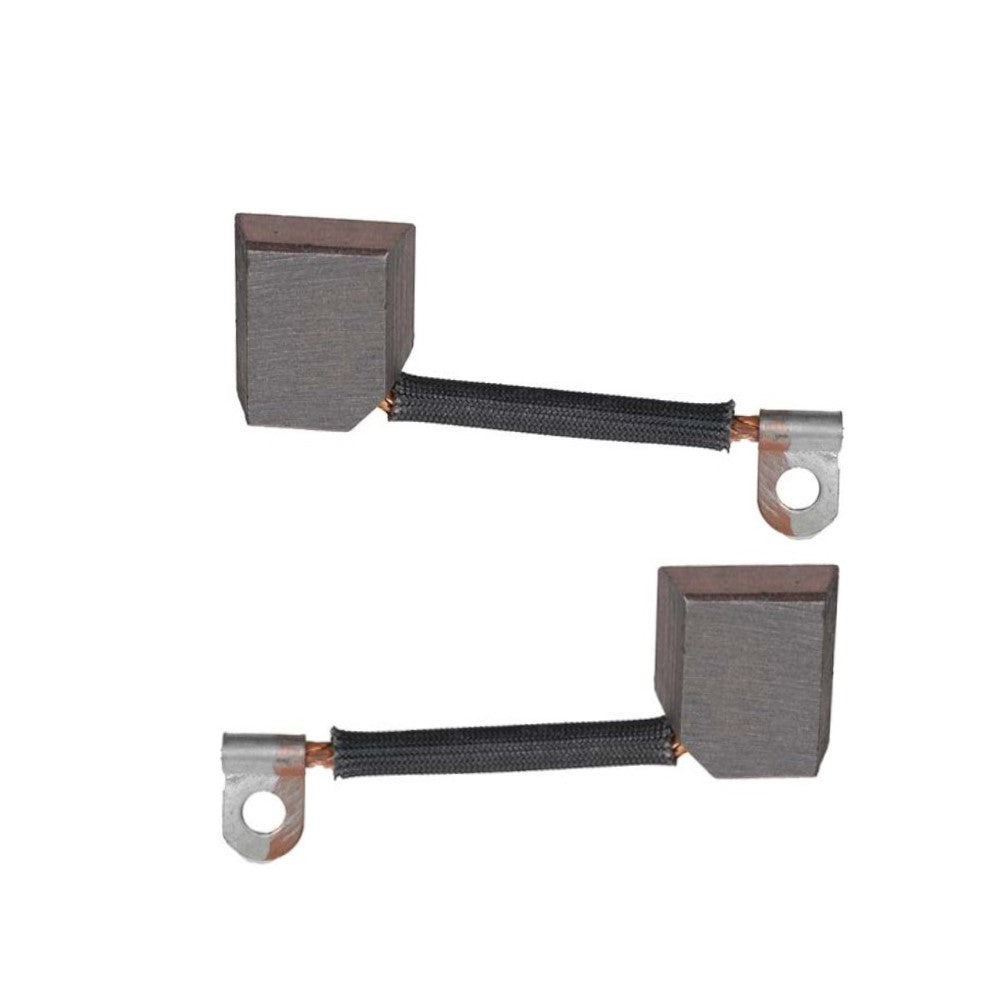

 -(2) Generator Brush
 -Voltage: 12
 -Quality: Standard
 -Unit Type: Generators
 -Length: 0.827in / 21mm
 -Width: 0.866in / 22mm
 -Height: 0.315in / 8mm
 -Lead Length: 1.843in / 46.8mm
 -Replaces Part Numbers: 1856494,1880512,1887751,1906922,1906973,1946427,1946437,1946737
 -

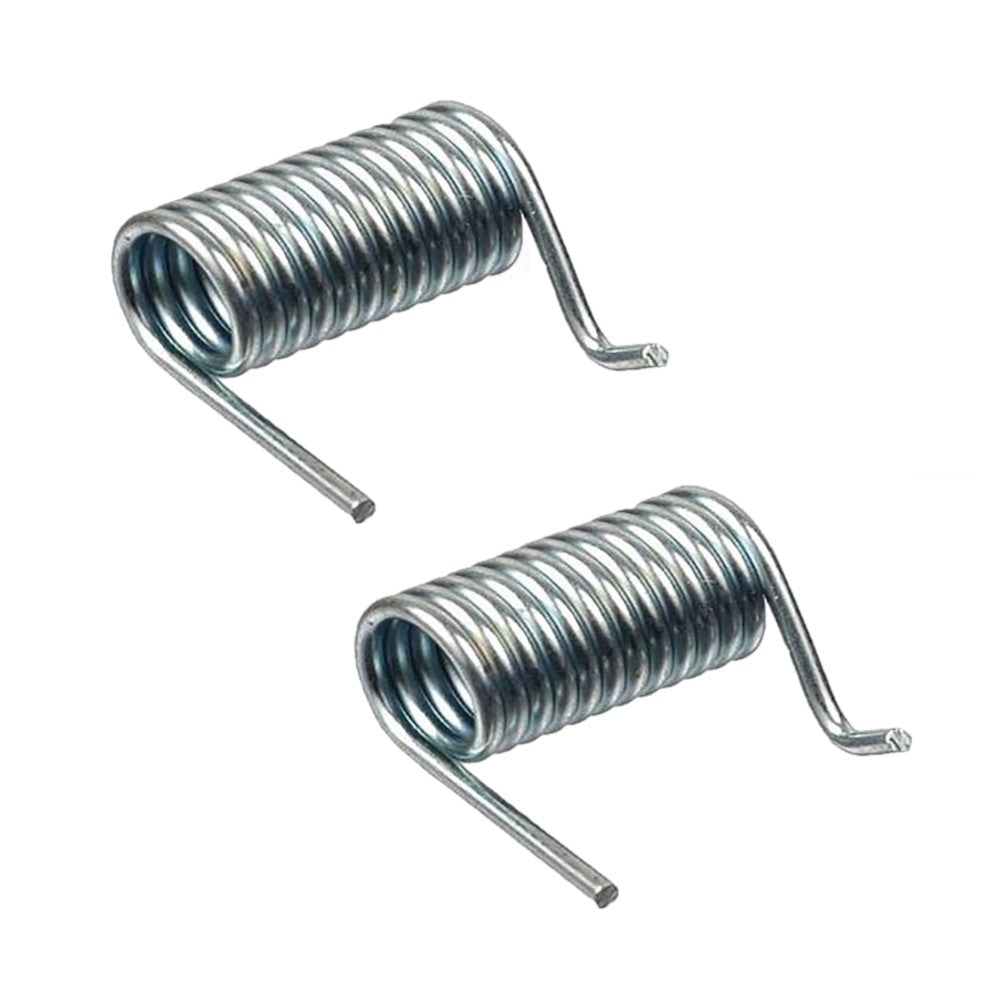

 -(2) Delco Brush Spring
 -Description: Brush Spring
 -Unit Type: Generators
 -Notes: For Use with OEM Brush Holders
 -Application: Delco Generators
 -Replaces Part Numbers: 1856992,1903720,1908829

Made to Fit Delco:
 Replaces Part Number(s): 1856494,1880512,1887751,1906922,1906973,1946427,1946437,1946737

 Replaces Part Number(s): 1856992,1903720,1908829,1916324,1924349,D3950-SPRING

Additional Information:

Kit Contains: (2) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (2) Generator Brush Voltage: 12 Quality: Standard Unit Type: Generators Length: 0.827in / 21mm Width: 0.866in / 22mm Height: 0.315in / 8mm Lead Length: 1.843in / 46.8mm Replaces Part Numbers: 1856494,1880512,1887751,1906922,1906973,1946427,1946437,1946737 (2) Delco Brush Spring Description: Brush Spring Unit Type: Generators Notes: For Use with OEM Brush Holders Application: Delco Generators Replaces Part Numbers: 1856992,1903720,1908829

Reference Numbers:

1856494,1880512,1887751,1906922,1906973,1946427,1946437,1946737, 1856992,1903720,1908829,1916324,1924349,D3950-SPRING
