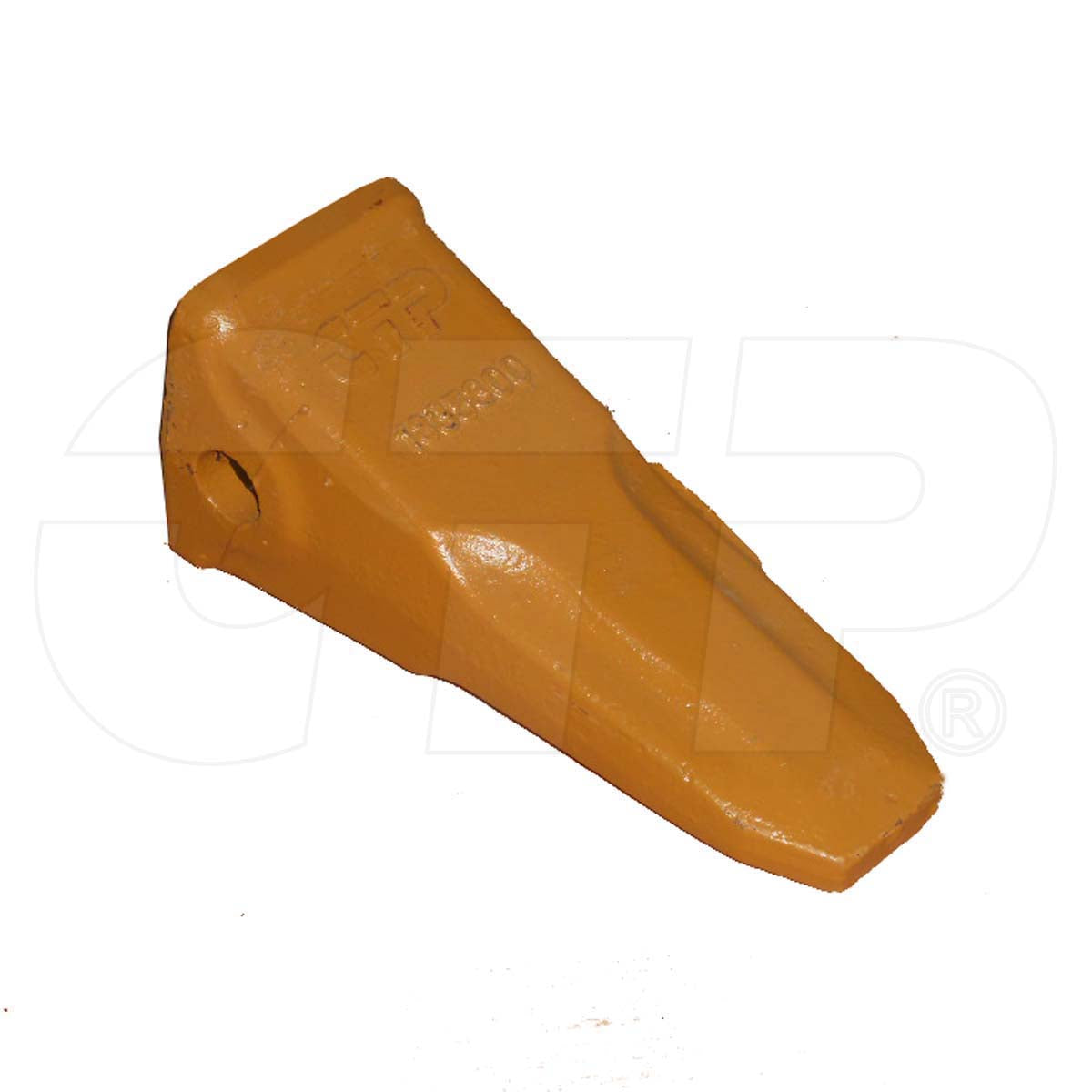

1835300 Tip-Penetration Plus Fits Caterpillar Models

One New Aftermarket Replacement Tip-Penetration Plus Bucket Tooth for Caterpillar (Cat) Excavators

This aftermarket replacement Tip-Penetration Plus (part number 1835300 / 183-5300) is a J300-series ground engaging tool (GET) bucket tooth designed for Caterpillar (Cat) hydraulic excavators. The Penetration Plus profile delivers enhanced digging penetration in compacted and mixed-material ground conditions, making it well suited for general earthmoving, trenching, and site preparation work. This tooth mounts on Cat J300-series adapters and uses a 9J2308 pin with an 8E6259 sleeved retainer.

Specifications

• Part Type: Tip-Penetration Plus (TIP-PENETRATION PLUS)
• Tooth System: Caterpillar J300 Series
• Weight: approximately 11.5 lbs (5.2 kg)
• Pin: 9J2308
• Retainer: 8E6259 (sleeved)
• Material: Alloy Steel

Compatible Models

Caterpillar Hydraulic Excavators: 311C, 312C, 312C L, 312D, 312D L, 312D2, 312D2 L, 312E L, 313D2, 313D2 GC, 314E LCR, 315C, 315F LCR, 317B L, 317B LN, 318C, 320C, 322B L, 322C, 325C, 325F LCR

Caterpillar Mini Hydraulic Excavators: 302.7CR, 303CR, 303.5CR, 304CR, 305CR, 306, 306.5, 307.5, 308, 309, 310

Replaces Part Number(s):

1835300, 183-5300

Aftermarket Interchange Numbers

1U3302V, 1U-3302V (V-Series J300 bucket tooth)

New aftermarket replacement part - not remanufactured, not used.
