181983M1 New Hydraulic Lift Cylinder Piston Fits Massey Ferguson 202 35 50 TEA20
181983M1 New Hydraulic Lift Cylinder Piston Fits Massey Ferguson 202 35 50 TEA20
Couldn't load pickup availability

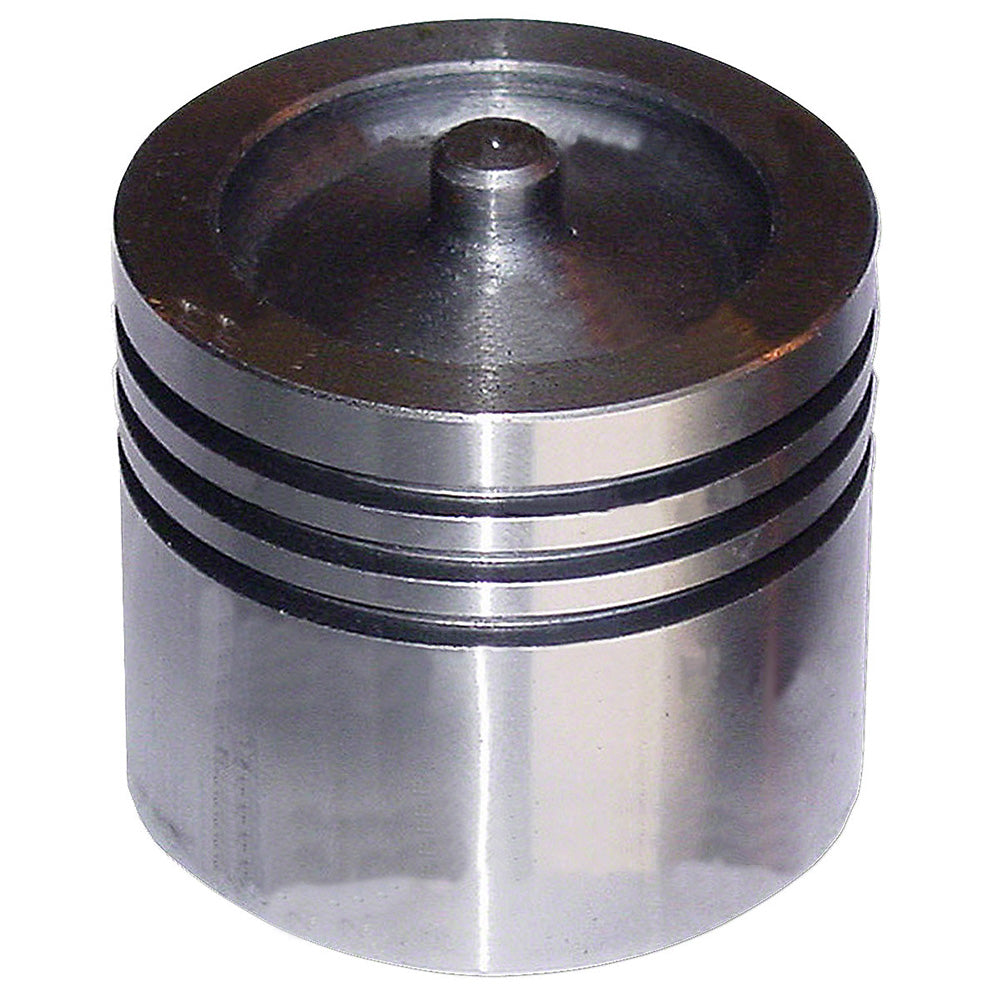

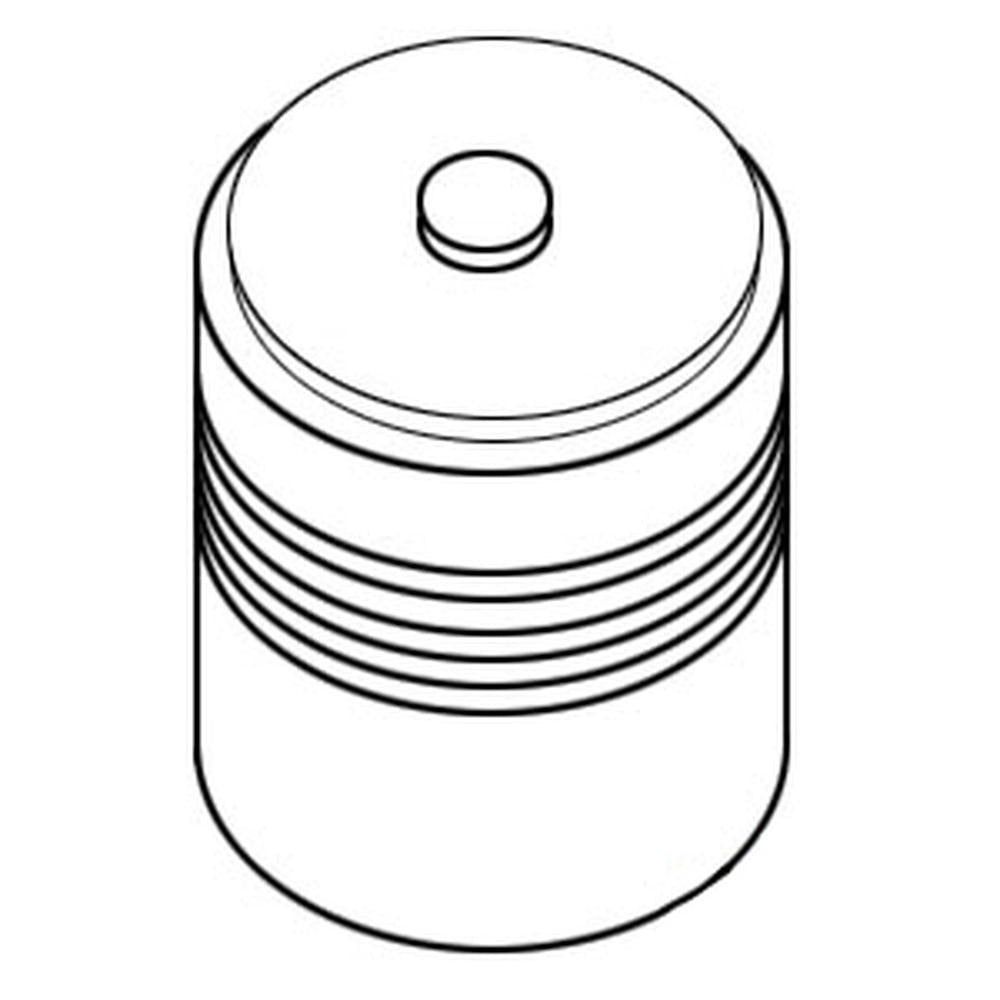

One New Aftermarket Replacement Hydraulic Lift Cylinder Piston Fits Massey Ferguson, Fits Massey Harris, and Fits Ford Tractors
This aftermarket replacement hydraulic lift cylinder piston fits the rockshaft lift system on a wide range of Fits Massey Ferguson, Fits Massey Harris, and Fits Ford N-Series tractors. The piston is the O-ring and backup washer type with a 2-1/2" (63.5 mm) outside diameter and single groove design. This part fits only tractors equipped with the 2-1/2" diameter lift cylinder -- verify your piston diameter before ordering, as some later model applications used a 3" piston instead.
Specifications
- Outside Diameter: 2-1/2" (63.5 mm)
- Type: Single groove, O-ring and backup washer style
- Note: Fits 2-1/2" bore cylinders ONLY -- does not fit models equipped with 3" piston
Compatible Models
Fits Massey Ferguson: TE20, TEA20, TO20, TO30, TO35 (SN up to 179303), 35, 35X, 50, F40
Fits Massey Ferguson Industrial/Construction: 202 (SN up to 301660)
Fits Massey Harris: 50
Fits Ford/New Holland: 2N, 8N, 9N (1939-1952), NAA (Jubilee)
Replaces Part Number(s):
181983M1, 181159M91, 9N530B
Aftermarket Interchange Numbers
184443M91, NAA530B, 9N530BGV, NAA530B, 1101-1051, 1201-1006, R0891, S.67816 (Sparex)
New aftermarket replacement part - not remanufactured, not used.
