P-180241M91 180250M91 9" Clutch Kit Fits Massey Ferguson TE20 TO20 TO30

Name: P-180241M91 180250M91 9" Clutch Kit Fits Massey Ferguson TE20 TO20 TO30
SKU: 180241M91-PLATE-BEARING
Price: 236.0 USD
Availability: InStock

P-180241M91 180250M91 9" Clutch Kit Fits Massey Ferguson TE20 TO20 TO30

£236.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement 9" Single Clutch Kit Fits Massey Ferguson Tractors

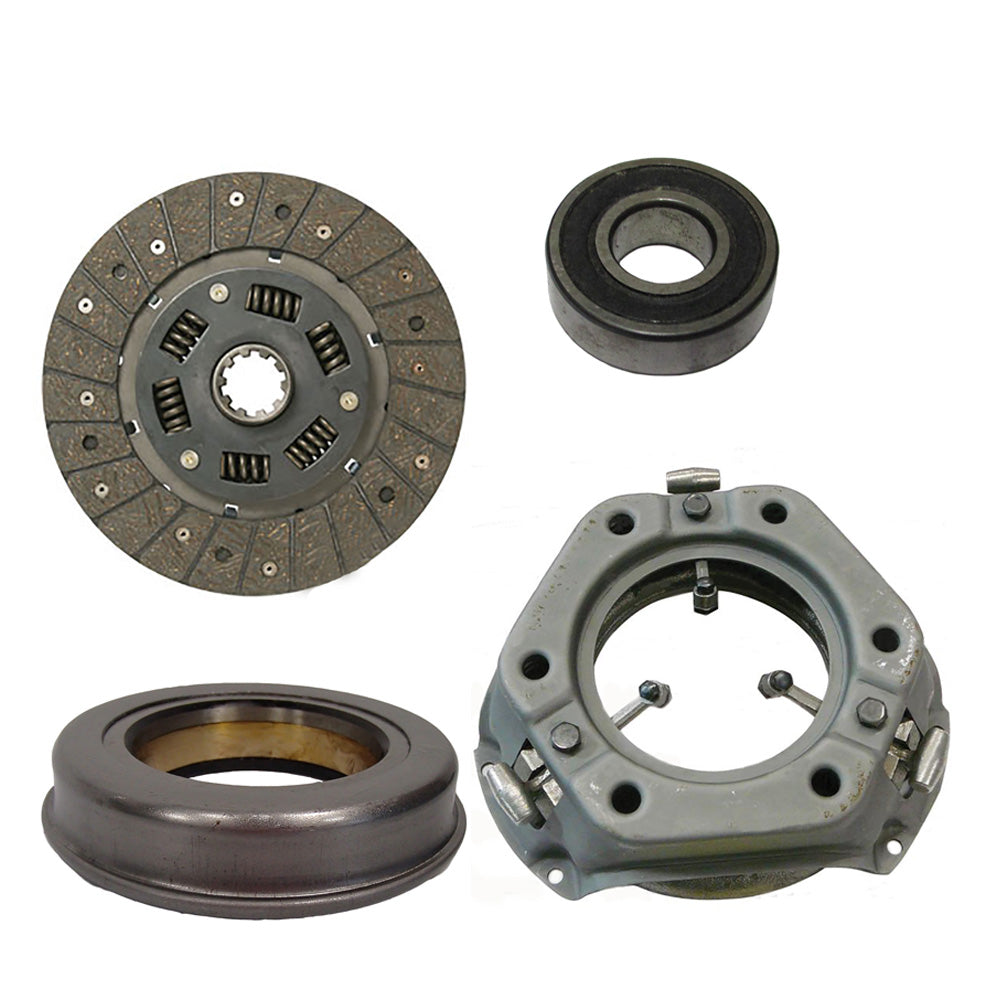

Kit Contains:

(1) 9" Pressure Plate - # 183209M91, 180263M91, 185923M91, 185923V91
(1) 9" Transmission Disc - # 180250M91, 180241M91

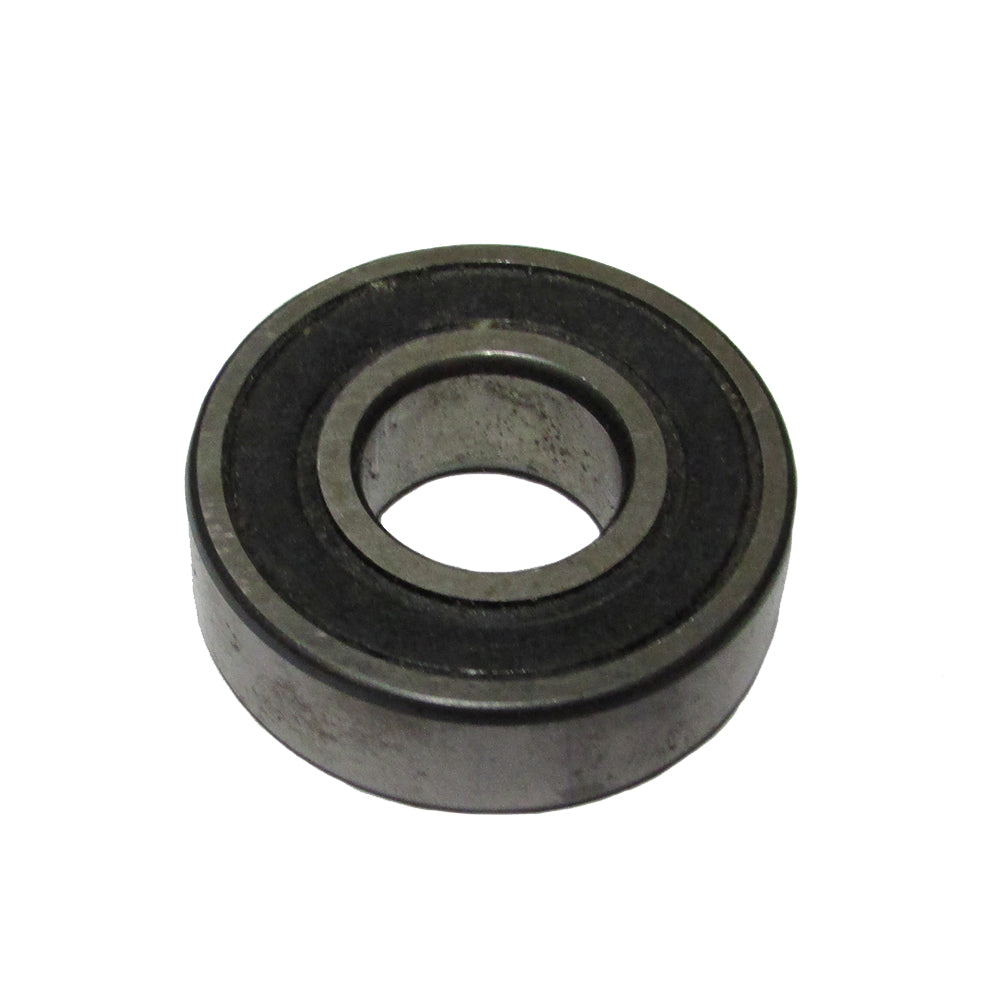

(1) Pilot Bearing - # 828123M2

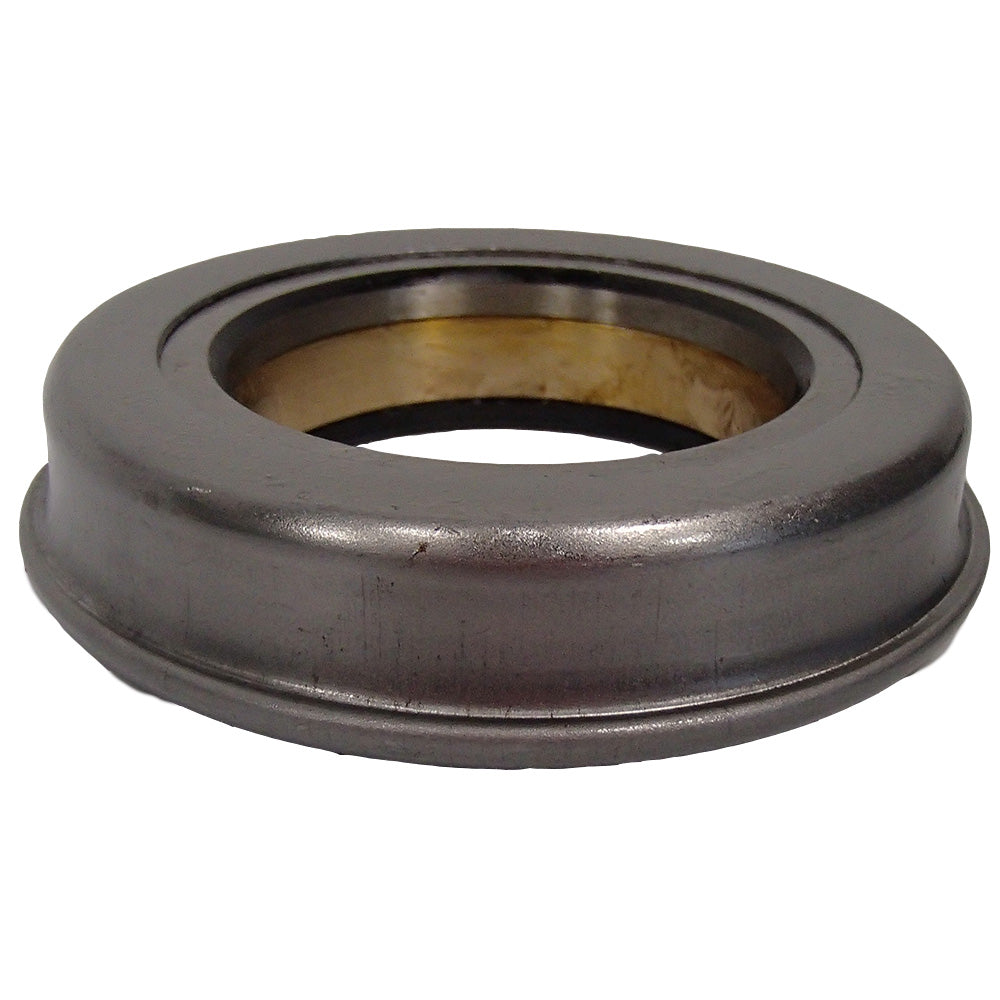

(1) Release Bearing - # 195508M1

Fits Models:

TEA20, TE20, TO20, TO30, 202, 203, 205 (Single Clutch), 50C

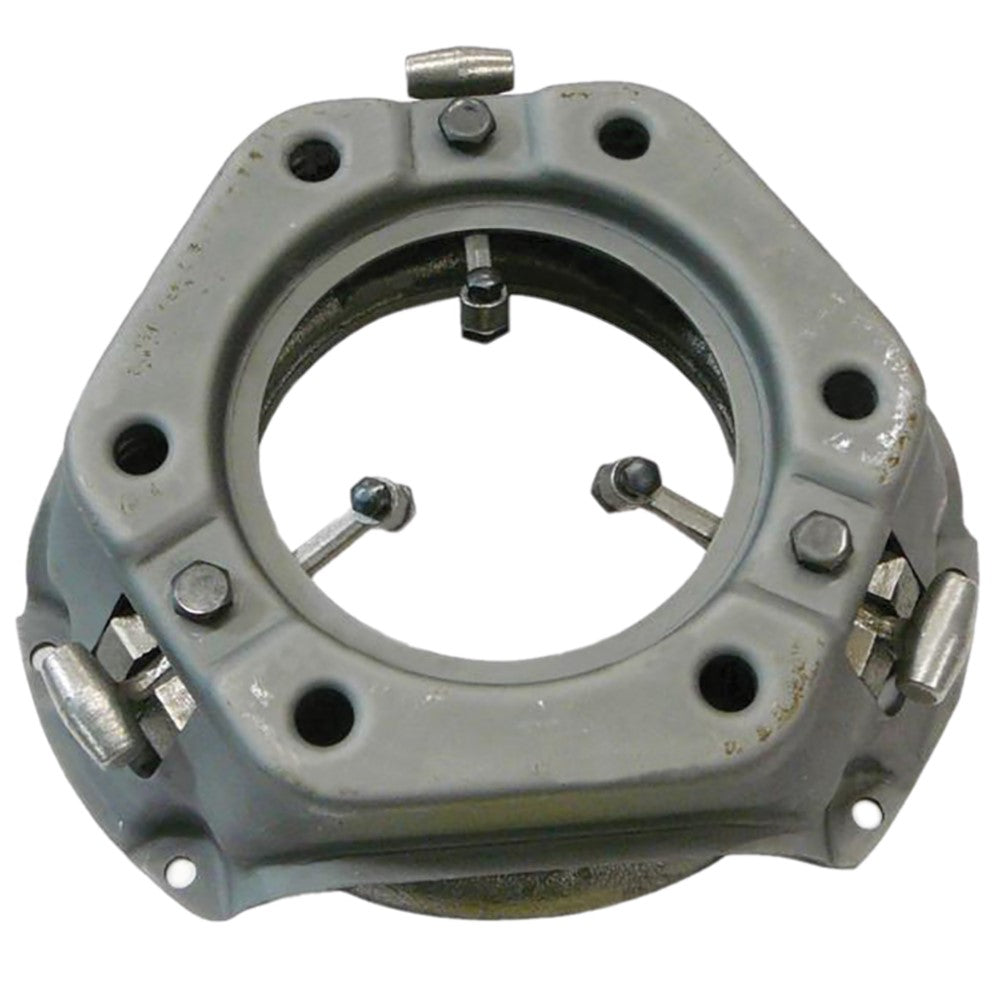

9" Pressure Plate -

9" OD
3 Lever
Open Center
Bolts Spaced in 3 Sets of 2
Single Clutch
6 Springs

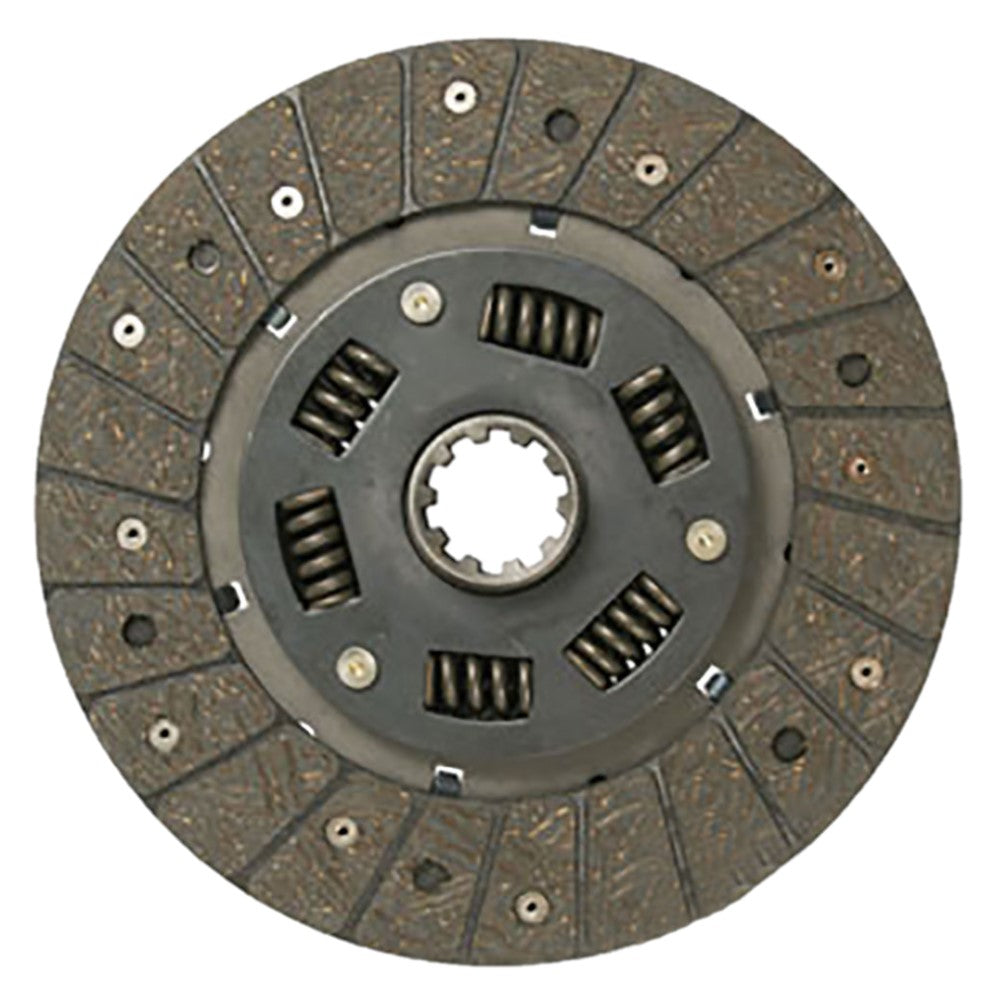

9" Transmission Disc -

Organic
Spring Loaded
Spline Count: 10
Spline

Models This Part Fits:

560, JUBILEE, 4010, 1600, 545, 2520, 345D, Super H, 2300, H, 2120, 2910, 180, 240, 335, 420, 3900, T5, 66, 555, 260C, 3500 US BUILT, 2000 US BUILT, 44 Special, MT, 2610, 3400, 500, 801, 2110, 530, MTA, D17, 770, 4830N, SUPER DEXTA, 3310, 4830, 3610 US BUILT, 3230, 530A, W12, 2610 US BUILT, Super MDTA, 4000, Super 88, 3600N, 231 US BUILT, ED40, 2N, 40, 435, 4020, 3430, 4230, 100, 4630, 4340, M, DEXTA, I600, D15, 2510, 340, 130, 4610 US BUILT, 656, 535 US BUILT, 4130N, 540A, 540B, 4330, 550, 303, 2000, 4600, AV, 532 US BUILT, 3120, 404, 4610V, 1650, 515 US BUILT, D12, 340A, 5100, 4110V, 545D, 230, 3550, 420 US BUILT, 44-6, Super 66, 2600 US BUILT, 445 US BUILT, 2310, 444, 345, 4000 US BUILT, 44, 2610V, 9N, W14, 531, 3610V, 4610SU, 544, B, 3550 US BUILT, 545C, 445, 4320, 4500 US BUILT, 660, 880, 664, 4040, 190, 531 US BUILT, 3600, 4240, D14, 4400 US BUILT, 4140, 2600, 1555, 3000, Super MVTA, 4600SU, 3600 US BUILT, 340B, 545 US BUILT, 3400 US BUILT, 3910V, 4200, 2110LCG, 55, D19, D10, 4100, 230A US BUILT, 345C, TE20, 5000, 3100, 334, 5340, 233, 3150, 190XT, 335 US BUILT, 4110N, 1655, 330, 900, L, 686, 88, Super MDV-TA, 445C, Super 77, 5200, 7630, 3930, 3300, 3110, 4410, HV, 350, 1550, 4110 US BUILT, I400, 4610N, 300, 4430, 3500, 540, 3055, G750, 666, 701, 600, CA, 3610, 504, 230A, 3910N, 101 Sr, 77, 3910, 3020, 4110, 2600V, 320, 2150, NAA, 4630N, H3, 4600 US BUILT, F14, 200, 606, TO20, TEA20, C, 4500, 140, F12, MC, 460, 234, 3600V, 532, 8N, 3000 US BUILT, 601, A, 333, Super W6TA, Super MTA, 515, 400, 185, 700, 800, 102 Sr, Super C, 5030, 901, 250C, 2100, 555A, 4400, 445A, 2600N, 4130, 231, 4110LCG, 545A, 450, 535, 2810, TO30, 3330, 430, 1010, 4610

Additional Information:

Set Includes: (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm), OD: 1.575" (40mm), Width: 0.472" (12mm), Bearing Type: Double Sealed Replaces Part Numbers: 09A7563, S60692 (1) 9" Transmission Disc Spline Count: 10 Spline Diameter: 1.375" Replaces Part Numbers: C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550 (1) Pilot Bearing Has rubber seals on both sides of bearing, ID: 21/32", Height: 15/32", OD: 1-9/16" Replaces Part Numbers: C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable ID 2.060" ID Type Round OD 3.560" Width Overall 0.795" Replaces Part Numbers: 787580AB, 787580A8, 787580, AR41942, 78-7580A, CONN7580A, 81718025, EIADKN7580B, C0NN7580A

Reference Numbers:

195207M1, 18171A, 18567D, 362028R91, 362028R92, 55211D, 55212D, C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550, 70235079, 70211273, 235079, 211273, 168253A, 1DS5022, DS5022, 30-3056295, ABC496, 70235079, 70211273, 235079 , 211273, AL2116, AL2116T, AM3983T, AR41942
