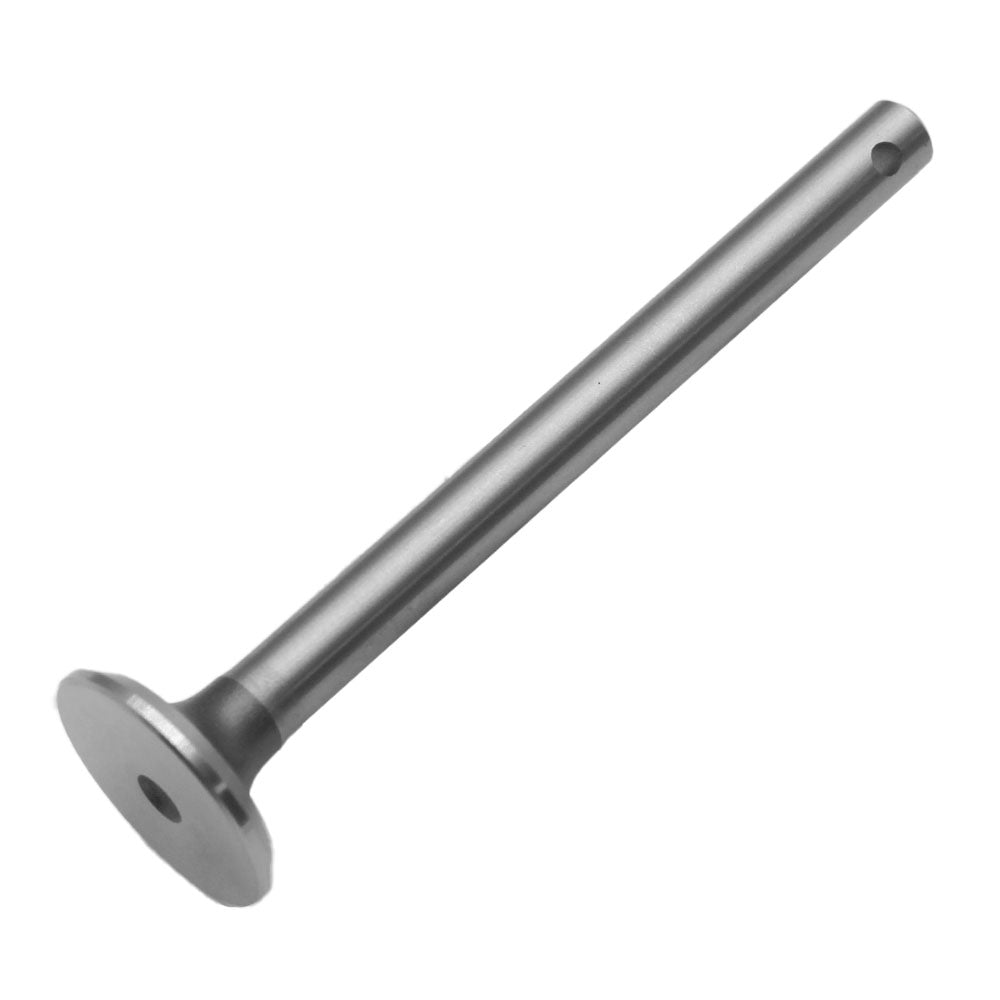

One New Aftermarket Replacement Exhaust Valve (Pin Type) Fits Massey Ferguson Tractors TE20 and TO20
This aftermarket replacement exhaust valve (pin type) fits the Continental Z120 4-cylinder gasoline engine used in the Fits Massey Ferguson TE20 and TO20 tractors. The pin-type keeper design uses a cross-pin locking system to retain the valve spring. Note: this valve fits the Continental Z120 engine only -- it does not fit TE20 tractors equipped with the UK Standard Motors engine.
Specifications
- Engine: Continental Z120 4-cylinder gasoline, 120 cu. in. (2.0 L)
- Valve overall length: 4.063 in. (103.20 mm)
- Valve head diameter: 1.135-1.145 in. (28.83-29.08 mm)
- Valve stem diameter: 0.3124-0.3132 in. (7.935-7.955 mm)
- Valve face angle: 45 degrees
- Keeper style: Pin type (cross-pin / drilled stem)
Compatible Models
Fits Massey Ferguson: TE20 (with Continental Z120 engine), TO20 (with Continental Z120 engine)
Replaces Part Number(s):
1751519M1, 830726M91
New aftermarket replacement part - not remanufactured, not used.
