Mower Deck Rebuild Kit Fits AYP Replaces 173920

Name: Mower Deck Rebuild Kit Fits AYP Replaces 173920
SKU: 532192870REBUILD
Price: 189.0 USD
Availability: InStock

Mower Deck Rebuild Kit Fits AYP Replaces 173920

£189.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

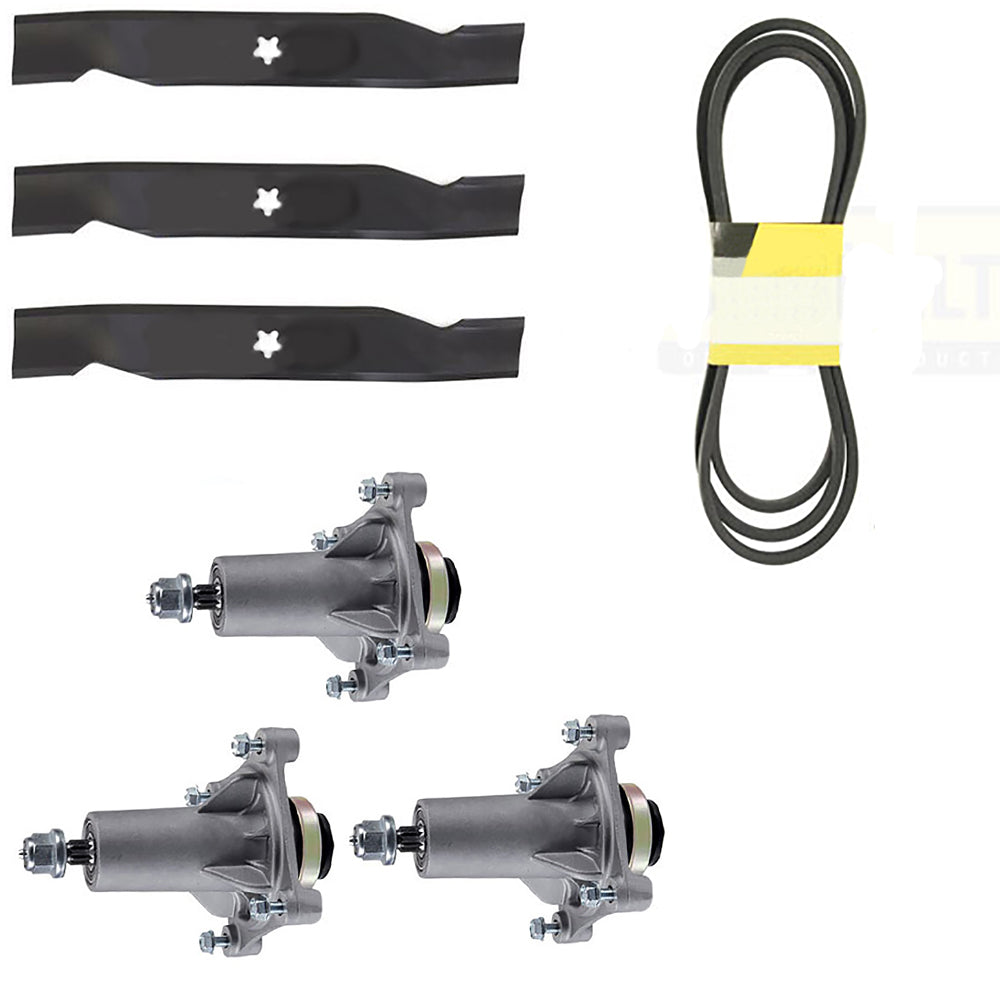

One New Aftermarket Mower Deck Rebuild Kit

Tech Info:
-(3) Mower Blades
-Length: 16-5/8"
-Width: 2-1/2"
-Center Hole: 5 Point Star
-Thickness: .204"
-Replaces Part Number(s):
-173920, 180054, 512258301, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 532173920
-
-(3) Spindle Assemblies
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-Includes:
-Pulley Locknut
-Blade Bolt/Washer
-Spacer
-4 Mounting Bolts
-Replaces Part Number(s):
-187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301
-

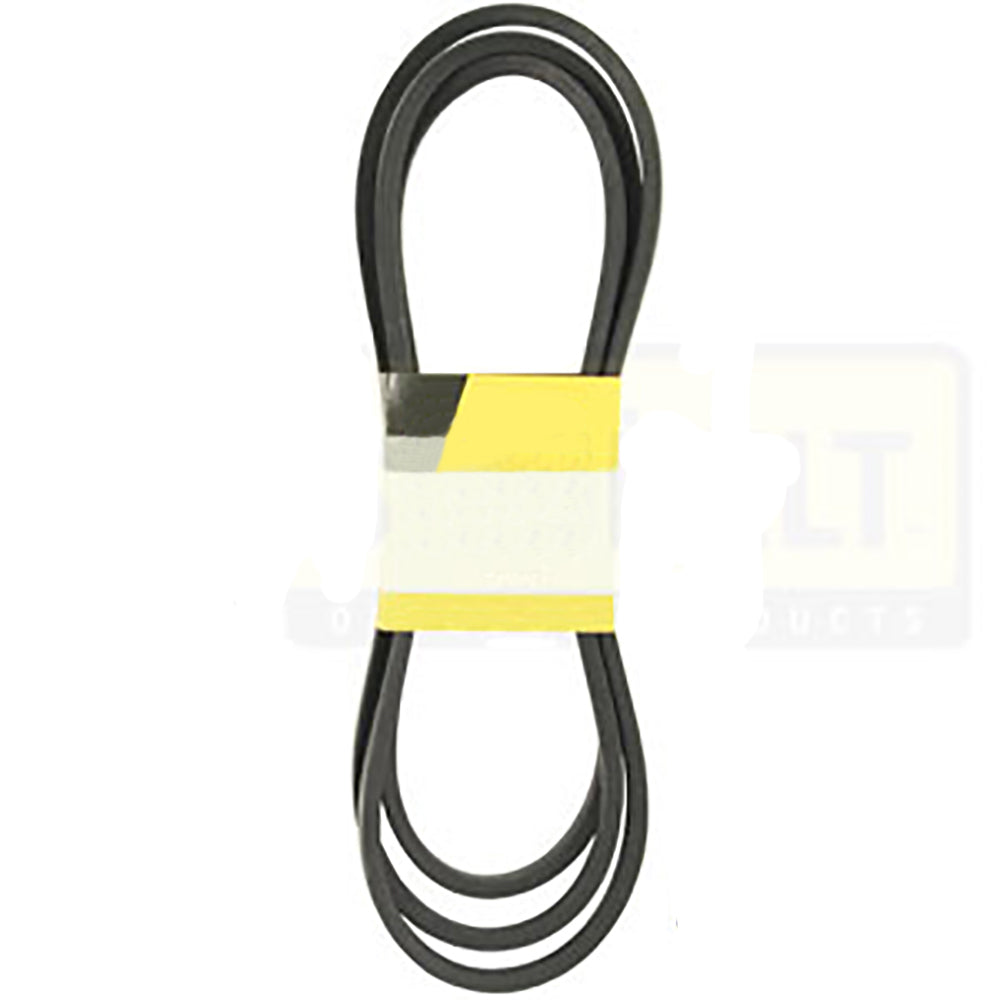

-(1) Deck Belt
-0.608" X 138.7"
-Thickness: 0.43"
-Made With Aramid Cord
-Replaces Part Number(s):
-197242, 532197242, 593773401

Made to Fit AYP:
Lawn/Garden Tractor Models: 48" Mower Decks
Replaces Part Number(s): 173920, 180054, 512258301, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301 197242, 532197242, 593773401

Models This Part Fits:

48" Mower Decks

Additional Information:

(3) Mower Blades Length: 16-5/8" Width: 2-1/2" Center Hole: 5 Point Star Thickness: .204" Replaces Part Number(s): 173920, 180054, 512258301, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 532173920 (3) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301 (1) Deck Belt 0.608" X 138.7" Thickness: 0.43" Made With Aramid Cord Replaces Part Number(s): 197242, 532197242, 593773401

Reference Numbers:

173920, 180054, 512258301, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301 197242, 532197242, 593773401
