1703-0002 - Carburetor Fits Case/International Harvester

1703-0002 - Carburetor Fits Case/International Harvester

£657.00 GBP
£657.00 GBP
Sale Sold out
Shipping calculated at checkout.

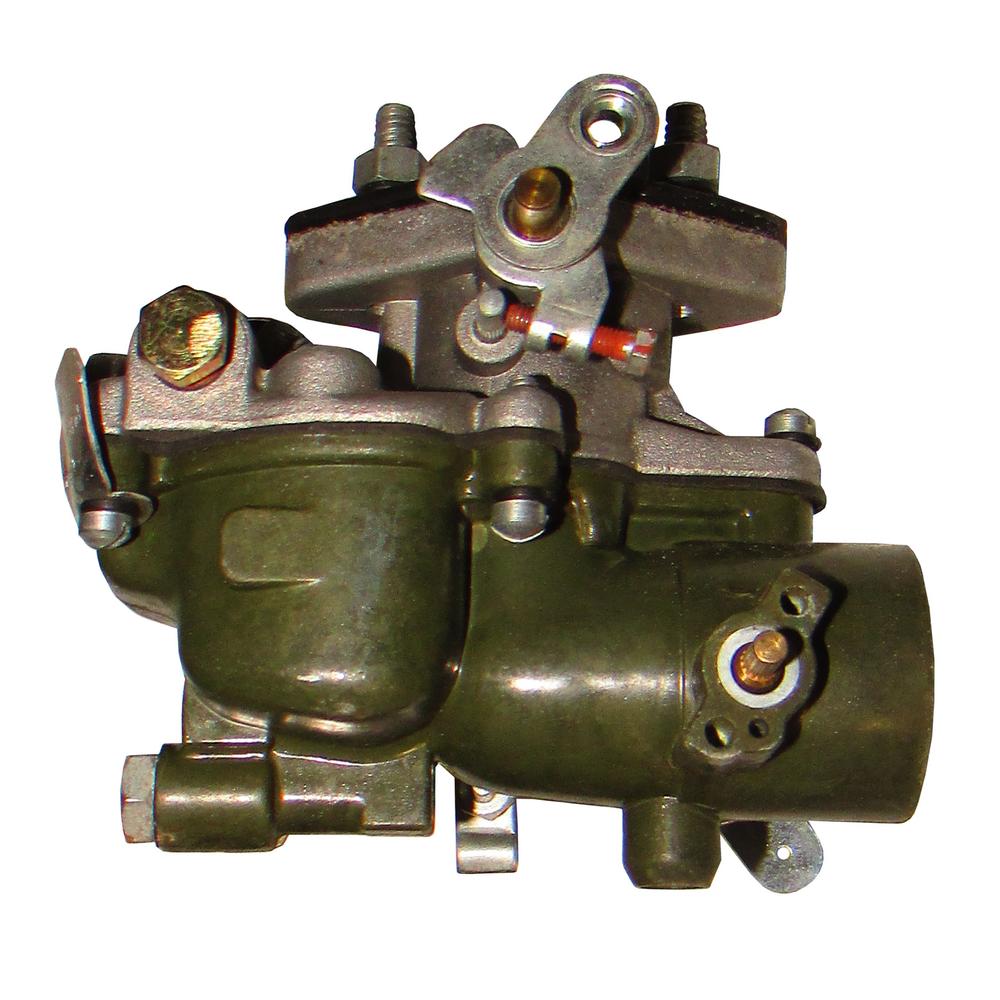

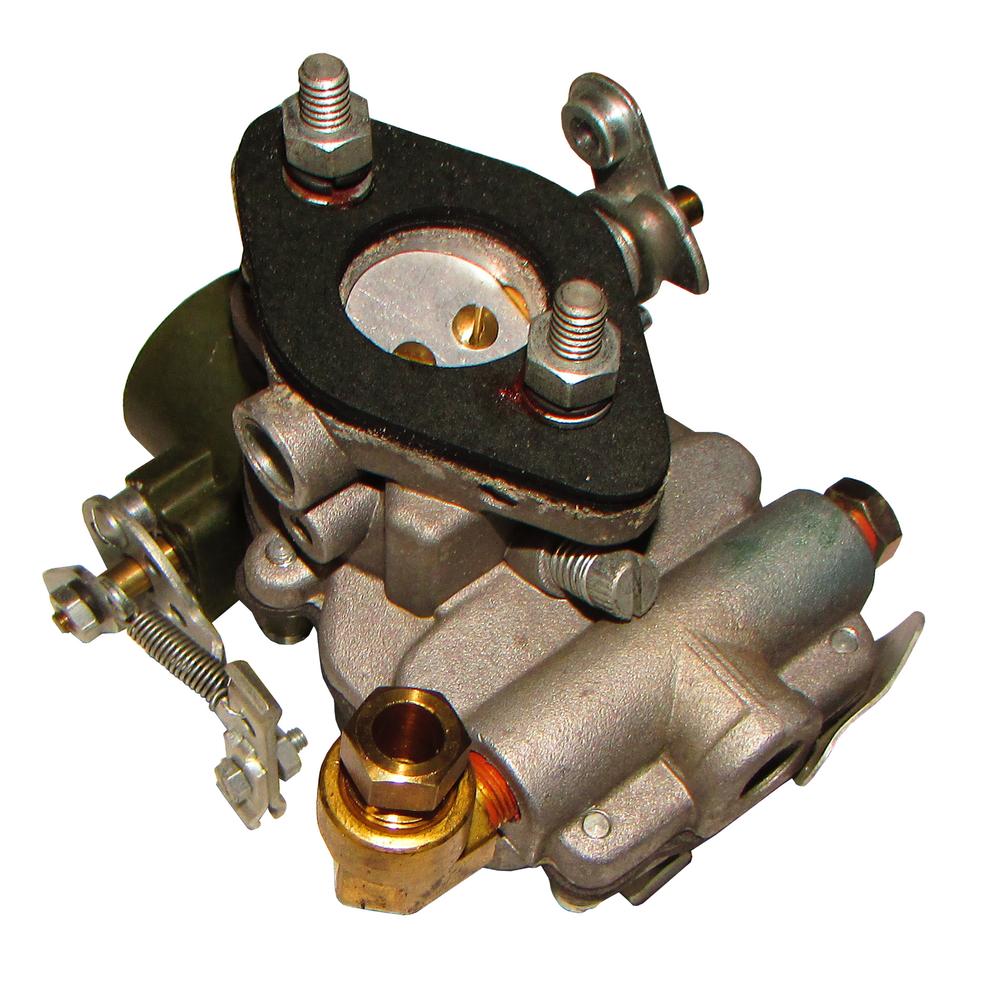

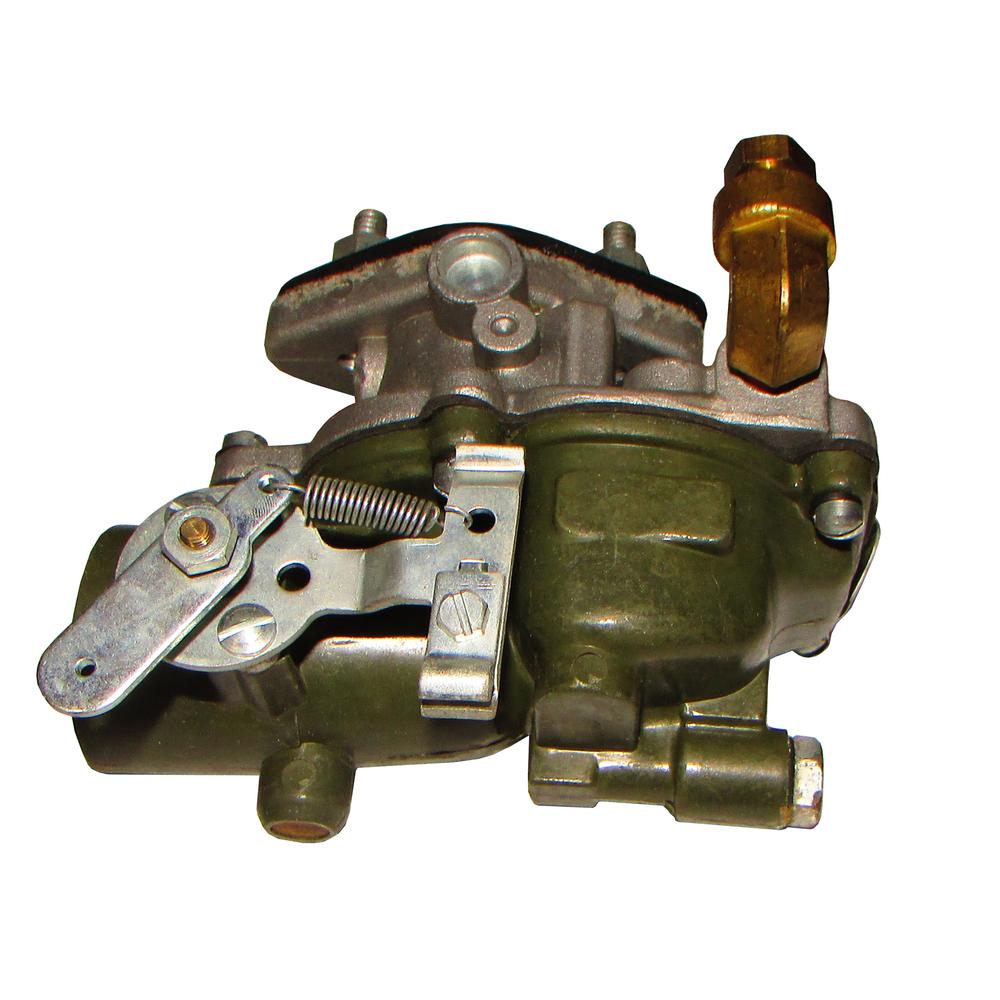

One New Aftermarket 1703-0002 - Carburetor
Fits Case/International Harvester Models: Fits Cub, Fits Cub 154, Fits Cub 154 Lo Boy, Fits Cub 184, Fits Cub 184 Lo Boy, Fits Cub 185, Fits Cub 185 Lo Boy, Fits Cub Lo Boy

Tech Info:
-New Zenith style replacement carb. Note: New carbs are not adjusted to new specs due to age and wear variances of tractors, may need to adjust mixture, idle, and float adjustments.

Replaces Part Number(s): 251234R94, 63349C91, 70949C92, 71523C93, 13794, 71523C92, 405004R91

Models This Part Fits:

Cub, 154, 184, 185

Additional Information:

Type: Zenith The Throttle Bore Measures 1-1/64" The Carb Mounting Studs Measure 1-13/16" Center to Center The Choke Air Horn (Air Inlet) Measures 1-5/8" O.D. The Fuel Inlet Measures 1/8" NPT

Reference Numbers:

13781, 13794, 364579R91, 70949C92, 71523C93, 70949C91, 251234R94, 405004R91, 63349C91, 364579R91, 70949C91, 70949C92, 71523C92, 71523C93, 71523C91
