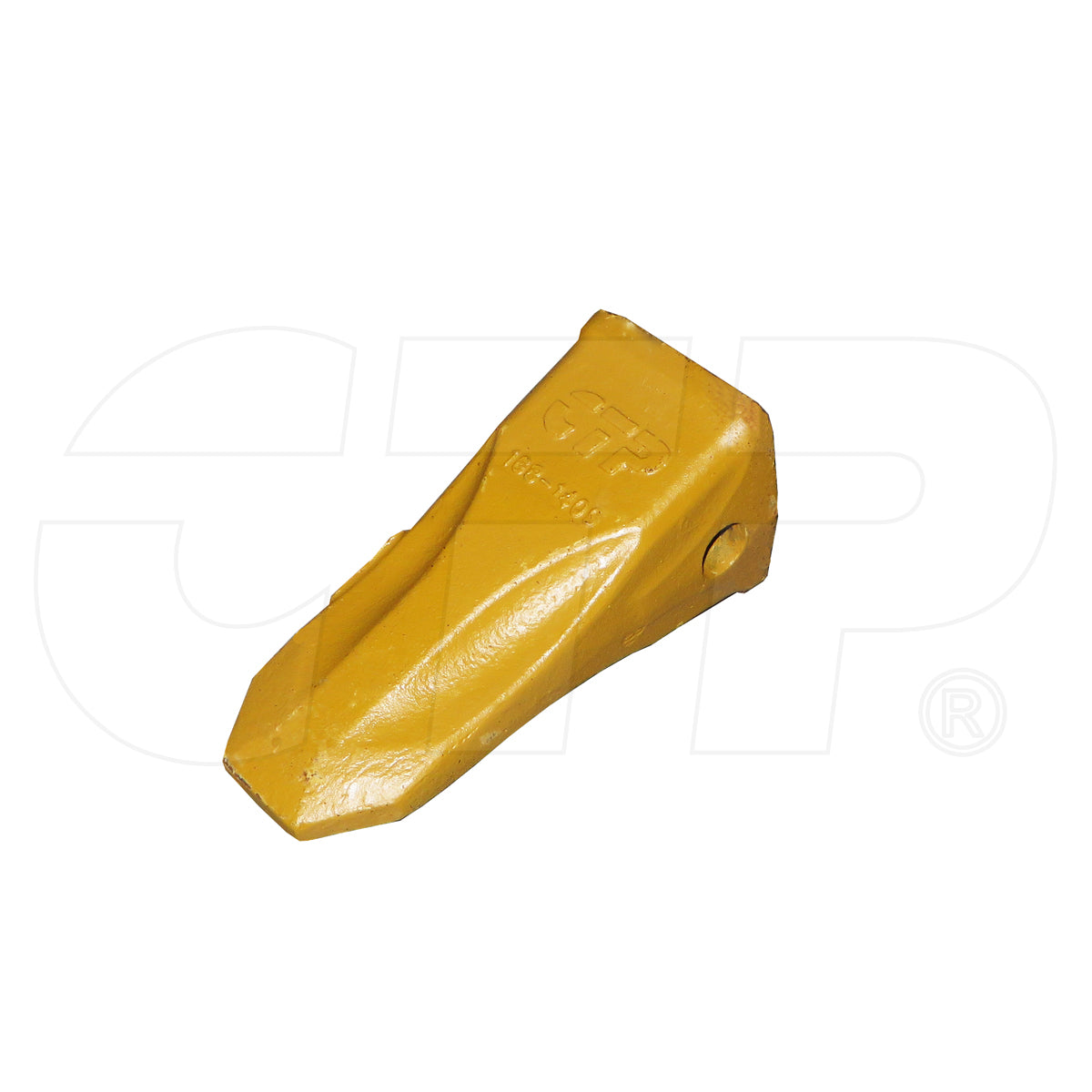

1681409 Tip-Penetration Plus Fits Caterpillar Models

One New Aftermarket Replacement Tip-Penetration Plus (Ground Engaging Tool) for Caterpillar (Cat) Excavators

This aftermarket replacement Caterpillar (Cat) J400 Penetration Plus bucket tip is a Ground Engaging Tool (GET) designed for excavator and loader buckets. The J400 Penetration Plus tip features a narrower cross-sectional profile that self-sharpens during use, making it well-suited for densely compacted material, cemented gravel, sedimentary rock, poorly shot rock, and tough trenching conditions. It mounts using the standard side-pin design with a 7T3408 pin and an 8E8409 sleeved retainer (sold separately).

Specifications

• Tip Size: J400
• Tip Length: 290 mm (approx. 10.67 in.)
• Width: approx. 4.72 in.
• Depth: approx. 4.96 in.
• Weight: approx. 24 lbs.
• Mounting: Side-pin design - uses pin 7T3408 and retainer 8E8409

Compatible Models

Caterpillar Excavators: 320, 320 GC, 320C, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 322C, 323, 323D L, 323D2 L, 324D, 324D L, 324E L, 324E LN, 325B L, 325C, 325F LCR, 326, 326 GC, 326D L, 326D2, 326D2 L, 329D, 329D L, 330, 330 GC, 330C L, 333 GC

Replaces Part Number(s):

1681409, 168-1409

Aftermarket Interchange Numbers

7T3402V, 7T-3402V, 8E3402SYL, 389-5745

New aftermarket replacement part - not remanufactured, not used.
