Hydraulic Lift Arm Fits Massey Ferguson 165 275 50 50 20 20 255 30 30 40 40 265

Name: Hydraulic Lift Arm Fits Massey Ferguson 165 275 50 50 20 20 255 30 30 40 40 265
SKU: 1680040M91
Price: 51.0 USD
Availability: InStock

Hydraulic Lift Arm Fits Massey Ferguson 165 275 50 50 20 20 255 30 30 40 40 265

£51.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hydraulic Lift Arm Fits Massey Ferguson Tractors and Industrial/Construction Equipment

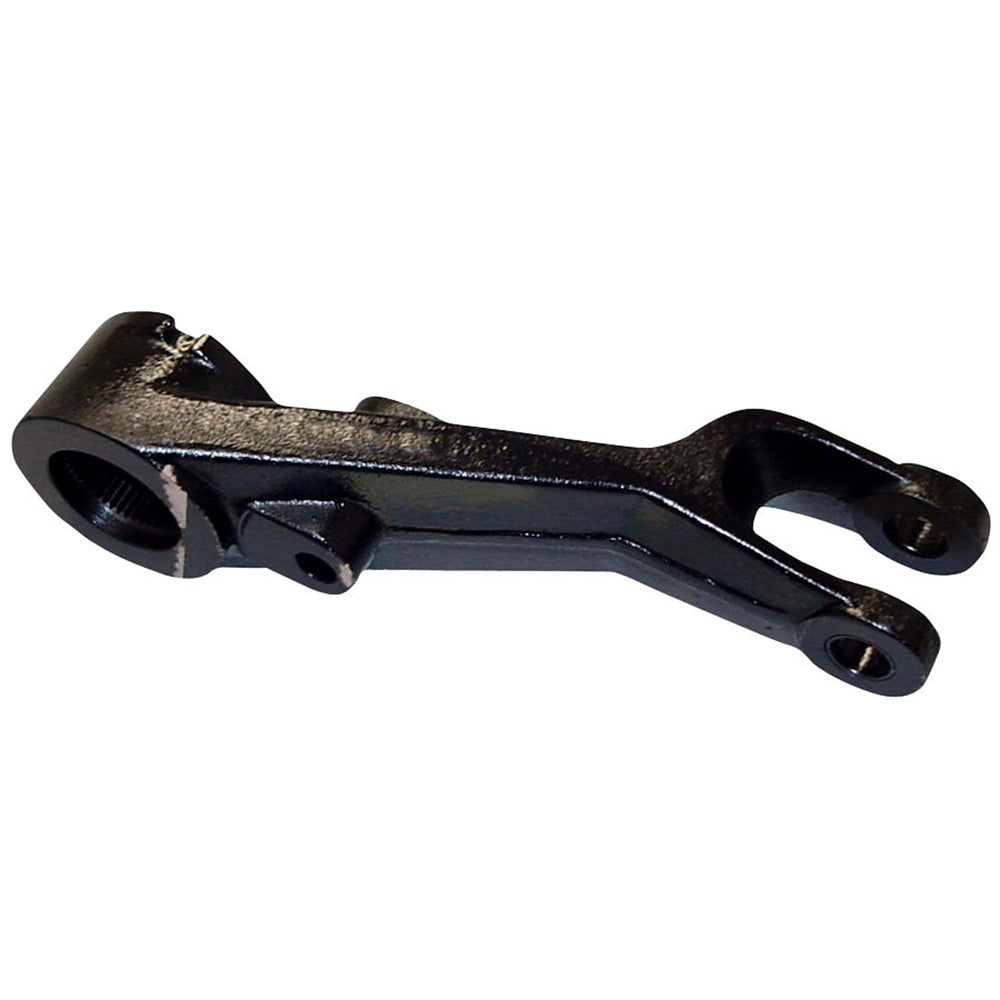

This aftermarket replacement hydraulic lift arm (also known as a rockshaft lift arm) fits either the left-hand or right-hand side of the 3-point hitch system. It is used with cross shaft 897567M3 and mounts to the rockshaft to raise and lower implements. Inside diameter is 2.08 in. (53mm) with a 50-spline bore.

Specifications

Inside Diameter: 2.08 in. (53 mm)
Spline Count: 50
Fitting: RH or LH (fits either side)
Used with cross shaft: 897567M3

Compatible Models

Fits Massey Ferguson Tractors: 165, 175, 180, 250, 253, 255, 265, 270, 271, 275, 281, 282, 283, 285, 290, 298, 360, 362, 375, 383, 390, 390T, 392S, 393, 398, 399, 461, 670, 690, 698, 699, 1080, 1085

Fits Massey Ferguson Industrial/Construction: 30, 30B, 30D, 30E, 31, 40B, 40E, 50C, 50D, 50E, 543

Replaces Part Number(s):

1680040M91, 1680040M1, 885447M91

Aftermarket Interchange Numbers

VPK3104, A-1680040M91, 1201-1261 (A&I Mega-Cross)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

285, 250, 393, 50E, 375, 265, 399, 275, 362, 392S, 360, 30B, 282, 165, 30D, 390T, 698, 31, 543, 398, 383, 1080, 670, 690, 290, 30E, 1085, 271, 40E, 699, 180, 50D, 283, 175, 40B, 30, 50C, 461, 255, 270, 298, 253, 390, 281
