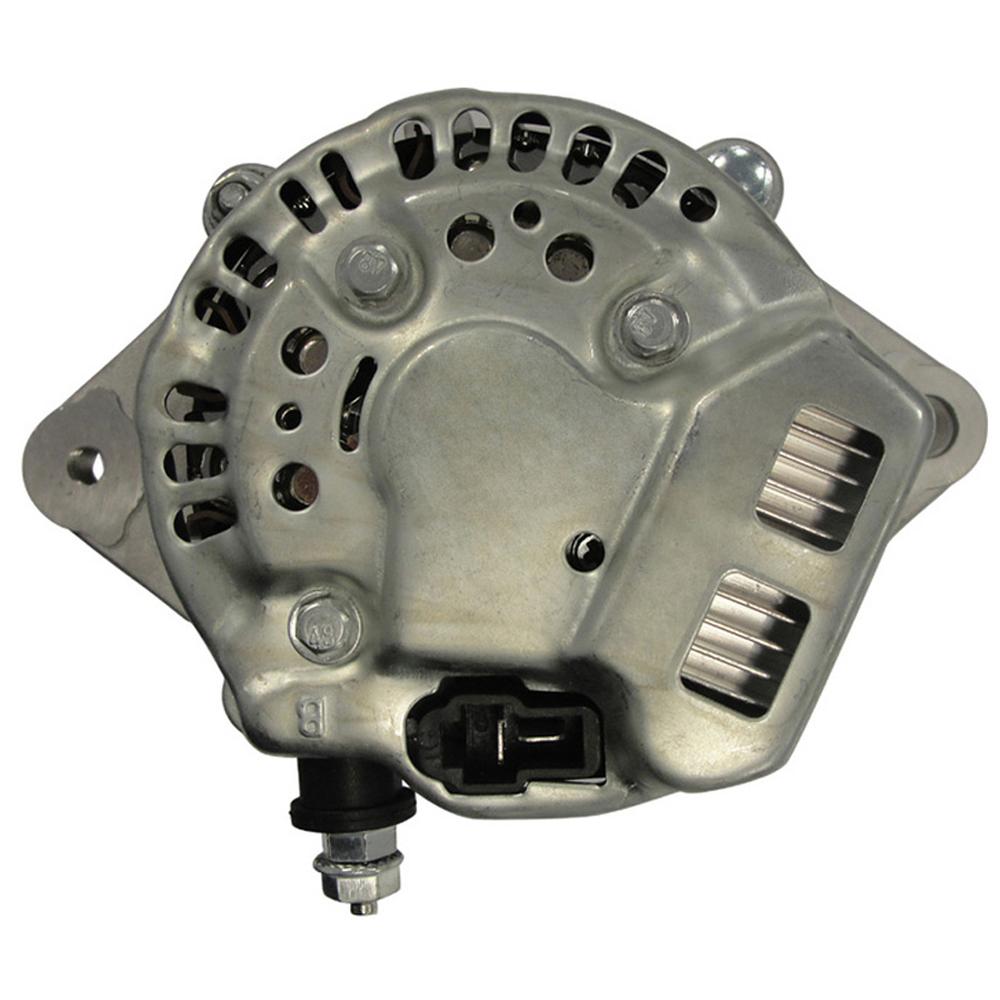

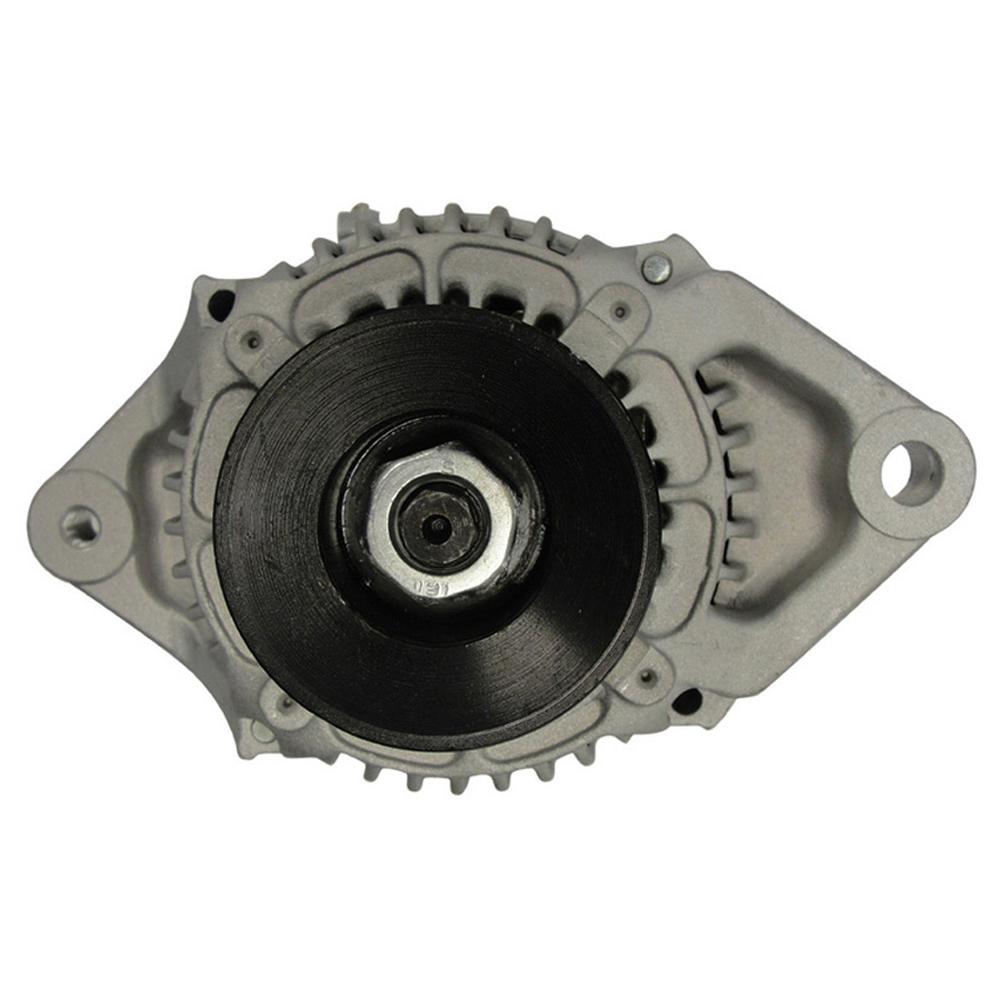

16615-64011 12V 60 Amp Alternator Fits Kubota D950

16615-64011 12V 60 Amp Alternator Fits Kubota D950

£123.00 GBP
£123.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement 12V 60 Amp Alternator Fits Kubota, AGCO, Fits Massey Ferguson, and Challenger Tractors

This aftermarket replacement alternator delivers 12 volts and 60 amps of charging output Fits Kubota compact tractors, AGCO tractors, Fits Massey Ferguson compact tractors, and Challenger tractors. It is a direct-Fits Denso-style unit with an internal regulator, internal fan, clockwise rotation, and a solid single-groove V-pulley -- matching the original equipment configuration on compatible machines.

Specifications

  • Voltage: 12V
  • Amperage: 60A
  • Rotation: Clockwise
  • Regulator Clock Position: 9:00
  • Regulator Location: Internal
  • Fan Location: Internal
  • Polarity: Negative
  • Pulley Type: Solid, Single-Groove (V1)
  • Pulley Outer Diameter: 2.717 in (69mm)
  • Mount Hole 1: M8x1.25 Threaded
  • Mount Hole 2: Unthreaded
  • Mounting Ear 1 Thickness: 0.630 in (16mm)
  • Mounting Ear 2 Thickness: 0.827 in (21mm)
  • Terminal B+: M6x1.00
  • Terminal IG: Spade
  • Terminal L: Spade

Compatible Models

Fits Kubota Engines: D950, D950-B (1998), G3B-H (1995-up), V1305-BBS-KTC-1

Fits Kubota Tractors: L3240HSTC, L3240HSTC-3, L3430DTHSTC, L3430HSTC, L3540HSTC, L3540HSTC-3, L3600DTGSTC, L3710DTHSTC, L3710HSTC (1998-up), L3940HSTC, L3940HSTC3, L4200DTGSTC, L4240DTHST, L4240HSTC, L4240HSTC-3, L4310DTHSTC, L4310DTGSTC, L4330DTHSTC, L4330DTGST, L4330HSTC, L4610DTHSTC, L4610 (1995-up), L4610GST (1999-up), L4610HST (1999-up), L4610HSTC (1999-up), L4630DT, L4630DTGSTC, L4630DTHST, L4630GSTC, L4740HSTC, L4740HSTC-3, L5030HSTC, L5240HSTC, L5240HSTC3, L5740HST-3, L5740HSTC, L5740HSTC-3, M4900C, M4900DTC, M5700C, M5700DTC, M5700HDC, V2403 Eng

AGCO Tractors: ST34A, ST35, ST35H, ST35X, ST40, ST40H, ST40X (2001-2008); R420S, R430, R520S

AGCO Challenger Tractors: MT265, MT265B, MT265H, MT275, MT285, MT285H (2002-2008)

Fits Massey Ferguson Tractors: MF-1235, MF-1250, MF-1260, MF-1429, MF-1433, MF-1433H, MF-1433V, MF-1440, MF-1440V, MF-1529, MF-1532, MF-1533, MF-1635, MF-1640E, ZT29, ZT33

Thomas Industrial Equipment: Skid Steer T95 (V1305-B Fits Kubota Diesel, 1994-2007)

Iseki Tractors: TG5390 (1498cc, 2005-2015)

Replaces Part Number(s):

16615-64011, 16615-64012, 3A611-74010, 3A611-74012, 3A611-74013, 3A611-74014, 3A613-74010, 3606220M91, ELV40-0687

Aftermarket Interchange Numbers

Fits Denso: 101211-2490, 101211-2850, 101211-8520, 101211-8521; Fits Lucas: LRA02198; TA043-74010, TA043-74011, TA043-74012; Lester: 11903; KEARA16615

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

L4240HSTC3, L4740HSTC-3, ST40H, MT265H, M5700C, L4330HSTC, M5700HDC, MT285, L4330DTGST, L5030HSTC, L4310DTHSTC, 1529, M4900C, 1429, L4240DTHST, L3710DTHSTC, L4740HSTC, 1635, ST35X, R520S, 1235, 1532, L4630DT, L3540HSTC-3, M5700DTC, 1640E, L4330DTHSTC, MT265B, L3940HSTC3, 1433V, 1533, L5740HSTC, ST40, L4200DTGSTC, L3430HSTC, 1440V, L3940HSTC, ST34A, L3600DTGSTC, 1250, L5740HST-3, L3240HSTC3, L5240HSTC3, ST35H, MT265, L3540HSTC, ST40X, L3240HSTC, L4610DTHSTC, L5740HSTC-3, L4310DTGSTC, L5740HSTC3, MT285H, R430, L3540HSTC3, 1433, M4900DTC, 1440, L4630DTGSTC, L5240HSTC, L3240HSTC-3, L4240HSTC, L4240HSTC-3, L4740HSTC3, 1433H, 1260, L4630GSTC, ST35, R420S, V2403 Eng; L3240HSTC, MT275, L3430DTHSTC, L4630DTHST

Additional Information:

Volt 12 AMPS 60 Regulator Clock 9:00 Rotation Direction Clockwise Mount Hole ID 1 M8x1.25 Mount Hole 1 Type Threaded Mount Hole 2 Type Unthreaded Mounting Ear Thickness 0.630" Mounting Ear Thickness 16mm Mounting Ear 2 Thickness 0.827" Mounting Ear 2 Thickness 21mm Fan Location Internal Regulator Location Internal Terminal ID 2 B+ Terminal 2 Size M6x1.00 Terminal ID 3 IG Terminal 3 Size Spade Terminal ID 4 L Terminal 4 Size Spade Polarity Negative Number Of Groves 1 Pulley Type Solid Pulley Outer Diameter 2.717" Pulley Outer Diameter 69mm

Reference Numbers:

3606220M91, 3A611-74010, 3A611-74012, 3A611-74013, 3A611-74014, 3A613-74010, ELV40-0687, 3A611-74010, 3A611-74012, 3A611-74013, 3A611-74014, 3606220M91

Product Category:

Agriculture
