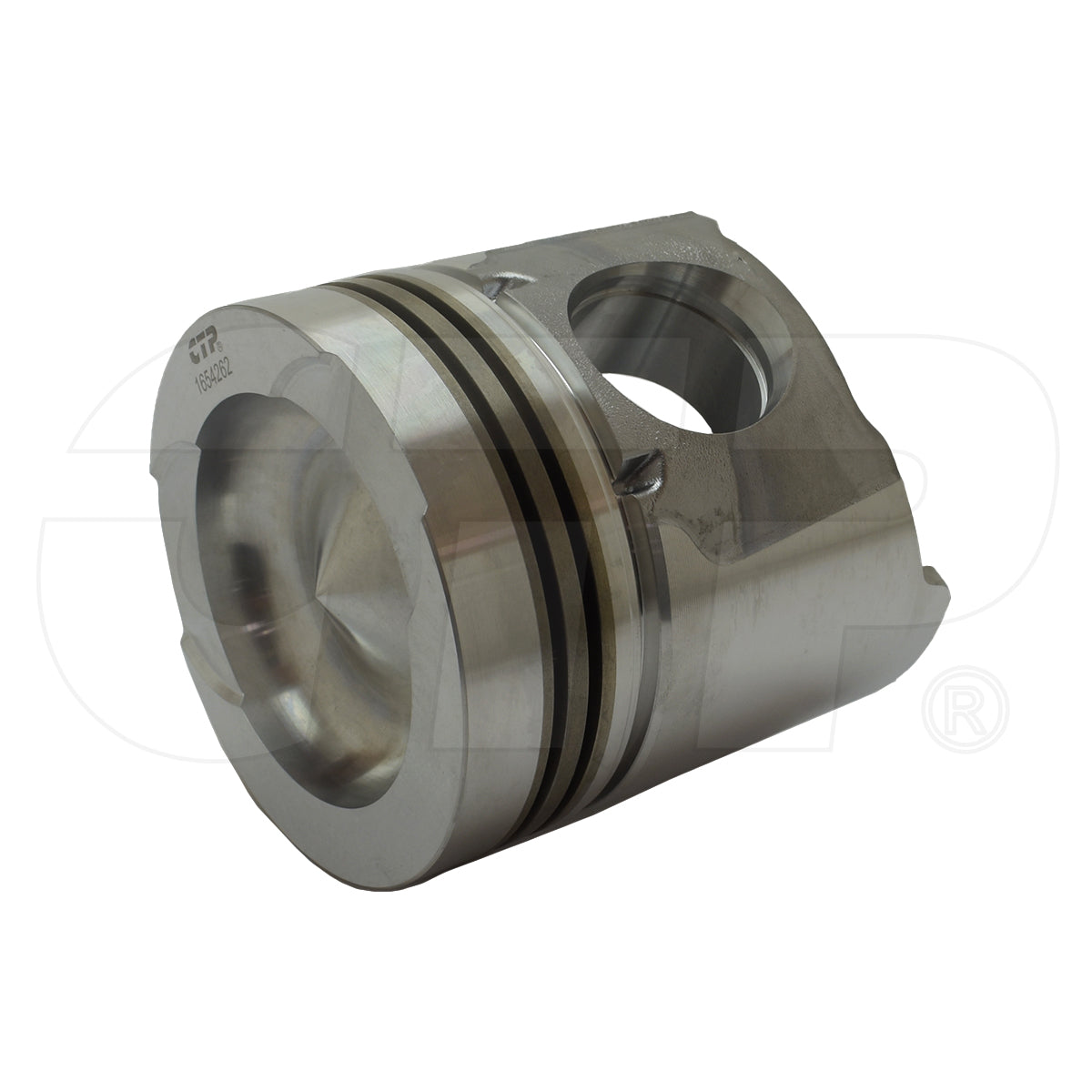

1654262 Body As-Piston Fits Caterpillar Models

One New Aftermarket Replacement Piston Body for Caterpillar (Cat) 3304 and 3306 Series Engines

This aftermarket replacement piston body (Body As-Piston) is designed for Caterpillar 3304 and 3306 series diesel engines used in a wide range of heavy construction and earthmoving equipment. The piston is a direct-injection (DI) design with a 15.0:1 compression ratio and features a 1.700" diameter wrist pin bore. When installing, note that the "V" mark on the piston must align with the "V" mark on the cylinder block.

Specifications

• Type: Piston Body (without pin)
• Compression Ratio: 15.0:1 (Direct Injection)
• Pin Diameter: 1.700"
• Oil Ring: 4mm / 0.156"
• Dimensions (approx.): 5.91 x 5.91 x 5.51 in.
• Weight (approx.): 5.1 lbs.

Compatible Models

Caterpillar Engines: 3304, 3304B, 3306, 3306B

Caterpillar Wheel Loaders: 966D, 966E, 966F, 966F II, 966G, 970F, 972G

Caterpillar Dozers: D5H, D6D, D6G SR, D7G, D7H

Caterpillar Motor Scrapers / Elevating Scrapers: 611, 615, 615C, 615C II, 627E, 637E, 637G

Caterpillar Articulated Trucks: D250E, D250E II, D300E, D300E II

Caterpillar Compactors: 65C, 65D, 815B

Caterpillar Generators / Industrial: SR4 and other 3306-powered industrial applications

Replaces Part Number(s):

1654262, 165-4262, 1290338, 129-0338, 8N3102, 8N2533, 0R1697

Aftermarket Interchange Numbers

Interstate-McBee: M-1654262, M-1290338, M-129-0338, M-8N2533, M-8N3102 | PAI: 311093, 311093HP | Dana/Private Brand: 224-3015X | Other: 7171D, A-1706N

New aftermarket replacement part - not remanufactured, not used.
