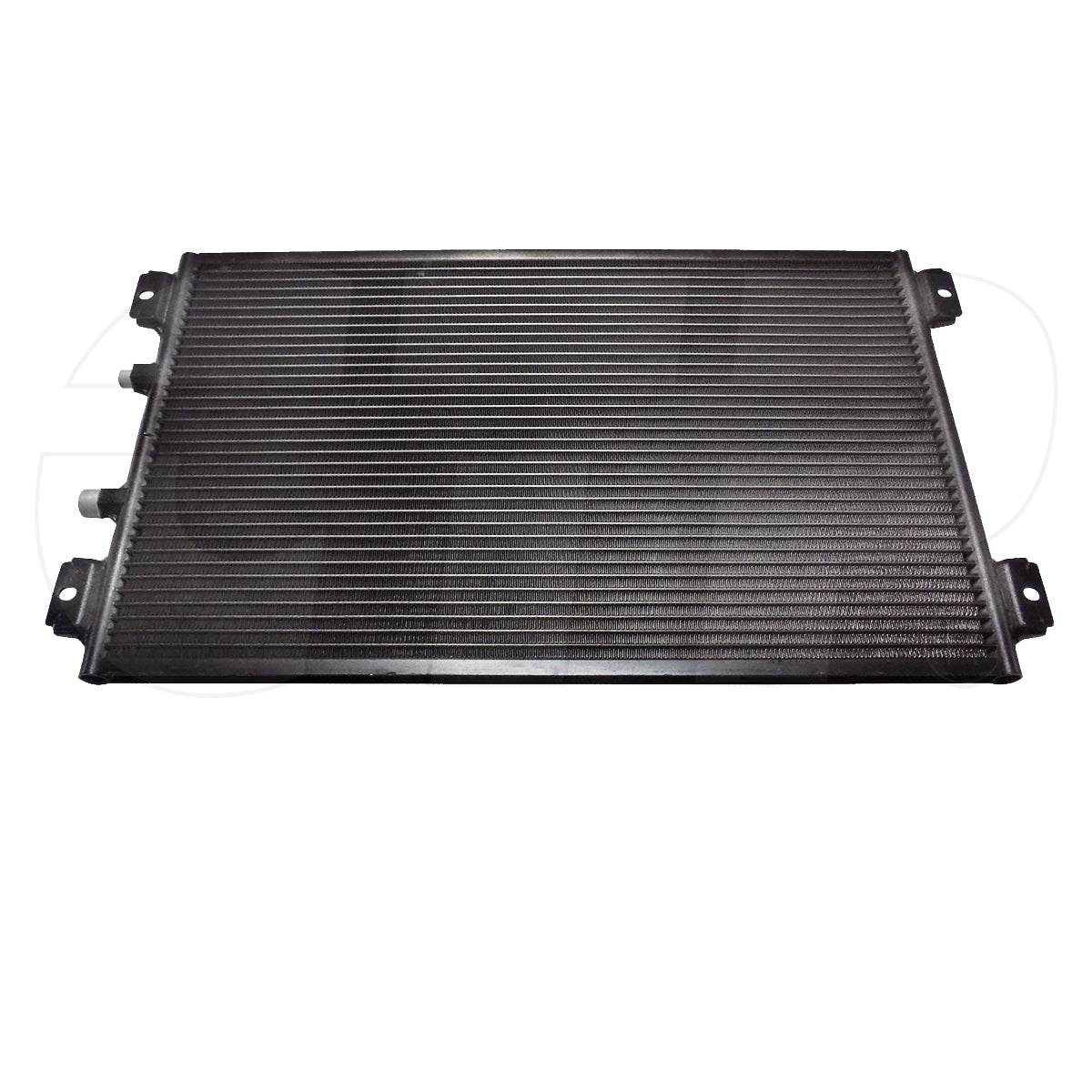

1640588 Condenser Fits Caterpillar Models

One New Aftermarket Replacement A/C Condenser for Caterpillar (Cat) C-Series Excavators

This aftermarket replacement air conditioning condenser core removes heat from the cab refrigerant circuit and rejects it to the outside air, keeping the operator cab cool. The condenser is a parallel-flow design and mounts in the air stream of the excavator's cooling package. It is a direct-fit replacement for Caterpillar OEM part number 164-0588 (1640588) and also crosses to Komatsu equipment using OEM number 20Y-979-6131 / 20Y9796131.

Specifications

• Type: Parallel flow A/C condenser core
• Overall outer dimensions: 654 mm x 350 mm x 16 mm
• Core dimensions: 565 mm x 350 mm x 16 mm
• Height: 14.5 in. | Width: 24 in. | Depth: 0.63 in.
• Inlet fitting: M16 x 1.5 (10.2 mm pilot)
• Outlet fitting: M22 x 1.5 (15.5 mm pilot)

Compatible Models

Caterpillar (Cat) C-Series Excavators: 312C, 312C L, 315C, 318C, 319C, 320C, 320C FM, 320C L, 322C, 322C FM, 325C, 325C FM, 330C, 330C FM, 330C L, 330C MH, M325C MH

Komatsu Excavators (via cross-reference 20Y9796131): PC130-7, PC200-7, PC210-7, PC220-7, PC240-7, PC270-7, PC300-7, PC360-7, PC400-7, PC450-7, PC650-7. Verify Komatsu fitment against your machine serial number before ordering.

Replaces Part Number(s):

164-0588, 1640588

Aftermarket Interchange Numbers

20Y-979-6131, 20Y9796131, 20Y-979-6130, 20Y9796130, 24-14689, 2414689

New aftermarket replacement part - not remanufactured, not used.
