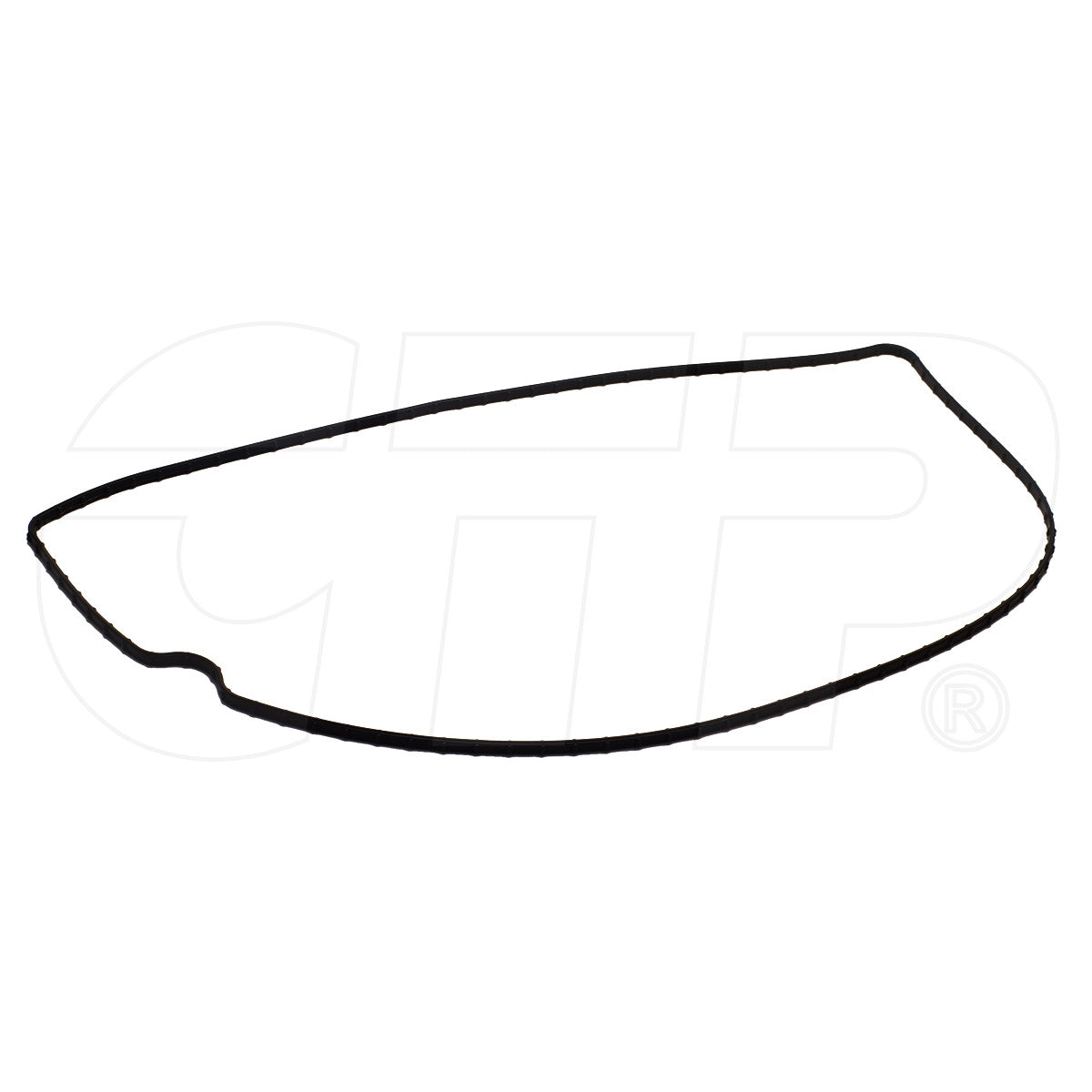

1607271 Seal-Press Fits Caterpillar Models

One New Aftermarket Replacement Press-In-Place Seal for Caterpillar (Cat) C15, C16, C18 and Related Engines and Equipment

This press-in-place (PIP) seal fits the front housing cover on Caterpillar C15, C16, C18, and related diesel engines. It is designed to maintain retention in the groove, preventing fluid or gas leakage at the connection between the front housing cover and associated components. Used across a wide range of Caterpillar construction equipment, trucks, and power units powered by the C15/C16/C18 engine family.

Specifications

• Type: Press-In-Place (PIP) Seal
• Overall Length: 434 mm
• Overall Width: 277 mm
• Thickness: 6.36 mm
• Weight: 0.09 lbs
• Application: Front housing cover seal

Compatible Models

Caterpillar Articulated Trucks: 735, 735B, 740, 740B, 770, 770G, 770G OEM, 772, 772G, 772G OEM

Caterpillar Excavators: 365C, 365C L, 365C L MH, 374D L, 374F L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L

Caterpillar Wheel Scrapers: 621B, 621F, 621G, 621H, 623E, 623F, 623G, 623H, 627F, 627G, 627H, 631D, 631E, 631G, 633E II, 637D, 637E, 637G, 651B, 657E, 657G

Caterpillar Wheel Dozers: 824C, 824G, 824G II, 824H, 824K, 834G, 834H, 834K

Caterpillar Landfill/Soil Compactors: 825G II, 825H, 825K, 826G II, 826H, 826K, 836G, 836H, 836K

Caterpillar Wheel Loaders: 980G, 980H, 980M, 982M, 986H, 988G, 988H, 988K

Caterpillar Track-Type Tractors: D8R, D8T, D9T

Caterpillar Pipelayers: 583T, 587T, PL83, PL87

Caterpillar Motor Grader: 24M

Caterpillar Load Haul Dump: R2900G, R3000H

Caterpillar Underground Articulated Trucks: AD30, AD45B, AD55

Caterpillar Cold Planers/Reclaimer Mixers: PM-200, PM-201, RM-500

Caterpillar Challengers: MTC835

Caterpillar Petroleum/Power Packages: CX31-C15I, CX31-C18I, CX35-C18I, CX35-P800, TH35-C15I, TH35-C15T

Caterpillar Engines (Truck, Industrial, Generator, Marine): 3406E, 3456, C-15, C-16, C11, C15, C15 I6, C16, C18, C18 I6

Case: 621F, 621G

Replaces Part Number(s):

1607271, 160-7271

Aftermarket Interchange Numbers

331462 (PAI), FP-1607271, FP1607271, M-1607271, M1607271

New aftermarket replacement part - not remanufactured, not used.
