1590927 Disc-Friction Fits Caterpillar Models
1590927 Disc-Friction Fits Caterpillar Models
Couldn't load pickup availability

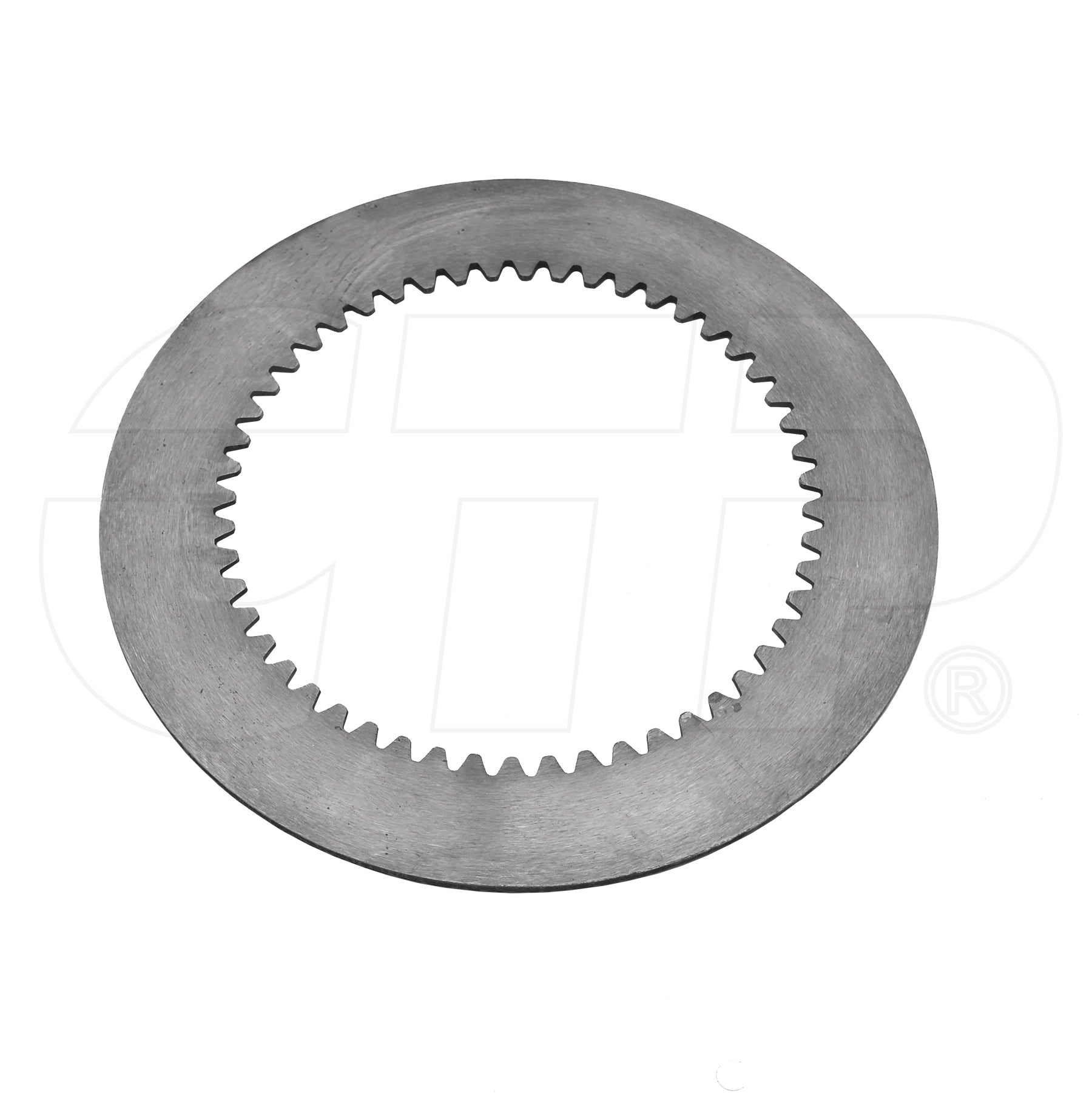

One New Aftermarket Replacement Friction Disc for Caterpillar (Cat) Motor Graders
This friction disc (also referred to as a brake plate, clutch plate, or clutch disc) is a transmission clutch component used in the powertrain braking and clutch systems of Caterpillar motor graders. It is sold individually; note that some applications require multiple discs per service job.
Specifications
- Outer Diameter: 190.0 mm (7.48 in.)
- Inner Diameter: 128.6 mm (5.06 in.)
- Thickness: 3.0 mm (0.12 in.)
- Teeth: 52T
- Weight: approximately 0.5 lbs.
Compatible Caterpillar Engines
3116, 3126, 3126B, 3176C, 3306, C-9, C6.6, C7, C9
Compatible Models
Caterpillar Motor Graders: 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 163H NA
Replaces Part Number(s):
1590927, 159-0927, CA1590927
Aftermarket Interchange Numbers
5496412
New aftermarket replacement part - not remanufactured, not used.
