1586586 Cylinder Gp-Lift Fits Caterpillar Models
1586586 Cylinder Gp-Lift Fits Caterpillar Models
Regular price
£3,642.00 GBP
Regular price
Sale price
£3,642.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

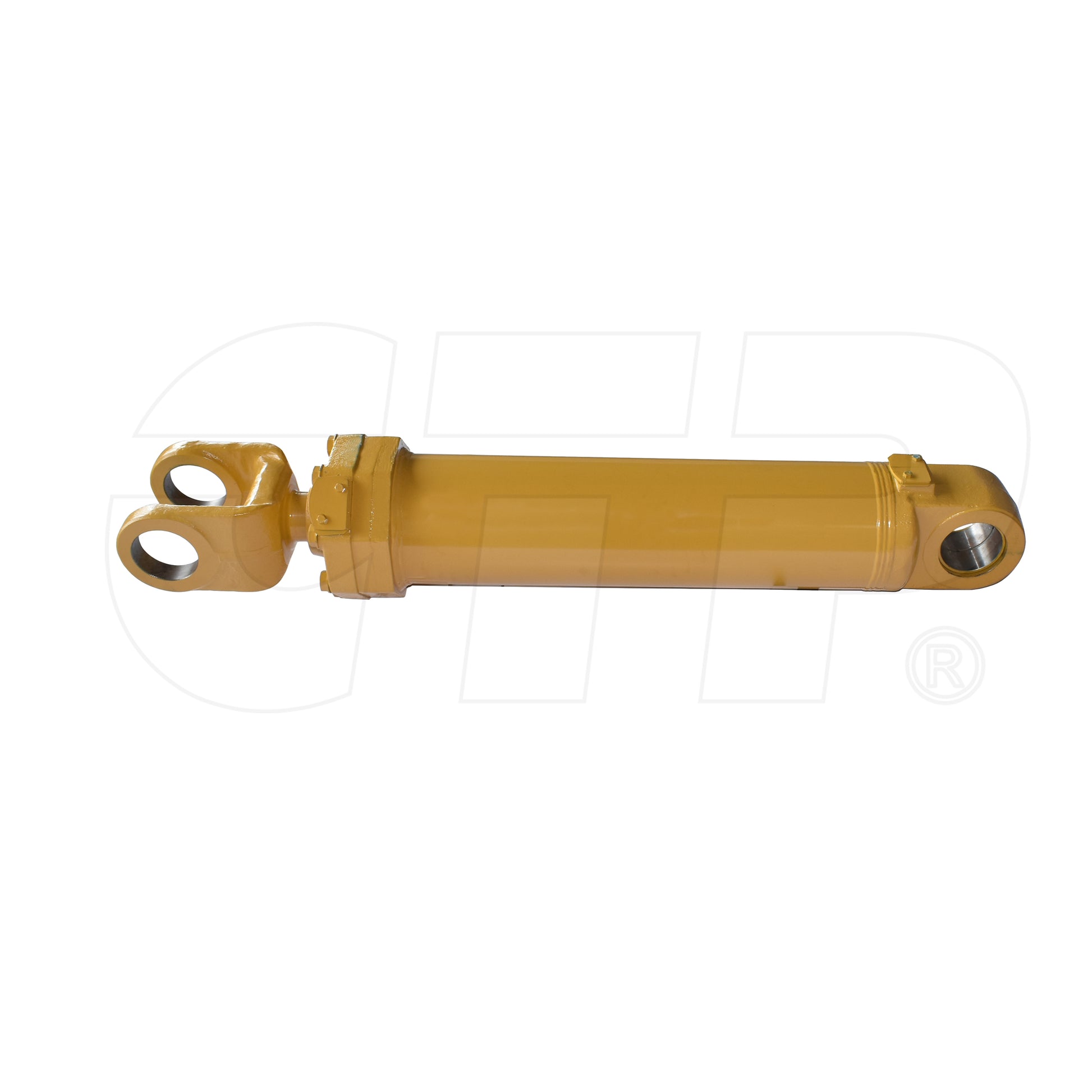

One New Aftermarket Replacement Hydraulic Lift Cylinder (RH) for Caterpillar (Cat) R1600 Series Load Haul Dump Underground Loaders
This aftermarket replacement hydraulic lift cylinder group (Cylinder Gp-Lift) is the right-hand (RH) lift cylinder for Caterpillar R1600-series underground Load Haul Dump (LHD) mining loaders. It is part of the right-hand lift cylinder and seal assembly (1620330) in the hydraulic system and provides the lifting force for the loader bucket. This is a complete cylinder group with bolted head design.
Specifications
- Bore Diameter: 190.5 mm (7.5 in)
- Stroke: 749.5 mm (29.5 in)
- Closed Length: 1389.5 mm
- Rod Diameter: 88.9 mm (3.5 in)
- Pin Size - Cap End: 107.95 mm
- Pin Size - Rod Eye: 107.95 mm
- Head Type: Bolted
- Weight: approx. 542 lbs (245 kg)
- Side: Right-Hand (RH)
Serial Number Applicability
Caterpillar R1600: Serial numbers 9EW00001-Up and 9XP00001-Up. Verify serial number compatibility before ordering.
Compatible Models
Caterpillar (Cat) R1600 Series Load Haul Dump (LHD): R1600, R1600G, R1600H
Replaces Part Number(s):
1586586, 158-6586
New aftermarket replacement part - not remanufactured, not used.
