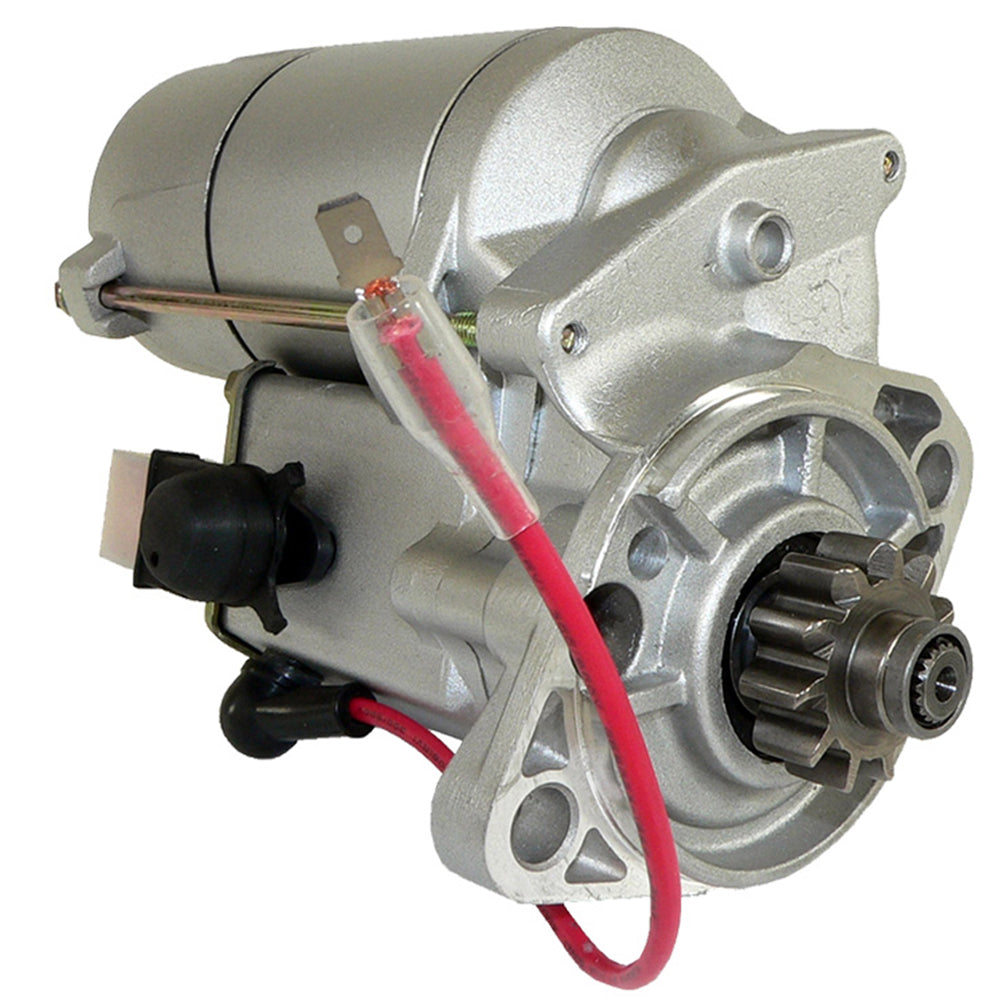

Starter Fits Kubota Tractor Loader 15833-63010 R400
Starter Fits Kubota Tractor Loader 15833-63010 R400
Couldn't load pickup availability
One New Aftermarket Replacement Starter Fits Kubota (Fits Kubota) Wheel Loader R400
This aftermarket replacement starter is Fits Kubota R400 wheel loader powered by the V1902 diesel engine (38 HP, 1986 and later). It is a Fits Denso-type OSGR (Off-Set Gear Reduction) starter mounted in the flywheel and starter assembly of the electrical system. The 12-volt, 2.0 kW unit features clockwise rotation and an 11-tooth drive gear, providing reliable cold and warm starts for this compact wheel loader.
Specifications
- Voltage: 12V
- Power: 2.0 kW
- Rotation: Clockwise (CW)
- Starter Type: OSGR (Fits Denso-type)
- Number of Teeth: 11
- Gear OD: 1.559 in / 39.6 mm
- Mounting Ears: 11 mm unthreaded (x2)
- Weight: 10.75 lbs / 4.89 kg
- Length: 9-13/16 in
- Width: 5-1/2 in
Compatible Models
Fits Kubota Wheel Loaders: R400 (V1902 38HP Diesel, 1986 and later)
Replaces Part Number(s):
15833-63010, 15833-63010-A, 15833-63011, 15833-63011-A, 15833-63012, 15833-63012-A, 15833-63013, 15833-63013-A, 17121-63011, 128000-2160, 128000-2161, 128000-8550, 128000-8551, 9712809-216, 9712809-855, 190-589, SND0328, ELS60-0651, 18153, 71-29-18153, 91-29-5339
Aftermarket Interchange Numbers
Arrowhead: SND0328 | Fits Denso: 128000-2160, 128000-2161, 128000-8550, 128000-8551 | Fits Denso Reman: 9712809-216, 9712809-855 | Lester: 18153 | Wilson: 91-29-5339 | J&N: 410-52232 | Fits Stens: 435-262
New aftermarket replacement part - not remanufactured, not used.
