1516320 Tool-Removal Fits Caterpillar Models

One New Aftermarket Replacement Wire Removal Tool for Caterpillar (Cat) Equipment

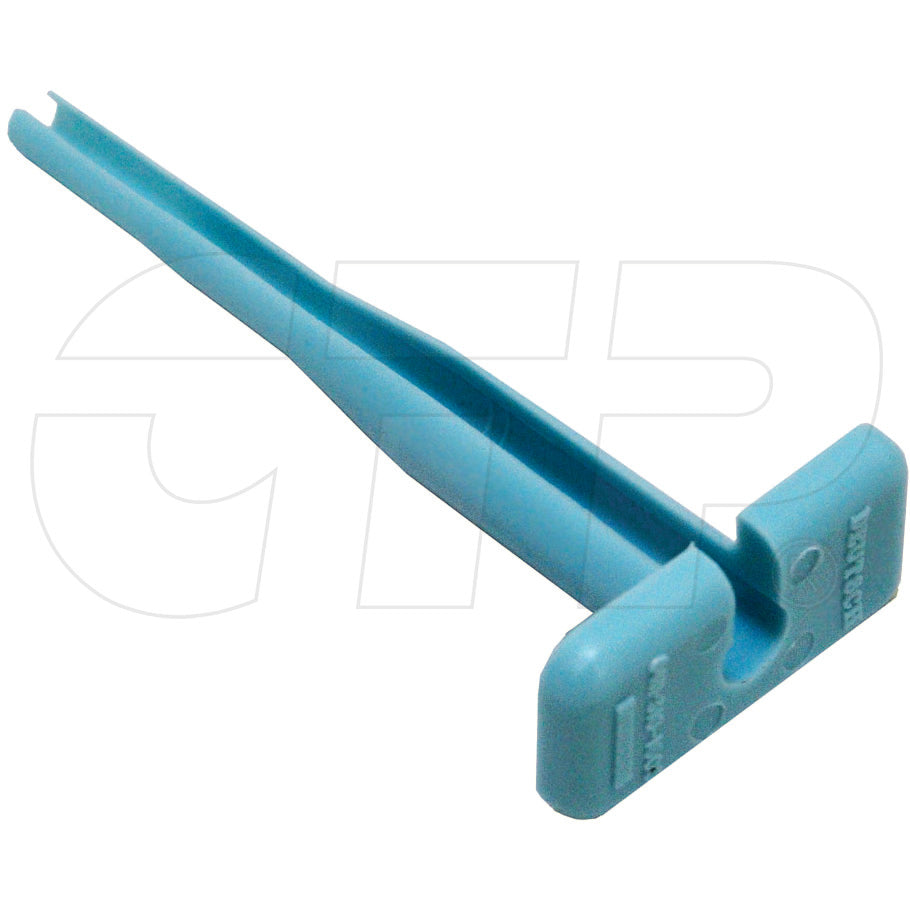

The Caterpillar 1516320 is a wire contact removal tool used to depin and extract wire terminals from electrical connectors on Caterpillar (Cat) construction, mining, and engine equipment. This tool is designed for use with 24-20 AWG wire gauge connectors. Also known as a contact extraction tool, it is an essential workshop and field service tool for electrical harness repairs across a wide range of Cat machines and engines. Supersedes earlier Cat part numbers 121-9587 and 8T5318.

Specifications

• Wire Gauge Compatibility: 24-20 AWG connectors
• Weight: 0.01 lbs
• Dimensions: Approximately 2.17 x 0.98 x 2.17 in.
• OEM Alternate Format: 151-6320

Compatible Models

Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 12M, 14G, 14H, 14H NA, 16H, 16H NA, 120H, 120H ES, 120H NA, 120M, 135H, 135H NA, 140H, 140H NA, 143H, 160H, 160H ES, 160H NA, 163H, 163H NA, 160M

Caterpillar Wheeled Excavators: M313C, M315C, M316C, M318C, M318C MH, M322C

Caterpillar Wheel Loaders: 914G, 924G, 924GZ, 928G, 938G, 938G II, 950G, 962G, 966G, 972G, IT14G, IT28G, IT38G, IT38G II, IT62G

Caterpillar Track-Type Tractors: D3G, D4G, D5G, D6H XL, D6R, D6R II, D7R, D7R II, D8R, D8R II, D9R, D10R, D11N, D11R

Caterpillar Hydraulic Excavators: 301.5, 301.6, 301.8, 302.5, 303.5, 304.5

Caterpillar Mini Hydraulic Excavators / Small Equipment: 216, 228, 236, 247, 248, 267, 287, 902, 906, 908

Caterpillar Engines: 3126B, 3406B, 3406C, 3412, 3412C, 3508B, C-10, C-12, C-13, C-15, C-16, C-18, C-27, C-32, C7, C9, C9.3

Caterpillar Telehandlers: TH62, TH63, TH82, TH83, TH103

Caterpillar Underground / Articulated Trucks: AD22, AD45

Caterpillar Skid Steer / Compact Track Loaders: SR500, CPT372

Caterpillar Transmission / Drivetrain: CX31-C9I, CX31-C11I, CX31-C13I, CX31-C15I, CX31-P600, CX35-P800, TH31-C9I, TH31-C9P, TH31-E61, TH35-C11I, TH35-C13I, TH35-C15I, TH48-E70, TH48-E80

Caterpillar Other: 992C, 992D, IT38G II, MD5075

Replaces Part Number(s):

1516320, 151-6320

Supersedes

Supersedes Cat part numbers: 121-9587, 1219587, 8T5318

New aftermarket replacement part - not remanufactured, not used.
