Minor Starter Repair Kit Fits Delco Replaces 151-12008

Minor Starter Repair Kit Fits Delco Replaces 151-12008

£10.00 GBP
£10.00 GBP
Sale Sold out
Shipping calculated at checkout.

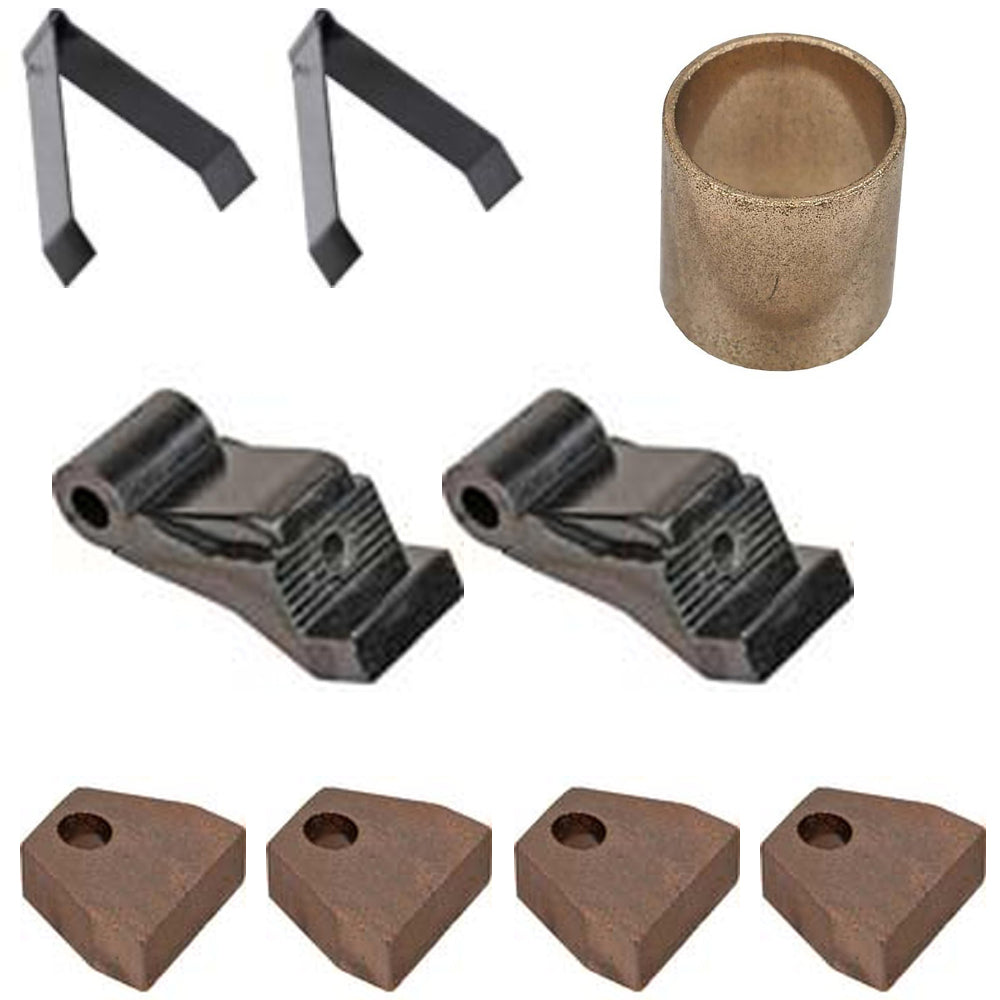

One New Aftermarket Minor Starter Repair Kit

Tech Info:
 -(2) Brush Springs
 -20-27MT Series w/ Step-Down Field Fits Case
 -Replaces Part Numbers: 1926622
 -
 -(4) Starter Brushes
 -Length: 0.63" / 16mm
 -Width: 0.748" / 19mm
 -Height: 0.256" / 6.5mm
 -Replaces Part Numbers: 1906945, 1906966, 1946400
 -
 -(1) Drive End Bushing
 -ID: 0.564" / 14.33mm
 -OD: 0.629" / 15.98mm
 -Width: 0.65" / 16.51mm
 -Replaces Part Numbers: 1938743, 35058, 810620, 9B-9103, D1676, MCX203
 -
 -(2) Brush Holders
 -For Starters
 -Insulated & Tapped with 8-32 Threads
 -Replaces Part Numbers: 1926618, 1938587, 1950546, 1988414, 6515795, 69-1202

Made to Fits Delco:
 Other (Agriculture) Models: 10MT, 20MT, 25MT, 27MT, 30MT, 35MT
 Replaces Part Number(s): 1926618, 1950546, 1988414, 1938587, S1851, SDR1302, 151-12008, 21401, 69-1202, 55-460, 5540-460, 419-19305NT, 52-1021

Models This Part Fits:

25MT, 35MT, 27MT, 30MT, 10MT, 20MT

Additional Information:

(2) Brush Springs 20-27MT Series w/ Step-Down Field Case Replaces Part Numbers: 1926622 (4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Numbers: 1906945, 1906966, 1946400 (1) Drive End Bushing ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces Part Numbers: 1938743, 35058, 810620, 9B-9103, D1676, MCX203 (2) Brush Holders For Starters Insulated & Tapped with 8-32 Threads Replaces Part Numbers: 1926618, 1938587, 1950546, 1988414, 6515795, 69-1202

Reference Numbers:

1926618, 1950546, 1988414, 1938587, S1851, SDR1302, 151-12008, 21401, 69-1202, 55-460, 5540-460, 419-19305NT, 52-1021
