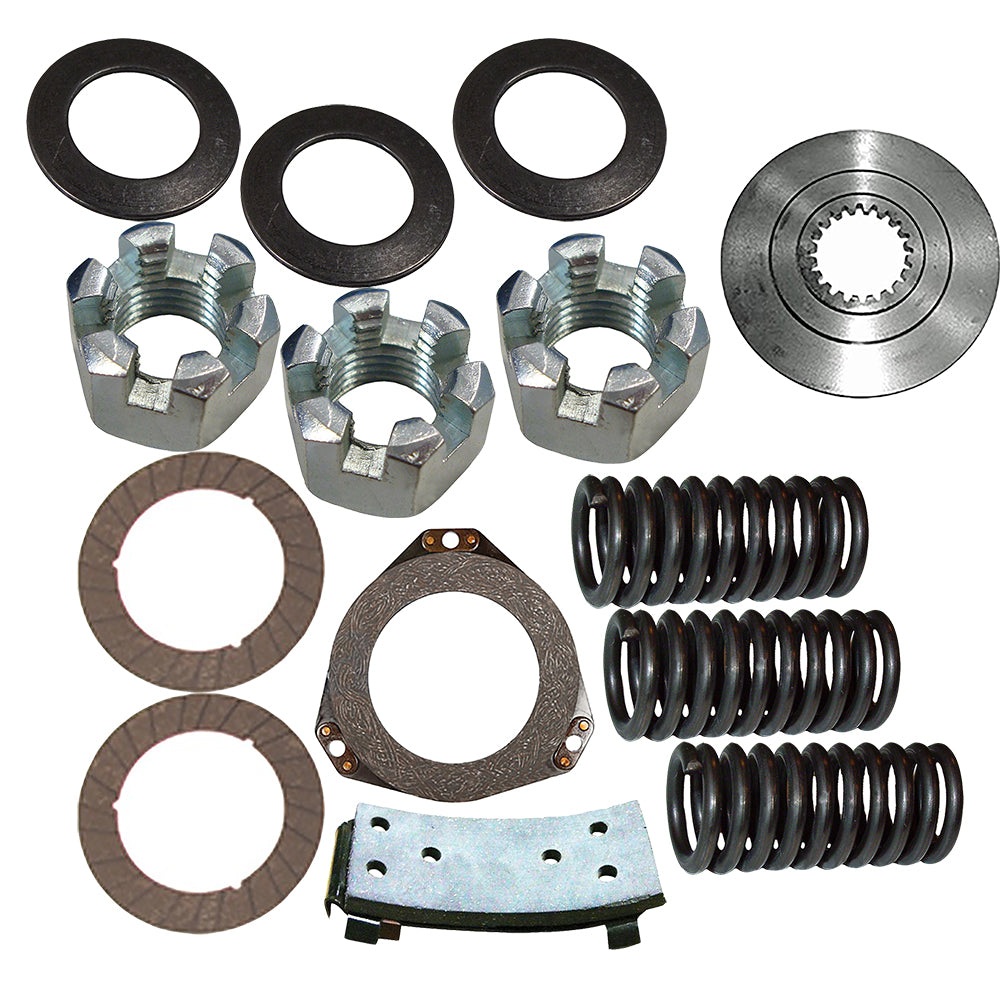

Clutch Slider Disc & Clutch Kit Fits John Deere Replaces 14H862

One New Aftermarket Clutch Slider Disc & Clutch Kit

Tech Info:

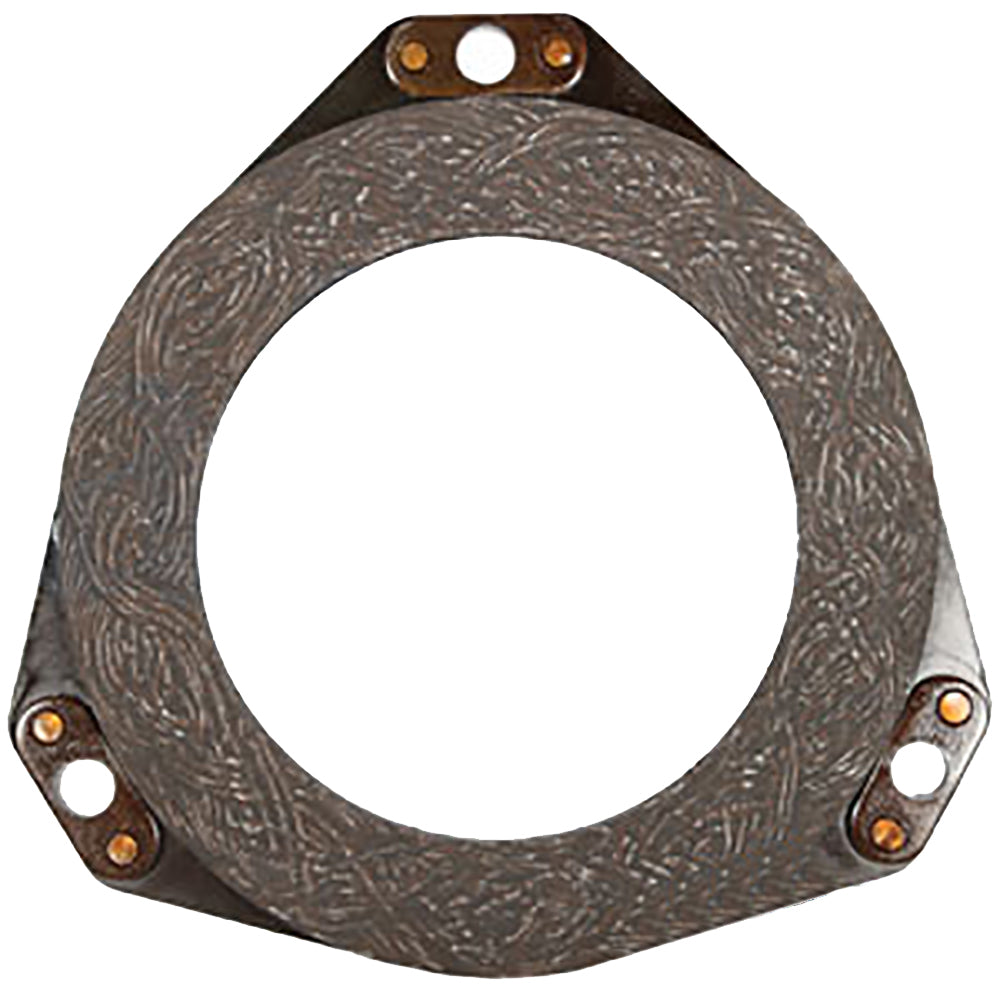

 -(1) Facing Clutch Pulley
 -10" disc outside diameter
 -0.393" thick
 -Replaces Part Numbers: AA5082R, AA6129
 -

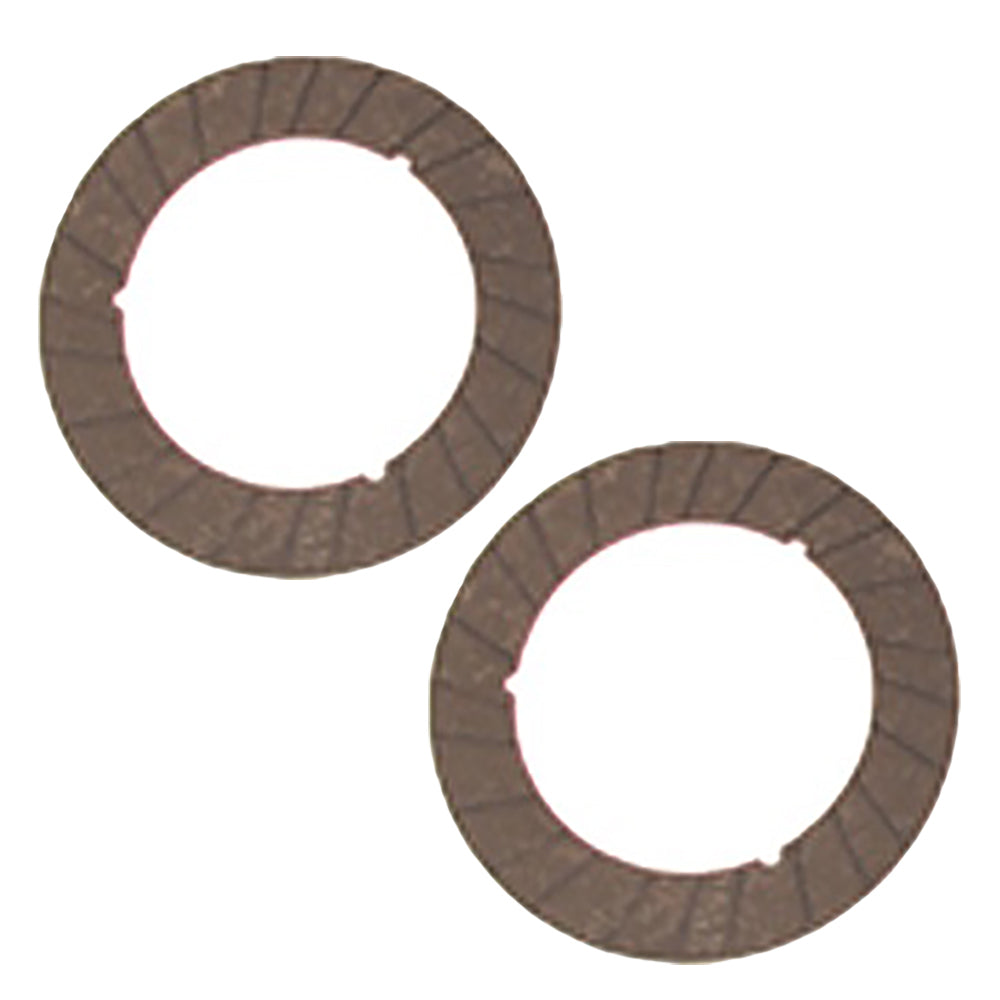

 -(2) Facing Clutch Disc
 -10" outside diameter
 -6-3/4" inside diameter
 -0.150" thick
 -The side with the grooves faces the driving disc
 -1-5/8" lining width
 -Replaces Part Numbers: R90215, C614R
 -

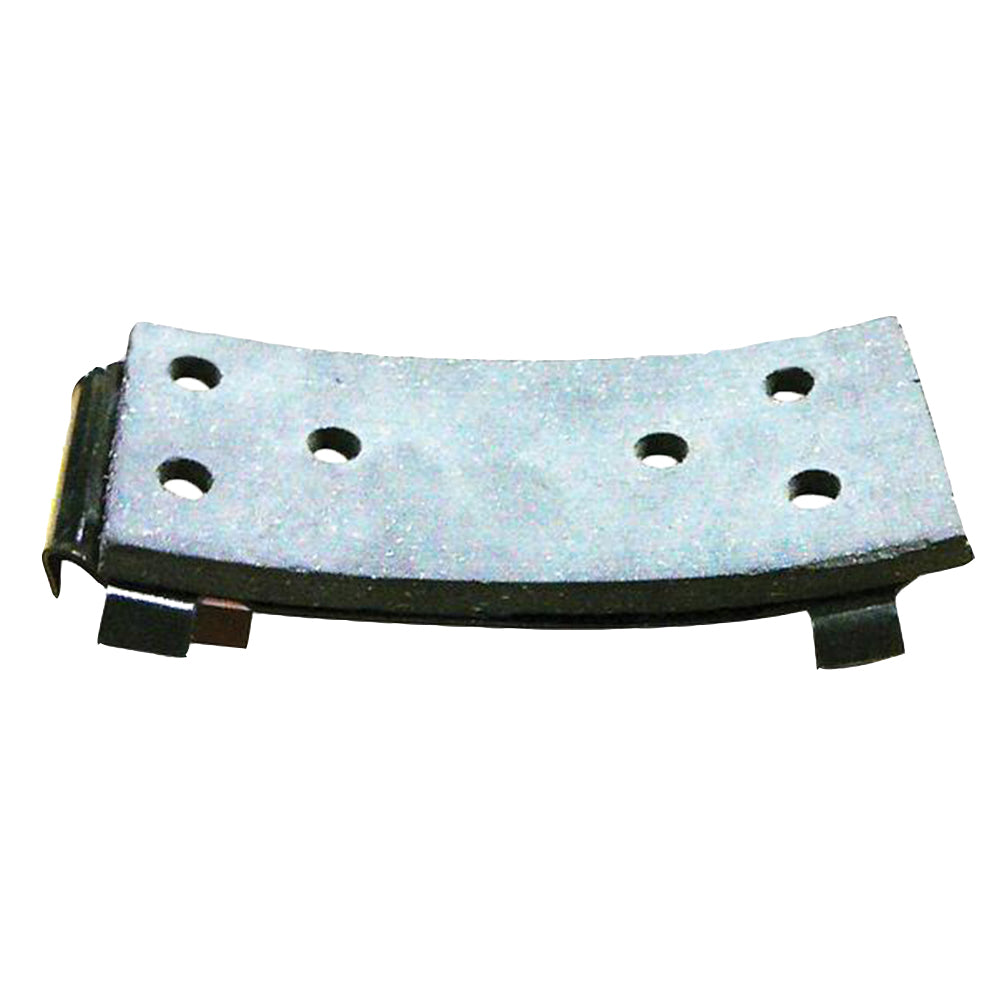

 -(1) Brake Pad Pulley
 -Non-asbestos lining with countersunk brass rivets
 -Replaces Part Numbers: AB4748R, AF4748R, RE29790
 -

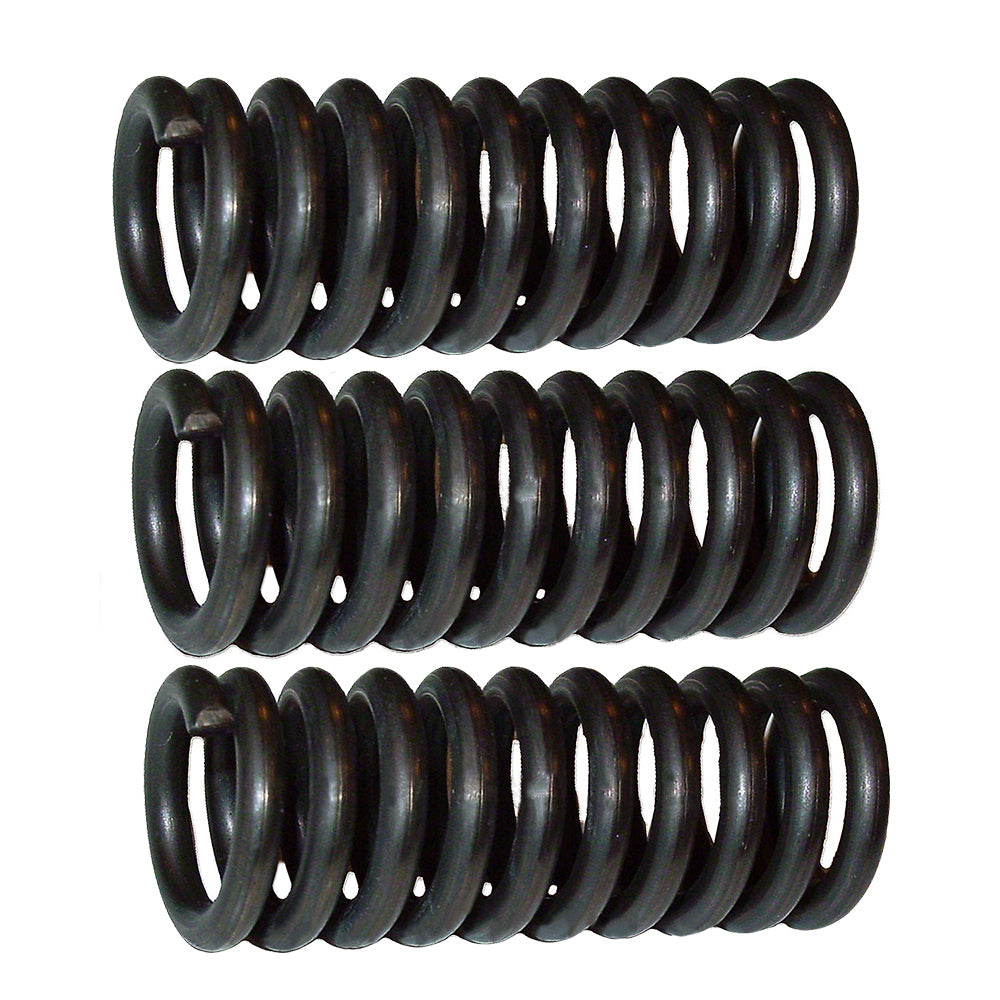

 -(3) Clutch Disc Adjusting Spring
 -1.915" long
 -0.740" outside diameter
 -0.500" inside diameter
 -0.120" wire thickness
 -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc
 -3 springs used per tractor
 -Replaces Part Numbers: A352R
 -

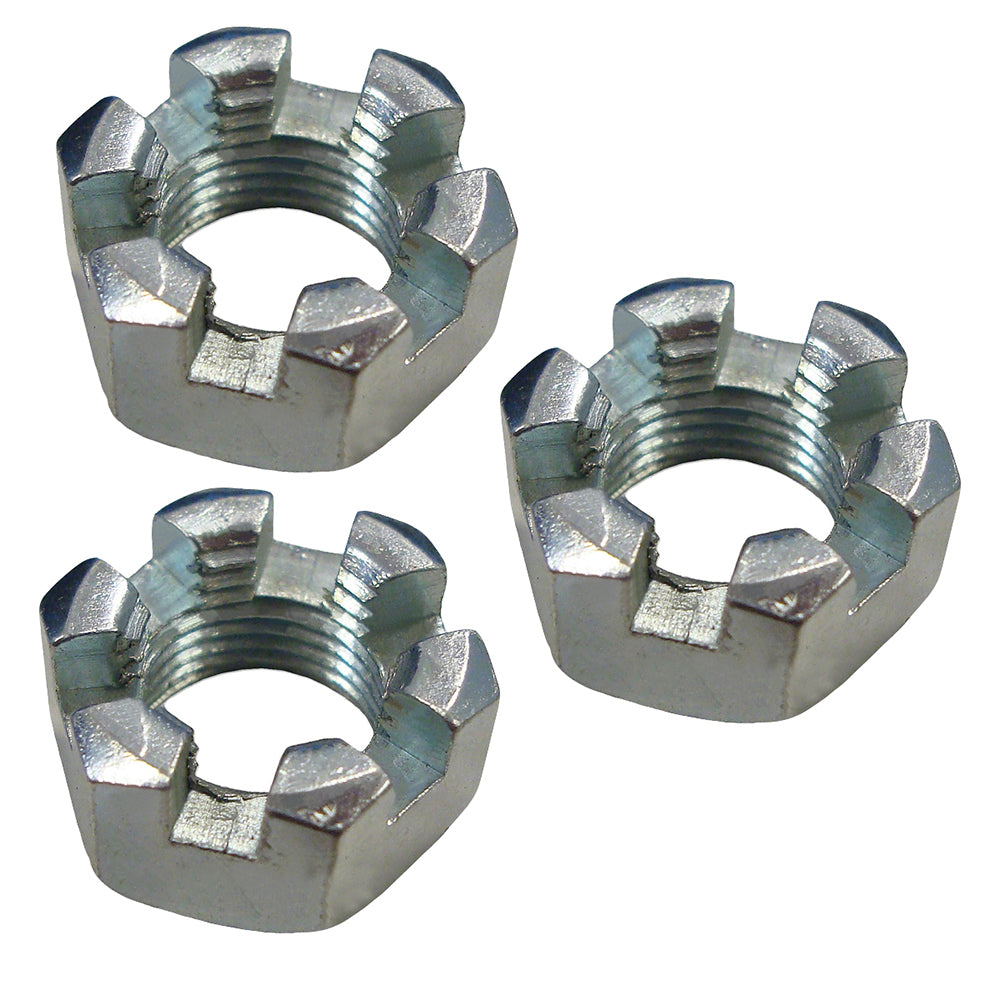

 -(3) Clutch Adjusting Nut
 -9/16" - 18 NF
 -Grade 5
 -Slotted hex nut, 9/16"
 -3 used per tractor
 -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228
 -

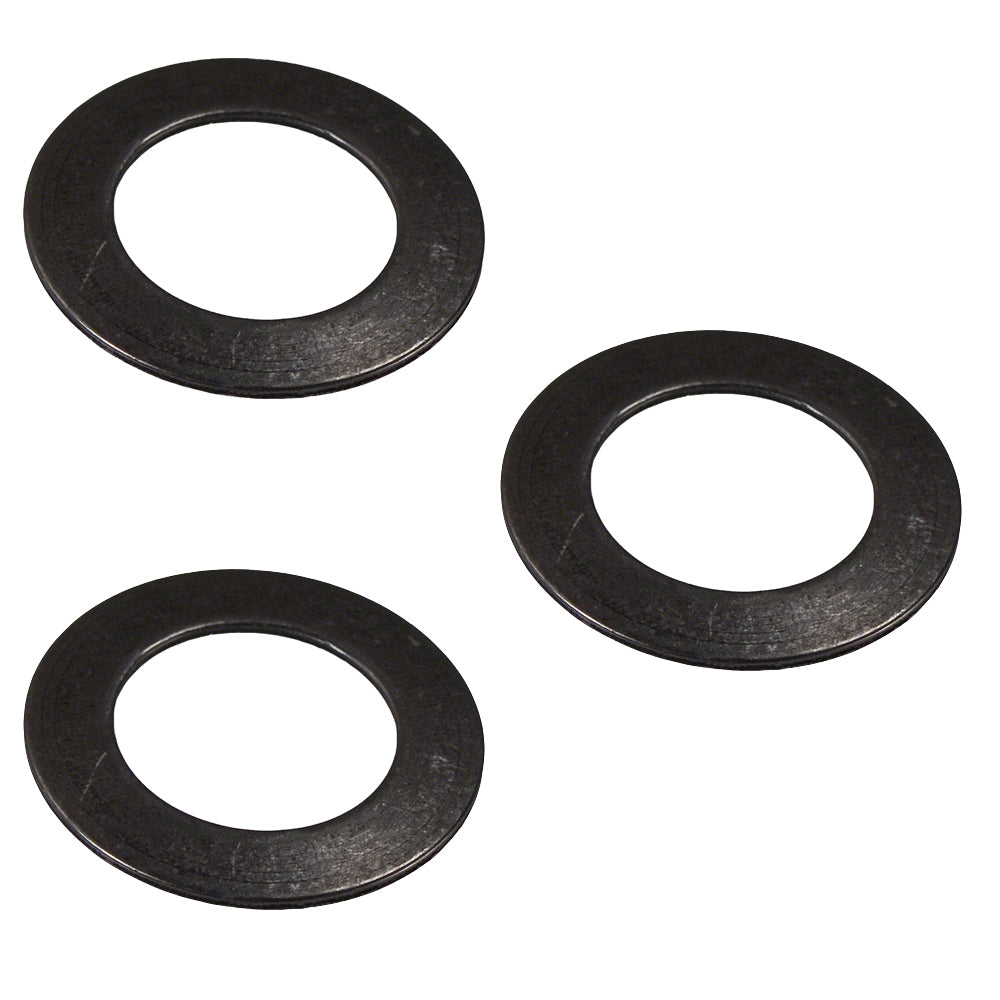

 -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer
 -0.572" inside diameter
 -0.937" outside diameter
 -0.035" thick
 -Spring steel
 -Torque initially to 15 FT pounds, then adjust as needed
 -Use to smooth out the hand clutch engagement
 -3 used per tractor
 -Replaces part Numbers: JDS1626
 -

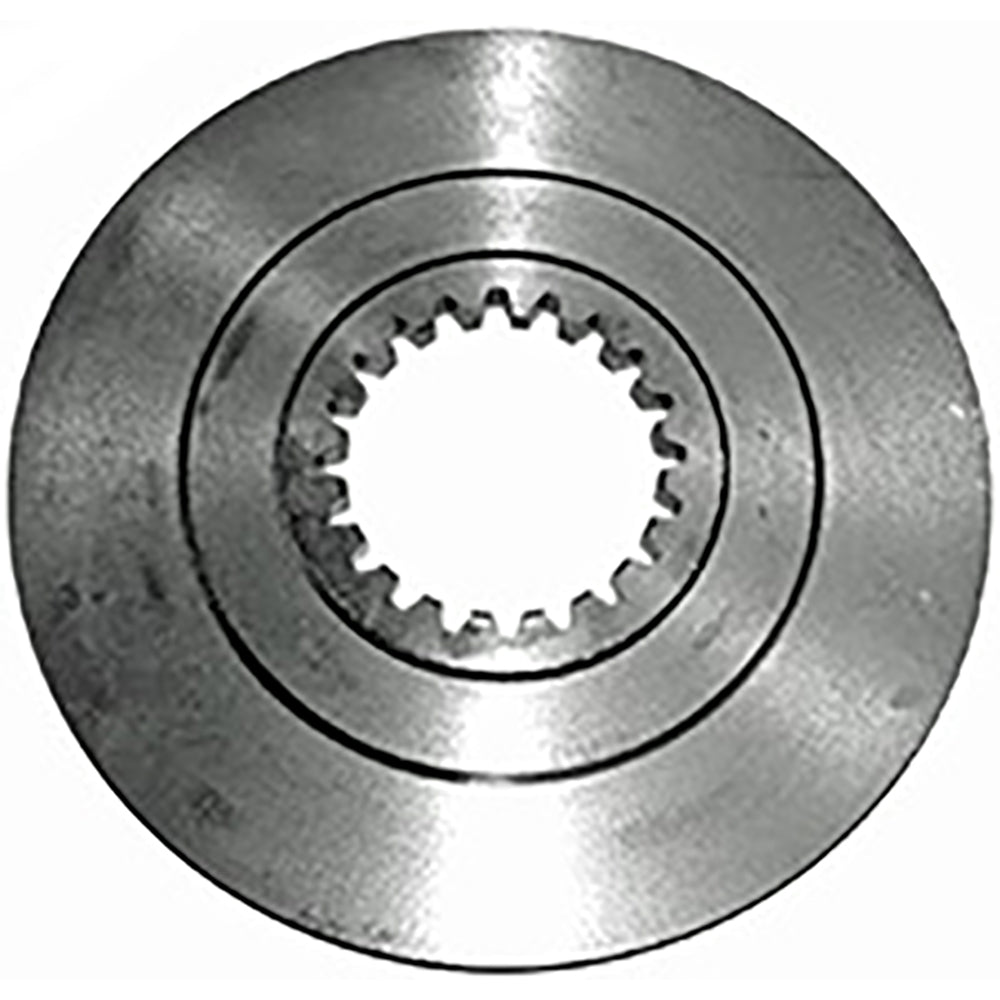

 -(1) Clutch Slider Disc
 -9.910" outside diameter
 -0.247" thick
 -20 splines
 -3-5/8" spline inside diameter
 -Replaces Part Numbers: AF1247R

Made to Fits John Deere:
 Tractor Models: 60, 620, 630
 Model Breaks: AO, AR SN: 273080 and up. 1 used per tractorD SN: 109944 and up. 1 used per tractor G 1 used per tractorA SN: 648000 and up. 1 used per tractor 60 1 used per tractor 620 1 used per tractor 630 1 used per tractor 70 2 used per tractor 720 2 used per tractor 730 2 used per tractor
 Replaces Part Number(s): AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, 14H862, R20228, D2789R, AD2850R, JDS1626, AF1247R
