1484733 Gear-Planetary Fits Caterpillar Models
1484733 Gear-Planetary Fits Caterpillar Models
Couldn't load pickup availability

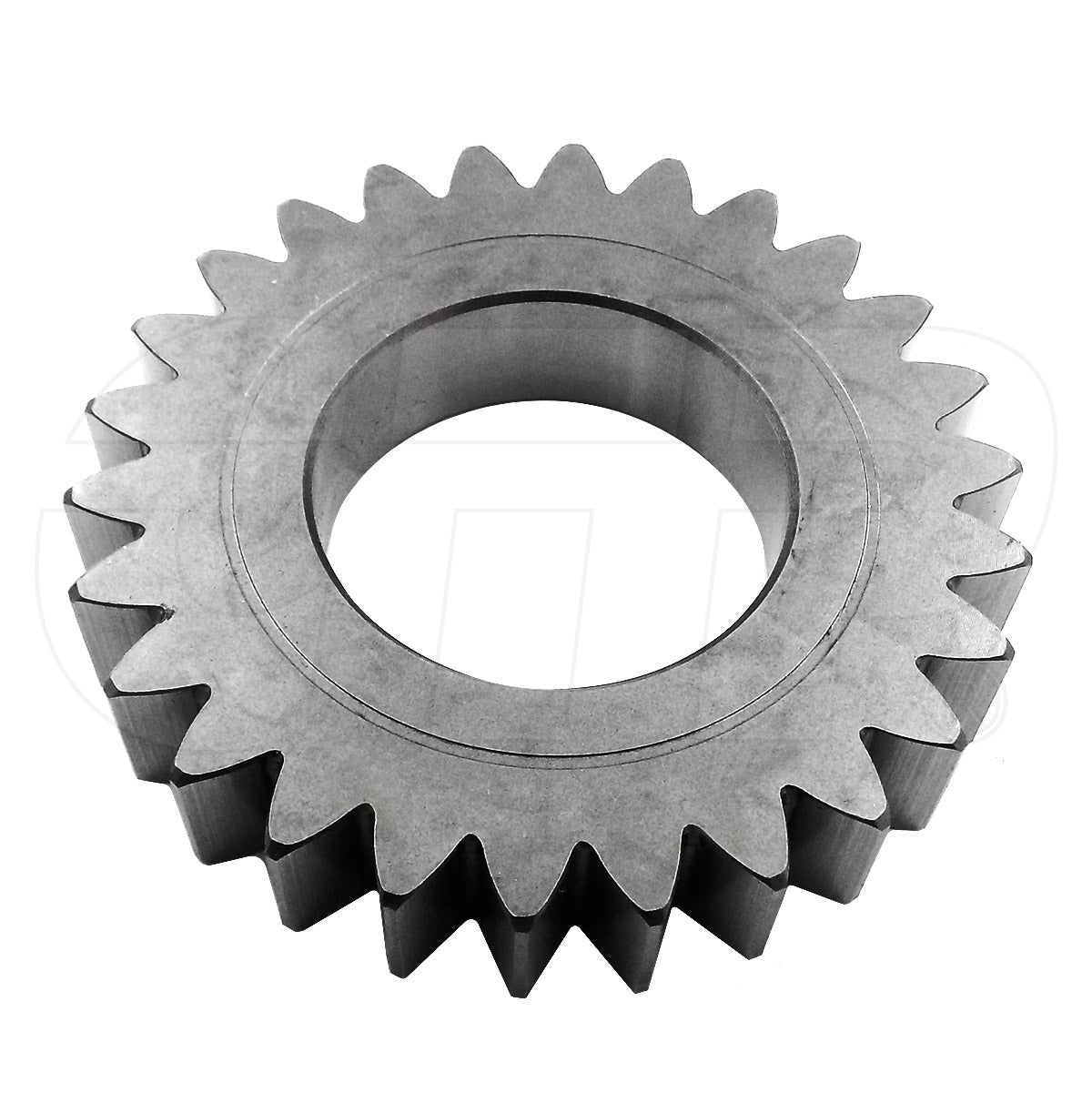

One New Aftermarket Replacement Planetary Gear for Caterpillar (Cat) Hydraulic Excavators
This aftermarket replacement planetary gear (26 teeth) fits the swing drive gearbox assembly on Caterpillar (Cat) 318-series through 323-series hydraulic excavators. The planetary gear is a critical component within the swing reduction drive, transmitting torque from the swing motor to rotate the excavator upper structure. Three of these gears are used per swing drive unit.
Specifications
- Teeth: 26
- Dimensions: 113.6 mm O.D. x 56 mm I.D. x 21 mm
- Weight: Approximately 2 lbs (1 kg)
- Quantity used per swing drive: 3
Compatible Models
Caterpillar Hydraulic Excavators: 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 321C, 321D LCR, 323D L, 323D LN, 323D SA, 323D2 L, 323E L
Caterpillar Mobile Hydraulic Power Unit: 323D L, 323D LN
Replaces Part Number(s):
1484733, 148-4733, CA1484733
New aftermarket replacement part - not remanufactured, not used.
