1484601 Gear-Sun Fits Caterpillar Models
1484601 Gear-Sun Fits Caterpillar Models
Couldn't load pickup availability

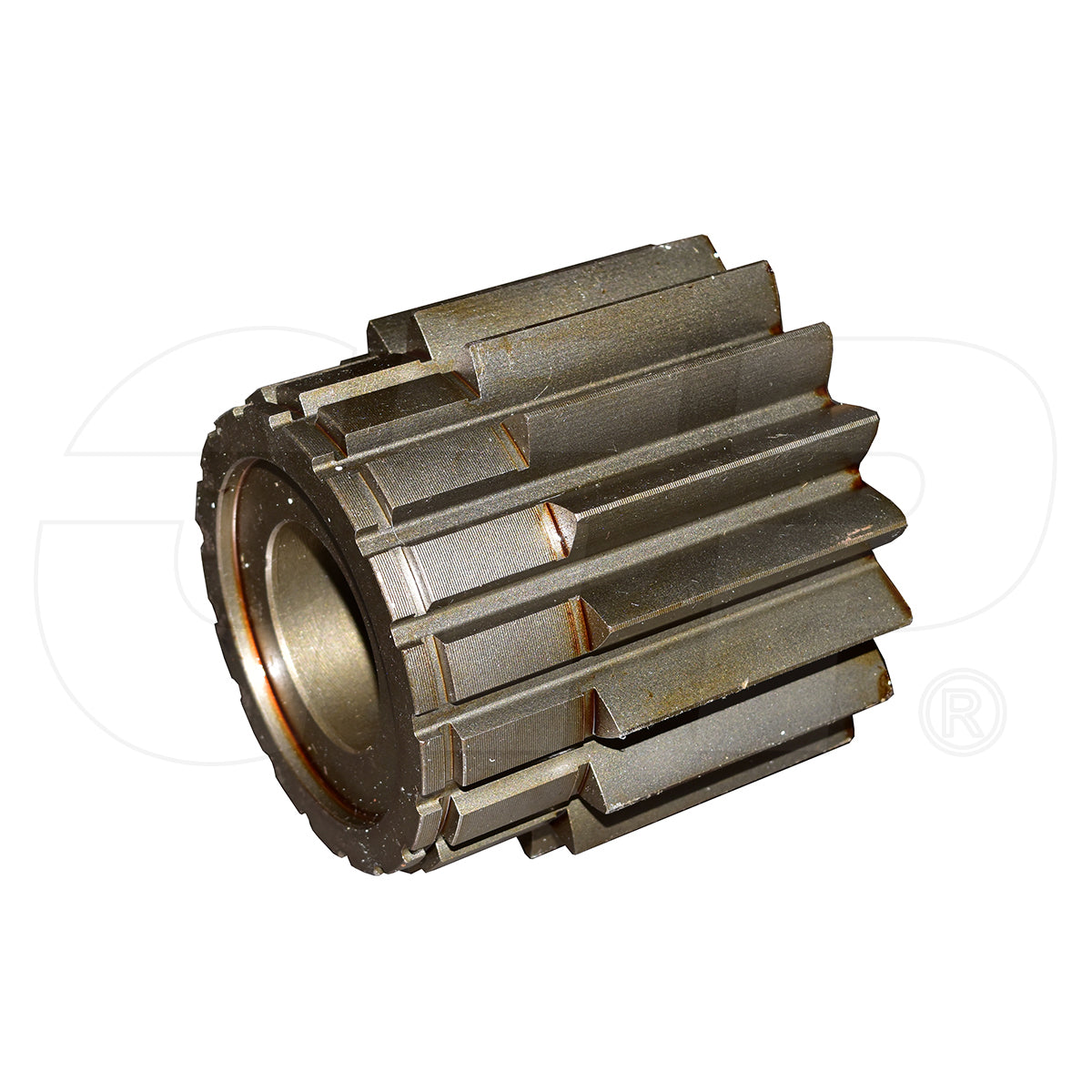

One New Aftermarket Replacement Sun Gear for Caterpillar (Cat) Excavators and Related Equipment
This sun gear (OEM part number 1484601 / 148-4601) is a drivetrain component used in the swing drive assembly on a wide range of Caterpillar (Cat) large excavators, wheeled excavators, front shovels, and mobile hydraulic power units. The sun gear is the central input gear in the planetary swing reduction gearbox, transmitting torque from the swing motor through the planetary set to rotate the upper structure.
Specifications
- Approximate Dimensions: 6.6 x 6.6 x 5.2 in.
- Approximate Weight: 13.9 lbs.
- Application: Swing Drive / Swing Reduction Gearbox - Sun Gear
Compatible Models
Caterpillar Excavators: 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 568 FM LL
Caterpillar Front Shovels: 385C, 5090B
Caterpillar Mobile Hydraulic Power Units: 330C, 330D, 330D L, 336D L, 336E, 336E HVG, 385C, 385C L
Caterpillar Wheeled Excavators: M330D
Replaces Part Number(s):
1484601, 148-4601, CA1484601
New aftermarket replacement part - not remanufactured, not used.
