1404-1064 Fits John Deere Axial Joint 6010; 6110; 6110L; 6120; 6120L;

1404-1064 Fits John Deere Axial Joint 6010; 6110; 6110L; 6120; 6120L;

£43.00 GBP
£43.00 GBP
Sale Sold out
Shipping calculated at checkout.

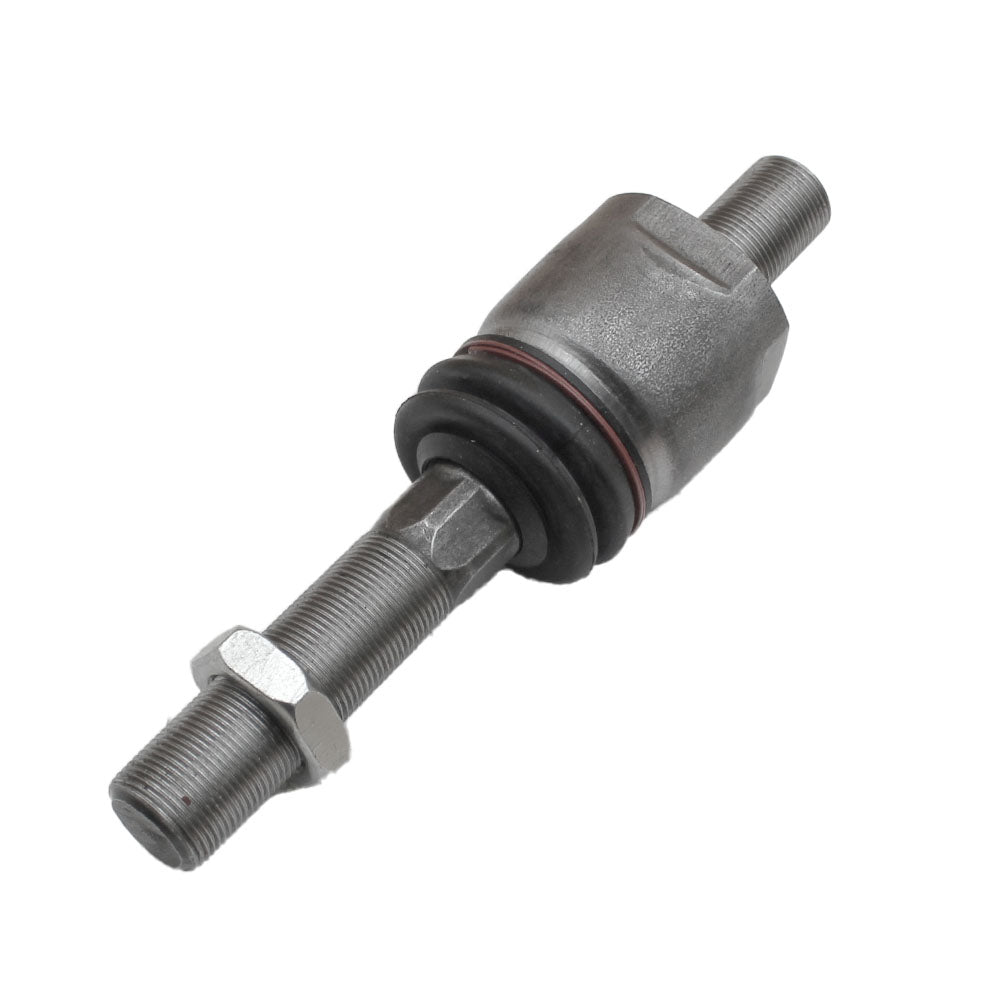

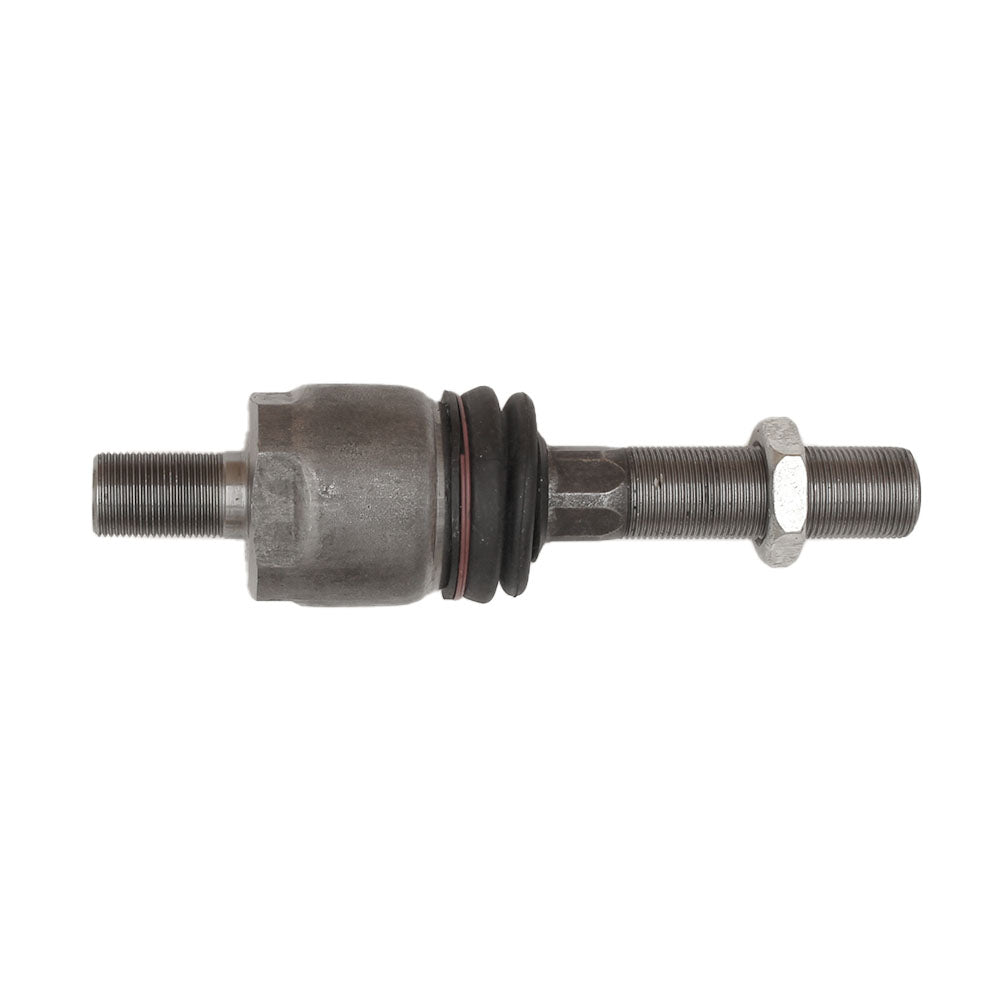

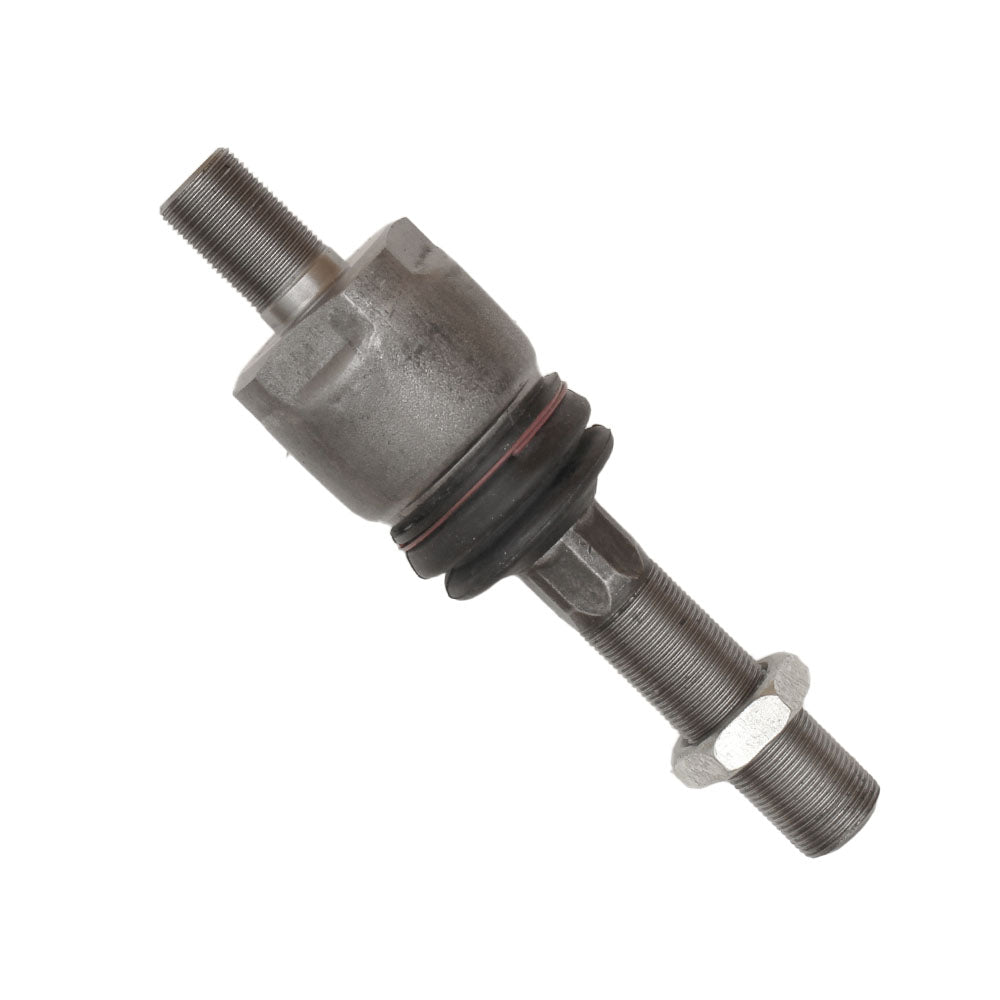

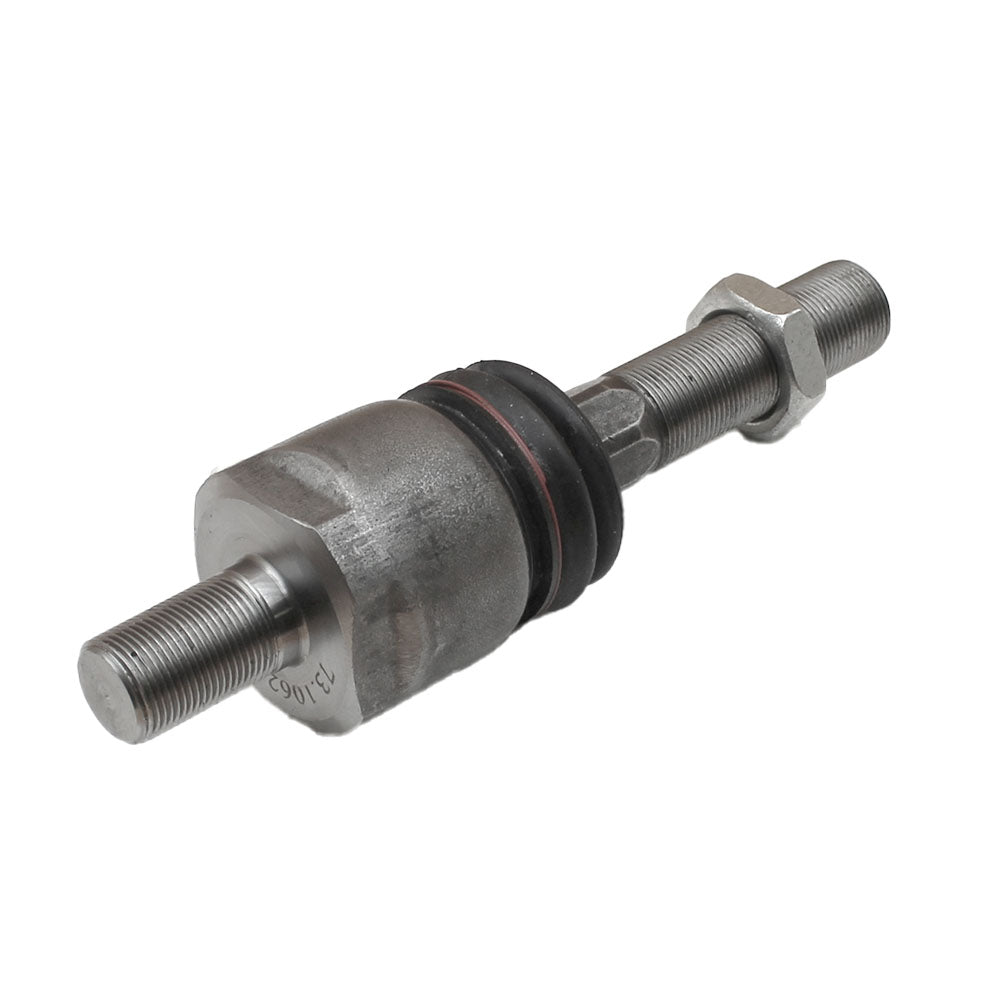

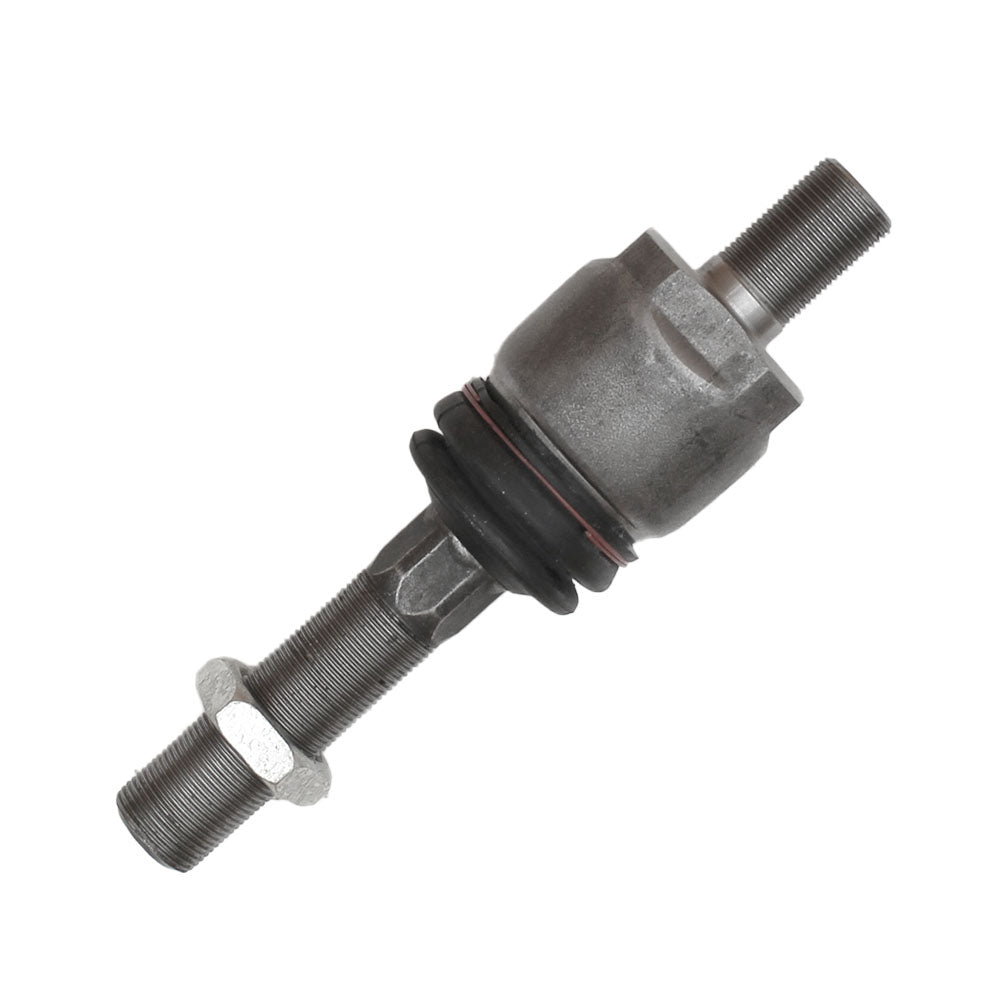

One New Aftermarket Replacement Drag Link Tie Rod End (Axial Joint) for John Deere Tractors, Backhoes, and Forklifts

This aftermarket replacement axial joint (drag link tie rod end) fits the MFWD (Mechanical Front Wheel Drive) front steering axle on a wide range of John Deere utility tractors, backhoes, and forklifts. It connects the drag link to the steering knuckle arm on ZF APL2025, APL2035, AS2025, and AS2035 four-wheel drive axles, transmitting steering input to the front wheels. This part is for MFWD-equipped machines only - verify your axle type before ordering.

Specifications

  • Type: Axial Joint / Drag Link Tie Rod End
  • Center to End: 4-1/8"
  • Diameter: 2-9/16"
  • Length: 8-1/4"
  • Thread 1: M22 x 1.5 RH (Male)
  • Thread 2: M24 x 1.5 RH (Male)

Compatible Models

John Deere Utility Tractors: 6010, 6020, 6110, 6110L, 6120, 6120L, 6140J, 6155J, 6200, 6200L, 6205, 6210, 6210L, 6215, 6220, 6220L, 6300, 6300L, 6310, 6310L, 6310S, 6320, 6320L, 6400, 6400L, 6403, 6405, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6500, 6500L, 6505, 6506, 6510, 6510L, 6510S, 6515, 6520L, 6600, 6603, 6605, 6610, 6615, 6715, 6800, 6810, 6820, 6900, 7210, 7220, 7320, 7405, 7410, 7420, 7425, 7500, 7520, 7525, 7740, 7740O, 7840, 7840O, 8210, 8240, 8340, MX80C, MX90C, SE6010, SE6020, SE6110, SE6120, SE6210, SE6220, SE6310, SE6320, SE6410, SE6420, SE6510, SE6520, SE6610, 5640, 6640

John Deere Backhoes / Industrial / Construction: 210C, 300D, 310C, 310D, 315C, 315D, 410C, 410D, 510C, 510D, 610C, 655E, 675E

John Deere Forklifts: 482C, 485E, 486E, 488E, 575E, 555E

Case / International Harvester: Verify fitment via cross-reference number N14377 (Case 580K, 580SK)

Ford / New Holland: Verify fitment via cross-reference numbers listed below

Replaces Part Number(s):

AL80542, AL151996, AL168711, 153326657, 9968015, 9968018

Aftermarket Interchange Numbers

1404-1064, FRT40-0066, TP-AL80542, ZP0750125010, N14377 (Case/IH), CAR49013, EQ501479

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

6310L, 6215, 610C, 7425, 6120L, 6610, 6603, 6800, 6400, 482C, 310D, 7525, 7740, 6110, 575E, SE6410, 8340, 6510S, SE6010, 510D, 6510L, 6420L, 410C, 6506, 6403, 6155J, 6220, SE6120, SE6220, SE6310, 6300, 6120, 6300L, 6515, 6140J, 6405, 6810, 555E, 6605, 675E, 510C, 8240, 7840O, 7500, 7840, 488E, 655E, 6415, SE6420, 6410, 6210L, 5640, SE6320, SE6110, 8210, 6210, 7520, 410D, 6110L, 6400L, 6410L, 485E, SE6020, 7410, 6520L, SE6210, 7405, 6410S, 6420, 6510, 6500L, 6615, SE6520, 4610N, 7320, 6010, 486E, 6020, SE6510, 6505, 6220L, 6640, 7740O, 210C, 6820, 6320, 7210, 310C, SE6610, 6715, 300D, 6900, MX90C, 315D, 6320L, 315C, 6600, 6310, 6310S, 7420, 6205, MX80C, 7220, 6500

Additional Information:

Center to End: 4 1/8" Diameter: 2-9/16" Length: 8-1/4" M22 X 1.5 RH Thread M24 X 1.5 RH Thread

Reference Numbers:

153326657, 9968015, 9968018, AL151996, AL168711, AL80542
