137-2819 Bushing Fits CAT 330, 330B, 330L, 330BL, 330C, 330CL
137-2819 Bushing Fits CAT 330, 330B, 330L, 330BL, 330C, 330CL
Regular price
£114.00 GBP
Regular price
Sale price
£114.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Bushing Fits Caterpillar (Fits CAT) 330 Series Excavators

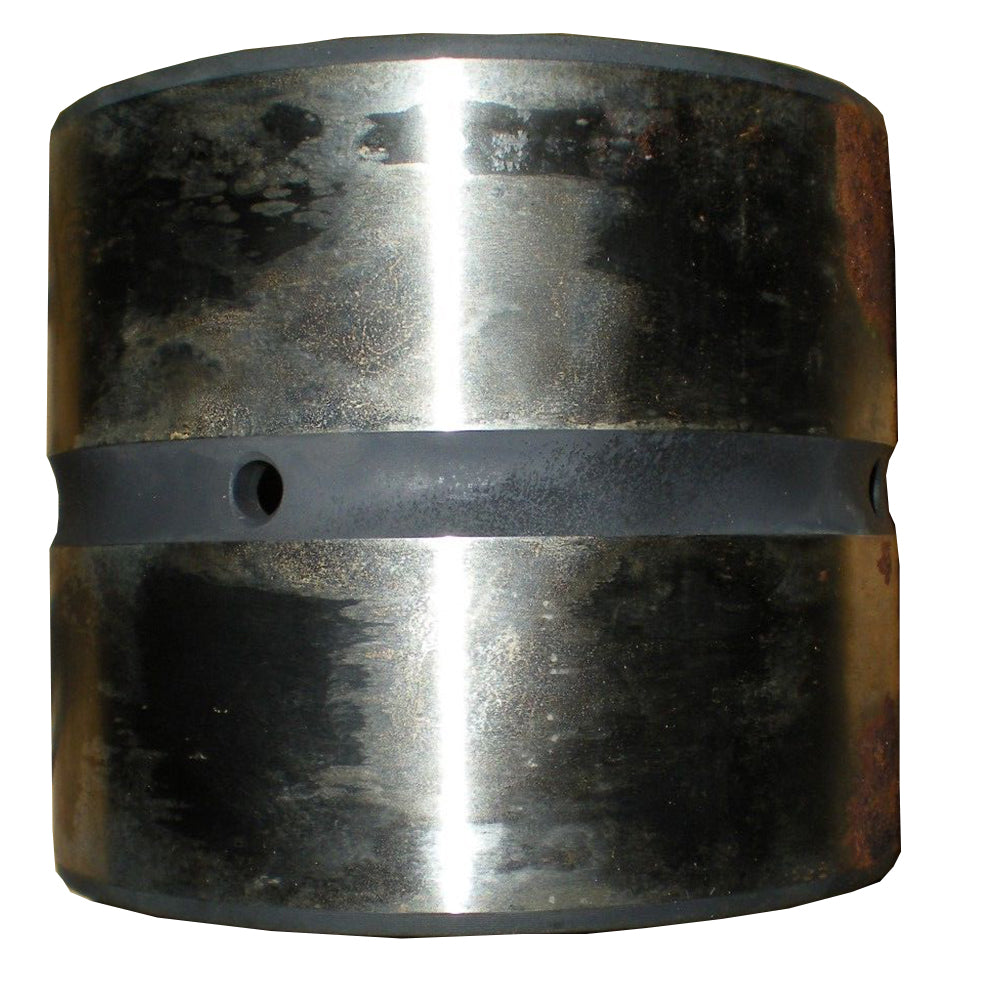

This straight sleeve bushing is located in the dipper arm at the bucket pivot point on Fits Caterpillar (Fits CAT) 330 series track excavators. It is a wear item in the front linkage assembly and is replaced when pin-to-bushing clearance exceeds service limits to restore smooth bucket articulation and reduce accelerated pin wear.
Specifications
- Type: Straight Sleeve Bearing / Bushing
- Inside Diameter: 90 mm (approx.)
- Outside Diameter: 106 mm (approx.)
- Overall Length: 90 mm (approx.)
- Cross Holes: Yes
- Internal Groove: Yes
- External Groove: No
- Material: Steel
Compatible Models
Fits Caterpillar 330 Series Excavators: 330, 330L, 330B, 330BL, 330C, 330CL
Replaces Part Number(s):
137-2819, 1372819
New aftermarket replacement part - not remanufactured, not used.
