1359544 Edge-Seg Center Fits Caterpillar Models
1359544 Edge-Seg Center Fits Caterpillar Models
Couldn't load pickup availability

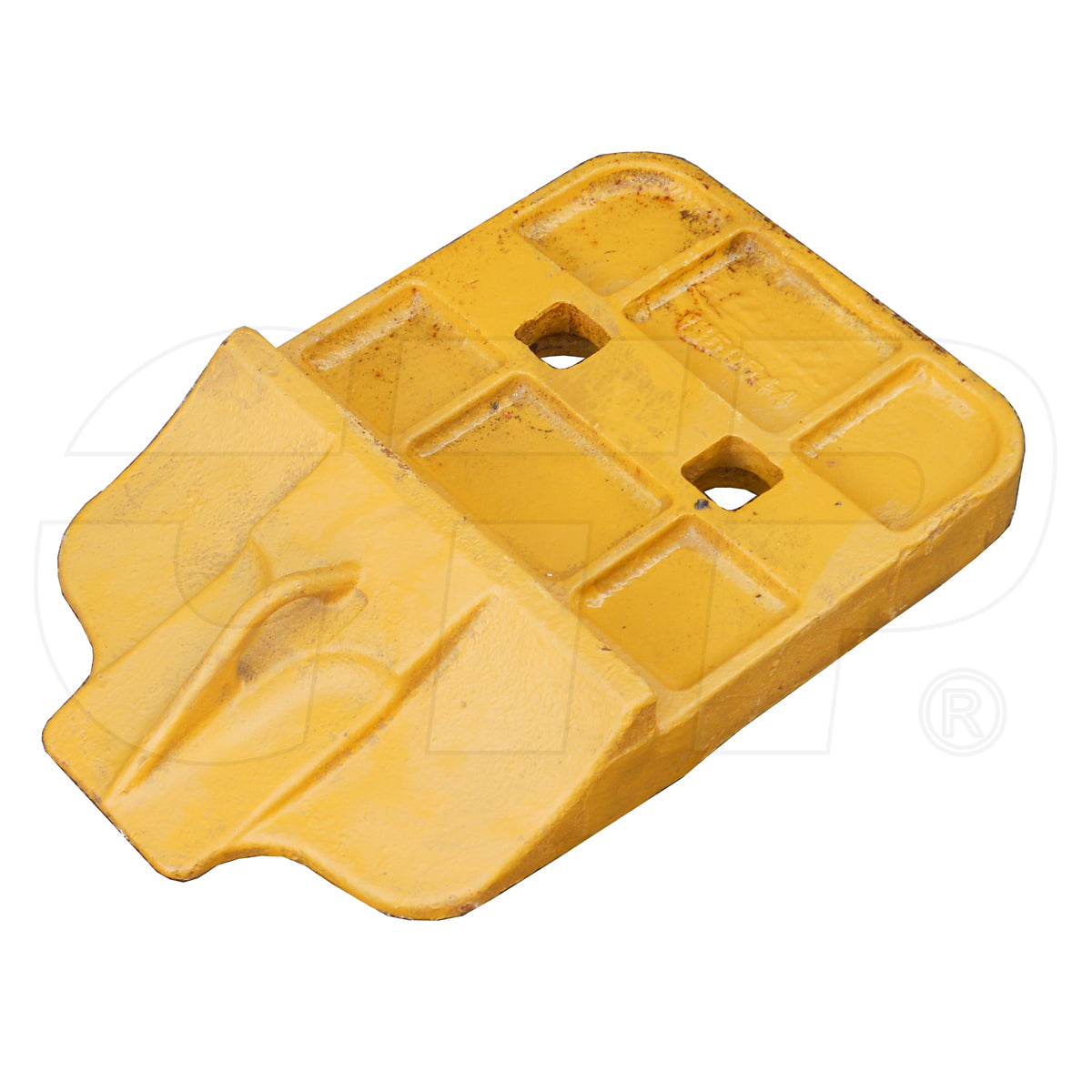

One New Aftermarket Replacement Center Edge Segment for Caterpillar (Cat) Wheel Loaders and Excavators
This aftermarket replacement center edge segment (half arrow segment, center) is a Ground Engaging Tool (G.E.T.) designed to bolt onto the base edge of a Caterpillar wheel loader or excavator bucket. Center segments protect the bucket's leading edge from wear, improve penetration, and extend bucket service life. This is the center profile segment; separate left-hand and right-hand segments are also available for spade base edge applications.
Specifications
- Type: Center (CTR) Bolt-On Half Arrow Segment
- Thickness: 41 mm (approx. 1.75 in.)
- Width: 18.32 in.
- Height: 10.31 in.
- Weight: approx. 83 lbs.
- Mounting: 2-bolt bolt-on
- Material: High-strength alloy steel
Compatible Models
Caterpillar Wheel Loaders: 966G, 966G II, 966H, 966K, 966M XE, 972G, 972G II, 972H, 972K, 972M, 972M XE
Caterpillar Excavators: 374D L, 374F L
Replaces Part Number(s):
1359544, 135-9544
Aftermarket Interchange Numbers
135-9294 (base segment reference for 966G/972G series)
New aftermarket replacement part - not remanufactured, not used.
