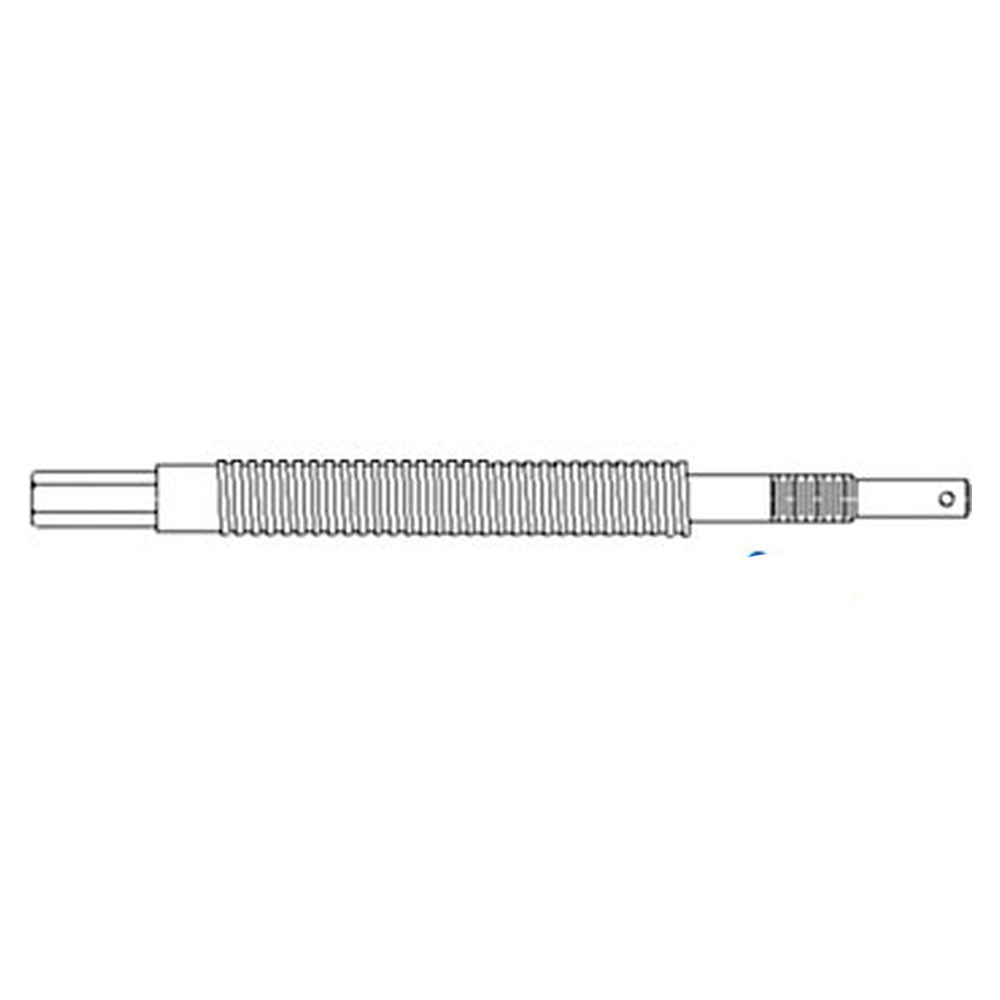

131436A2 SHAFT CONCAVE CONTROL
131436A2 SHAFT CONCAVE CONTROL
Regular price
£85.00 GBP
Regular price
Sale price
£85.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Concave Control Shaft Fits Case IH (Fits International/Fits Case IH) Combines
This concave control shaft transfers rotational power from an electric actuator to the concave adjustment mechanism, allowing for precise positioning of the concave relative to the rotor. It is a key component of the threshing system on Fits Case IH (Fits International/CaseIH) combines and is subject to wear over time.
Specifications
- Material: Steel
- Outer Diameter: 22.23 mm
- Length: 305 mm
Compatible Models
Fits Case IH Combines: 2144, 2166, 2188, 2344, 2366, 2377, 2388, 5088, 6088, 7088
Fits Case IH Combines (serial number restrictions apply): 2577 (s/n HAJ0300001 and earlier), 2588 (s/n HAJ0300001 and earlier)
Replaces Part Number(s):
131436A2, 131436A1, A-131436A2
New aftermarket replacement part - not remanufactured, not used.
