Mower Deck Kit Fits AYP Replaces 129861

Mower Deck Kit Fits AYP Replaces 129861

£97.00 GBP
£97.00 GBP
Sale Sold out
Shipping calculated at checkout.

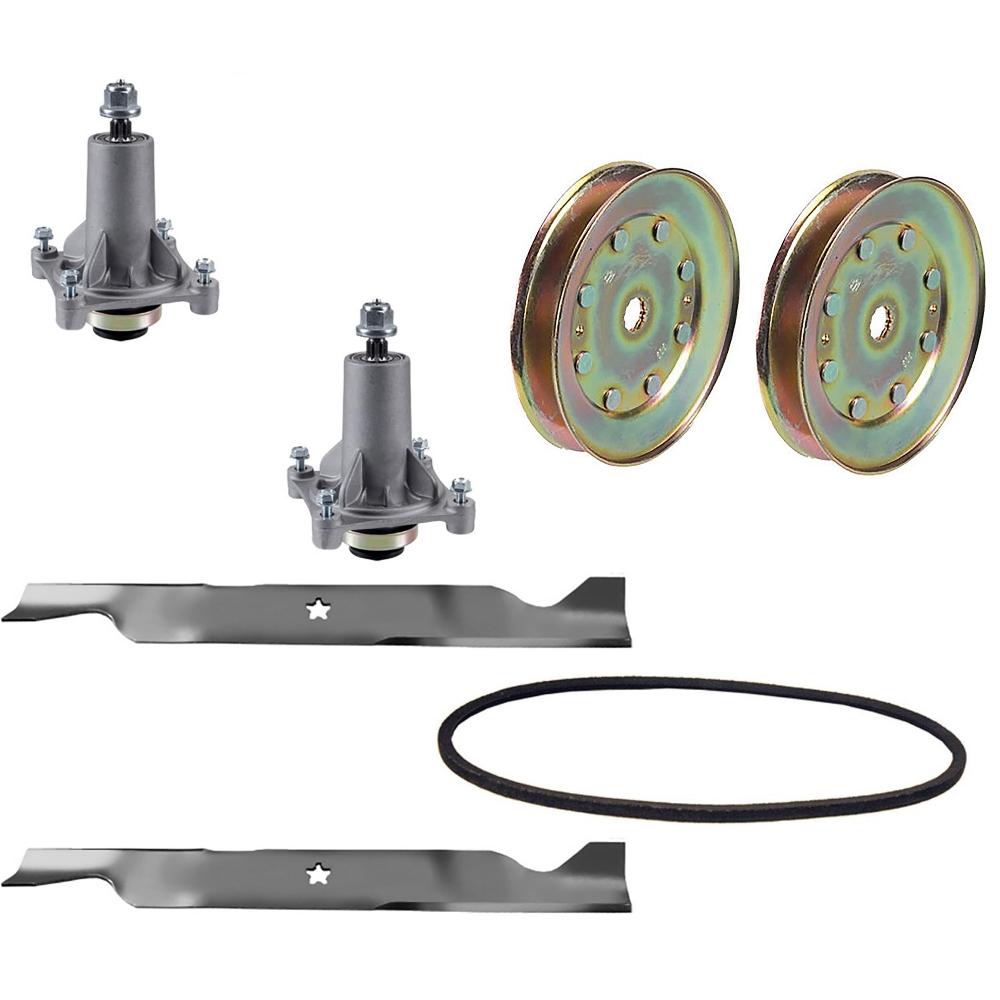

One New Aftermarket Mower Deck Kit

Tech Info:
 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -Replaces Part Numbers: 192870, 532187281, 532187292, 532192870, 539112057
 -
 -(2) Mower Blades
 -Length: 22-7/8"
 -Width: 2-3/4"
 -Thickness: 0.156"
 -Center Hole: 5 point star
 -Replaces Part Numbers: 2246LS, 2346XLS, YTH2146XP
 -
 -(1) Belt
 -5/8" x 147.75"
 -Wrapped Polyester Cord
 -Replaces Part Number: 532 19 61-03, 587686701, 532196103, LAB40-0003, 5321961-03
 -
 -(2) Drive Pullies
 -Outer Diameter: 5-1/6"
 -Inner Diameter: 9/16"
 -Steel
 -Replaces Part Numbers: 532153535,532173436,532177865

Fits AYP:
 Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 403107, 405380, 40S380, 531309715, 532403107, 532405380, 594892801, 917532403107, 917532405380, 917777405380, 196103, 53219610, 532196103, 587686701, 129861, 153535, 173436, 177865, 532173436

Additional Information:

(2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Replaces Part Numbers: 192870, 532187281, 532187292, 532192870, 539112057 (2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Numbers: 2246LS, 2346XLS, YTH2146XP (1) Belt 5/8" x 147.75" Wrapped Polyester Cord Replaces Part Number: 532 19 61-03, 587686701, 532196103, LAB40-0003, 5321961-03 (2) Drive Pullies Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 532153535,532173436,532177865

Reference Numbers:

187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 403107, 405380, 40S380, 531309715, 532403107, 532405380, 594892801, 917532403107, 917532405380, 917777405380, 196103, 53219610, 532196103, 587686701, 129861, 153535, 173436, 177865, 532173436

Product Sub Group:

Deck Components
