48" Deck Rebuild Kit Fits AYP Replaces 129206 Made with Aramid

£144.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

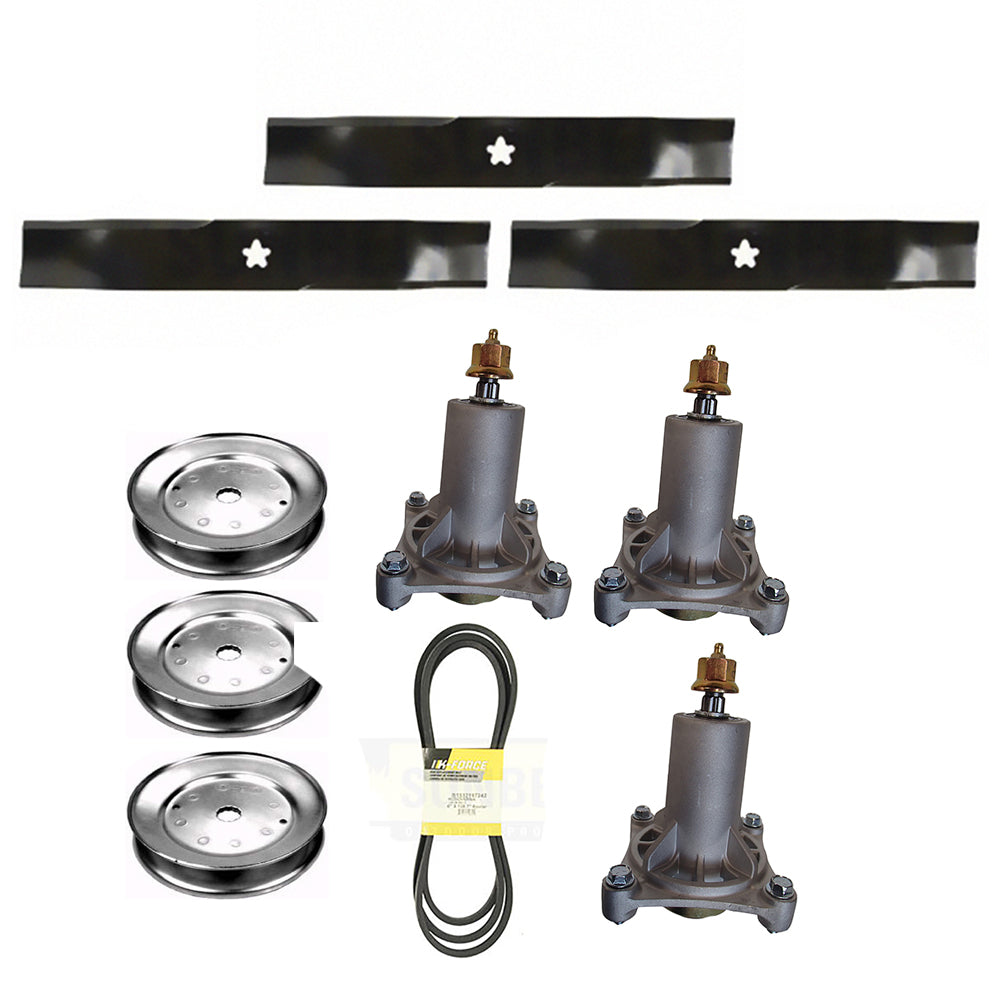

One New Aftermarket 48" Deck Rebuild Kit

Tech Info:

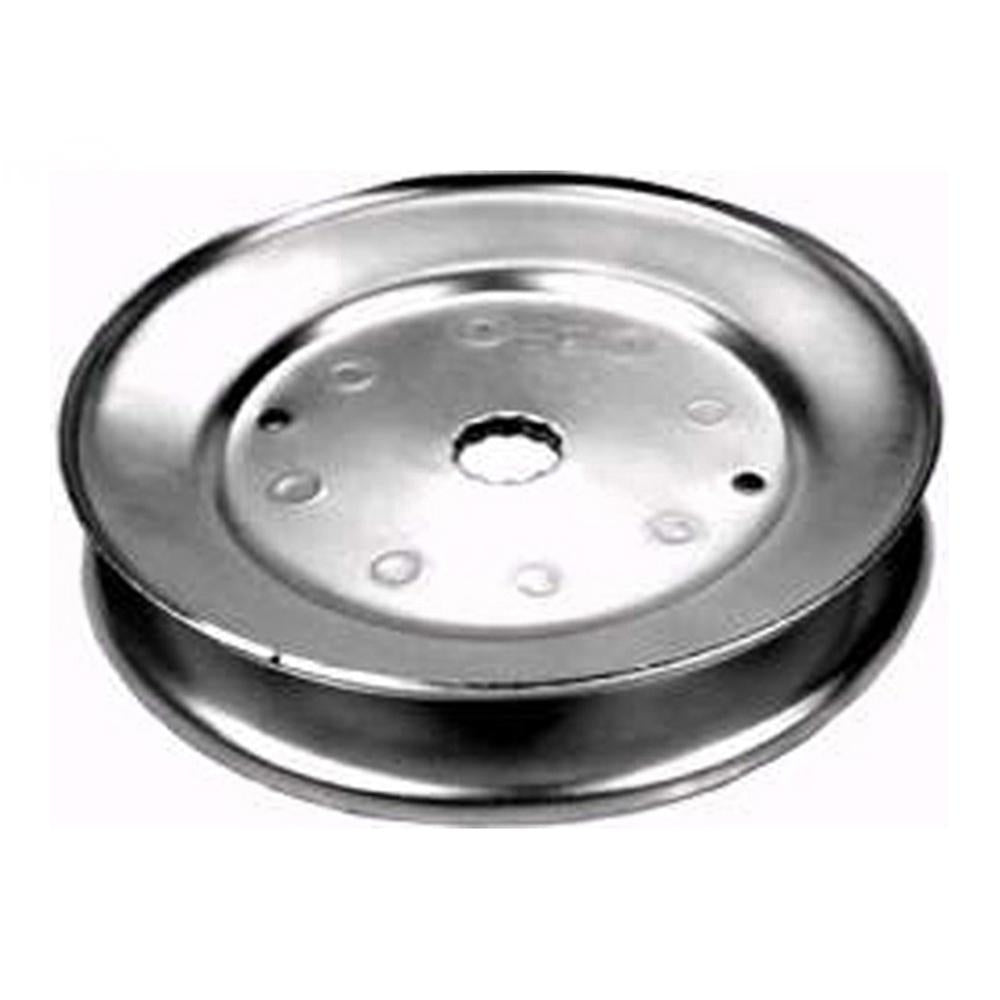

-(3) Spindle Pulleys
-Outer Diameter: 4-13/16"
-Center Hole: 12 Point Hex
-Replaces Part Numbers: 129206, 153532, 173435, 532173435
-

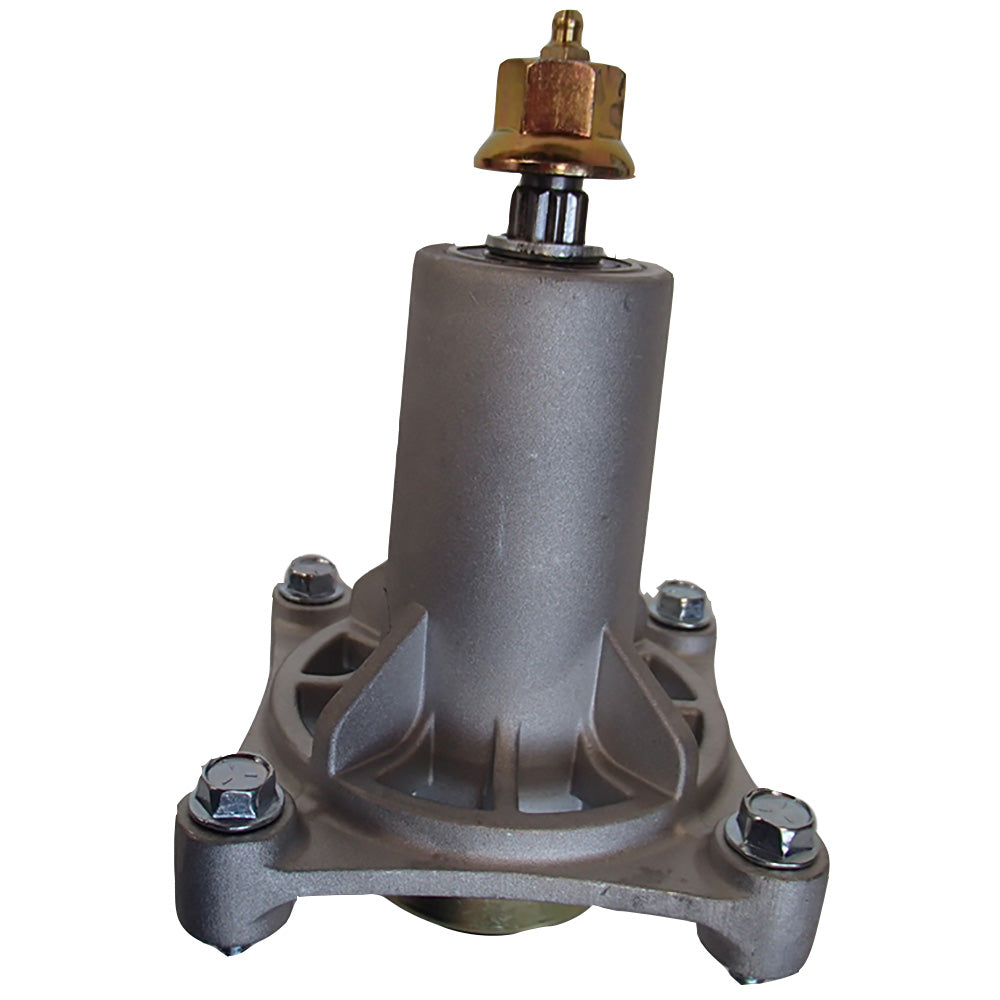

-(3) Spindle Assemblies
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-Includes:
-Pulley Locknut
-Blade Bolt/Washer
-Spacer
-4 Mounting Bolts
-Replaces Part Numbers: 192870, 532187281, 532187292, 532192870
-

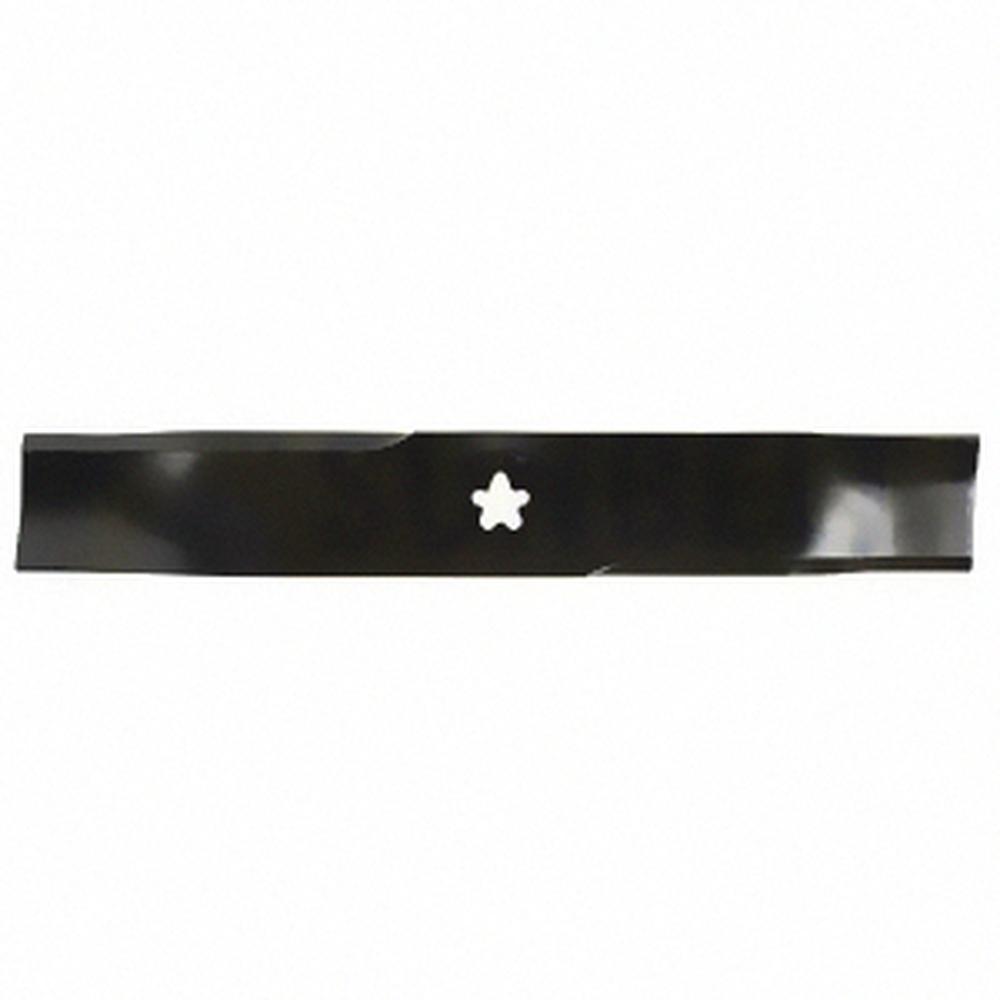

-(3) 16-5/8" Mower Blades
-Length: 16-5/8"
-Center Hole: 5 pt. star
-Width: 2-1/2"
-Thickness: 0.203"
-Replaces Part Numbers: 173921, 917532173921, 954633781, B1EP1040
-

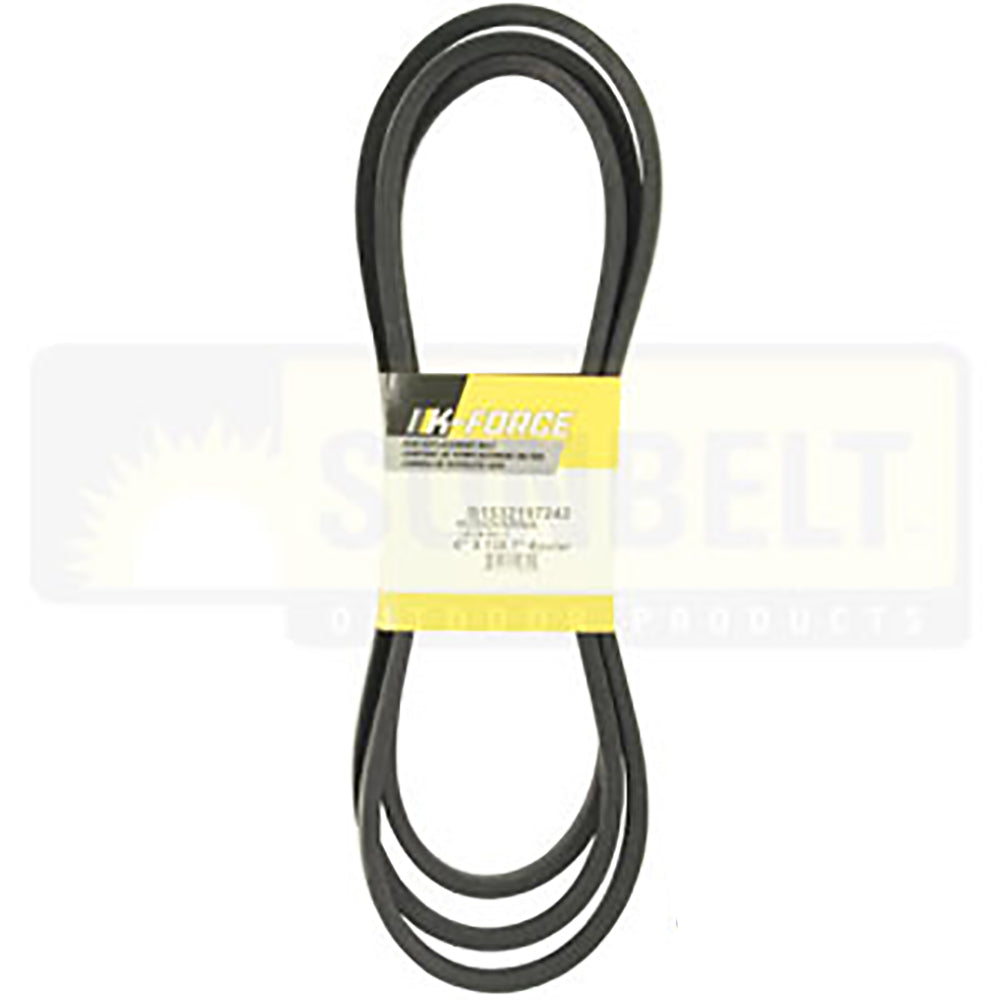

-(1) Deck Belt
-0.608" X 138.7"
-Thickness: 0.43"
-Made With Aramid Cord
-Replaces Part Numbers: 197242, 532197242, 593773401

Fits AYP:
Replaces Part Number(s): 129206, 153532, 173435, 532173435, 197242, 532197242, 593773401, 129206, 153532, 173435, 532173435,187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 173921, 532173921, 917532173921, 954633781, 197242, 532197242, 593773401

Models This Part Fits:

YTH 2348, YTH2448T, YTH24K48

Additional Information:

(3) Spindle Pulleys Outer Diameter: 4-13/16" Center Hole: 12 Point Hex Replaces Part Numbers: 129206, 153532, 173435, 532173435 (3) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Numbers: 192870, 532187281, 532187292, 532192870 (3) 16-5/8" Mower Blades Length: 16-5/8" Center Hole: 5 pt. star Width: 2-1/2" Thickness: 0.203" Replaces Part Numbers: 173921, 917532173921, 954633781, B1EP1040 (1) Deck Belt 0.608" X 138.7" Thickness: 0.43" Made With Aramid Cord Replaces Part Numbers: 197242, 532197242, 593773401

Reference Numbers:

129206, 153532, 173435, 532173435, 197242, 532197242, 593773401, 129206, 153532, 173435, 532173435,187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 173921, 532173921, 917532173921, 954633781, 197242, 532197242, 593773401
