1286969C3 Drawbar for 7130 7140 7150 7230 7250 8930 8940 8950 Fits Case IH Tract
1286969C3 Drawbar for 7130 7140 7150 7230 7250 8930 8940 8950 Fits Case IH Tract
Regular price
£225.00 GBP
Regular price
Sale price
£225.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

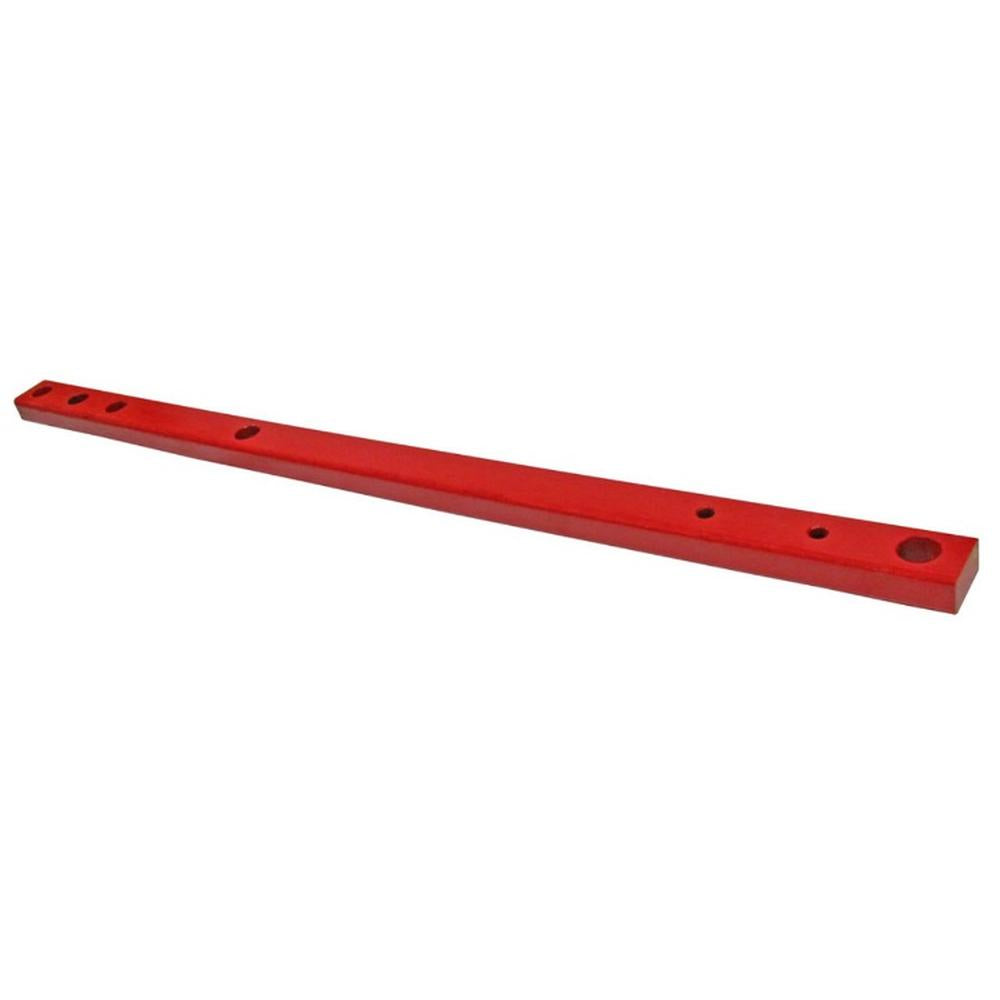

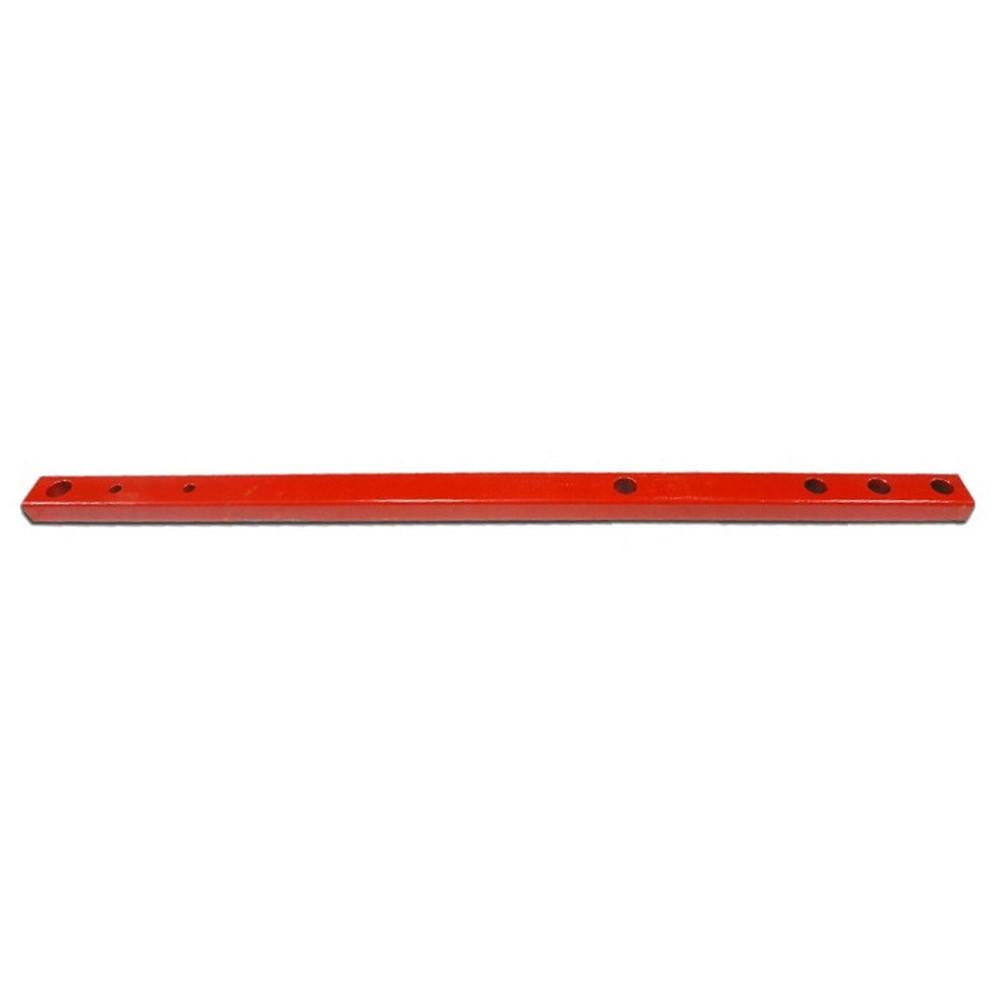

One New Aftermarket Replacement Straight Drawbar Fits Case IH (Fits International Harvester) Magnum Series Tractors
This rear straight drawbar is a direct replacement for the Fits Case IH (Fits International Harvester) Magnum series hitch assembly. The drawbar mounts at the rear of the tractor and provides the attachment point for implements and towed equipment. It is a solid, straight-bar design with four mounting holes spaced along the length.
Specifications
- Length: 60.620" (1540mm)
- Width: 3.000" (76.2mm)
- Thickness: 1.750" (44.45mm)
- 4 front mounting holes at: 1.406", 5.473", 9.473", 21.500" from front
- Style: Straight (Rear)
Compatible Models
Fits Case IH Magnum Series Tractors: 7130, 7140, 7150, 7230, 7240, 7250, 8930, 8940, 8950
Replaces Part Number(s):
1286969C3, 1286969C1
New aftermarket replacement part - not remanufactured, not used.
