1278931 Cylinder Gr Fits Caterpillar Models
1278931 Cylinder Gr Fits Caterpillar Models
Regular price
£2,790.00 GBP
Regular price
Sale price
£2,790.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

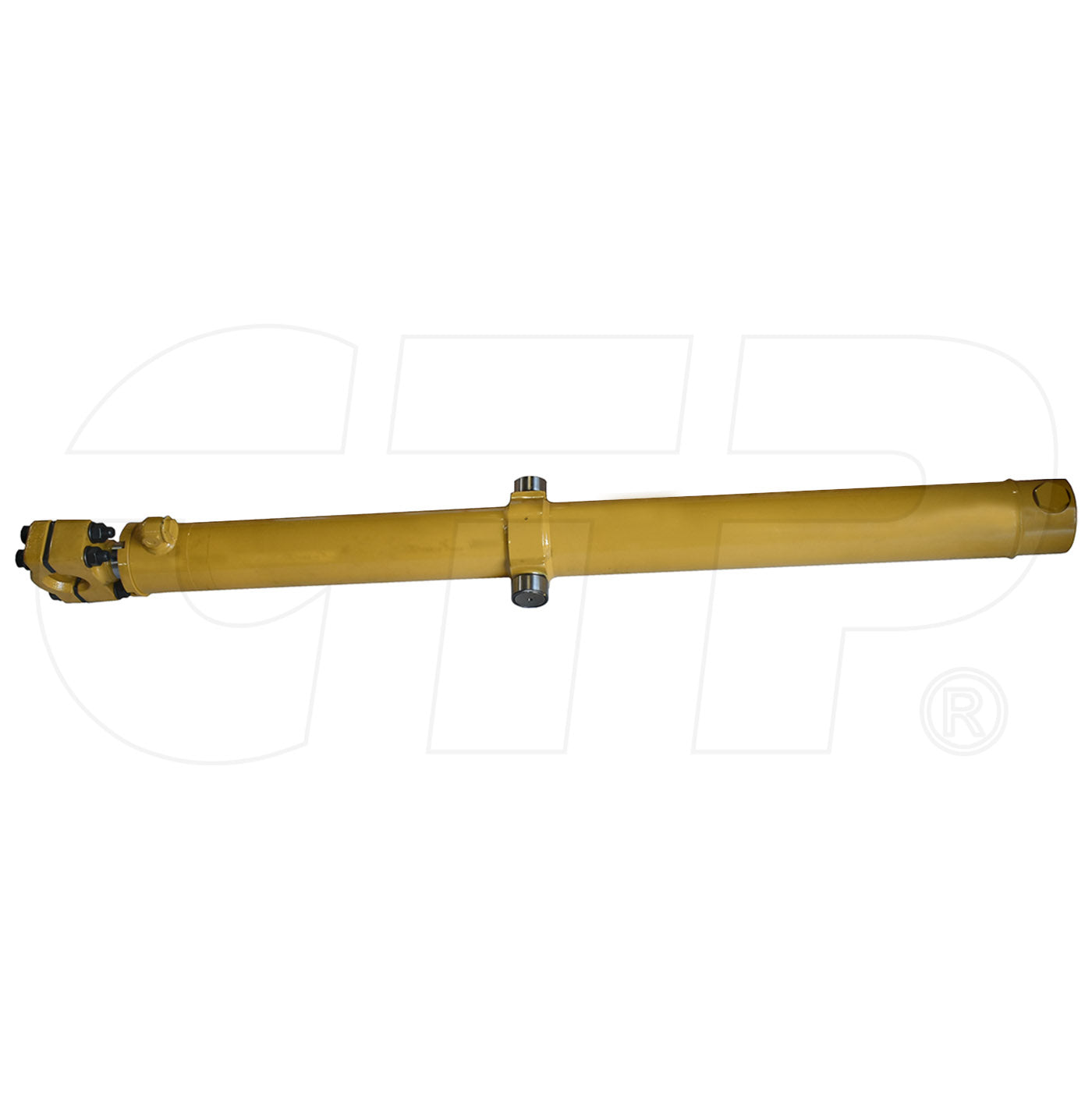

One New Aftermarket Replacement Bulldozer Lift Cylinder for Caterpillar (Cat) D6R Track-Type Tractor
This hydraulic lift cylinder (Cylinder GP-Bulldozer Lift) is part of the blade lift system on the Caterpillar D6R crawler dozer. It is a component of the Cylinder and Lines GP-Lift assembly and provides the hydraulic force to raise and lower the dozer blade. Bore is 101.6 mm (4 in) and stroke is 1262 mm (49.7 in). Part of assemblies 126-8464 and 126-8465.
Specifications
- Type: Bulldozer Hydraulic Lift Cylinder
- Bore: 101.6 mm (4 in)
- Stroke: 1262 mm (49.7 in)
- Rod Diameter: 2-1/2 in
- Part of Assembly: 126-8464 / 126-8465 Cylinder and Lines GP-Lift
Serial Number Restriction
Fits D6R machines with serial number prefixes: 2YN, 1RP, 1TP, 1XP, 1YP, 8SP, 8TP, 9ZS (all -UP). Verify your machine serial number before ordering.
Compatible Models
Caterpillar D6R Series: D6R, D6R Series II, D6R Series III (Track-Type Tractor / Crawler Dozer)
Replaces Part Number(s):
1278931, 127-8931
New aftermarket replacement part - not remanufactured, not used.
