Spindle, Blade & Pulley Kit Fits AYP Replaces 127843

Spindle, Blade & Pulley Kit Fits AYP Replaces 127843

£48.00 GBP
£48.00 GBP
Sale Sold out
Shipping calculated at checkout.

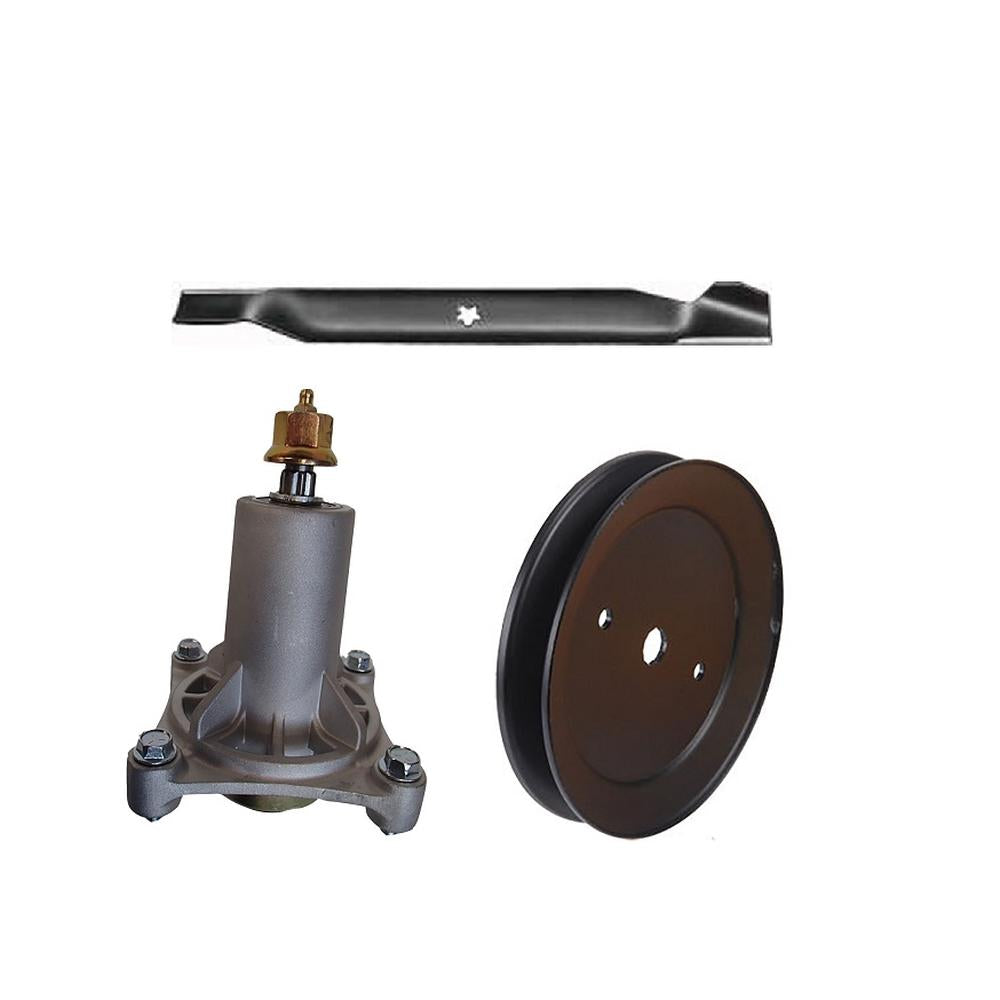

One New Aftermarket Spindle, Blade & Pulley Kit

Tech Info:
 -Kit Contains
 -(1) Spindle Assembly
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -
 -Replaces Part Number(s):
 -187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 567253301
 -
 -(1) Lawn Mower Blade
 -Type: Notched Fits Hi-Lift Blade
 -Length: 21"
 -Center Hole: 5 Point Star
 -Width: 2-1/4"
 -Thickness: 0.149"
 -
 -Replaces Part Number(s):
 -195945, 197473, 532195945, 532197473
 -
 -(1) Spindle Pulley
 -Inside Diameter: 5/8" Splined
 -Outside Diameter: 6-1/4"
 -Width: 7/8"
 -
 -Replaces Part Number(s):
 -195945, 197473, 532195945, 195945, 197473, 532195945, 532197473

Fits AYP:
 Lawn/Garden Tractor Models: 42" Mower Decks
 Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 195945, 197473, 532195945

Models This Part Fits:

42" Mower Decks

Additional Information:

(1) Spindle Assembly 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 567253301 (1) Lawn Mower Blade Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Number(s): 195945, 197473, 532195945, 532197473 (1) Spindle Pulley Inside Diameter: 5/8" Splined Outside Diameter: 6-1/4" Width: 7/8" Replaces Part Number(s): 195945, 197473, 532195945, 195945, 197473, 532195945, 532197473

Reference Numbers:

187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 195945, 197473, 532195945
