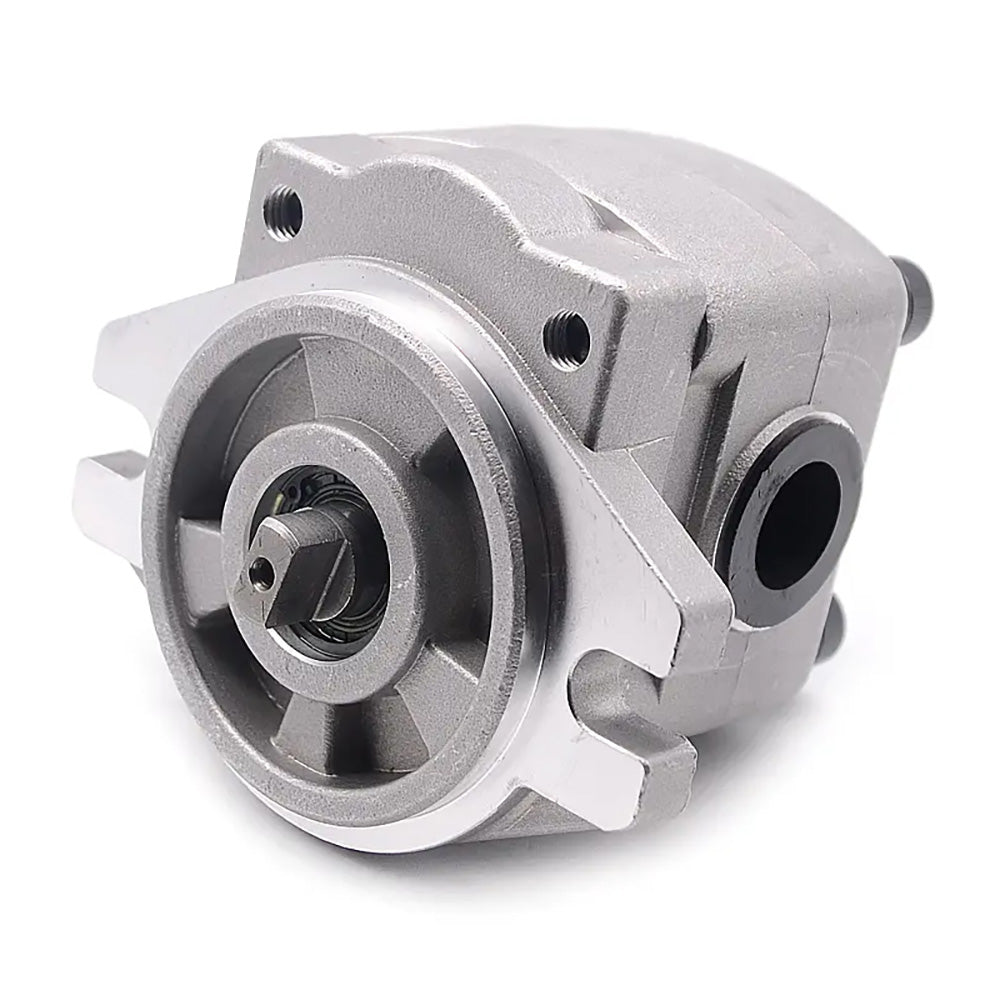

1262016 Gear Pump-Hydraulic Fits Caterpillar Models
1262016 Gear Pump-Hydraulic Fits Caterpillar Models
Couldn't load pickup availability
One New Aftermarket Replacement Hydraulic Gear Pump for Caterpillar (Cat) Excavators
This pilot gear pump (also known as a pump group gear) supplies low-pressure pilot hydraulic oil to control the main hydraulic circuit on Caterpillar C-series and D-series excavators. It mounts to the engine and is a direct replacement for Caterpillar OEM part number 1262016. Also cross-references to superseding Cat part number 3412860.
Specifications
- Weight: approximately 4.9 - 5.6 lbs
- Dimensions: approximately 6.3 x 6.3 x 6.3 in
Compatible Models
Caterpillar Excavators: 318C, 318C L, 318C LN, 319C, 319C LN, 320C, 320C FM, 320C L, 320C LN, 320C LRR, 320C LU, 320C S, 320C U, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321C LCR, 321D LCR, 322C, 322C FM, 322C L, 322C LN, 323D, 323D L, 323D LN, 323D S, 323D SA, 324D, 324D FM, 324D FM LGP, 324D FM LL, 324D L, 324D LN, 325D, 325D L, 325D LN, 328D LCR, M325D, M325D L, M325D MH
Caterpillar Engines: 3066, 3126, C6, C6.4, C7
Replaces Part Number(s):
1262016, 126-2016, 3412860, 341-2860, CA1262016
New aftermarket replacement part - not remanufactured, not used.
