126144A1 Ball Joint - 580SK, 590 JOINT ball, left-hand Fits Case 580K s/n JJG002
126144A1 Ball Joint - 580SK, 590 JOINT ball, left-hand Fits Case 580K s/n JJG002
Couldn't load pickup availability

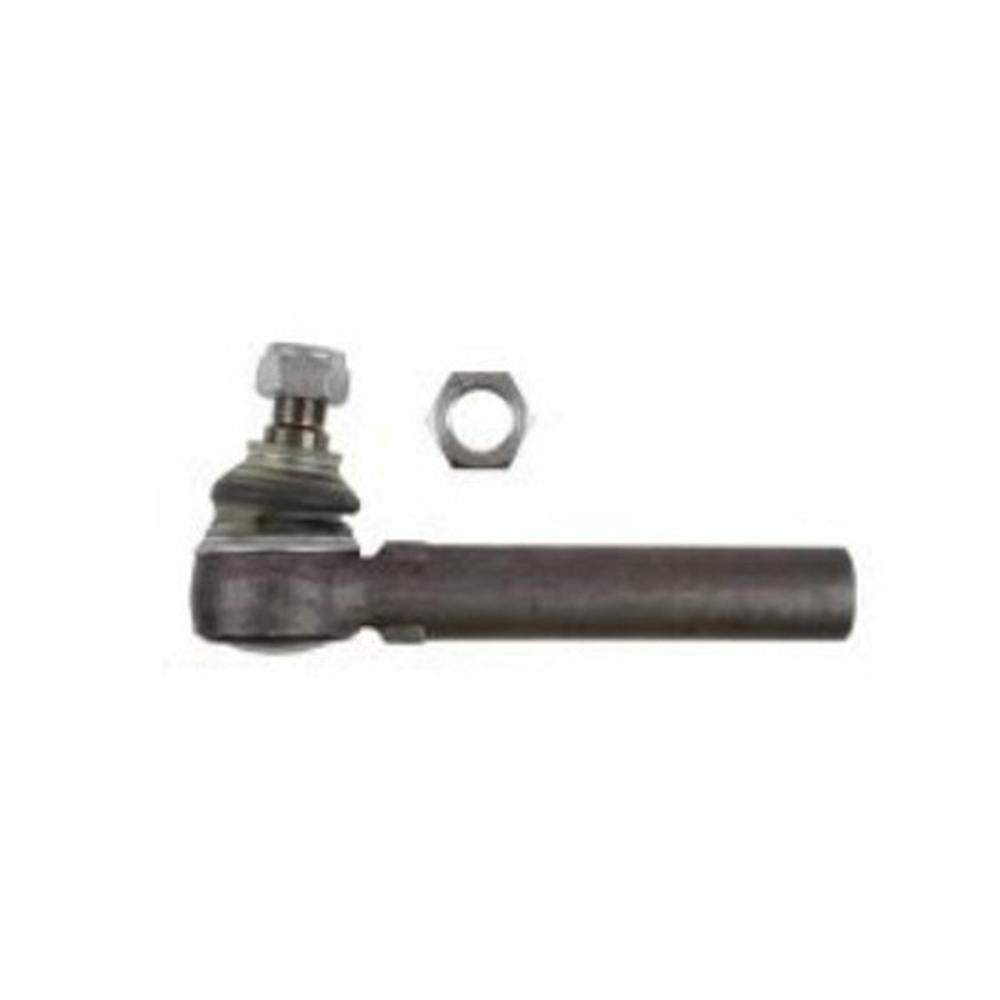

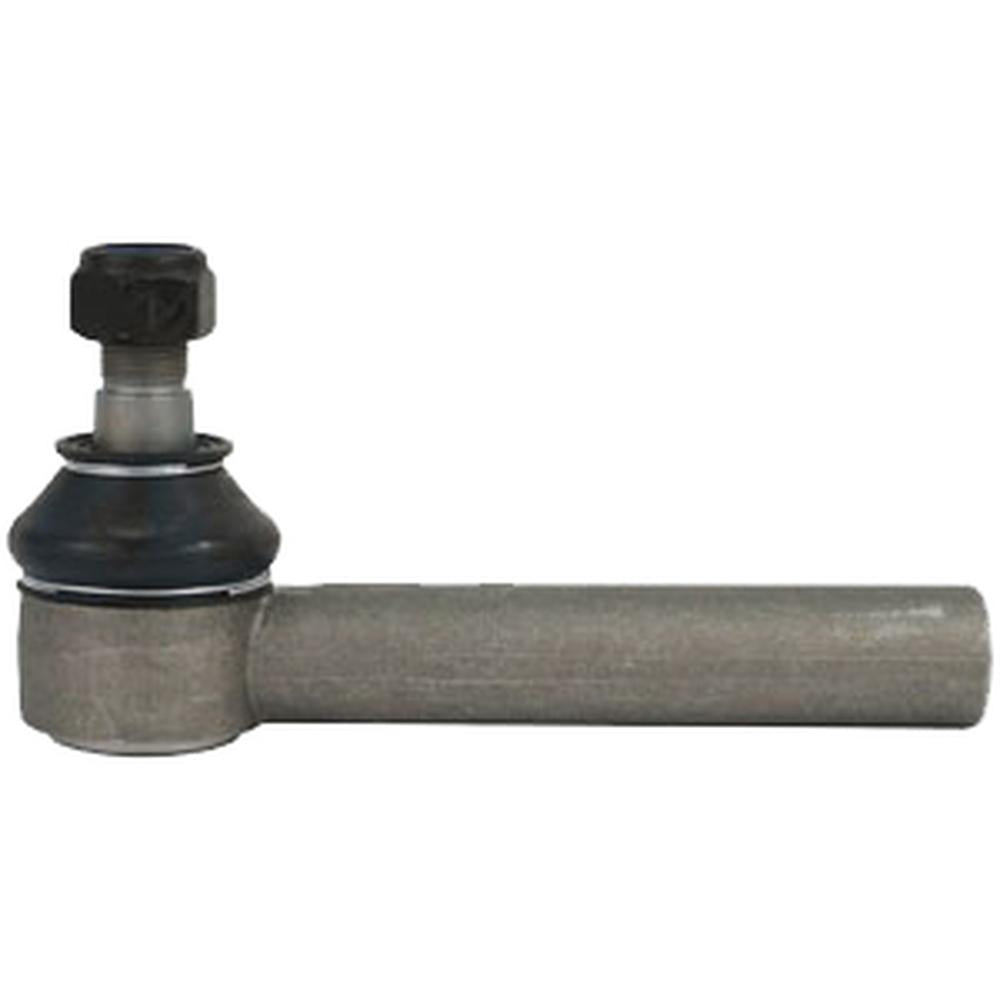

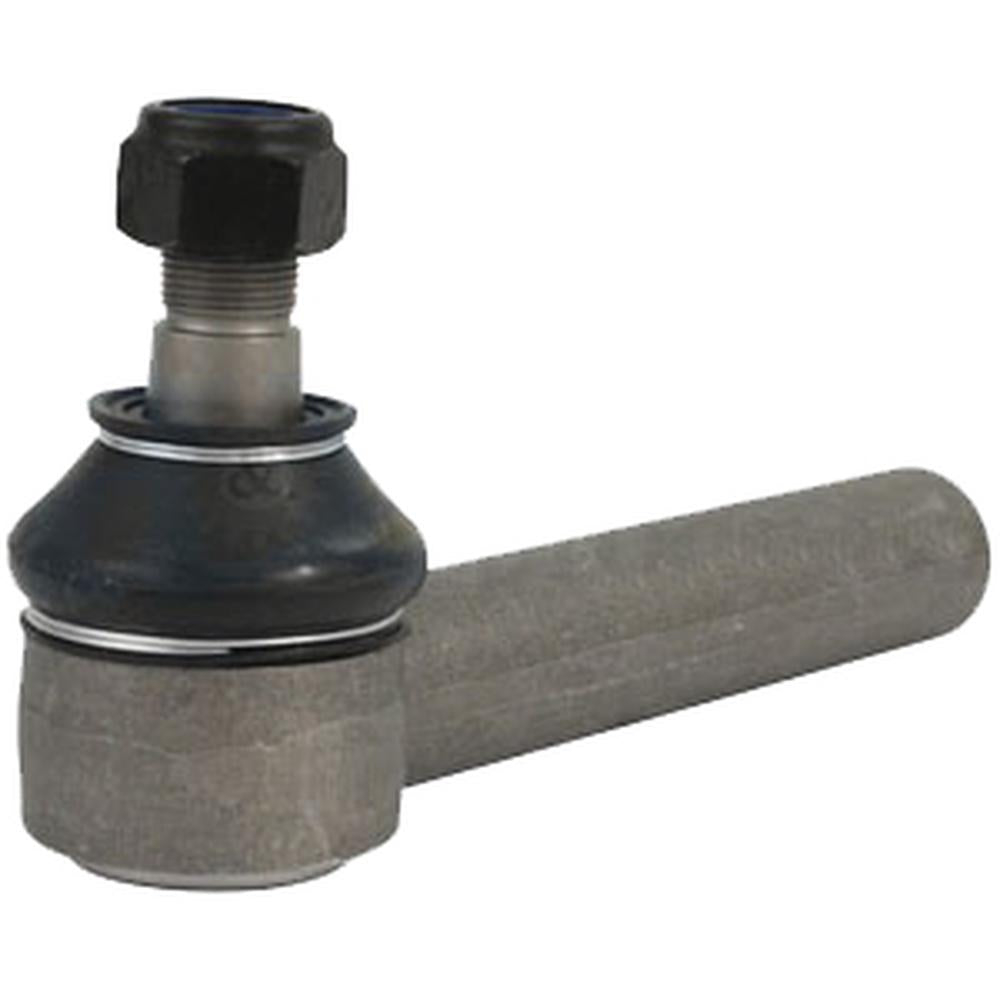

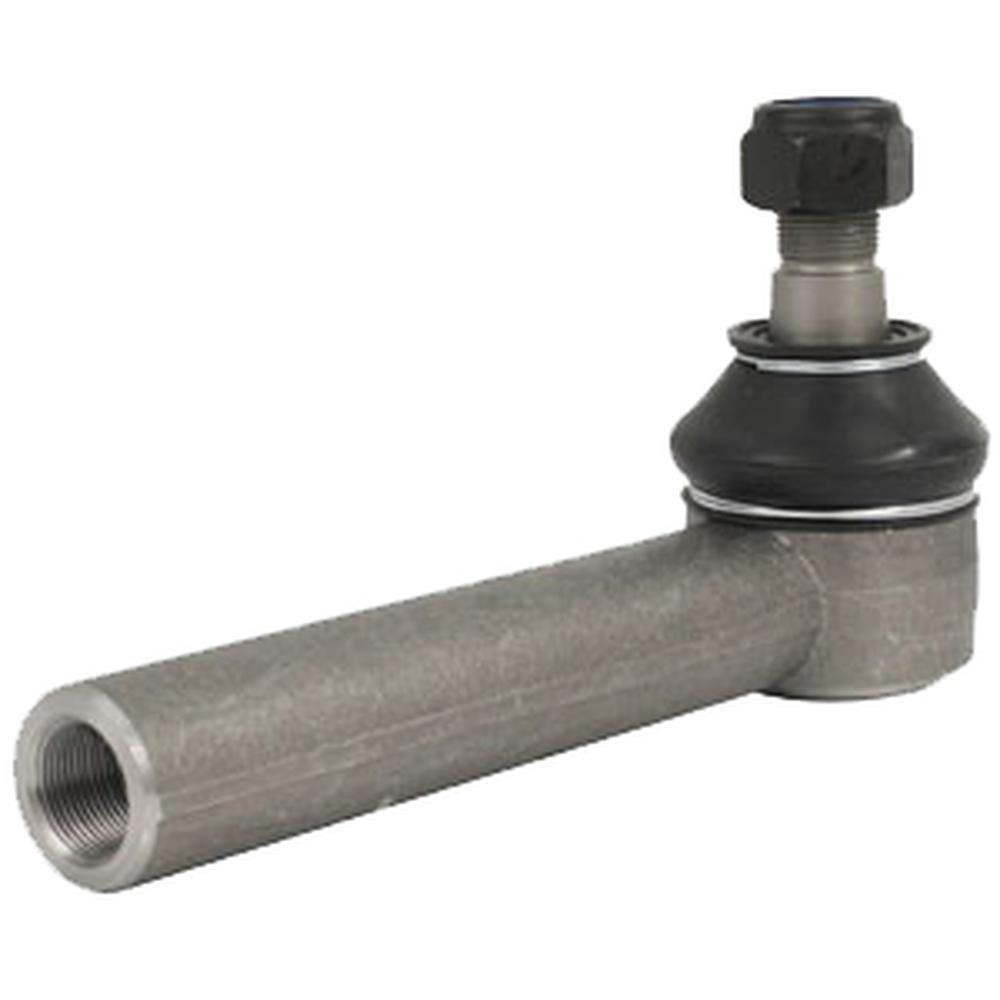

One New Aftermarket Replacement Left-Hand Ball Joint Fits Case (Fits Case IH) Backhoe Loaders and Tractors
This left-hand threaded ball joint replaces OEM part 126144A1 and serves the front axle steering linkage on Fits Case (Fits Case IH) backhoe loaders and MFWD tractors. It is a tie rod end-style ball joint used in the front axle steering assembly. Note: This is the LEFT-HAND (LH) threaded version. When replacing part number D149730, you must also purchase nut 81878551.
Specifications
- Thread: M24 x 1.5 - Left-Hand (LH)

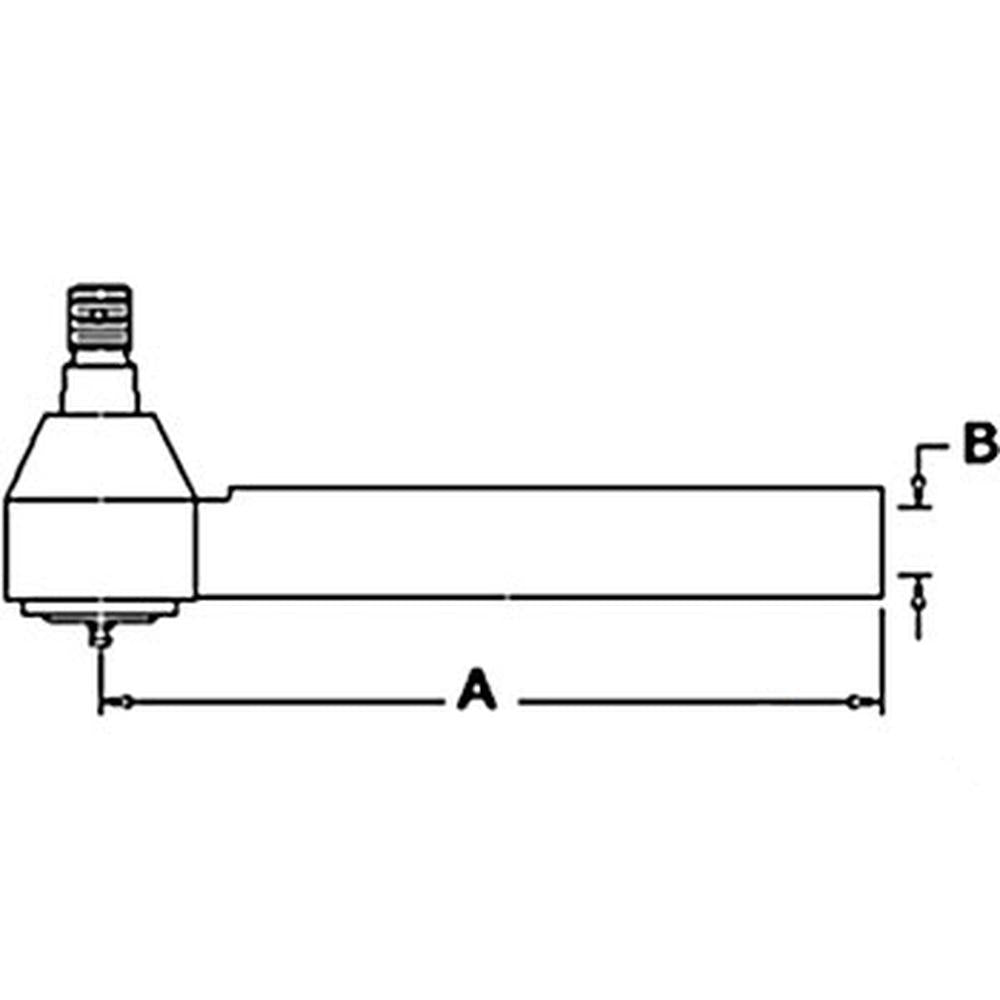

- Length from center of ball to end: 8 in.
- Application: MFWD (4-Wheel Drive Front Axle)
Compatible Models
Fits Case Backhoe Loaders (MFWD): 580K (serial number JJG0020000 and above, with 4-bolt gland steering cylinder), 580SK (580 Super K), 590 (590 Turbo)
Fits Case IH MFWD Tractors: 5120, 5130, 5140, 5220, 5230, 5240, 5250
Serial Number Restriction - 580K: Fits Case 580K after serial number JJG0020000 only (with 4-bolt gland on steering cylinder). Does NOT fit early 580K units.
Replaces Part Number(s):
126144A1, D149730
Aftermarket Interchange Numbers
48109417, CAR48986
New aftermarket replacement part - not remanufactured, not used.
