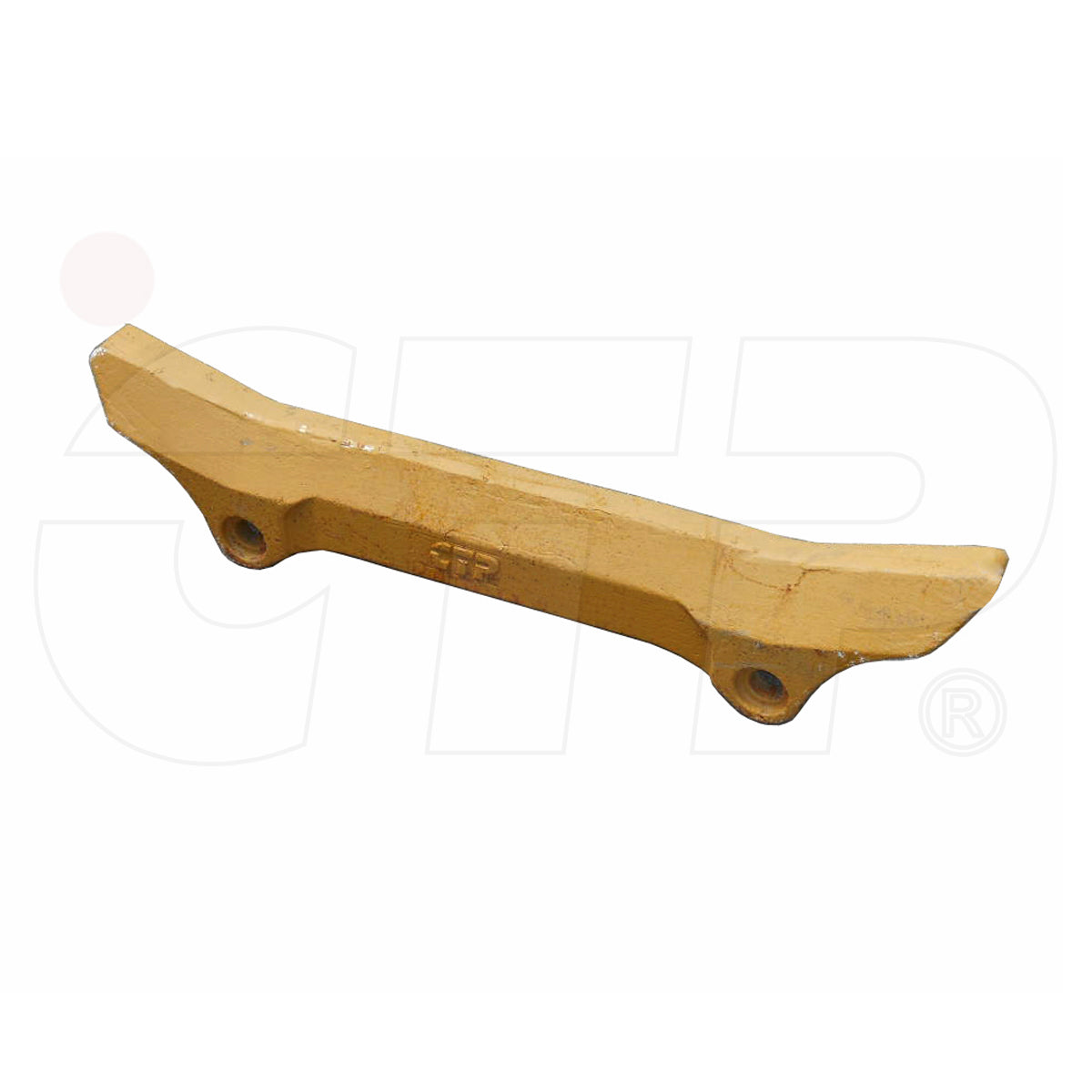

1250800 Protector-Side Bar Fits Caterpillar Models

One New Aftermarket Replacement Protector-Side Bar (Sidebar Protector) for Caterpillar (Cat) Excavators, Wheel Loaders, and Track-Type Tractors

This aftermarket replacement 1250800 Protector-Side Bar is a heavy-duty Ground Engagement Tool (G.E.T.) sidebar protector designed to shield the cheek plates and sides of excavator, wheel loader, and dozer buckets from abrasion and impact wear. Also commonly called a vertical shroud protector, goanna bar, cheek protector, or wing protector, this pin-on part mounts to the bucket sidebar and can be rotated or replaced for maximum service life. It is a direct replacement for Caterpillar (Cat) OEM part number 1250800 / 125-0800, and also interchanges with 8E3814 / 8E-3814.

Specifications

• Part Number: 1250800 / 125-0800
• Weight: Approximately 126 lbs (57 kg)
• Length: Approximately 40 in (99 cm)
• Width: Approximately 6.3 in (16 cm)
• Bolt Hole Spacing (center to center): 24 in (approx. 23.6 in pitch)
• Opening: 3 in
• Pins Required: 2 x 8E-4708
• Retainers Required: 2 x 4T-4707
• Sliding Blocks: 330-4455
• Material: High-strength alloy steel

Compatible Models

Caterpillar Excavators: 365B, 365B II, 365C, 365C L, 365C L MH, 375, 385B, 385C, 385C FS, 385C L, 5080, 5090B

Caterpillar Wheel Loaders: 980H, 980K

Caterpillar Track-Type Tractors / Dozers: D11R, D11T

Caterpillar Wheel Dozers / Large Loaders: 994, 994D, 994F, 994H

Replaces Part Number(s):

1250800, 125-0800, 8E3814, 8E-3814

New aftermarket replacement part - not remanufactured, not used.
