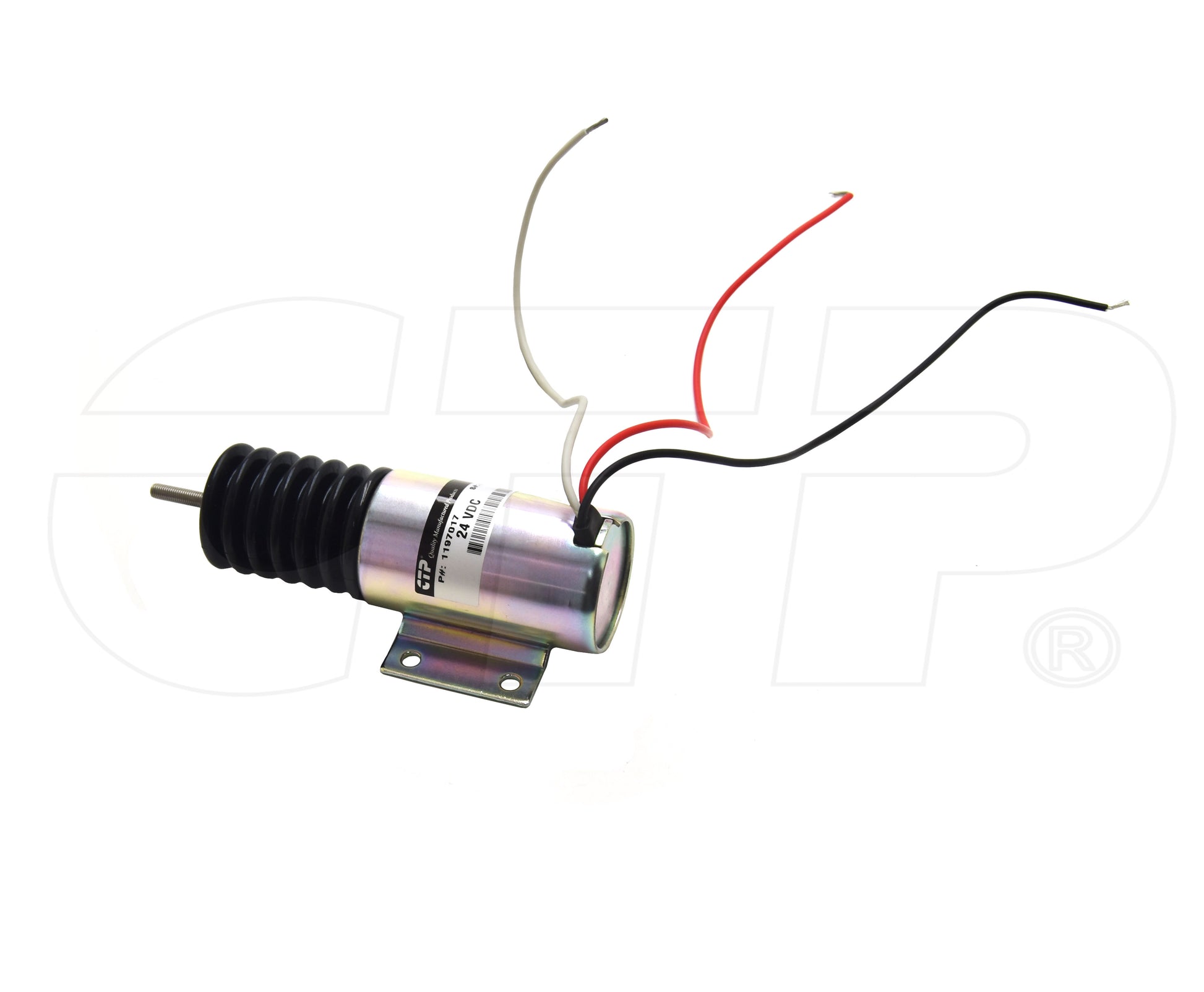

1197017 Solenoid (P613-A1V24) Fits Caterpillar Models

One New Aftermarket Replacement Stop Solenoid (Trombetta P613-A1V24) for Caterpillar (Cat) Vibratory Compactors and Cold Planers

This 24-volt pull-type stop solenoid replaces Caterpillar (Cat) OEM part number 1197017 (119-7017). Manufactured by Trombetta to the P613-A1V24 specification, this side-mount solenoid features no spring return and is built to withstand high-temperature, high-vibration environments typical of compaction and cold planing equipment. It is used in the fuel shutoff/engine stop circuit on machines powered by Caterpillar 3054, 3054C, 3054T, 3056, 3116, G3116, and 3406 engines.

Specifications

• Voltage: 24V
• Type: Pull-type, side-mount
• Spring Return: No spring return
• Maximum Stroke: 1.5 in.
• Manufacturer: Trombetta (P613 Series)

Compatible Models

Caterpillar Vibratory Compactors: CB-434C, CB-534C, CB-535B, CB-634C, CP-433E, CP-533D, CP-533E, CP-563D, CS-423E, CS-433E, CS-531D, CS-533D, CS-533E, CS-563D, CS-573D, CS-583D, CS-663E, CS-683E

Caterpillar Cold Planers / Road Equipment: PM-465

Caterpillar Compactors (Pneumatic/Pad Foot): PS-150C, PS-360C

Caterpillar Road Reclaimers: RM-350B

Replaces Part Number(s):

1197017, 119-7017, 120-4187, 1204187, CA1197017

Aftermarket Interchange Numbers

Trombetta P613-A1V24, P613A1V24

New aftermarket replacement part - not remanufactured, not used.
