1151179 Turbo Gp Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger Group for Caterpillar (Cat) Motor Graders and Excavators

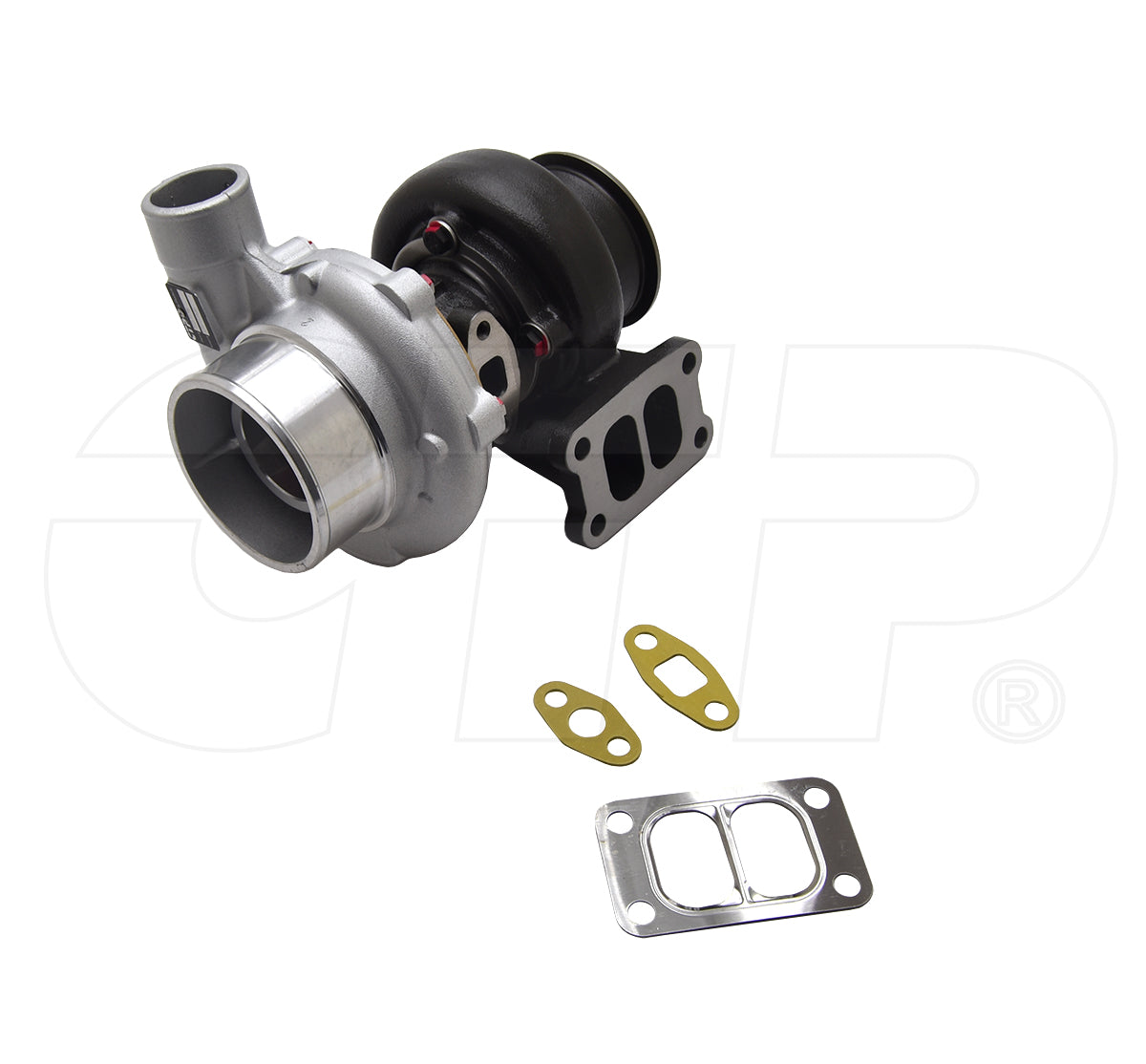

This aftermarket replacement Turbocharger Group (Turbo Gp) fits Caterpillar (Cat) motor graders and excavators powered by the Cat 3116 engine. The turbocharger is part of the air inlet and exhaust system, boosting engine efficiency and power output by forcing compressed air into the engine's intake. Part number 1151179 (also formatted as 115-1179) is a direct replacement for the OEM turbocharger assembly on the compatible models listed below.

Note: For the 320B, 320B L, 320B LN, 320B N, and 320B S Excavators, this turbocharger applies to machines with serial number 1XS00001-UP. For the M318 Excavator, this part applies to serial number 8AL01020-UP. Verify your machine serial number before ordering.

Specifications

• Turbo Model: S2ESL119
• Engine: Caterpillar 3116 / 3126
• Length: 9.4 in (238.8 mm)
• Width: 9.4 in (238.8 mm)
• Height: 12.1 in (307.3 mm)
• Weight: 20.5 lbs

Compatible Models

Caterpillar Motor Graders: 120H NA, 135H NA

Caterpillar Excavators: 320B, 320B L, 320B LN, 320B N, 320B S (S/N 1XS00001-UP), M318 (S/N 8AL01020-UP), M320

Replaces Part Number(s):

1151179, 115-1179

Aftermarket Interchange Numbers

0R-6899, 0R6899, 1151179E, 115-1179E, 167559, S2ESL119

New aftermarket replacement part - not remanufactured, not used.
