1140761 Brg-Sleeve Fits Caterpillar Models

One New Aftermarket Replacement Sleeve Bearing for Caterpillar (Cat) Excavators, Wheel Dozers, and Compactors

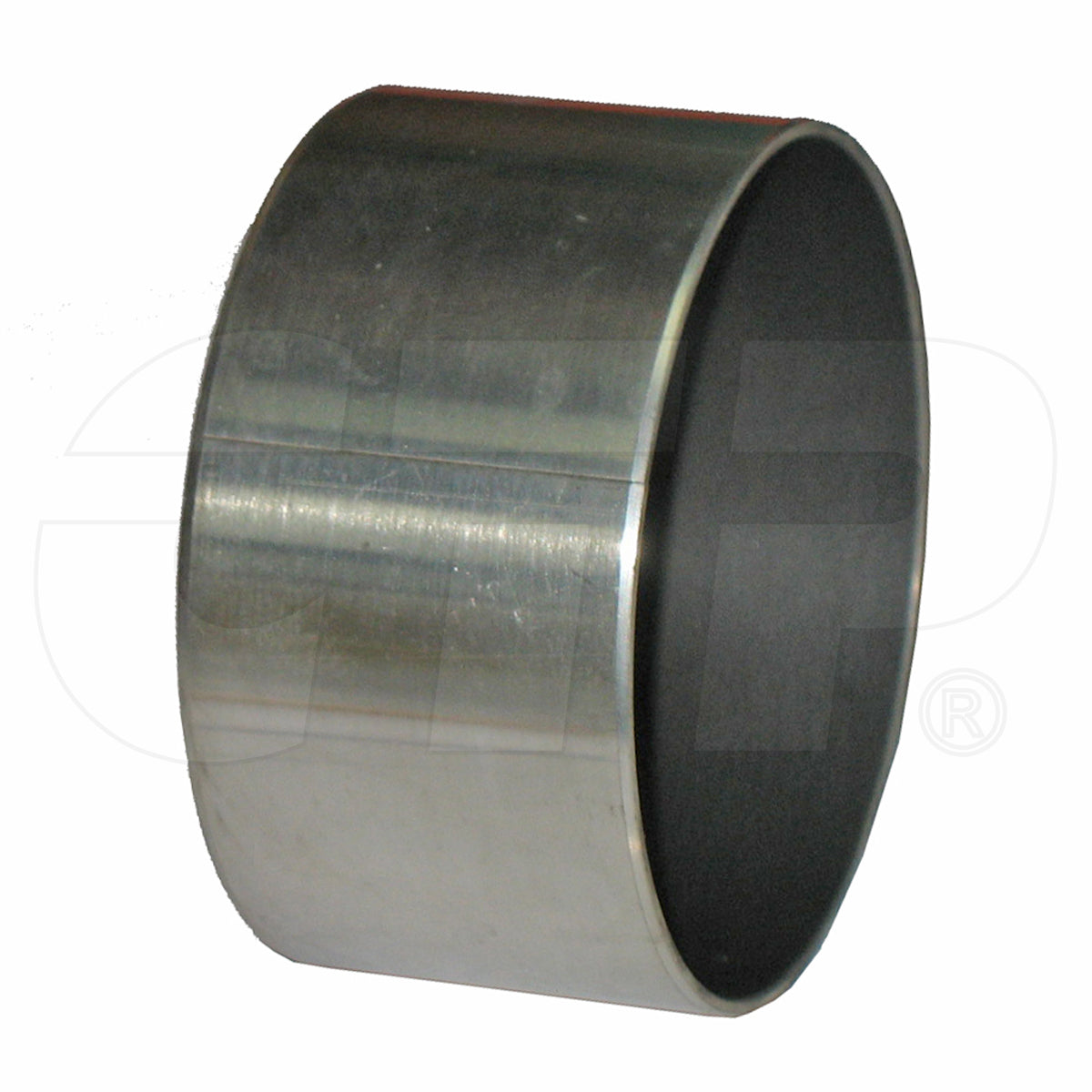

This aftermarket replacement sleeve bearing (Brg-Sleeve) is a hydraulic cylinder rod bearing used in Caterpillar heavy construction equipment. The bearing is pressed into the cylinder group head and supports the hydraulic cylinder rod, preventing metal-to-metal contact between the head and the cylinder rod. It is also known by the alternate OEM formatting 114-0761.

Specifications

• Grove Outside Diameter: 4.53 in (115.00 mm)
• Rod Diameter: 4.33 in
• Groove Width: 2.37 in
• Weight: approx. 0.88 - 1.0 lb
• Retaining Ring Part Number (reference): 7Y-4944

Compatible Models

Caterpillar Excavators: 322B L, 322C, 322C FM, 324D FM, 324D FM LL, 325B L, 328D LCR, 330, 330 L, 330B, 330B L, 330C FM, 330D FM, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L

Caterpillar Wheeled Excavators: M325B, M330D, W330B, W345B II

Caterpillar Wheel Dozers: 834G, 834H

Caterpillar Earthmoving Compactors: 836G, 836H

Caterpillar Forestry / Logger Equipment: 322C (Logger), 568 FM LL, TK1051 (Track Feller Buncher)

Replaces Part Number(s):

1140761, 114-0761

Aftermarket Interchange Numbers

860148

New aftermarket replacement part - not remanufactured, not used.
