114-9484 Fits Caterpillar Tractor Compressor 45 55
114-9484 Fits Caterpillar Tractor Compressor 45 55
Couldn't load pickup availability

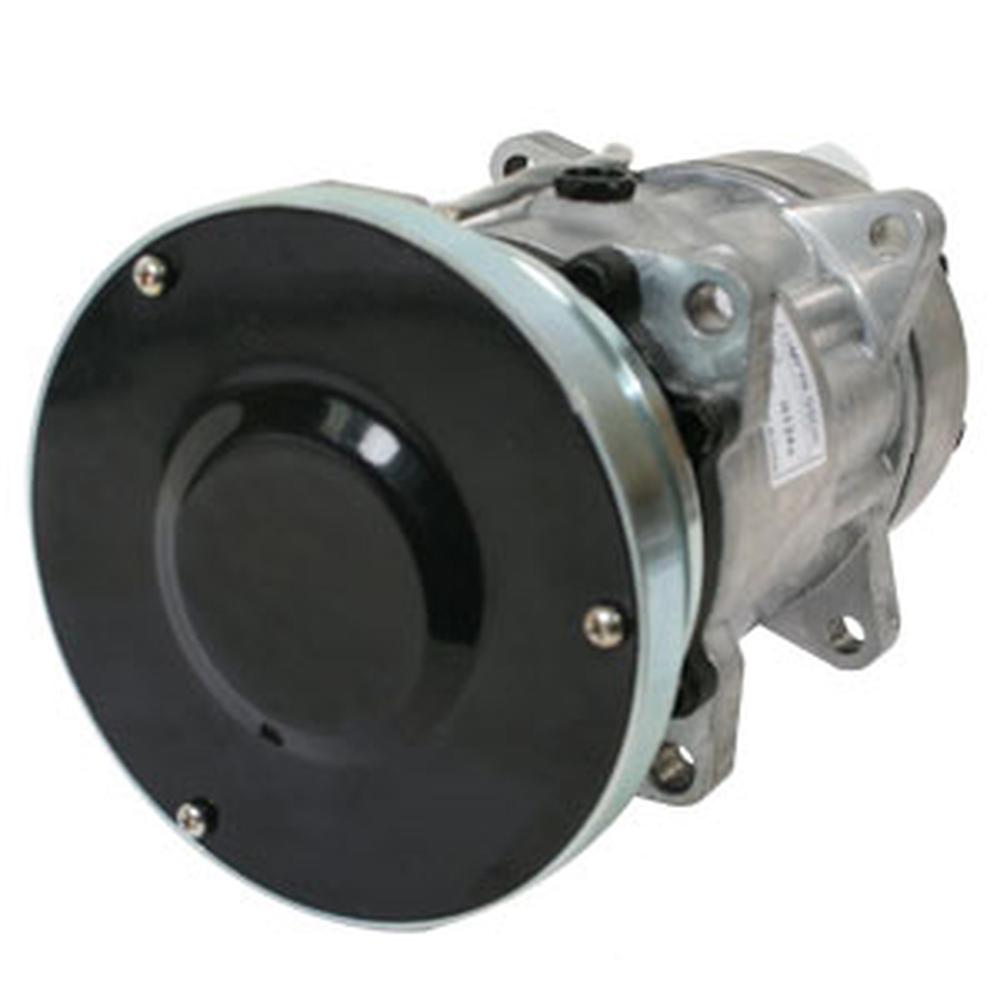

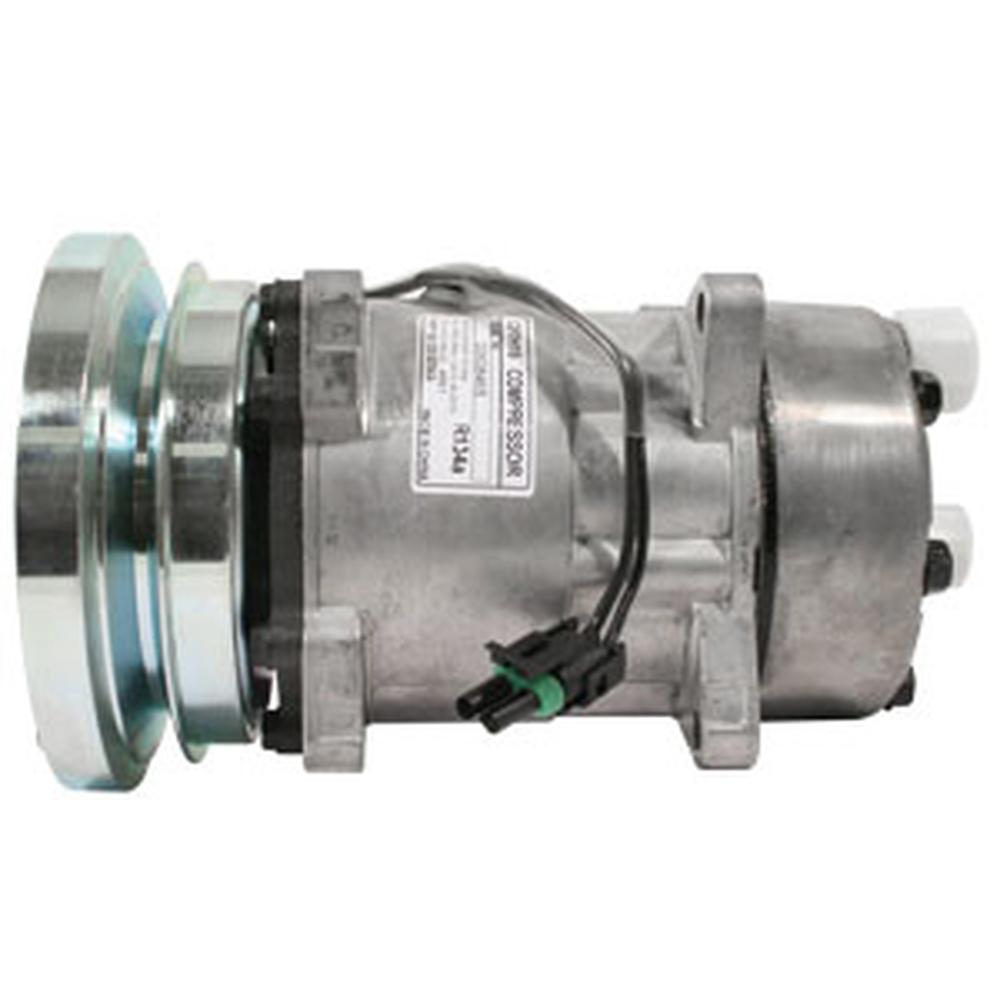

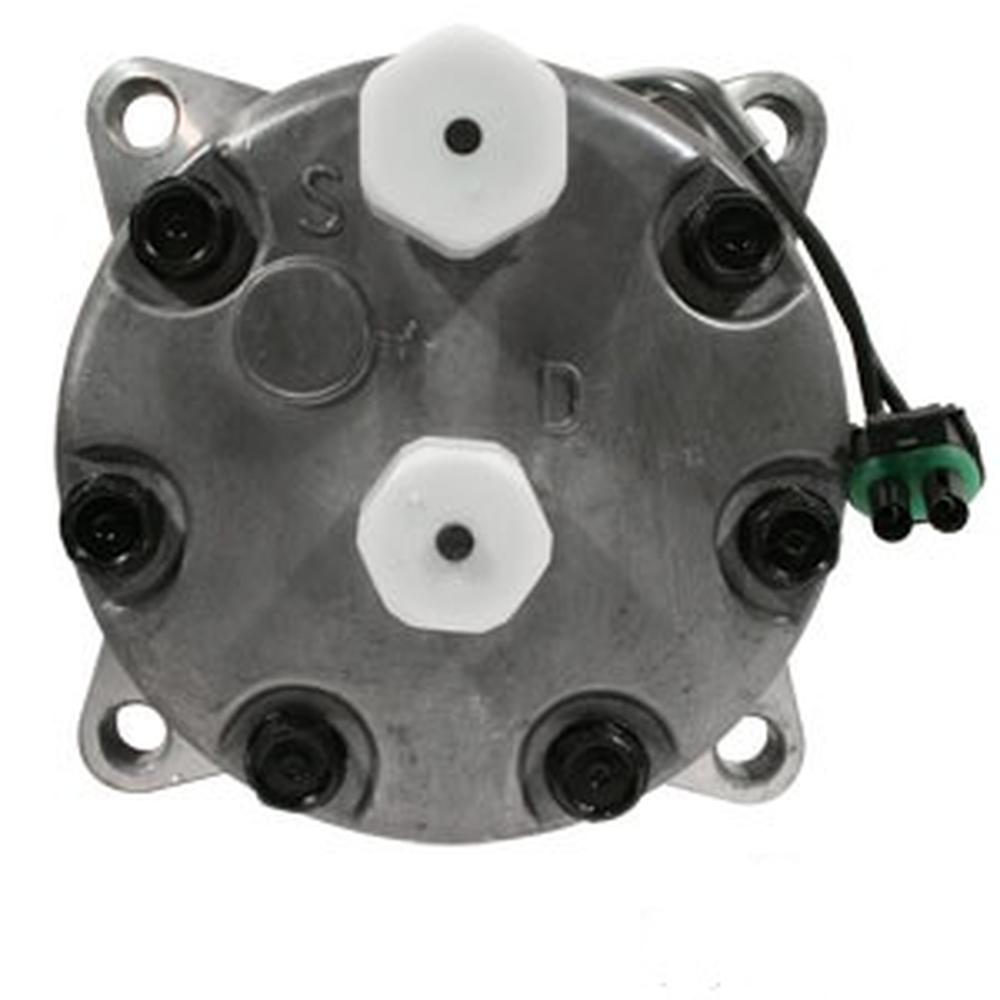

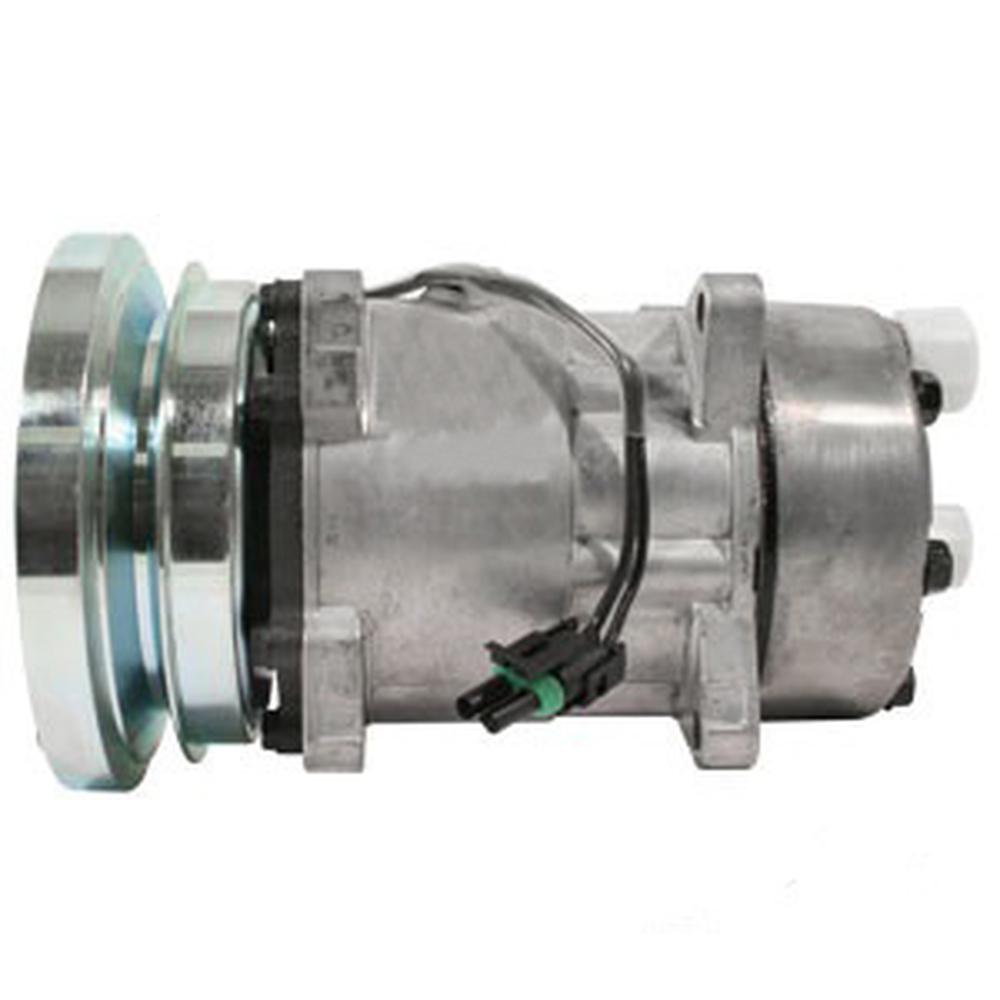

One New Aftermarket Replacement A/C Compressor Fits Caterpillar (Fits CAT) Challenger Agricultural Tractors
This aftermarket replacement A/C compressor Fits Caterpillar (Fits CAT) Challenger series agricultural tractors equipped with 3116 or 3126 engines. A Sanden SD7H15-style sealed heavy-duty compressor, it restores air conditioning system function and is a direct replacement for OEM part number 114-9484. The unit uses R134a refrigerant and PAG 100 oil, and features an ear-mount design with a single V-belt groove pulley.
Specifications
- Compressor Family: Sanden SD7H15 (Sealed Heavy Duty)
- Mount Type: Ear mount
- Clutch/Pulley Diameter: 138 mm (approx. 5-7/16 in.)
- Belt Type: V-Belt, 1 groove
- Rotation: Clockwise (CW)
- Cylinder Head: KC, horizontal port angle
- Discharge Port: 3/4 in. male threaded
- Suction Port: 7/8 in. male threaded
- Voltage: 12V
- Coil Connector: 2-wire male Packard #12015792
- Oil Type: PAG 100 (300 cc)
- Refrigerant: R134a
Compatible Models
Fits Caterpillar Challenger Agricultural Tractors: Challenger 35, Challenger 45, Challenger 55
Compatible Engines: 3116, 3126, 3064, 3066
Replaces Part Number(s):
114-9484, 1149484, 1149484-A
Aftermarket Interchange Numbers
CA1149484, 114-9487, SD4661, SD4480, CO2074CA, 75R81492, PTAC5314, C2401, RD5-9001-1, T4529, 300-4475, 330-3250
New aftermarket replacement part - not remanufactured, not used.
