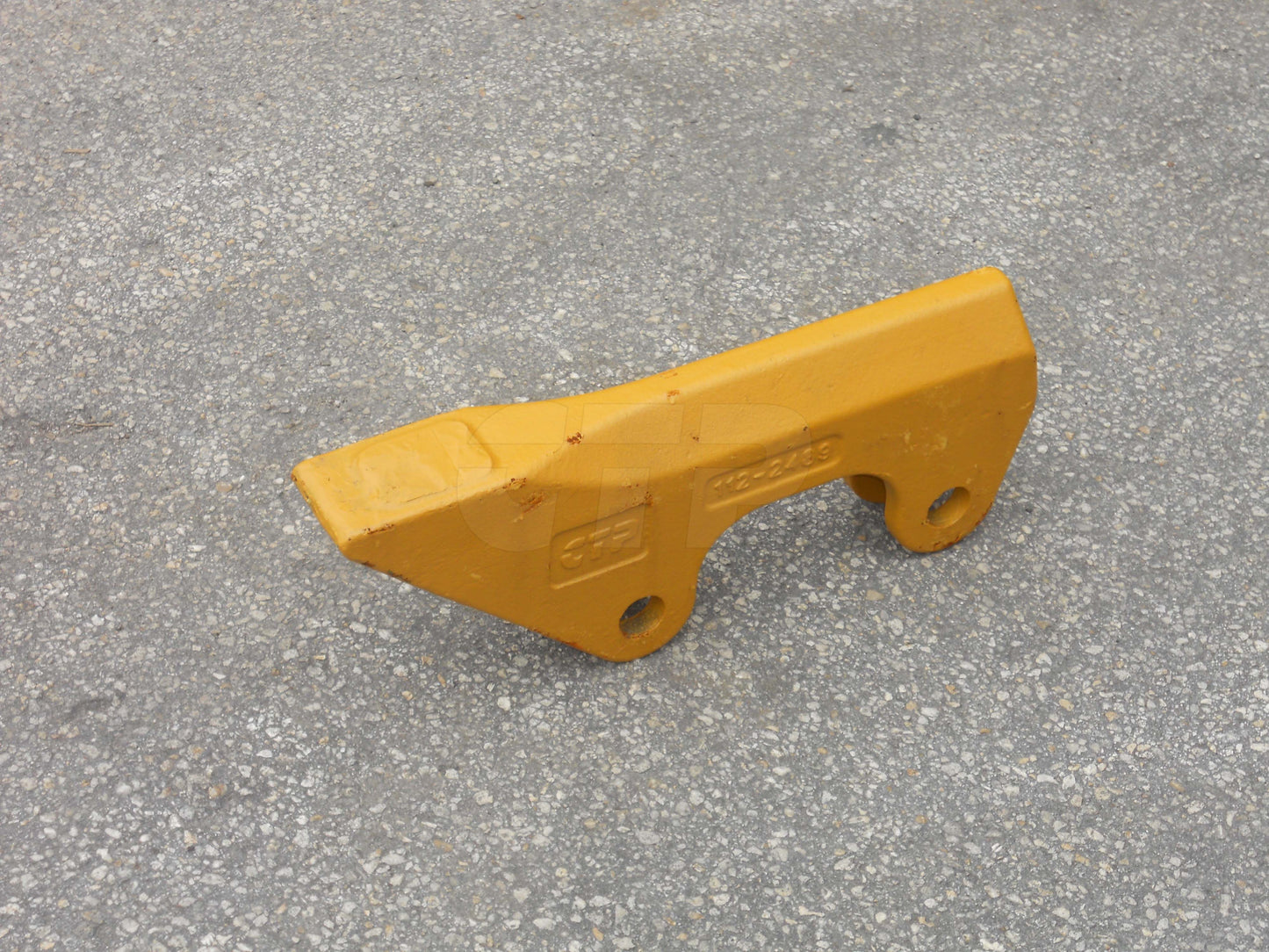

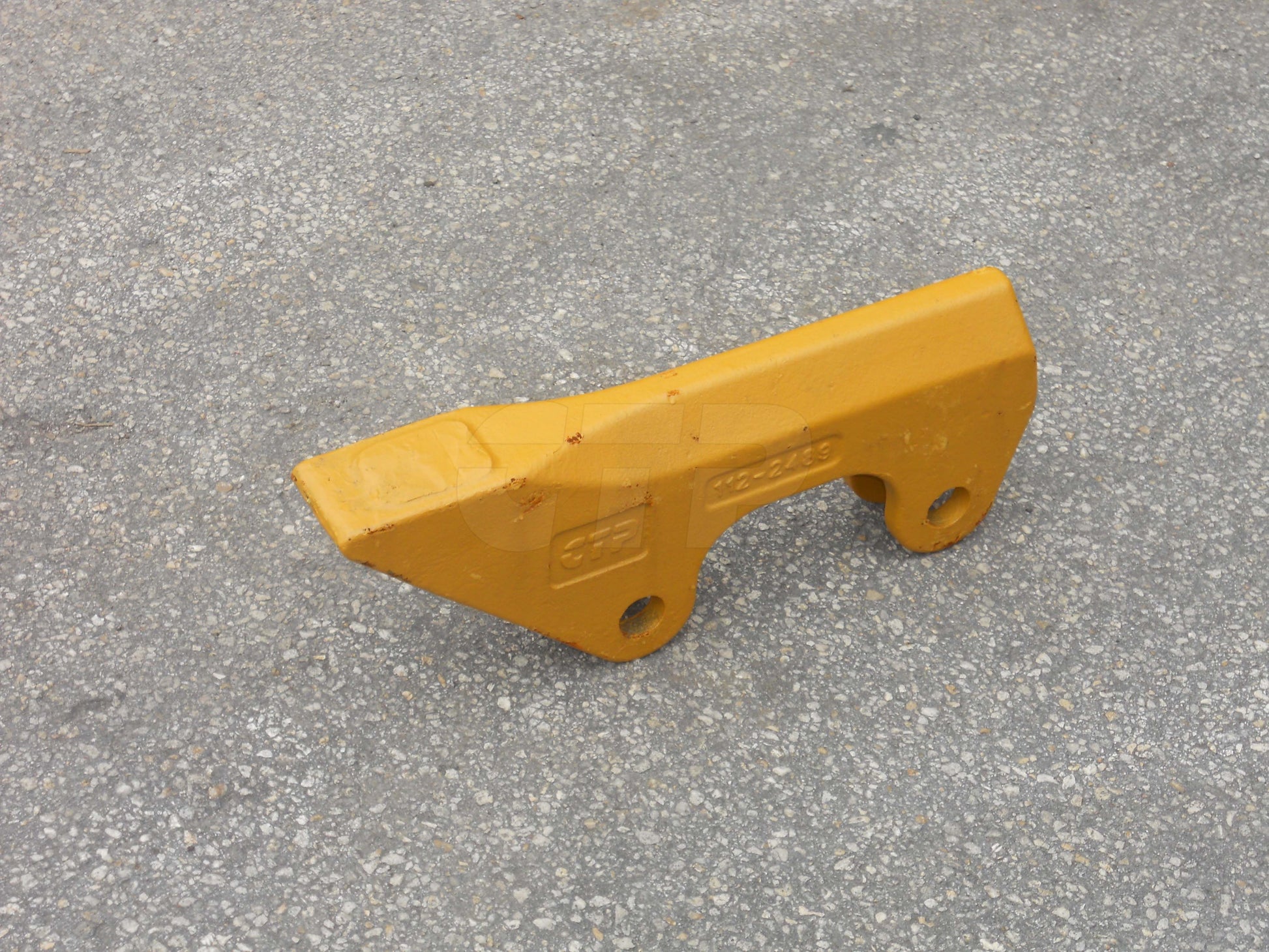

One New Aftermarket Replacement Protector-Sidebar (Wing Shroud) for Caterpillar (Cat) Excavators
This aftermarket sidebar protector is a ground engagement tool (GET) bucket wear part that mounts to the cheek plates of Caterpillar excavator buckets, shielding the sidebar from abrasion and impact during digging. The bolt-on design allows fast, easy field replacement to minimize downtime. Also commonly known as a wing shroud, vertical shroud protector, or cheek protector, this part secures using two 112-2490 pins and two 8E5559 retainers (sold separately).
Specifications
- Weight: approximately 39 lbs (17.2 kg)
- Dimensions: approximately 17.2 x 6.69 x 2.76 in.
- Material: high-alloy wear steel
- Gap: 40mm
- Qty: 1 piece
Compatible Models
Caterpillar Excavators: 320B, 320C, 320D, 320D LRR, 320D RR, 322C, 323D L, 324D, 324D L, 325C, 325D, 329D, 329D L, 329E L, 330C L, 330D, 336D, 336E L
Replaces Part Number(s):
1122489, 112-2489
New aftermarket replacement part - not remanufactured, not used.
