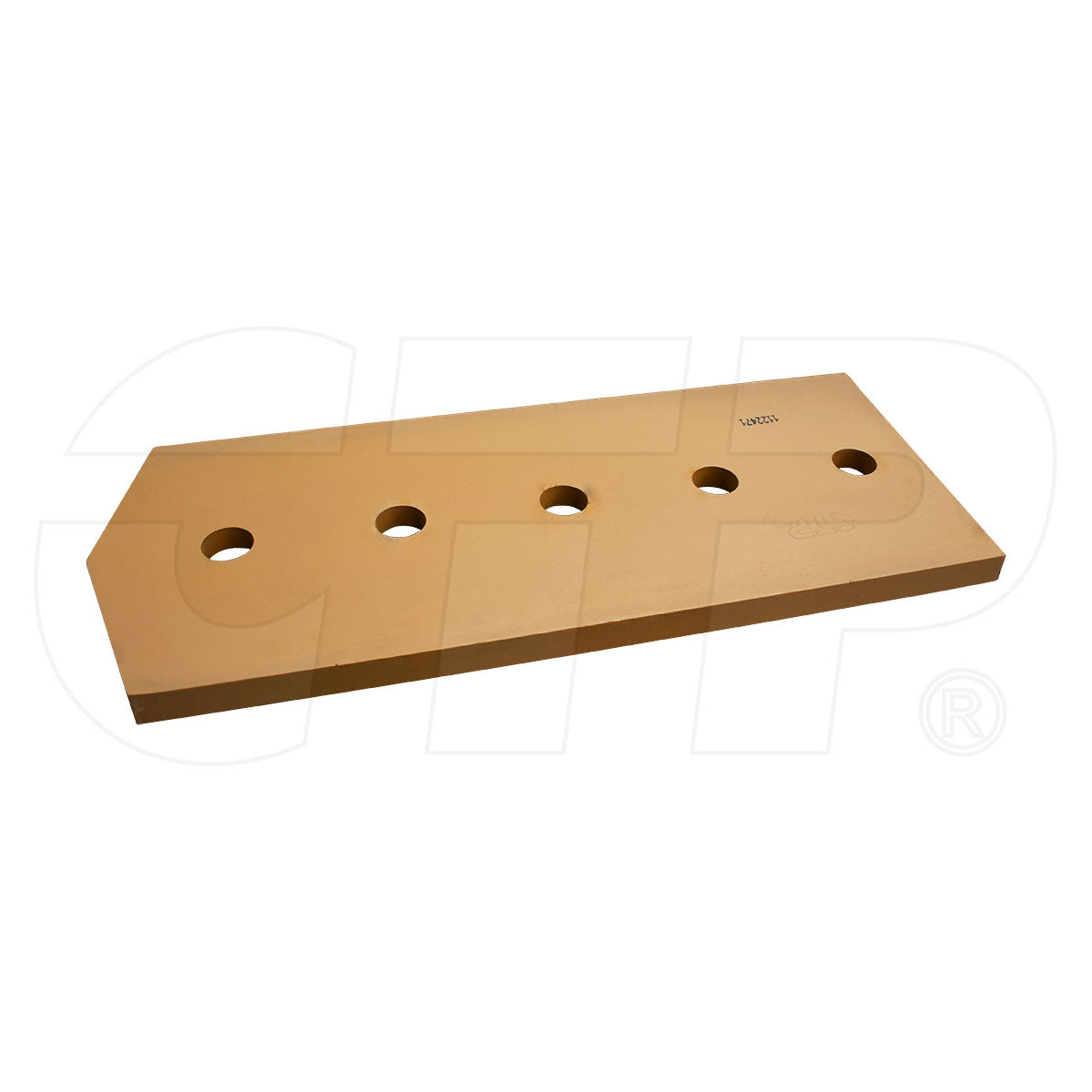

One New Aftermarket Replacement End Cutting Edge for Caterpillar (Cat) D9 Series Bulldozers
This heavy-duty end cutting edge bolts directly onto the blade of Caterpillar D9 series bulldozers, providing a reversible double-bevel design for extended service life. The edge mounts at the blade corners and protects the main blade from wear during dozing, grading, and earthmoving operations.
Specifications
- Length: 31.5 in.
- Width: 13 in.
- Thickness: 1.75 in.
- Blade Type: Double Bevel (reversible)
- Bolt Holes: 5 holes
- Bolt Hole Spacing: 6 in. center to center
- Distance from Edge to First Hole: 2.875 in. (center)
- Bolt Required: 1 in. x 3.5 in. plow bolt (qty 5) with 1 in. hex nut (qty 5)
- Weight: approx. 187 lbs.
Compatible Models
Caterpillar D9 Series Bulldozers: D9G, D9H, D9L, D9N, D9R, D9T
Replaces Part Number(s):
1122471
New aftermarket replacement part - not remanufactured, not used.
