Spindle Shaft Assembly w/ Hardware Fits AYP Replaces 110485X

Name: Spindle Shaft Assembly w/ Hardware Fits AYP Replaces 110485X
SKU: 187291-HARDWAREKIT
Price: 26.0 USD
Availability: InStock

Spindle Shaft Assembly w/ Hardware Fits AYP Replaces 110485X

£26.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

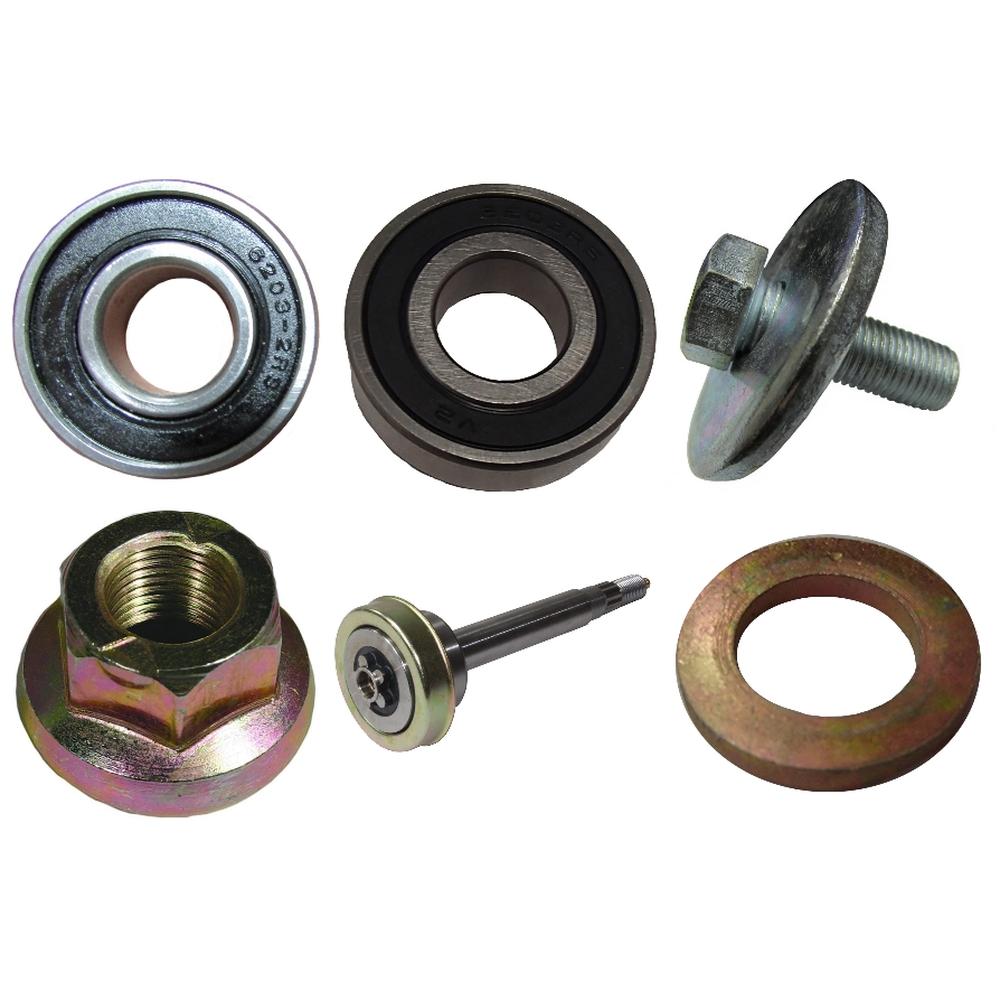

One New Aftermarket Spindle Shaft Assembly w/ Hardware

Tech Info:
-(1) Spindle Shaft
-Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole.
-Fits 38" & 42" Decks
-Replaces Part Numbers: 532187291,532192870-SHAFT,532192872
-
-(1) Blade Bolt w/ Flat Washer
-Comes with washer.
-Threads: 20,
-Length: 1-¼",
-Thread Size: 7/16"
-Replaces Part Number: 532 19 30-03
-
-(1) Pulley Lock Nut
-Thread Length: 9/16"-18,
-OD: 1-1/4",
-Thickness: 3/4",
-Type: Flange,
-Hex: 7/8"
-Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729
-
-(1) Spacer Washer
-ID: 11/16",
-OD: 1-1/8",
-Thickness: 5/32"
-Replaces Part Number: 532187690
-
-(1) Sealed Ball Bearing (Econ Version)
-ID: 0.669" (17mm),
-OD: 1.575" (40mm),
-Width: 0.472" (12mm),
-Bearing Type: Double Sealed
-Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
-
-(1) Pilot Bearing
-Has rubber seals on both sides of bearing,
-ID: 21/32",
-Height: 15/32",
-OD: 1-9/16"
-Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Fits AYP:
Lawn Mower Models: Various
Replaces Part Number(s): 187291, 187292, 532187291, 192872, 532187292, 532192872, 587820301, 597023501, 587125401, 174365, 193003, 532193003, 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801, 187690, 129963, 532187690, 187860, 187860, 532445266, 62032RS, 6203, 110485X, 532110485

Models This Part Fits:

Various

Additional Information:

(1) Spindle Shaft Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole. Fits 38" & 42" Decks Replaces Part Numbers: 532187291,532192870-SHAFT,532192872 (1) Blade Bolt w/ Flat Washer Comes with washer. Threads: 20, Length: 1-¼", Thread Size: 7/16" Replaces Part Number: 532 19 30-03 (1) Pulley Lock Nut Thread Length: 9/16"-18, OD: 1-1/4", Thickness: 3/4", Type: Flange, Hex: 7/8" Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729 (1) Spacer Washer ID: 11/16", OD: 1-1/8", Thickness: 5/32" Replaces Part Number: 532187690 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm), OD: 1.575" (40mm), Width: 0.472" (12mm), Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (1) Pilot Bearing Has rubber seals on both sides of bearing, ID: 21/32", Height: 15/32", OD: 1-9/16" Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Reference Numbers:

187291, 187292, 532187291, 192872, 532187292, 532192872, 587820301, 597023501, 587125401, 174365, 193003, 532193003, 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801, 187690, 129963, 532187690, 187860, 187860, 532445266, 62032RS, 6203, 110485X, 532110485
