1100KRRB-Bearing for Universal Products
1100KRRB-Bearing for Universal Products
Couldn't load pickup availability

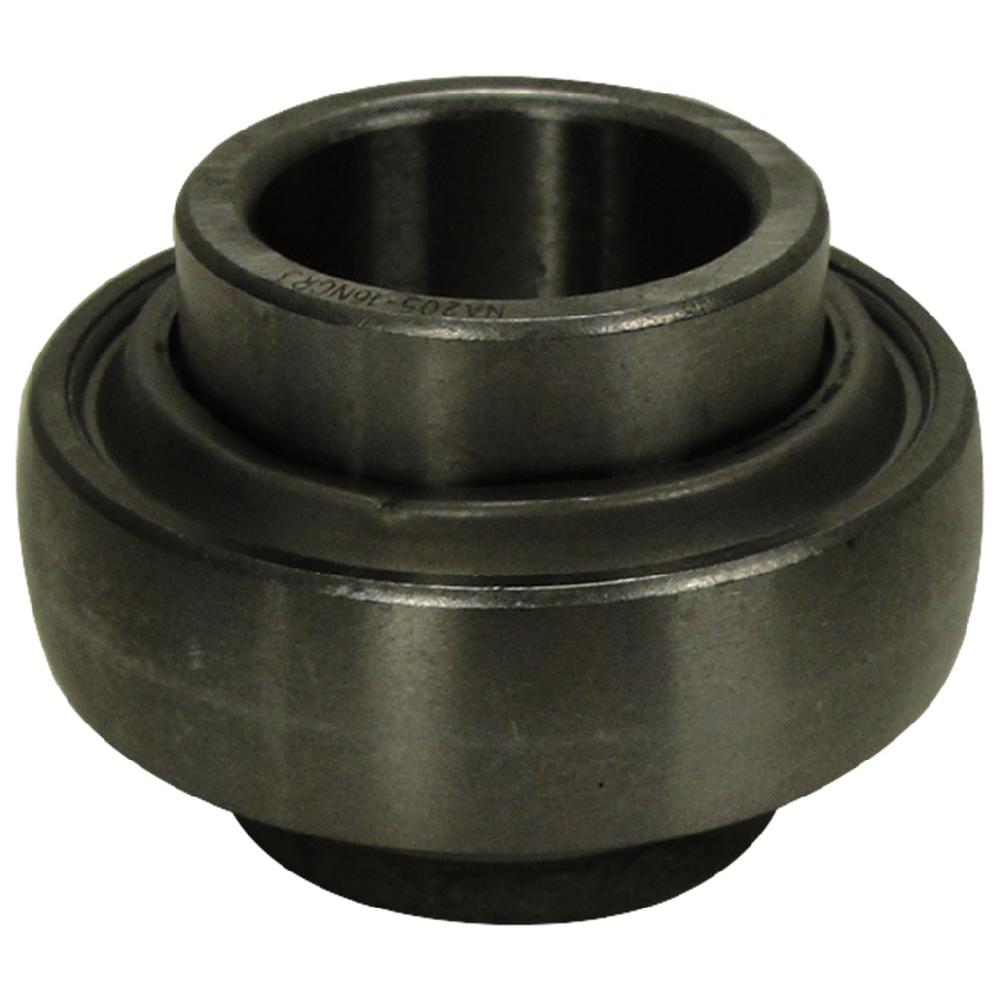

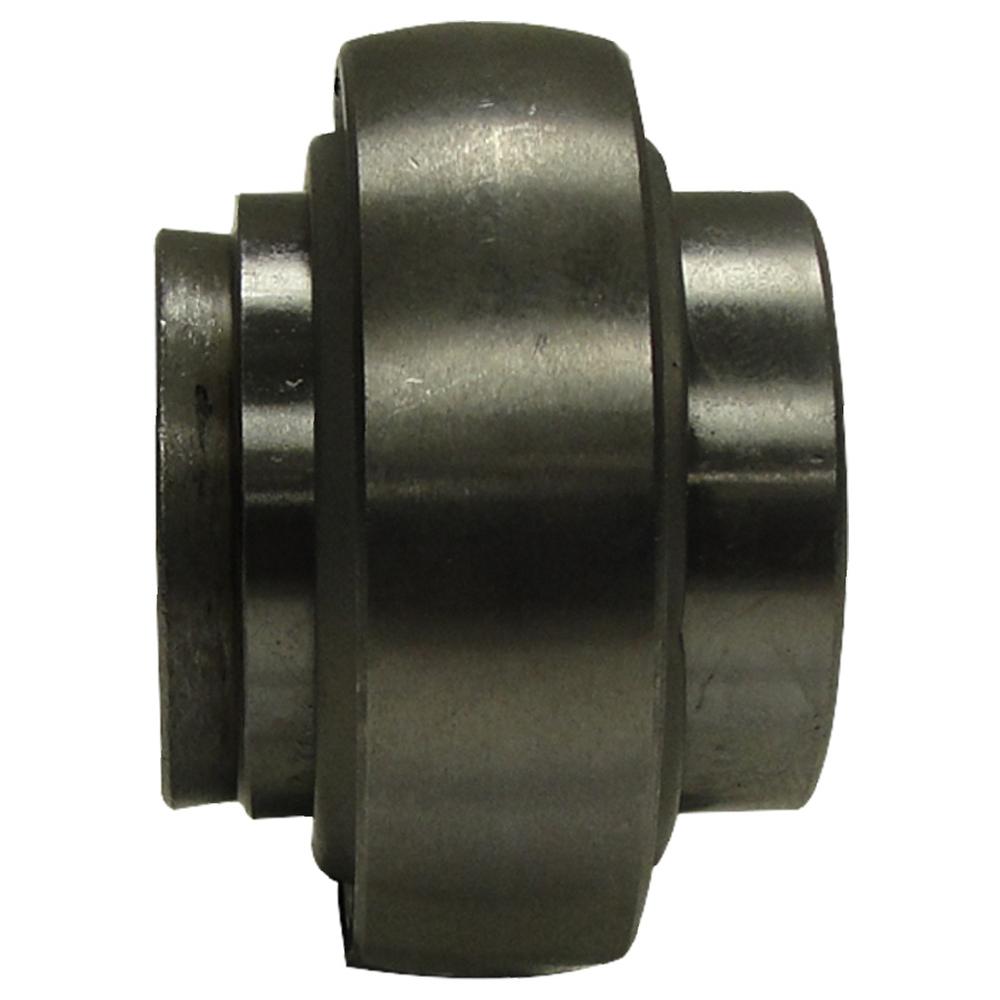

One New Aftermarket Replacement Ball Bearing Insert for Agricultural Equipment
This 1100KRRB wide inner ring ball bearing insert with eccentric locking collar is a heavy-duty replacement bearing designed for use across a wide range of agricultural equipment applications. Engineered for extremely dirty or wet field conditions, it features double R-seals with flared lips that firmly contact the ground outer diameter of the inner ring, providing a positive seal against dust, dirt, and other contaminants while retaining lubricant. Shroud-seals offer an additional layer of protection. The extra-wide inner ring design provides additional shaft support and extra-large grease capacity.
Specifications
- Bore Diameter: 1 in (25.4 mm)
- Outside Diameter: 2.0472 in (52 mm)
- Bearing Width: 0.591 in
- Inner Ring Width: 1.375 in
- Overall Width: 1.734 in
- Bore Type: Round
- Outer Diameter Profile: Spherical
- Locking Device: Eccentric locking collar (2 set screws)
- Lubrication: Non-relubricatable
- Bearing Material: Hardened steel / nylon cage
- Load Rating: 3550 lb dynamic / 1730 lb static
- Max RPM: 5440
Compatible Applications
This is a universal-fit agricultural bearing used across many brands and platforms. Confirmed cross-references include John Deere combines and harvest equipment, Case/Case-IH equipment, International Harvester equipment, Gehl equipment, Hesston equipment, Ford equipment, New Idea equipment, and Farm Hand equipment.
Replaces Part Number(s):
1100KRRB, 1100KRRB-BEARING, 308-1100KRRB, 851-SMA1100KRRB, HIB10-0115, HIB10-0215, JD9273, AH169077, AH79775, AH214862, F82057, O3784CS, K2576, 15778, 170310, 175027, 2480CSA, 520083, 666589R1, WPS100GPC
Aftermarket Interchange Numbers
Timken/Fafnir 1100KRRB, SKF G1100KRRB, WPS100GPC (Riverside Tractor / Shoup)
New aftermarket replacement part - not remanufactured, not used.
