TimeCutter Deck Kit Fits Toro Replaces 110-6837-03 Made with Aramid

Models This Part Fits:

Timecutter Z

Additional Information:

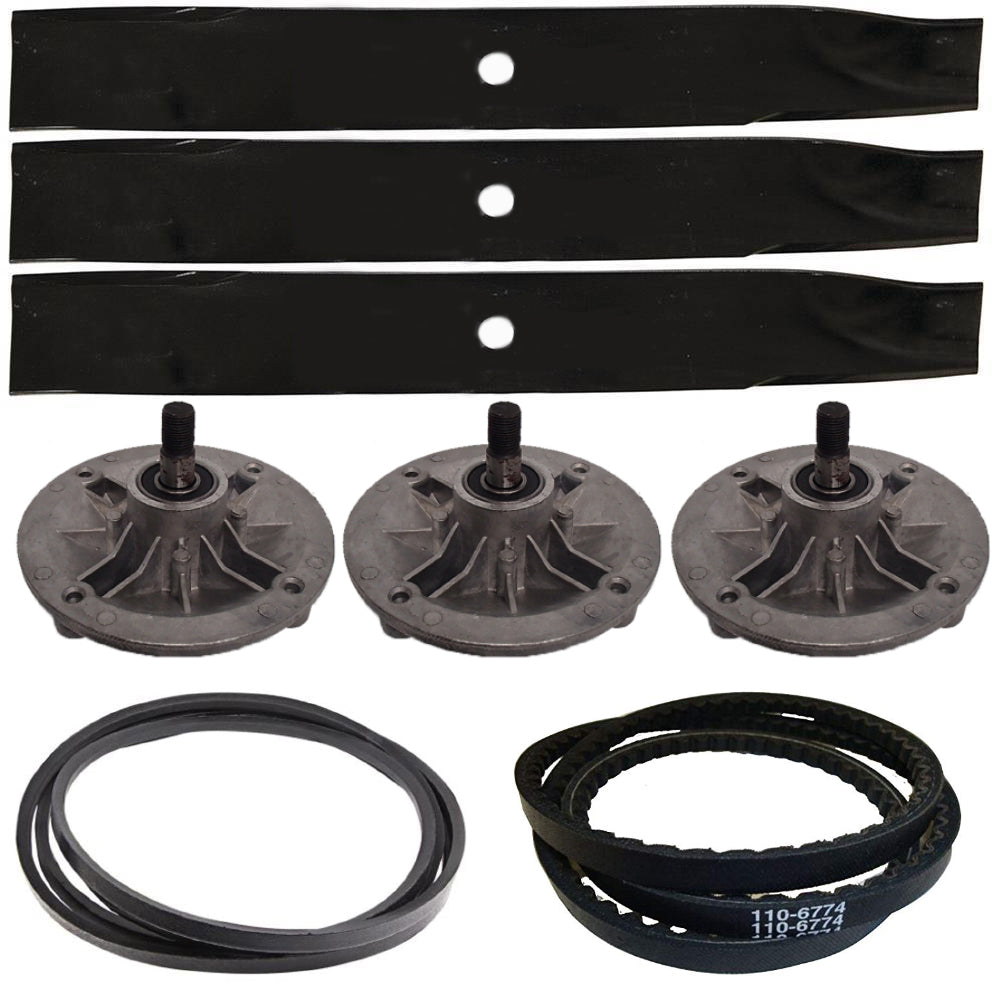

Kit Contains: (3) Spindle Assemblies 1-1/2" ID x 6-1/4" OD x 3-5/8" HT Spindle Housing Assembly with Short Shaft. This Assembly Consists of the Following: 88-4510 Spindle Housing 117-1192 Short Shaft 100-1048 Bearings 62-3661 Spacer 80-4380 Spacer 80-4360 Shield Replaces Part Number(s): 110-6866, 117-1192 (3) Lawn Mower Blades Length: 17-1/2" Width: 2-1/4" Center Hole: 5/8" Thickness: .160" Replaces Part Number(s): 110-6837-03, 112-9759, 112-9759-03, 115-5059, 115-5059-03, 79016P (1) Mower Deck Belt 1/2" x 139.80" Made With Aramid Cord Replaces Part Number: 110-6892 (1) Mower Deck Belt 1/2" x 62.5" Thickness: 0.35" Raw Edge Cogged Polyester Cord Replaces Part Number: 1106774

Reference Numbers:

110-6866, 117-1192, 110-6837-03, 112-9759, 112-9759-03, 115-5059, 115-5059-03, 79016P, 110-6892, 1106774

Product Sub Group:

Deck Components
