Engine Rebuild Kit Fits Kohler K241 K241AQS 216 Spark Plug 47 150 03-S Points

One New Aftermarket Replacement Engine Rebuild Kit for Kohler 10HP K241 / M10 K-Series Engines

This aftermarket engine rebuild kit contains everything needed to perform a complete overhaul of the 10HP K241 or M10 cast-iron single-cylinder engine. The kit covers the core internal components -- gaskets, piston, connecting rod, ignition points, and spark plug -- used in a wide range of vintage garden tractors and lawn tractors from Fits John Deere, Fits Cub Cadet, Fits Case, and Sears/Fits Craftsman. Note: Not compatible with ethanol fuel blends greater than 10%.

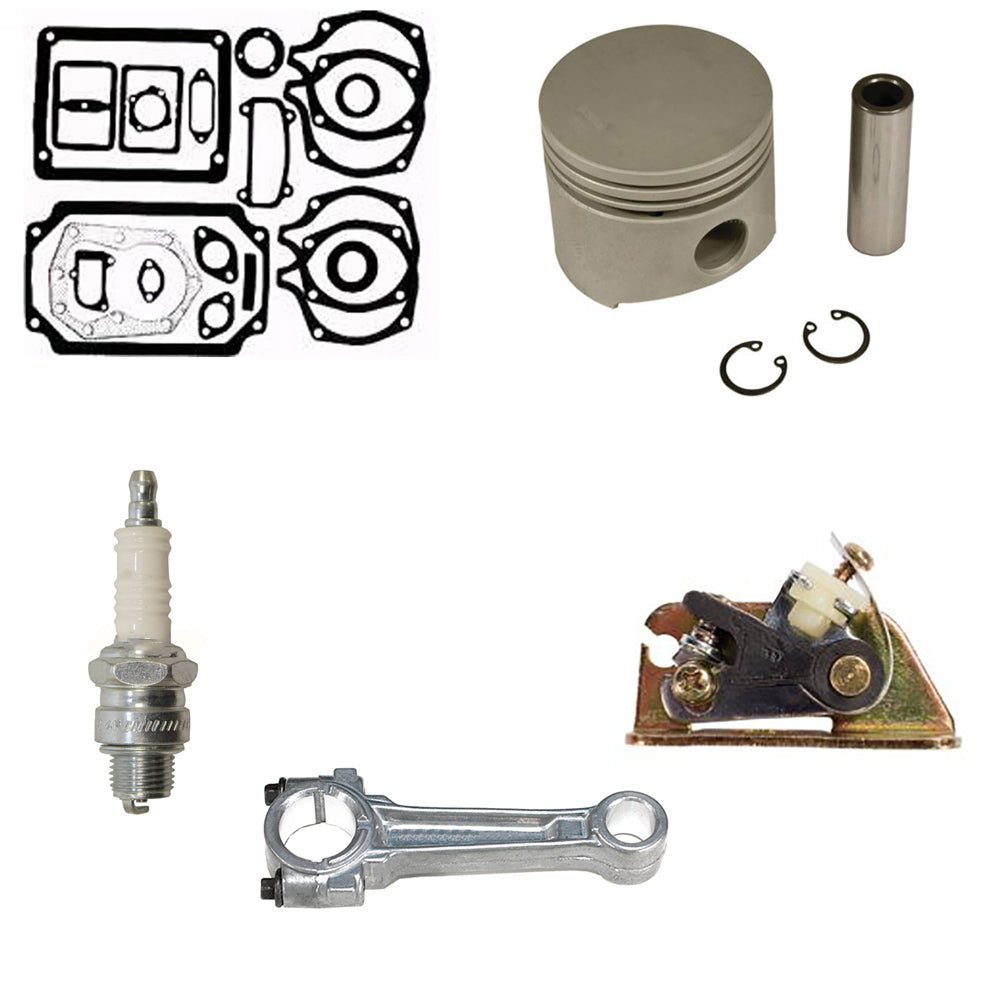

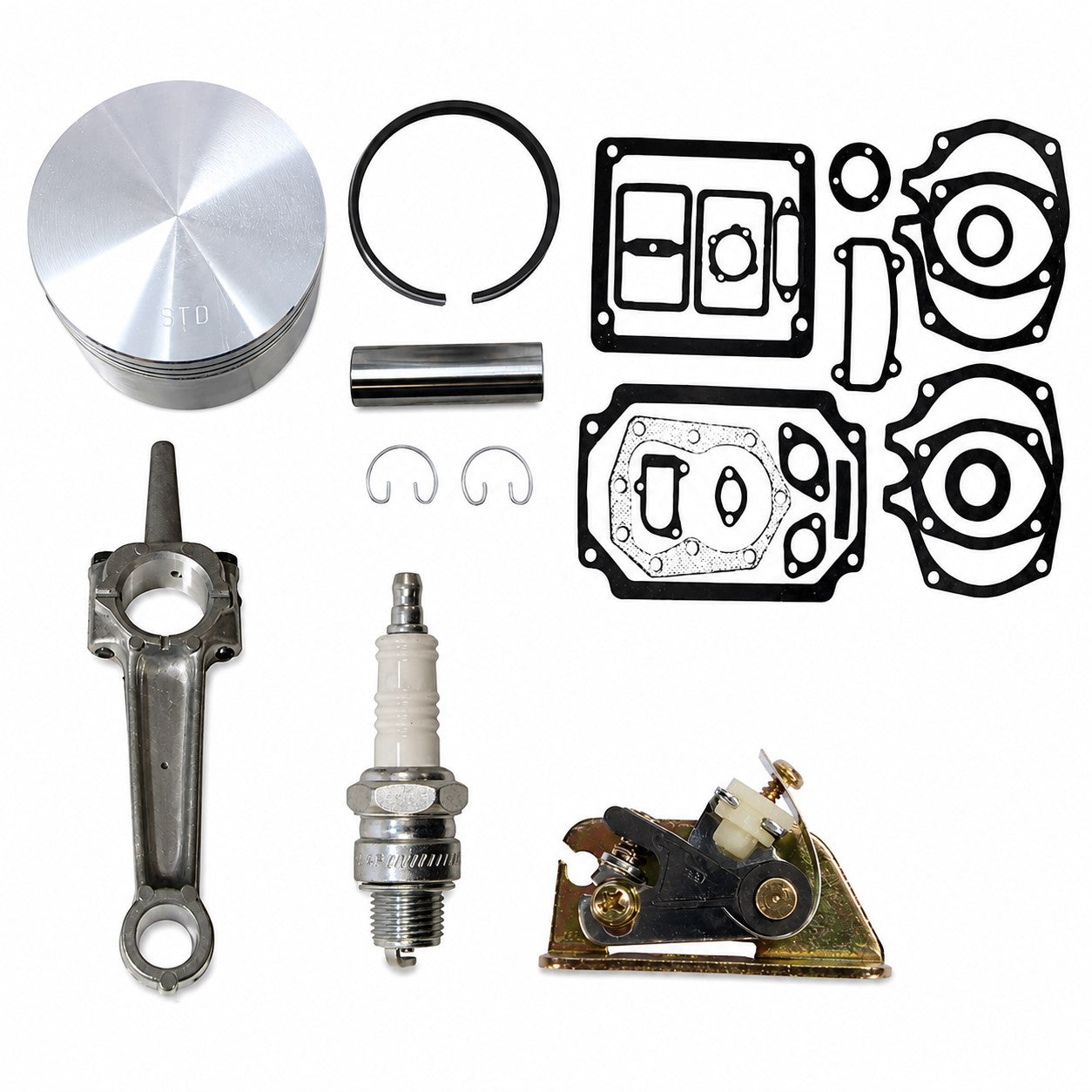

Kit Includes

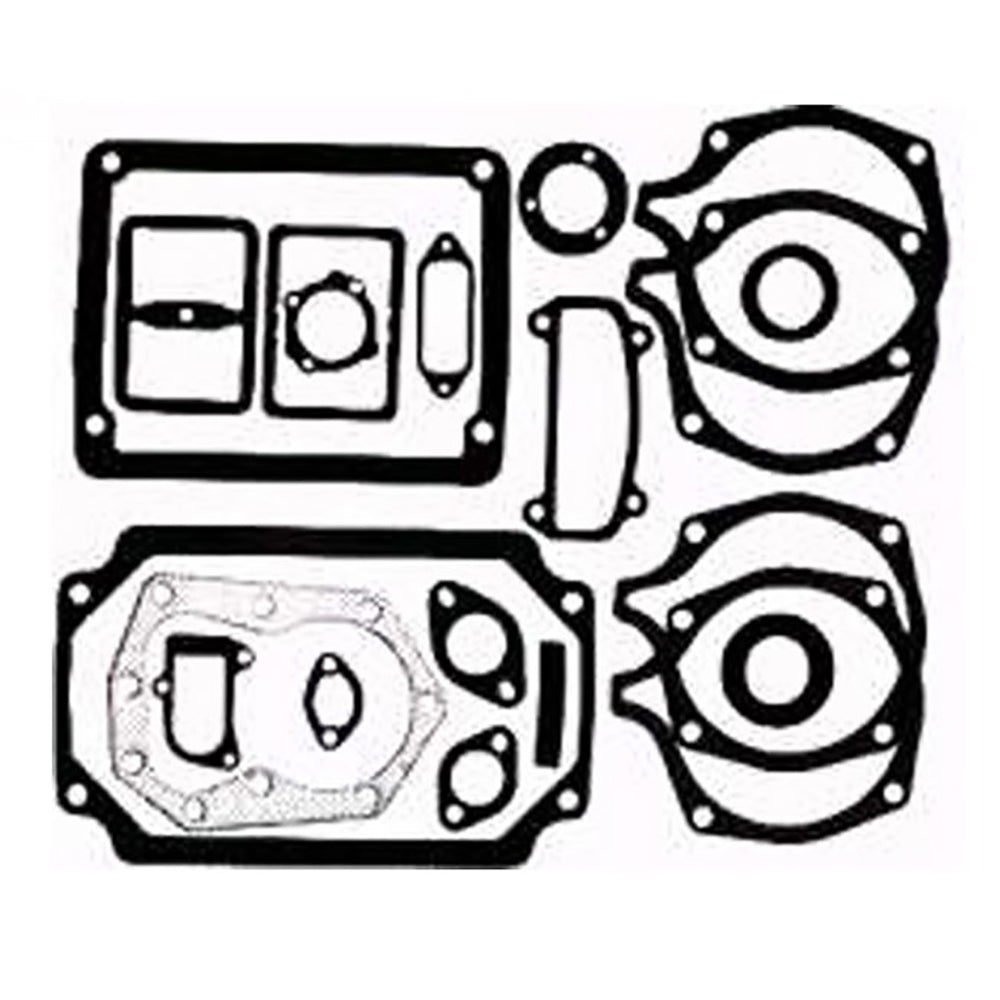

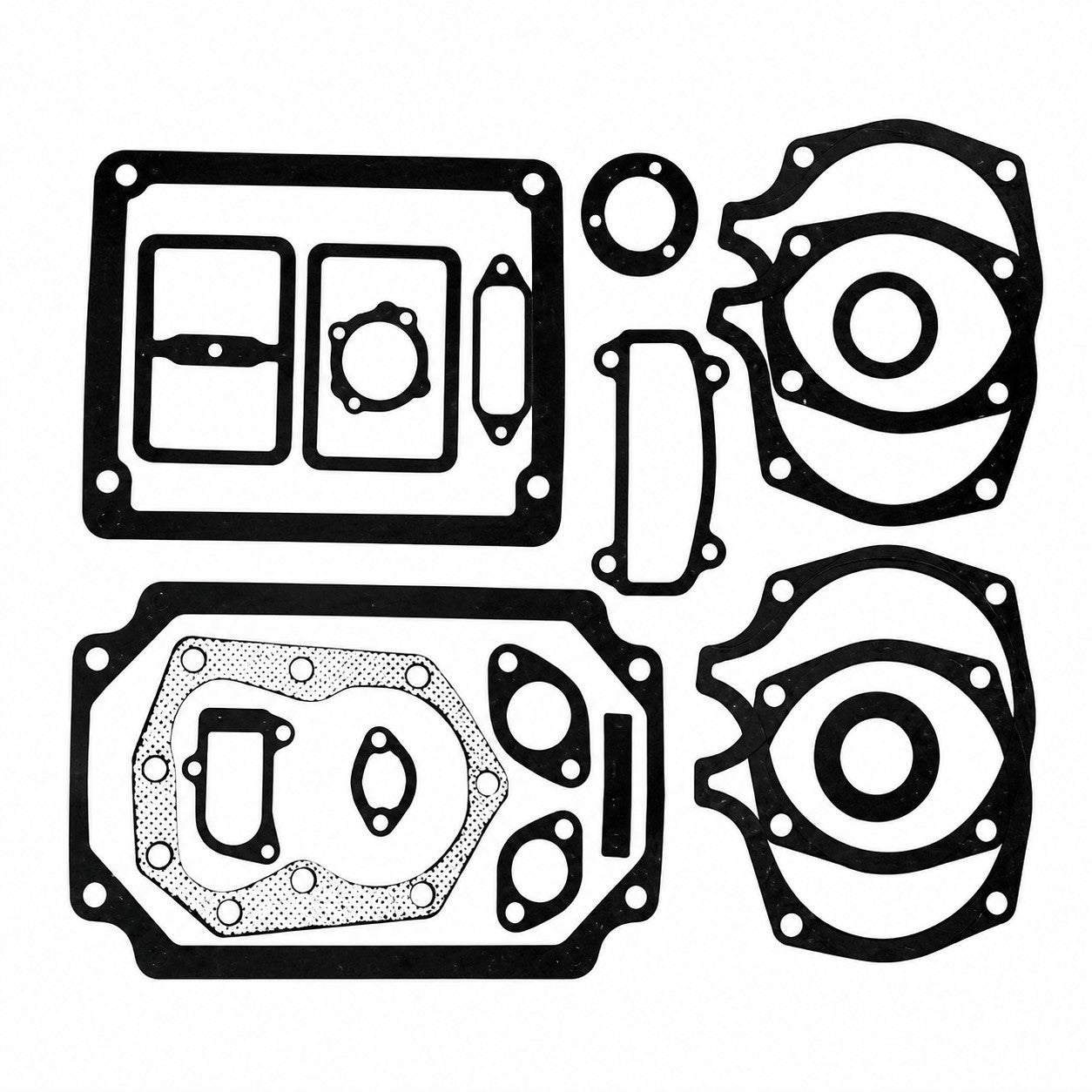

• (1) Engine Overhaul Gasket Set with oil seals

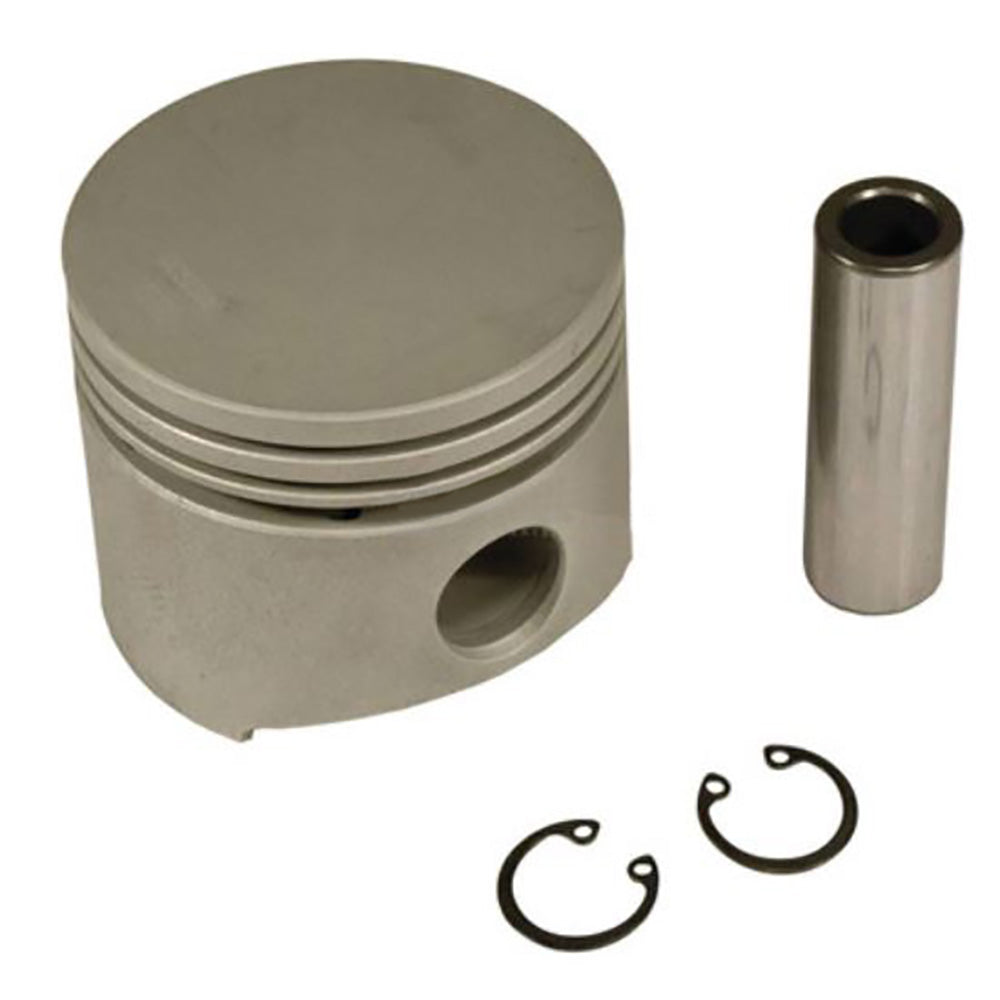

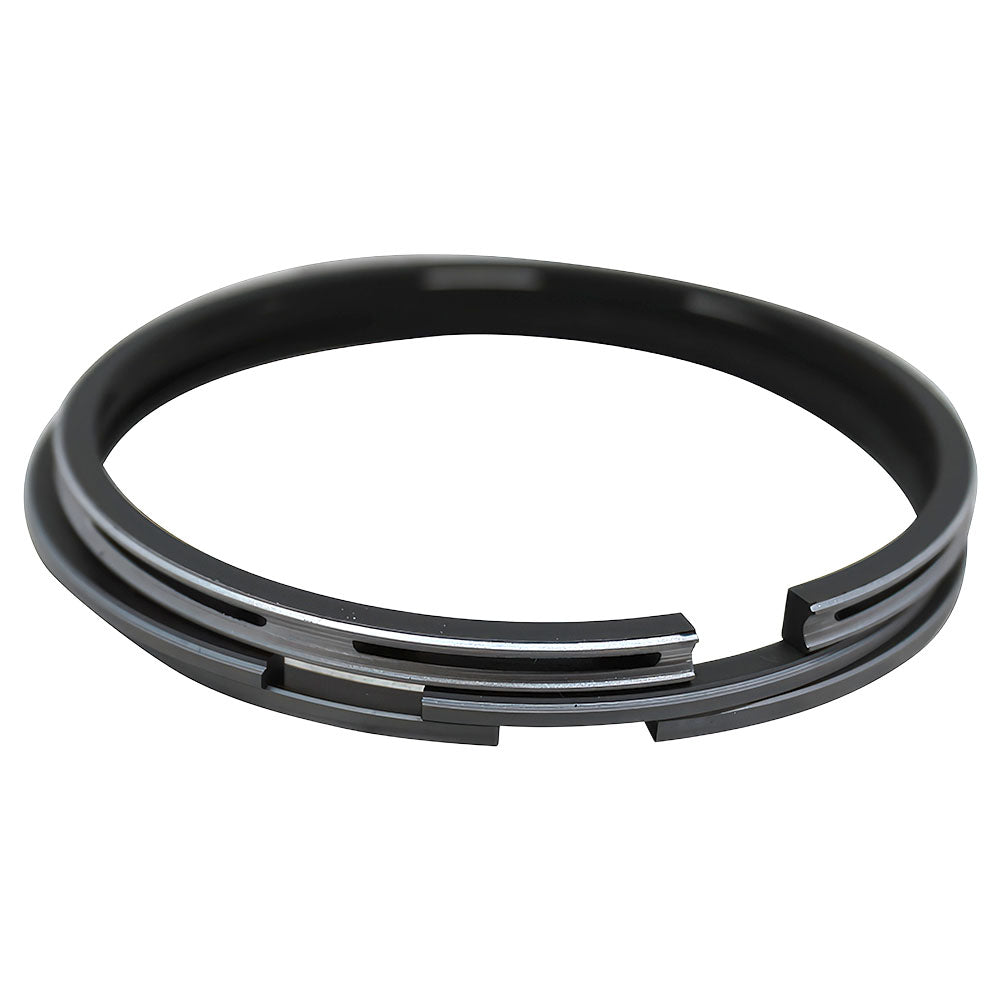

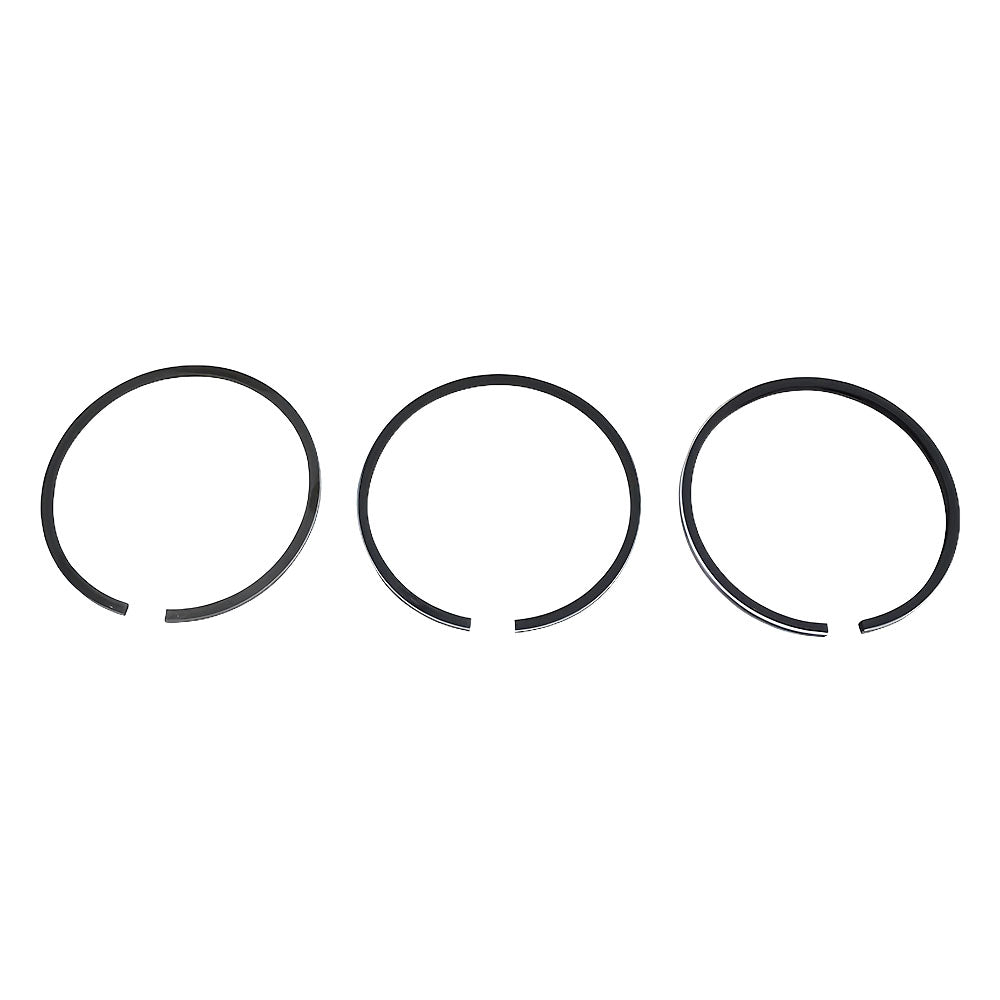

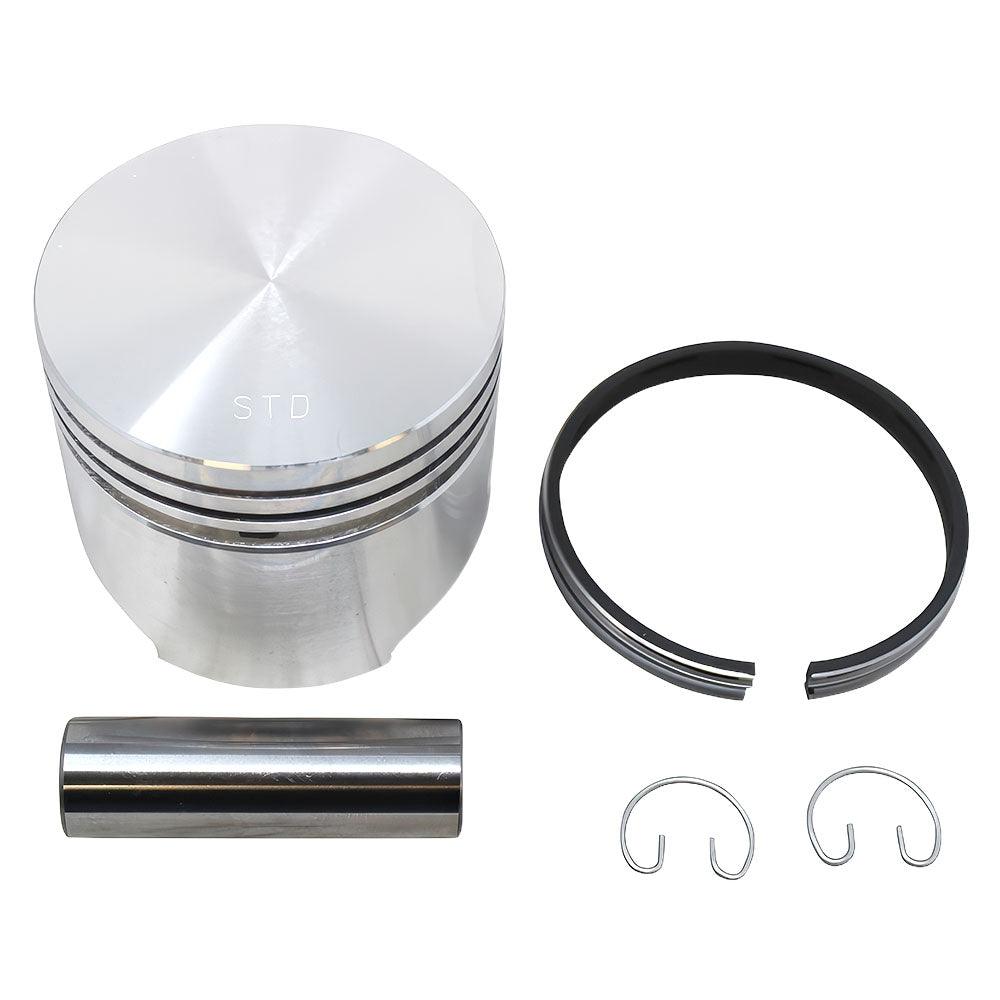

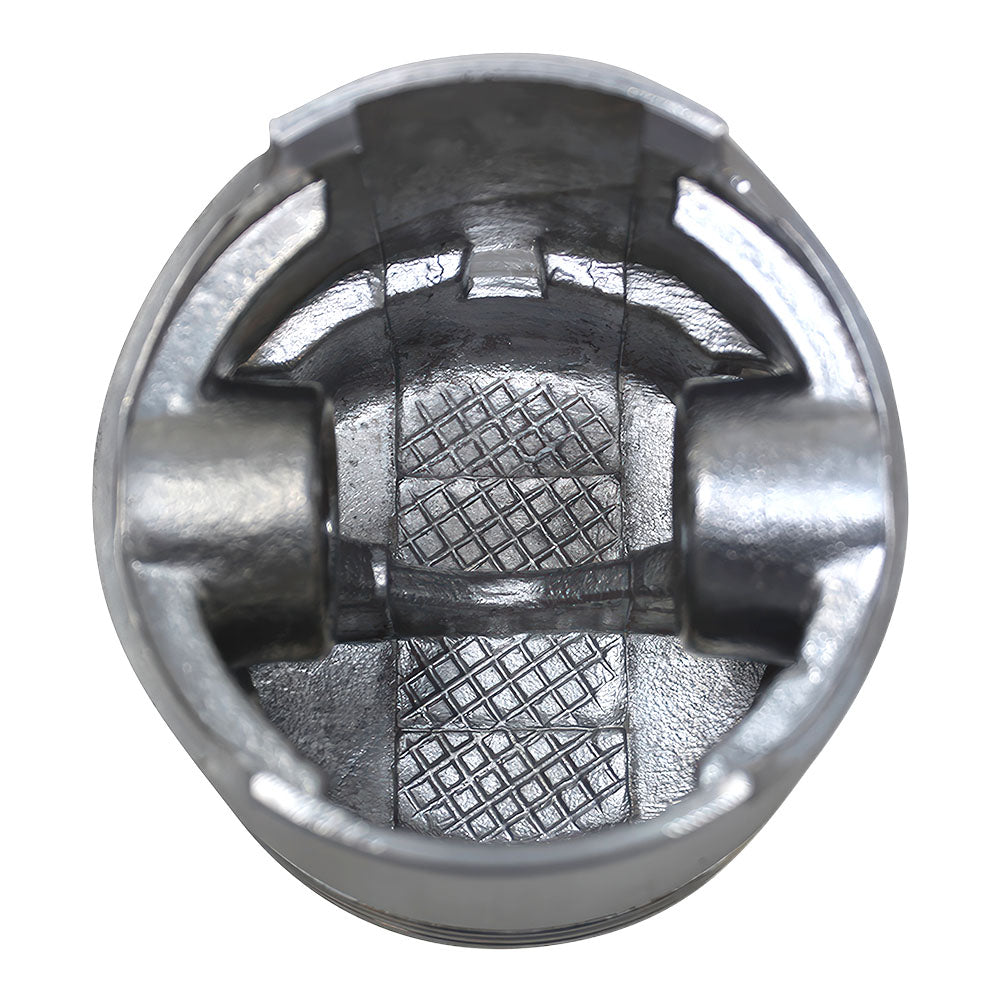

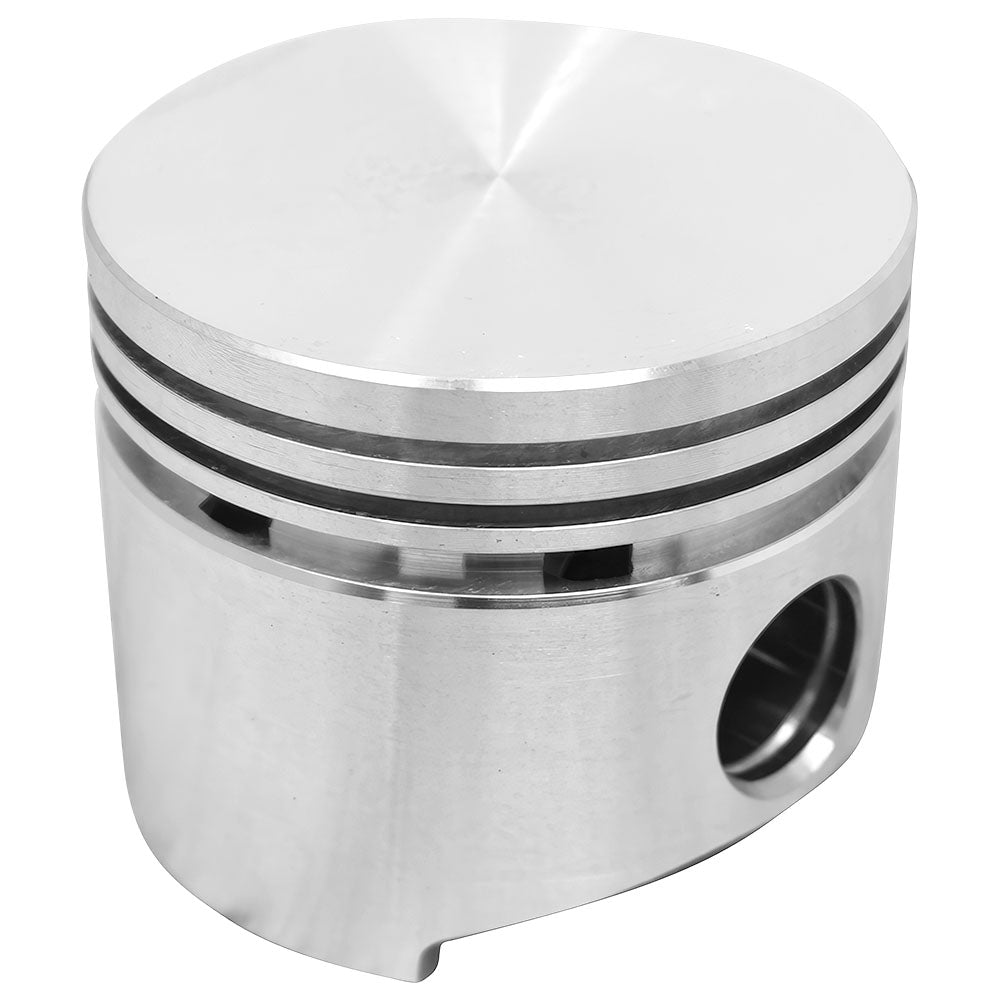

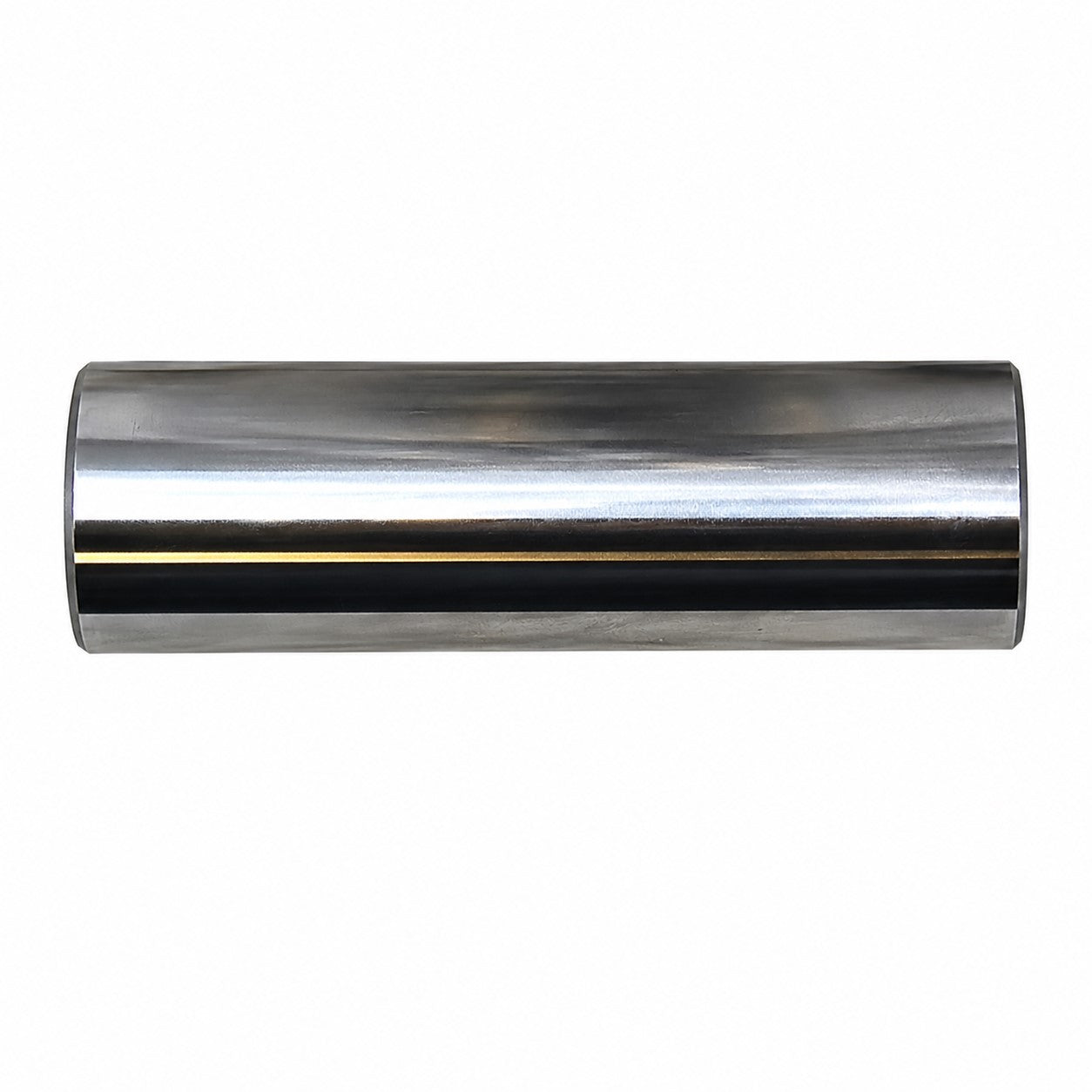

• (1) Standard Piston with rings (cylinder bore size: 3.251" / 3.250" STD)

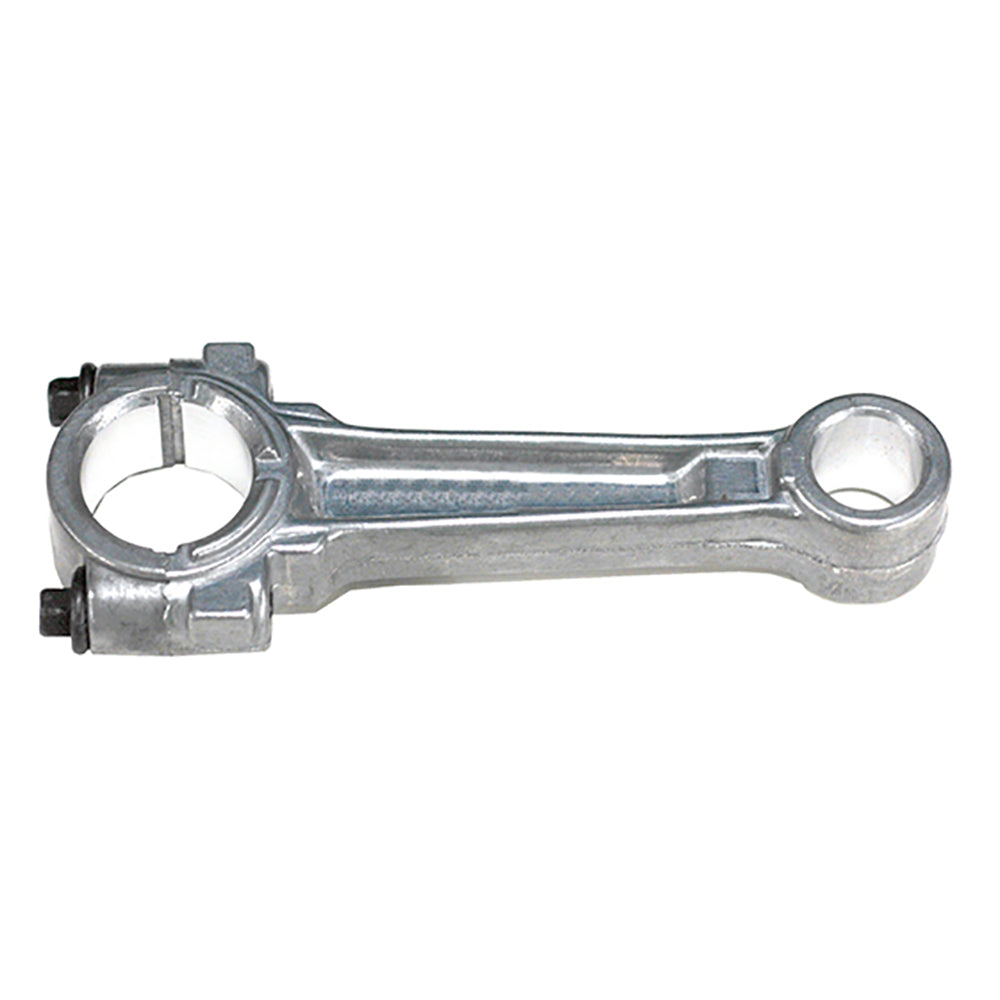

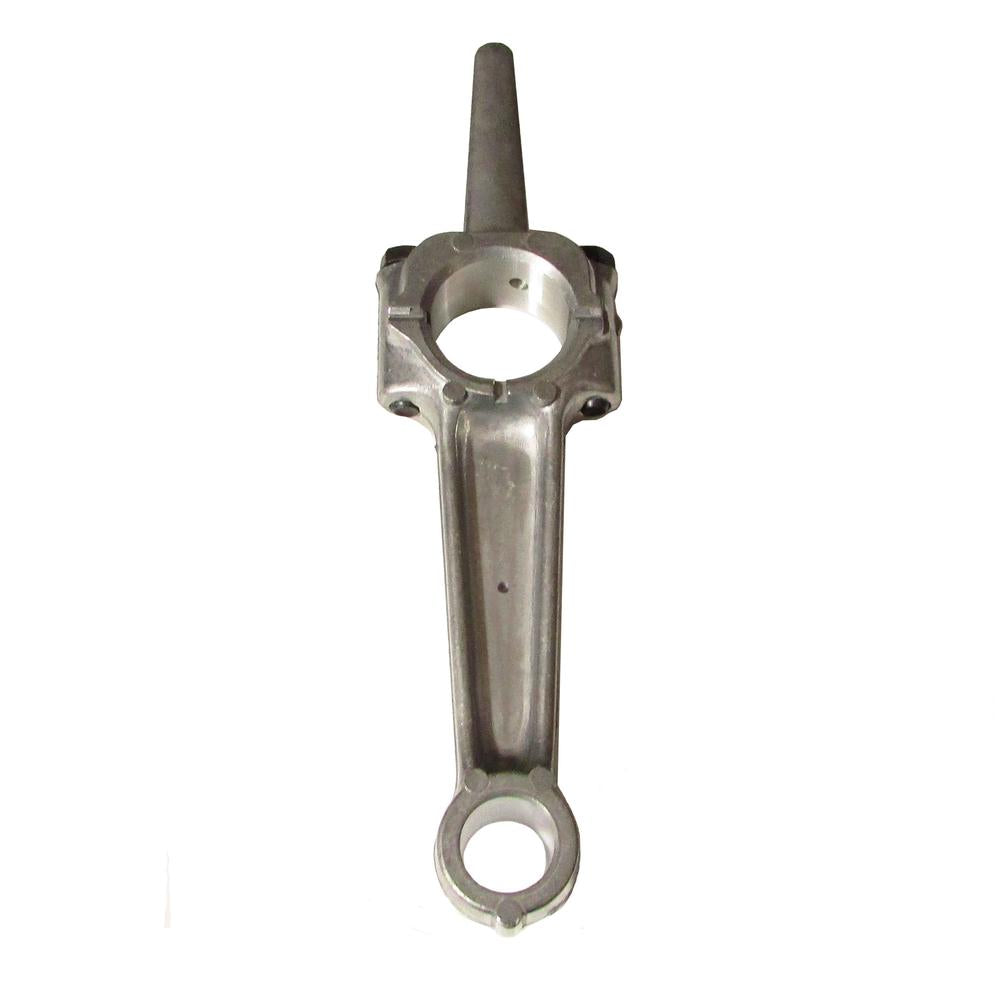

• (1) Connecting Rod (long dipper style)

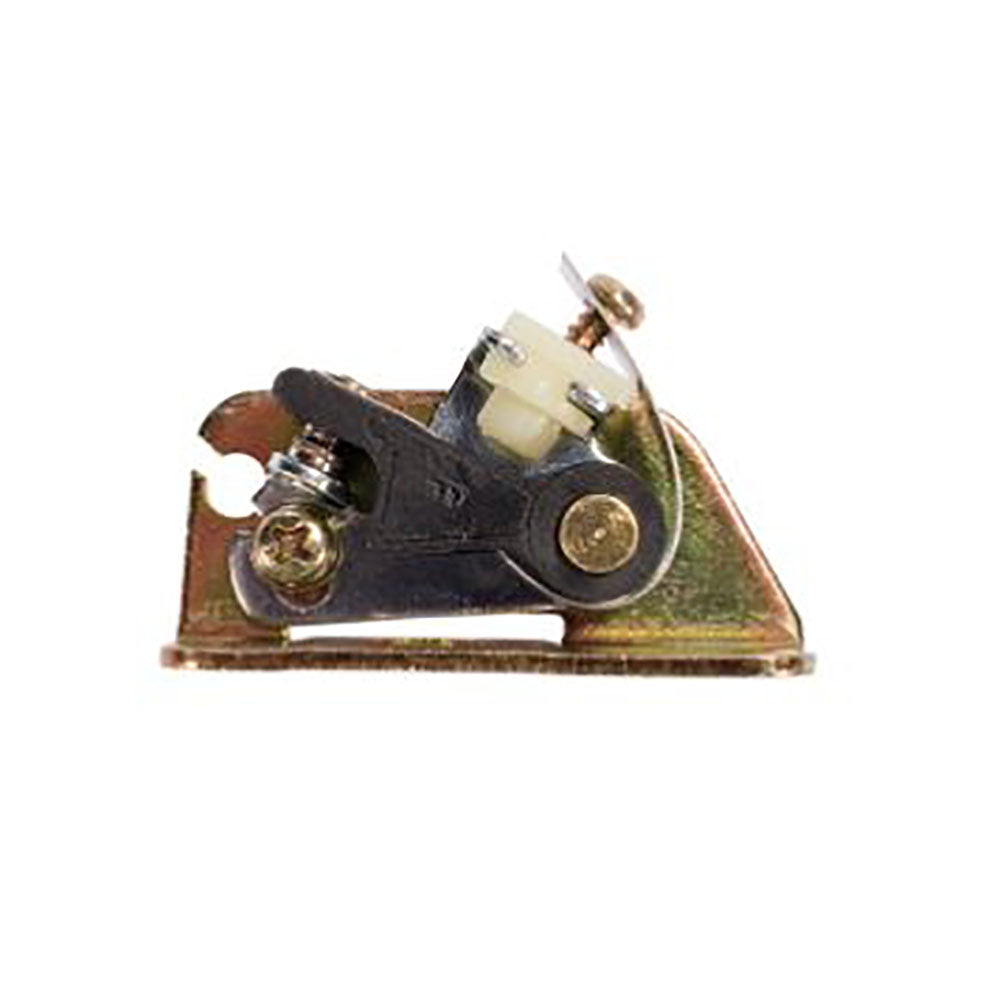

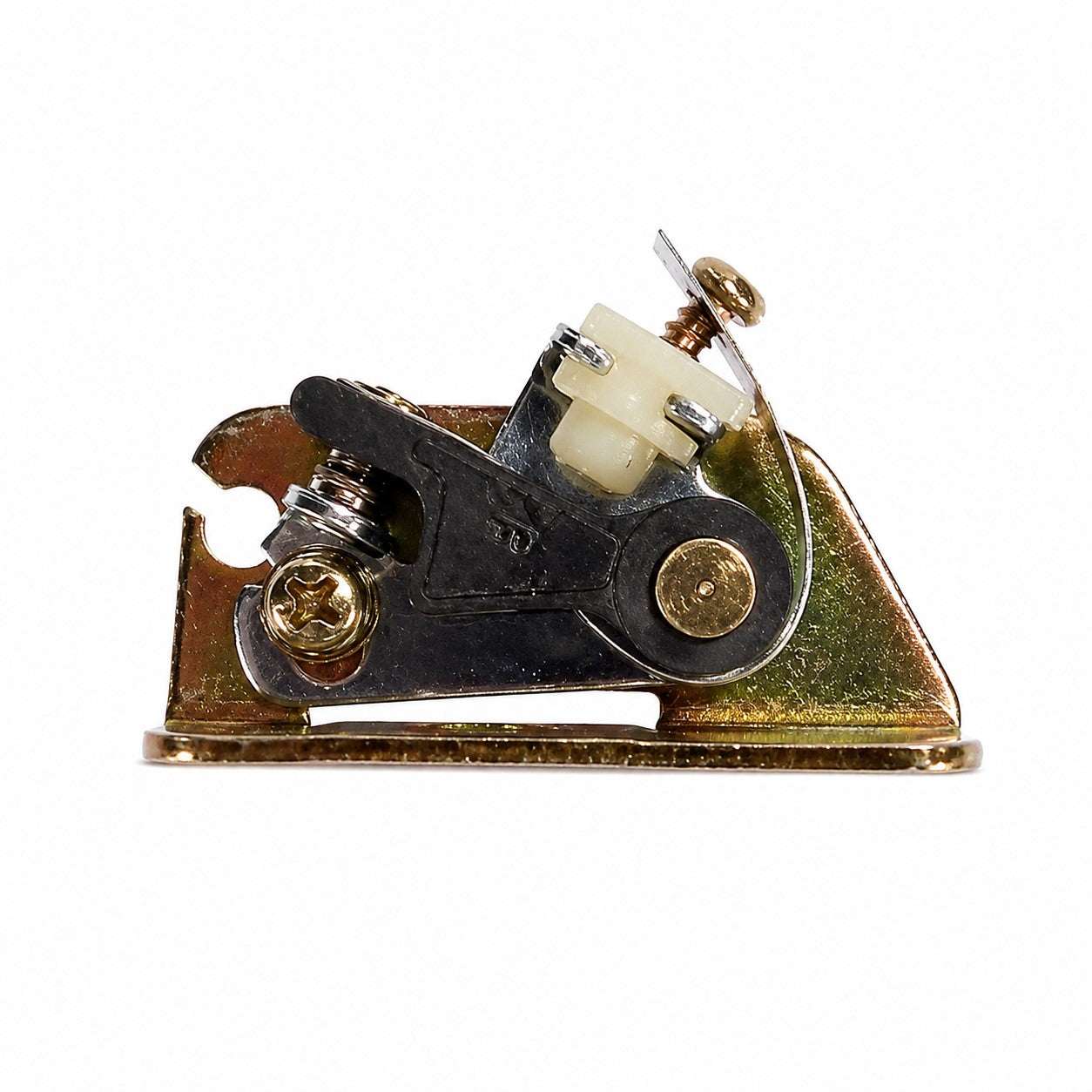

• (1) Set Ignition Points

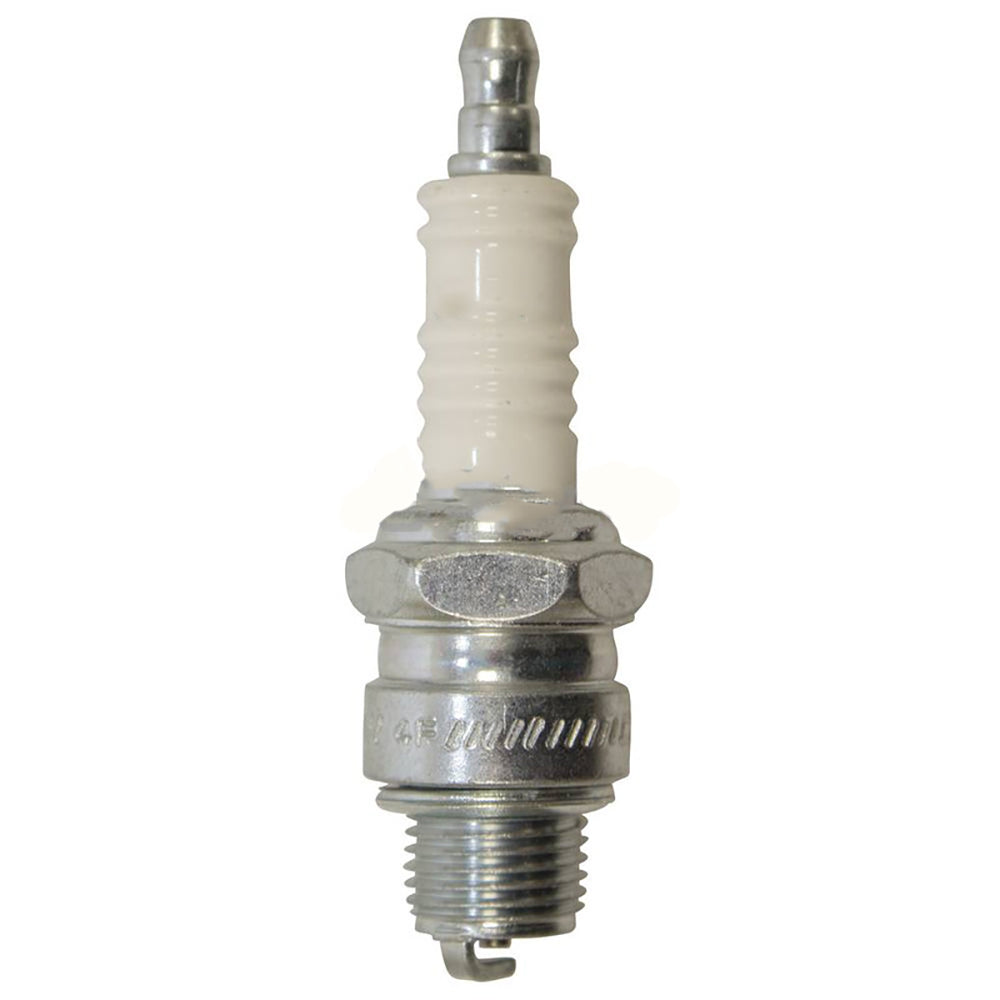

• (1) Spark Plug (Autolite 216 equivalent, 14mm thread)

Specifications

• Engine Type: 4-cycle, single-cylinder, air-cooled gasoline
• Displacement: 23.9 cu in (0.391 L)
• Bore: 3.25 in (82.5 mm)
• Stroke: 2.88 in (73.0 mm)
• Horsepower: 10 HP (7.5 kW)
• Piston Size: Standard (STD)
• Connecting Rod Style: Long dipper
• Spark Plug Thread: 14mm
• Ethanol Compatibility: Not compatible with greater than 10% ethanol fuel

Compatible Models

Kohler K-Series (10HP): K241, K241S, K241AS, K241AQS

Kohler Magnum Series (10HP): M10

Fits any garden tractor or lawn tractor equipped with the Kohler 10HP K241 or M10 engine, including equipment from Fits John Deere, Fits Cub Cadet, Fits Case, and Sears/Fits Craftsman.

Replaces Part Number(s):

47 074 11, 47 874 01, 4707411, 4787401-S, 47 874 01-S, 4787401, 47 067 03, 47 067 03-S, 47 067 13, 47 067 13-S, 47-755-08-S, 47-004-01-S

New aftermarket replacement part - not remanufactured, not used.
