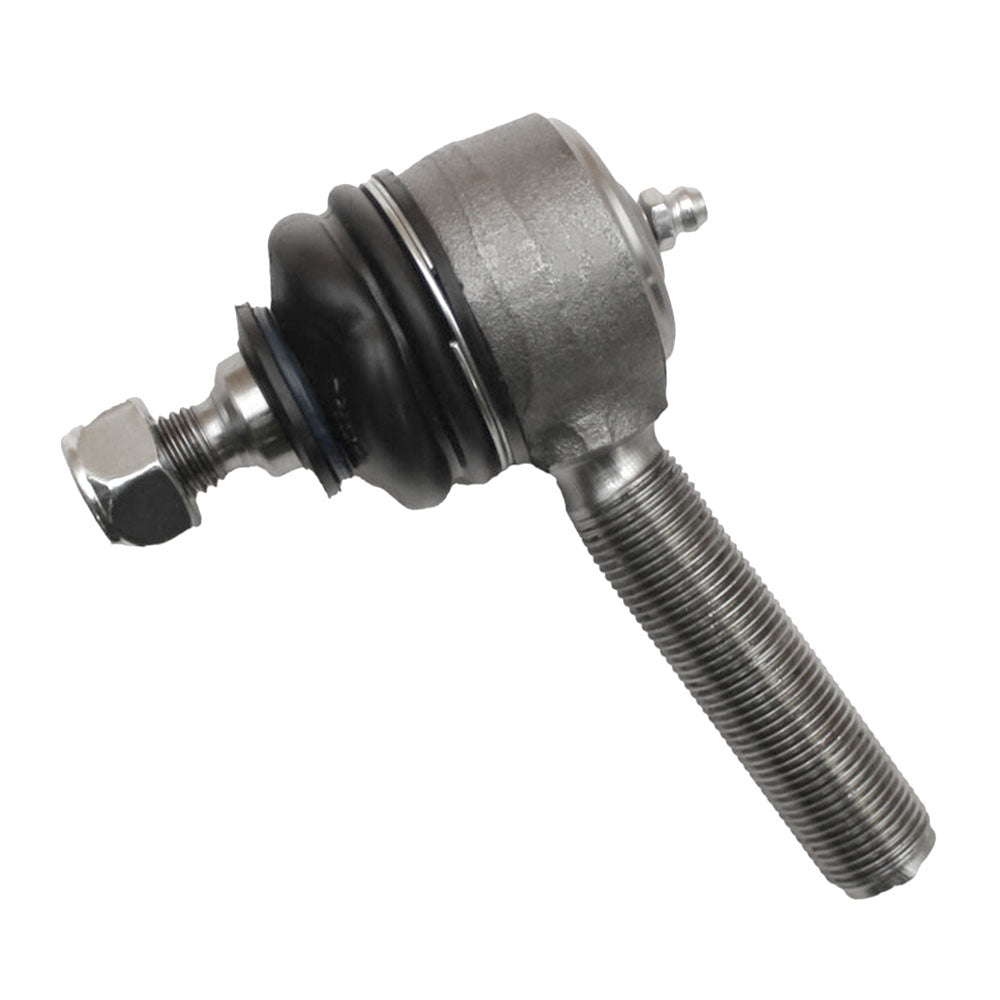

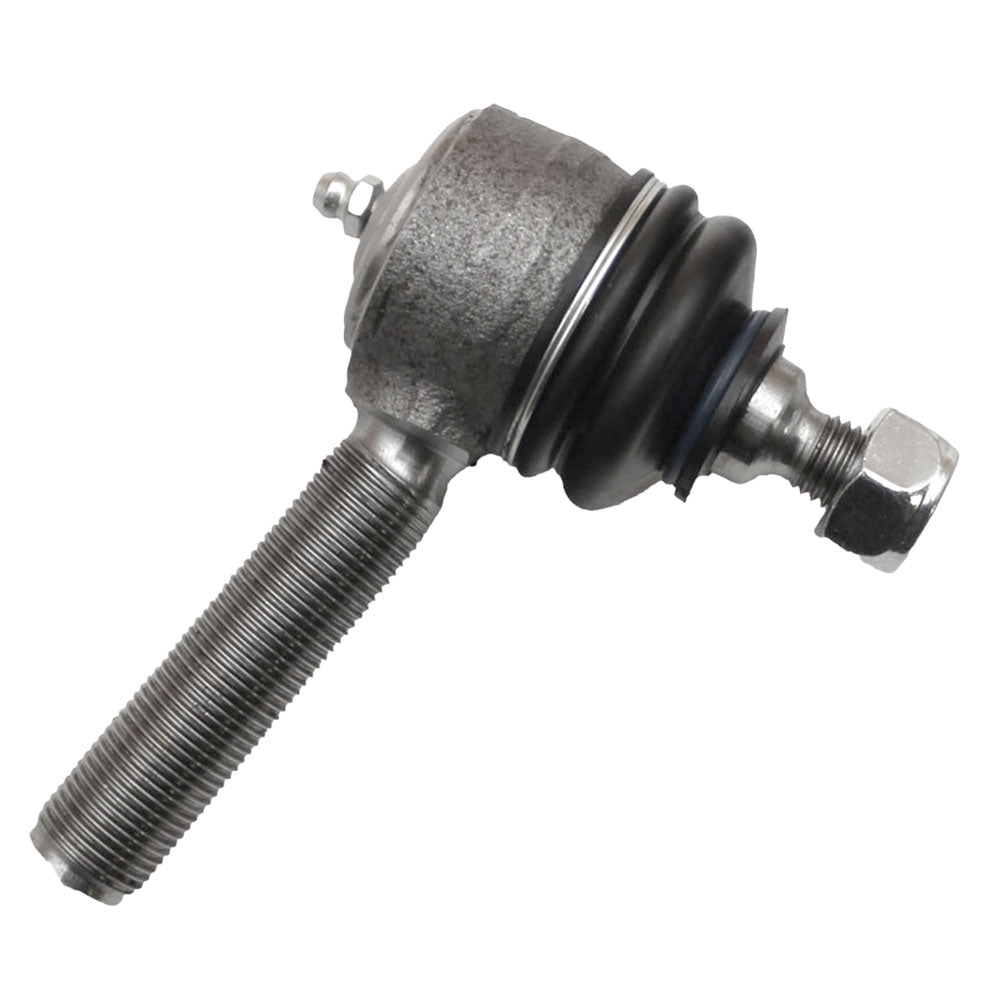

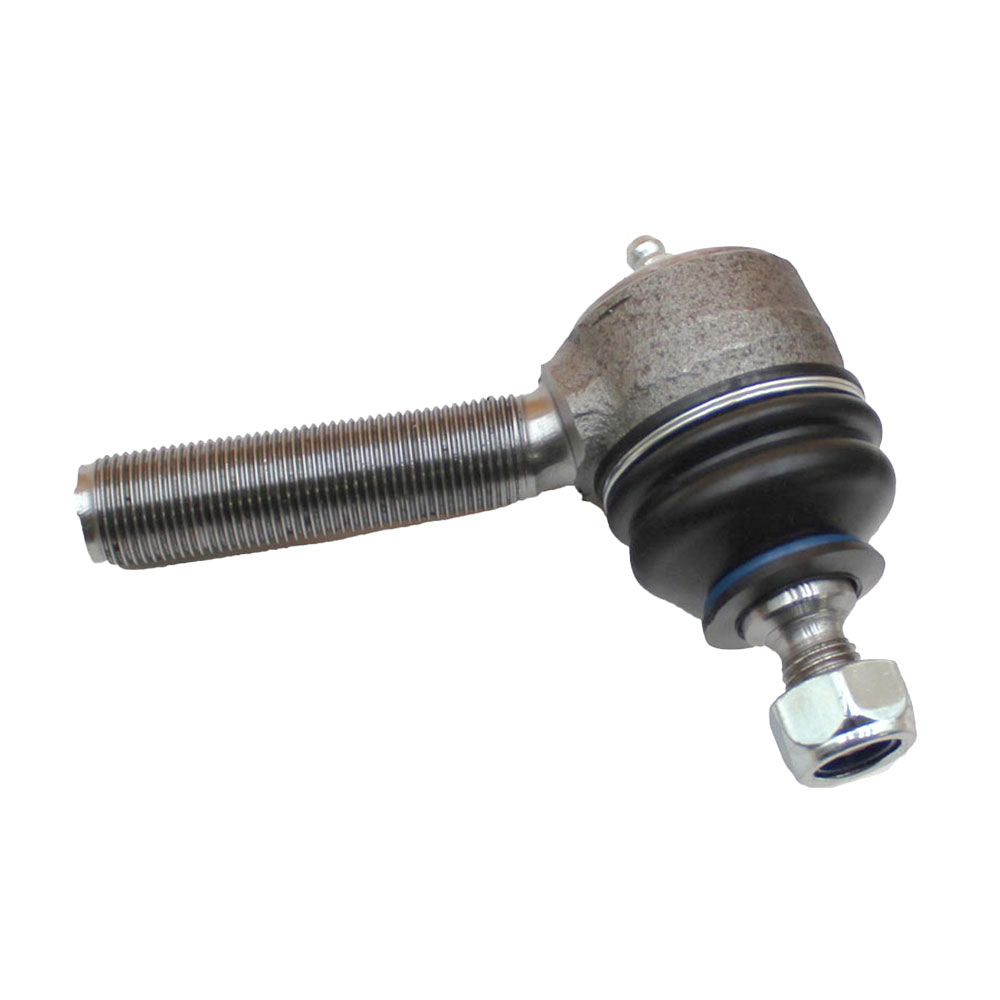

Drag Link End w/ Bent Shank Fits Massey Ferguson Replaces 10B72

Drag Link End w/ Bent Shank Fits Massey Ferguson Replaces 10B72

£20.00 GBP
£20.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Drag Link End w/ Bent Shank

Tech Info:
 -Rear
 -Length: 88.9MM
 -Rod Thread Diameter: 5/8" UNF -LH
 -Taper Diameter: 19.1MM - 17MM
 -Taper Length: 19.6MM
 -Thread Length: 16.5MM
 -Thread Diameter: 12.4MM

Made to Fits Massey Ferguson:
 Tractor Models: TO20, TO30, TO35, TED20, TEF20, TE20, TEA20, 35, 202, 203, 204, 205, 240, 135, 135 UK, 231
 Model Breaks: 135 (Early), 135 (Vineyard), 231 (Turkey), 240 (MAN STRG SN 522354 - A20286)
 Replaces Part Number(s): 180391M1, 193746M1, 826852M91, 180391M91, 826752M92, 193733M91, 27810020, 10B72, 826752M2, 827039M1, 967702M2, 969352M1, 2125781K1, 826752M91, 968405M91, 193733V91, 194607M91, HM180391

 Industrial/Construction Models: 20, 20D, 2135, 30
 Model Breaks: 20D (with Adjustable Axle), 2135 (Narrow)
 Replaces Part Number(s): 180391M1, 193746M1, 826852M91, 180391M91, 826752M92, 193733M91, 27810020, 10B72, 826752M2, 827039M1, 967702M2, 969352M1, 2125781K1, 826752M91, 968405M91, 193733V91, 194607M91, HM180391

Models This Part Fits:

20, 203, 30, 231, TO35, FE35, 2135, TE20, 205, 240, 20D, 135 UK, TO20, TEF20, TED20, TO30, TEA20, 135, 230, 202, 204, 235, 35

Additional Information:

Rear Length: 88.9MM Rod Thread Diameter: 5/8" UNF -LH Taper Diameter: 19.1MM - 17MM Taper Length: 19.6MM Thread Length: 16.5MM Thread Diameter: 12.4MM

Reference Numbers:

180391M91, 193733M91, 180391V91, 193733V91, 180391M1, 193746M1, 826852M91, 180391M91, 826752M92, 193733M91, 27810020, 10B72, 826752M2, 827039M1, 967702M2, 969352M1, 2125781K1, 826752M91, 968405M91, 193733V91, 194607M91, HM180391
